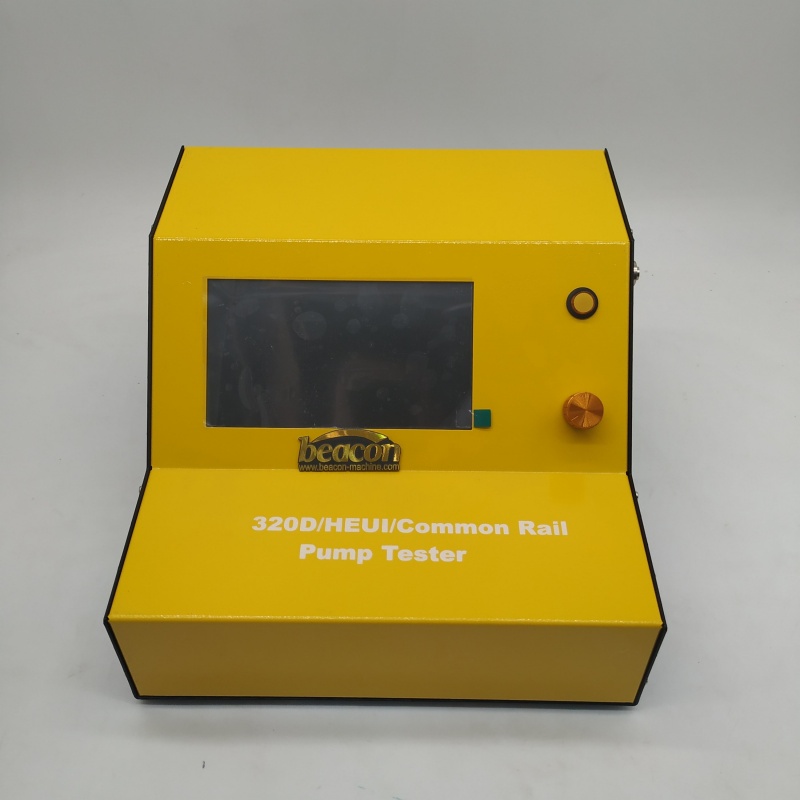

Professional CAT 320D Pump Tester and HEUI Common Rail Pump Controller

The CAT 320D Pump Tester is a specialized diagnostic instrument designed for the high-precision testing and calibration of Caterpillar 320D high-pressure common rail pumps and HEUI (Hydraulic Electronic Unit Injector) systems. This controller replicates the vehicle's ECU functions, allowing for both closed-loop pressure control and open-loop testing. It supports both 4-cylinder and 6-cylinder configurations, with adjustable parameters for cam speed, pulse width, and rail pressure. Technicians can intuitively monitor pressure changes and flow rates through the high-definition interface, which supports multiple languages including English, Russian, and Chinese. Whether you are troubleshooting starting issues or calibrating for maximum efficiency, the CAT 320D tester provides the professional-grade accuracy required for modern Caterpillar diesel fuel systems.

CAT 320D Pump Tester, HEUI Pump Controller, Diesel Common Rail Pump Tester

Professional CAT 320D Pump Tester and HEUI Common Rail Pump Controller Advantage

Dedicated CAT 320D Support: Specialized driving module optimized for the unique requirements of Caterpillar 320D high-pressure pumps.
Dual Mode Functionality: Supports both dedicated 320D pump testing and a general HEUI/Common Rail pump open-loop test mode.
Smart Closed-Loop Control: Features an advanced PID system for fast and stable rail pressure adjustment, mimicking real engine performance.
Flexible Cylinder Configuration: User-selectable 4-cylinder or 6-cylinder cam types to match a wide variety of pump models.
High-Precision Customization: Fully adjustable pulse width, frequency, and drive angle to simulate different engine loads and speeds.
Comprehensive Parameter Setting: Built-in interface to calibrate flow meter coefficients and rail pressure sensors for long-term accuracy.
Extensive Model Database: Allows users to add, delete, and edit pump models and standard test data to keep the system up to date.

parameter

Parameter Item	Specifications / Details
Supported Pump Types	CAT320D, HEUI, Common Rail Pumps [cite: 1]
Interface Languages	English, Chinese, Russian [cite: 2]
Cam Configuration	4-Cylinder / 6-Cylinder Optional [cite: 3]
Adjustable Variables	Cam Speed, Pressure, Pulse Width, Angle, Count (Time) [cite: 3]
Control System	PID (Pressure Rising Speed) & Solenoid Valve Driving [cite: 6]
Test Mode	Open-loop Test for HEUI (ZME/DRV Current Control) [cite: 8, 9]
Sensor Calibration	Flow Meter Coefficient & Rail Pressure Sensor Parameters [cite: 6]
