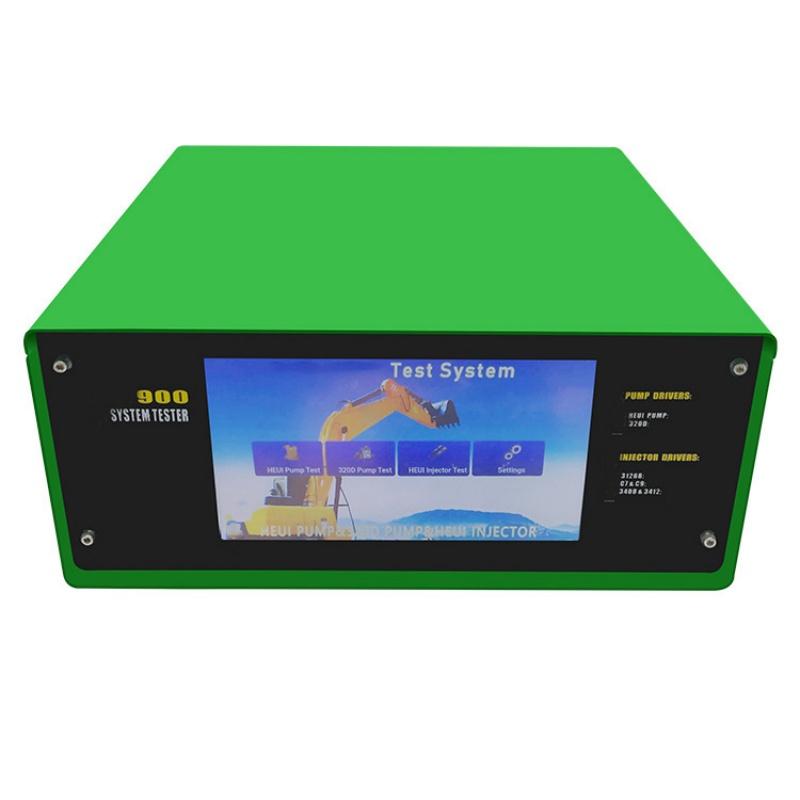

CAT-900 Professional CAT HEUI Injector and 320D Fuel Pump Test System

The CAT-900 is a high-precision diagnostic platform specifically engineered for the maintenance of Caterpillar electronic control systems. This versatile system integrates the testing of HEUI (Hydraulic Electronic Unit Injectors) found in CAT 3126, C7, and C9 engines, as well as the specialized Caterpillar 320D high-pressure common rail pumps. The CAT-900 allows technicians to simulate real-world operating conditions by controlling injection frequency, pulse width, and oil pressure. With a high-definition touch interface and built-in standard test plans, it provides an efficient and accurate solution for diagnosing fuel delivery issues, ensuring Caterpillar machinery operates at peak performance and meets emission standards.

CAT-900 Professional CAT HEUI Injector and 320D Fuel Pump Test System Advantage

Comprehensive CAT Coverage: All-in-one solution for testing CAT HEUI injectors (3126, C7, C9) and 320D common rail pumps.
Precision Pressure Control: Features real-time calibration of pressure sensors (0-160 MPa) for extremely accurate fuel pump diagnostics.
Customizable Test Plans: Allows users to edit and save specific parameters for different working conditions, including oil pump and HEUI settings.

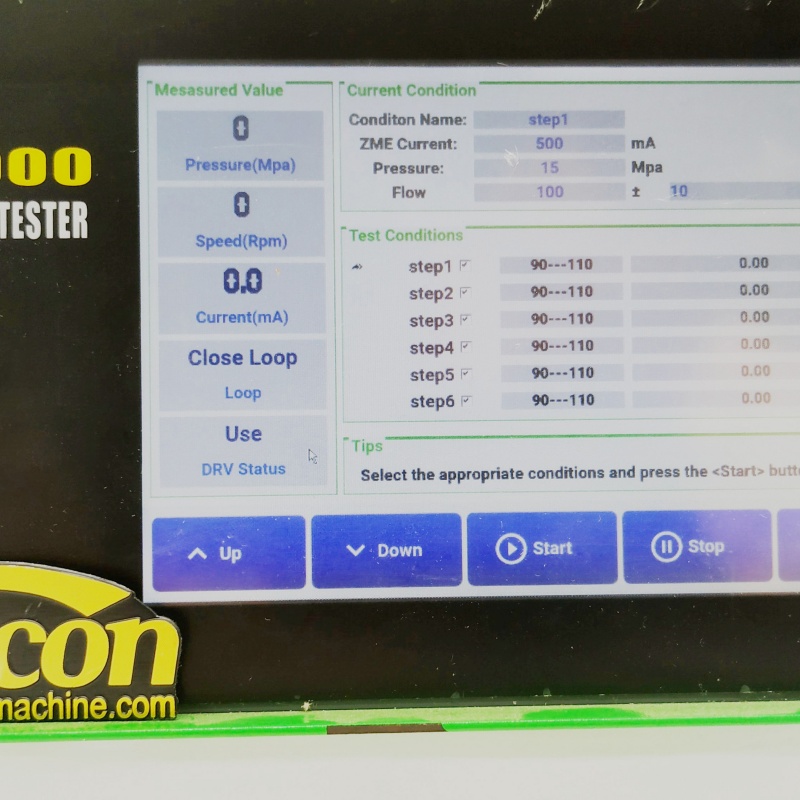

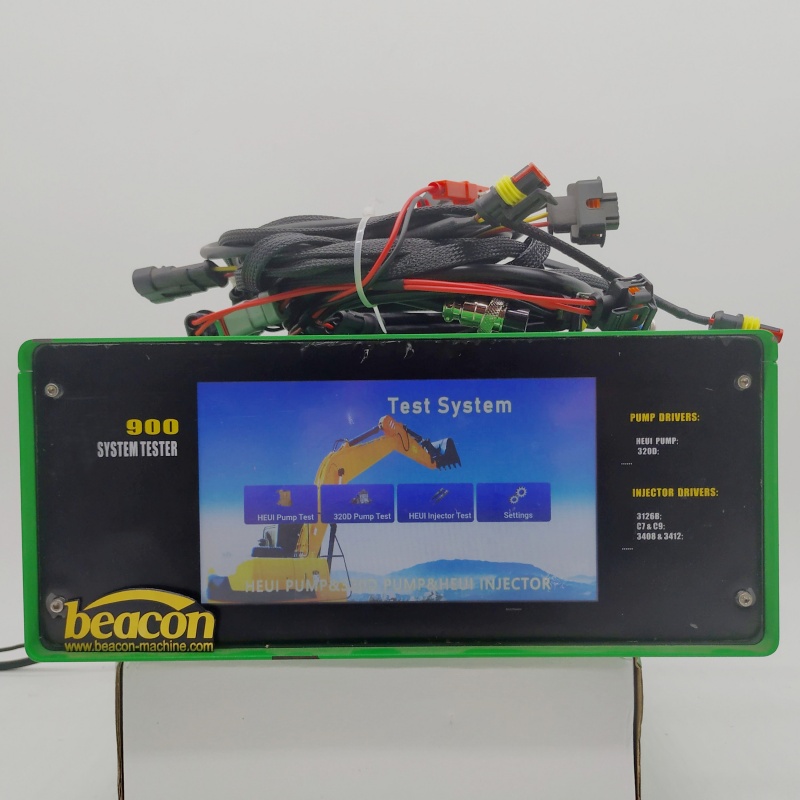

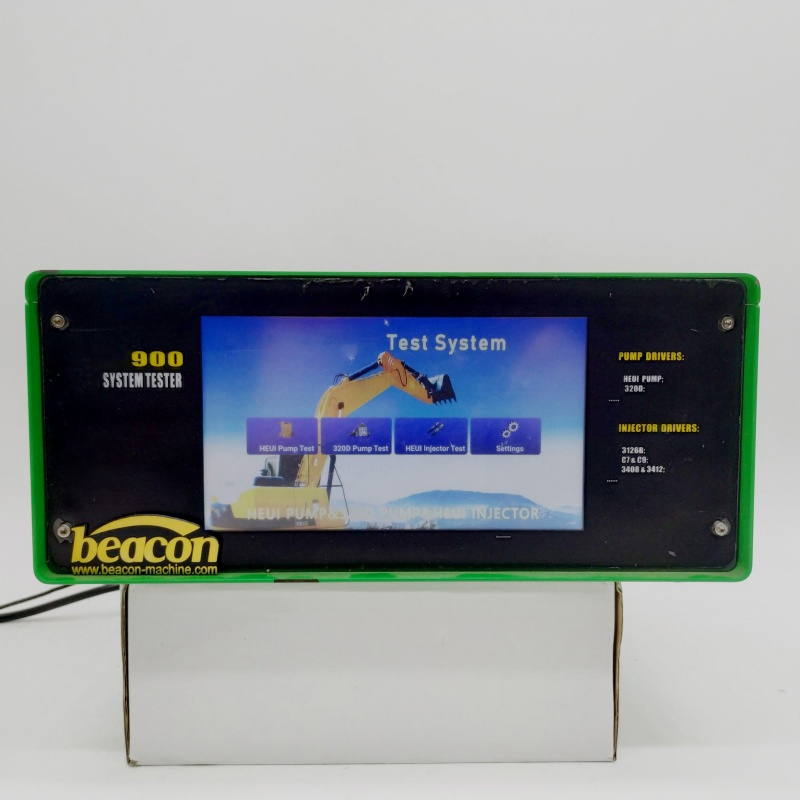

User-Friendly Touch Interface: High-definition touch screen with intuitive navigation for quick access to test functions and system settings.
High-Accuracy Data Monitoring: Built-in flow sensor K-factor adjustment and digital filtering ensure stable and reliable measurement data.

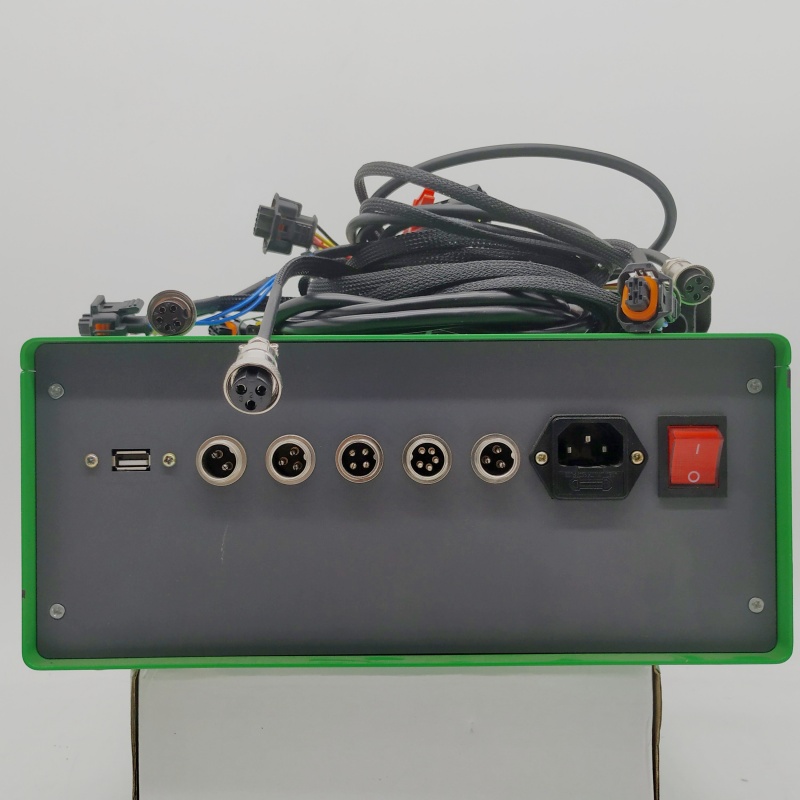

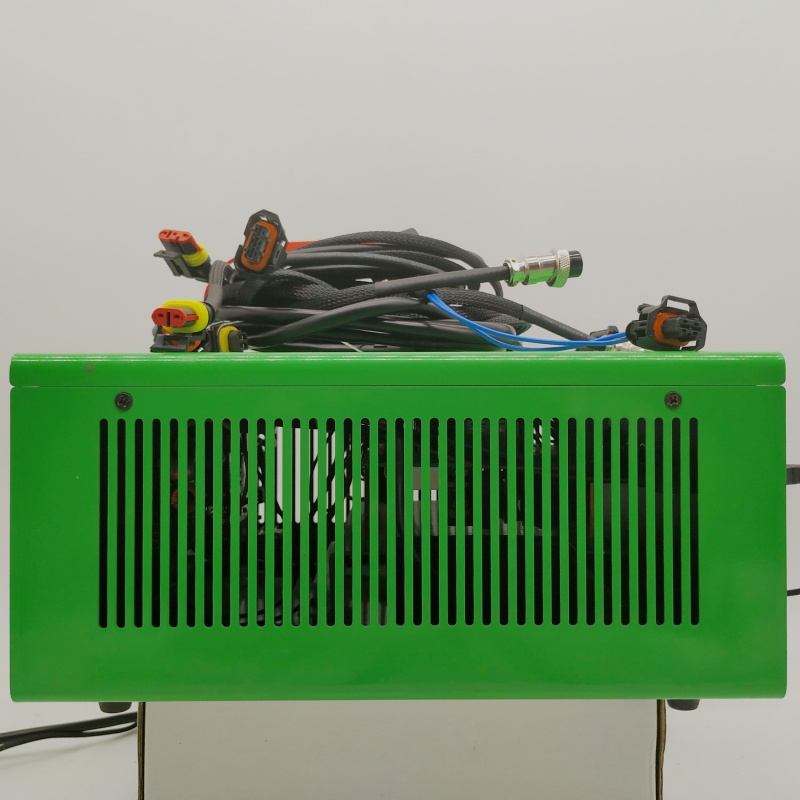

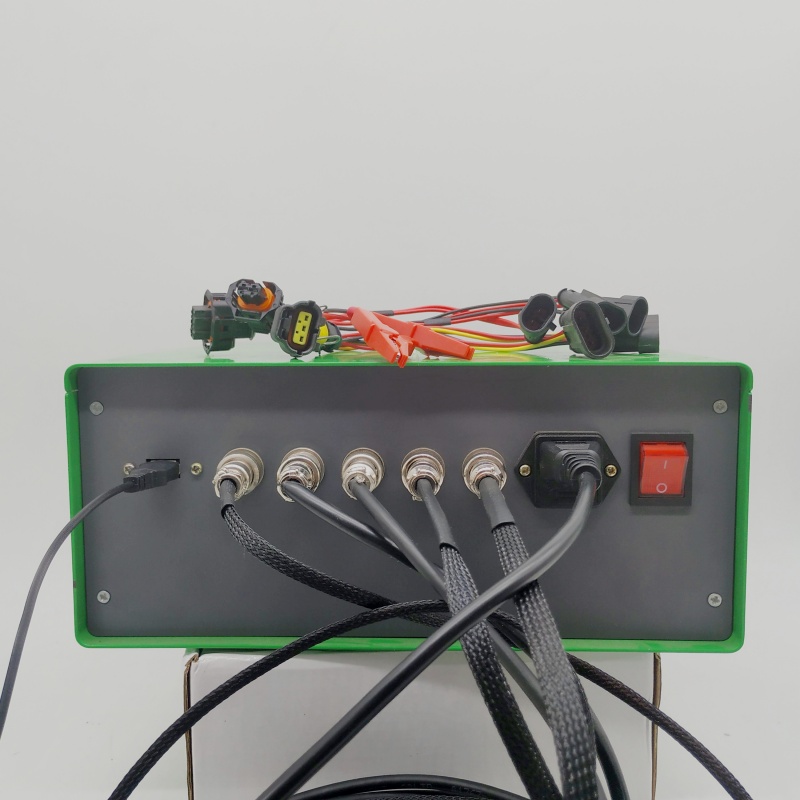

Durable & Industrial Design: Rugged chassis design with specialized cable connectors for reliable use in heavy-duty workshop environments.
Multi-Language Support: Intuitive interface currently supporting English and Chinese for international service centers.

parameter

Technical Specification	Details (Model CAT-900)
Primary Applications	CAT HEUI Injectors (C7, C9, 3126), CAT 320D Pumps
Pressure Measurement Range	0 - 160 MPa (Digital Calibration)
Control Parameters	Adjustable Pulse Width, Frequency, and Oil Pressure
Display Technology	Industrial High-Definition Touch Screen
Interface Languages	English / Chinese (Switchable)
System Protection	Over-pressure Protection and Sensor Fault Monitoring
Input Power	Standard Workshop AC Power Supply
Sensor Support	Flow Sensor (K-factor adjustable) & Pressure Sensor Calibration
