Diesel Injector Repair Guide: Diagnose, Fix, and Extend Engine Life

Diesel Injector Repair Guide: Diagnose, Fix, and Extend Engine Life

A faulty diesel injector can lead to a host of problems, including high fuel consumption, engine misfiring, rough idling, and increased emissions. Ignoring injector issues can result in costly engine damage over time, but with the right diagnostic and repair steps, you can restore injector performance and extend your engine’s lifespan.

First, it’s crucial to identify the signs of a failing injector. Common symptoms include: leaky or over-fueling injectors (leading to poor fuel economy), misfiring (as faulty injectors disrupt cylinder firing), black smoke from the exhaust, loss of power, and a lit check engine light. If you notice any of these, it’s time to perform a diagnostic check.

### Diagnostic Procedure

1. Visual Inspection: Start by checking the injector for fuel leaks, corrosion, or cracked housings. Even small leaks can affect performance and pose a safety risk.

2. Fuel Quality Check: Sample the diesel fuel and check it against ISO 4406 standards to ensure it’s free from contaminants (dirt, water, or diesel bug) that can clog injectors.

3. Electrical Testing: Use a multimeter to measure the injector’s solenoid resistance. Compare the reading to the manufacturer’s specifications—an abnormal reading indicates a faulty solenoid. Additionally, scan the ECU for fault codes using a diagnostic tool.

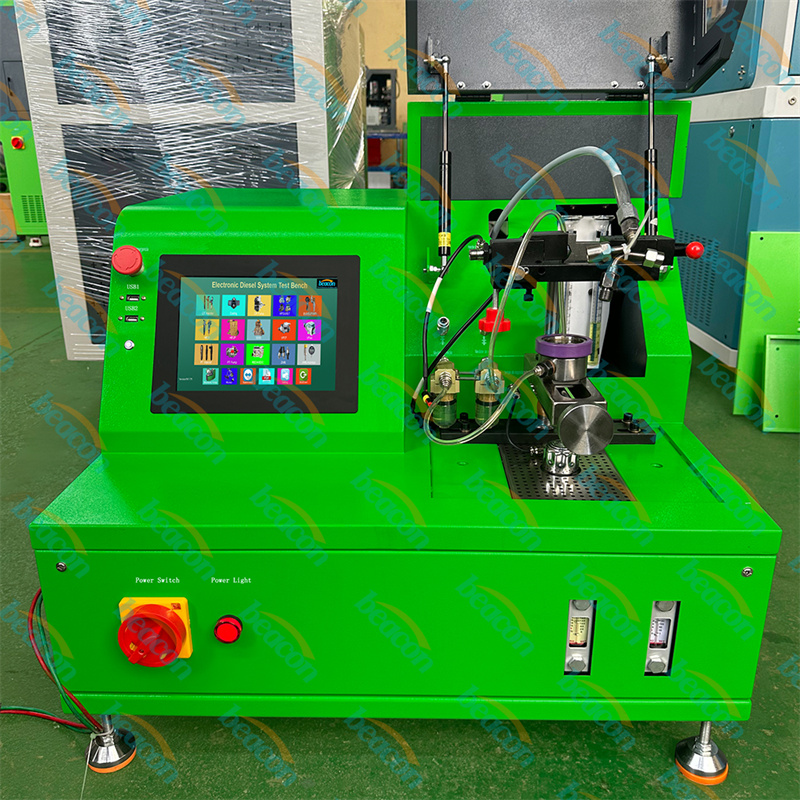

4. Performance Testing: For a more thorough check, use a test bench to inspect the injector’s spray pattern and pressure. A uneven spray pattern or low pressure means the injector needs repair or replacement.

### Repair Process

1. Removal: Disconnect the battery to avoid electrical shocks, relieve fuel pressure from the system, and carefully extract the injector from the cylinder head.

2. Cleaning & Inspection: Use an ultrasonic cleaner to remove carbon buildup and contaminants from the injector. After cleaning, inspect all components (nozzle, solenoid, seals) for wear or damage.

3. Reinstallation: Install a new sealing washer (old washers can cause leaks), torque the injector bolt to the manufacturer’s recommended setting, and reconnect all electrical and fuel line components.

4. Post-Repair Testing: Start the engine and monitor injector performance. Clear any ECU fault codes and check for leaks, rough idling, or misfiring. If everything runs smoothly, the repair is complete.

### Maintenance Tips to Prevent Future Issues

- Use clean, high-quality diesel fuel to avoid contamination.

- Replace fuel filters every 500 operating hours.

- Clean injectors every 1000 hours using ultrasonic equipment.

- Inspect electrical connections during scheduled maintenance.
