How Do Diesel Fuel Injectors Work? A Complete Guide

How Do Diesel Fuel Injectors Work? A Complete Guide

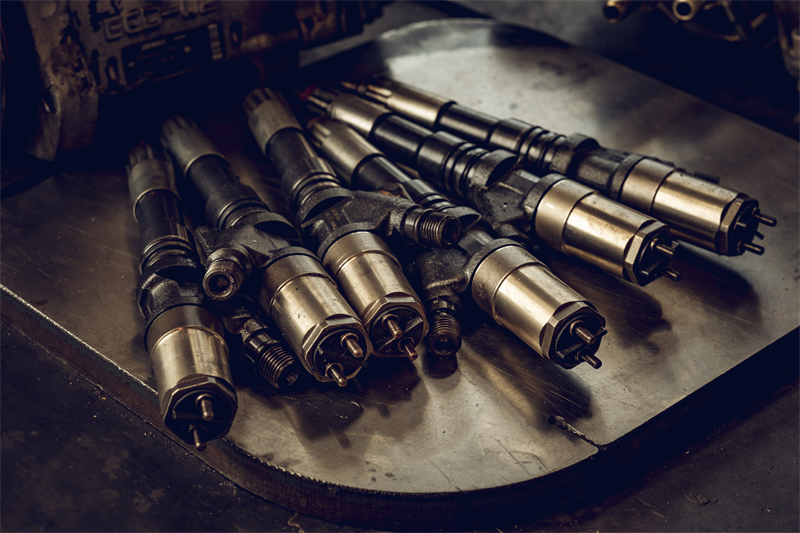

Diesel fuel injectors are among the most critical components in modern diesel engines. Even with the best design and build quality, an engine will underperform, or even fail, if fuel isn't delivered at the right time, in the exact amount, and in the correct spray pattern. Fuel injectors truly serve as the "heart" of the combustion process by ensuring fuel atomizes efficiently and combines with air for clean, powerful ignition.

Unlike gasoline engines that use spark plugs for ignition, diesel engines rely on compression ignition. Air is compressed inside the cylinders until it reaches extremely high temperatures—hot enough to ignite diesel fuel when it’s injected. This places immense pressure on injectors, which must operate with exceptional precision to maintain engine performance, fuel efficiency, and emission compliance.

The operation of a diesel fuel injector can be broken down into four critical stages: fuel pressurization, timing and control, atomization, and fuel delivery. First, fuel is drawn from the tank and delivered to the common rail (in modern systems) or directly to the injector, where it’s pressurized to levels ranging from 20,000 to 35,000 psi. This high pressure is essential to break down dense diesel fuel into tiny droplets.

Next, the engine’s Electronic Control Unit (ECU) calculates the exact timing and duration of fuel injection based on real-time data from sensors (engine speed, load, temperature, etc.). The ECU sends an electrical signal to the injector’s solenoid, which opens a valve to release the pressurized fuel. As the fuel exits the injector’s nozzle, it atomizes into a fine mist that mixes thoroughly with the hot, compressed air in the cylinder—enabling efficient combustion.

Proper injector performance is vital for more than just power. Research published in Applied Energy confirmed that precision injectors (with a minimum single-injection quantity of approximately 5.9 mm³ at 30 MPa rail pressure) greatly enhance fuel efficiency and reduce harmful emissions. Without this precision, diesel engines suffer from hard starts, power loss, elevated emissions, and accelerated component wear.
