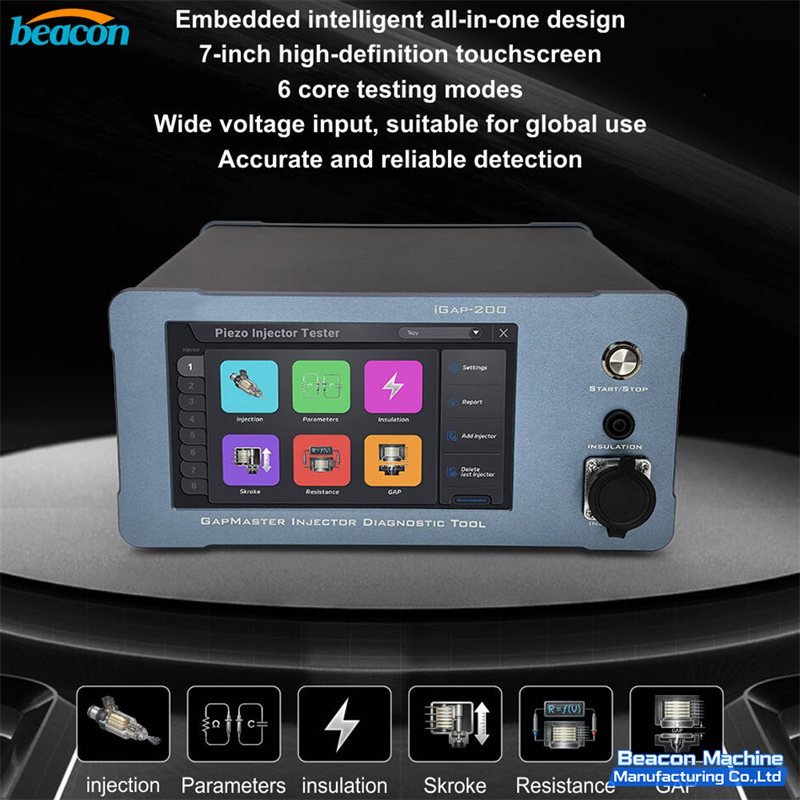

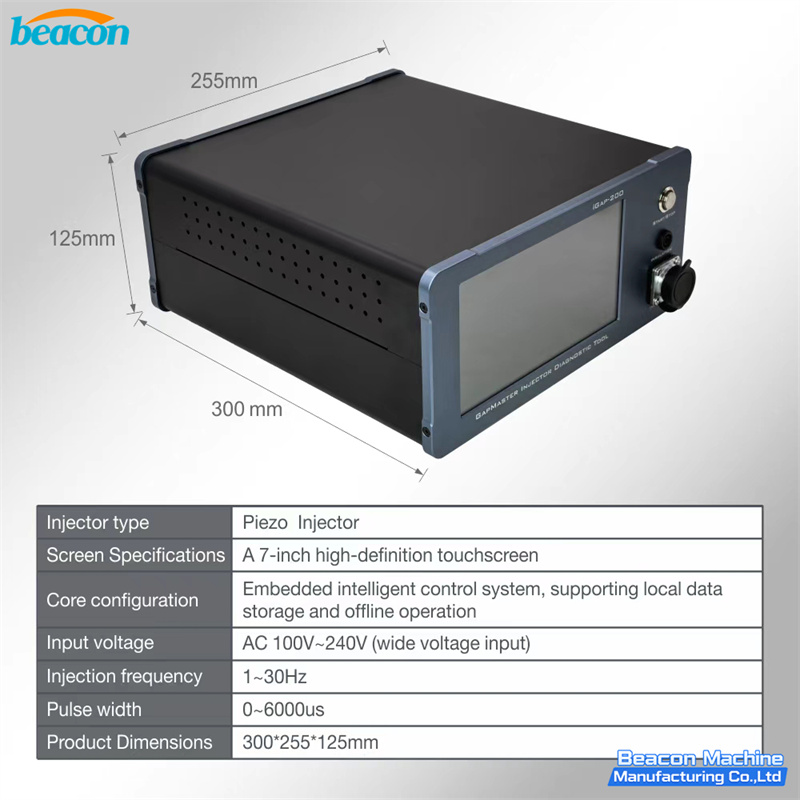

The i-GAP 200 is a professional desktop piezo injector tester designed for diagnosing and servicing common rail piezo injectors in modern heavy-duty diesel engines. It combines injector drive, electrical parameter measurement, insulation testing, mechanical stroke measurement, resistance measurement and the critical GAP function in a single color touchscreen unit.

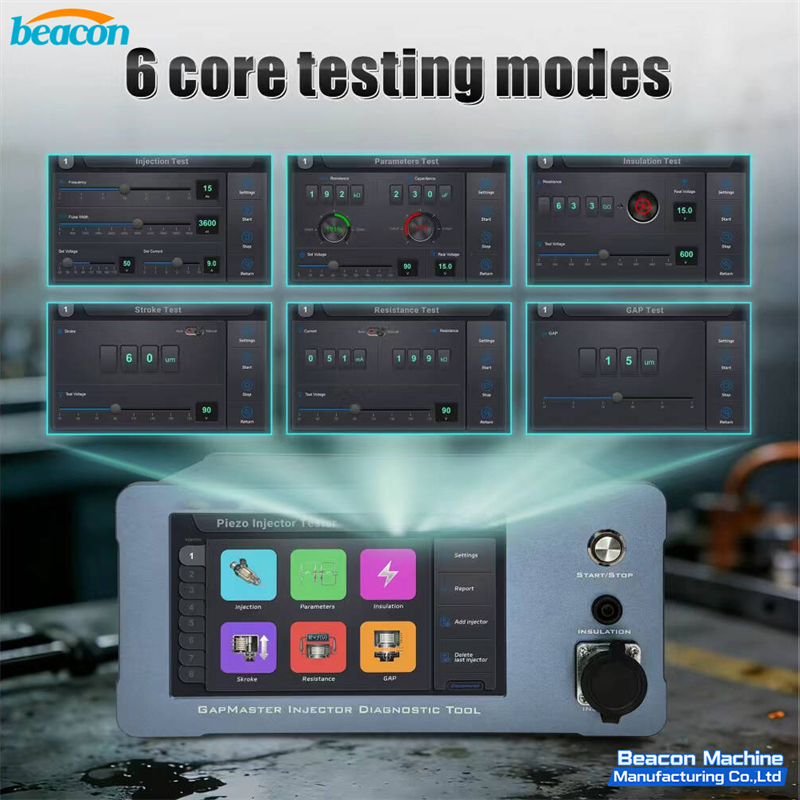

Six Core Testing Modes

• Injection Test: Drives a piezo injector with adjustable test settings for functional checks.

• Parameters Test: Measures electrical parameters including resistance and capacitance.

• Insulation Test: Checks high-voltage insulation performance to identify leakage or internal electrical faults.

• Stroke Test: Connects to an electronic dial indicator to measure mechanical stroke data.

• Resistance Test: Measures circuit resistance for injector coil and actuator diagnosis.

• GAP Test: Measures the critical internal injector clearance used during calibration and repair.

Typical Piezo Injector Series It Supports

Used in repair workshops for piezo injectors such as:

• Bosch piezo injectors, including the 0445 116 series, e.g. 0445116018 for Mercedes-Benz MP4 and Euro VI heavy duty

• Siemens / Continental VW and Audi PPD Piezo injectors used on VW 2.0 TDI, 3.0 TDI and 4.2 TDI Piezo engines (Euro V / Euro VI)

• Other common rail piezo actuators used on Euro V and Euro VI heavy-duty platforms

Designed for Diesel Repair Workshops

The tester provides mode selection, parameter setting and waveform viewing from the main display. A physical START/STOP button allows quick control of each test. Dedicated insulation and aviation-style injector connectors support secure workshop operation.

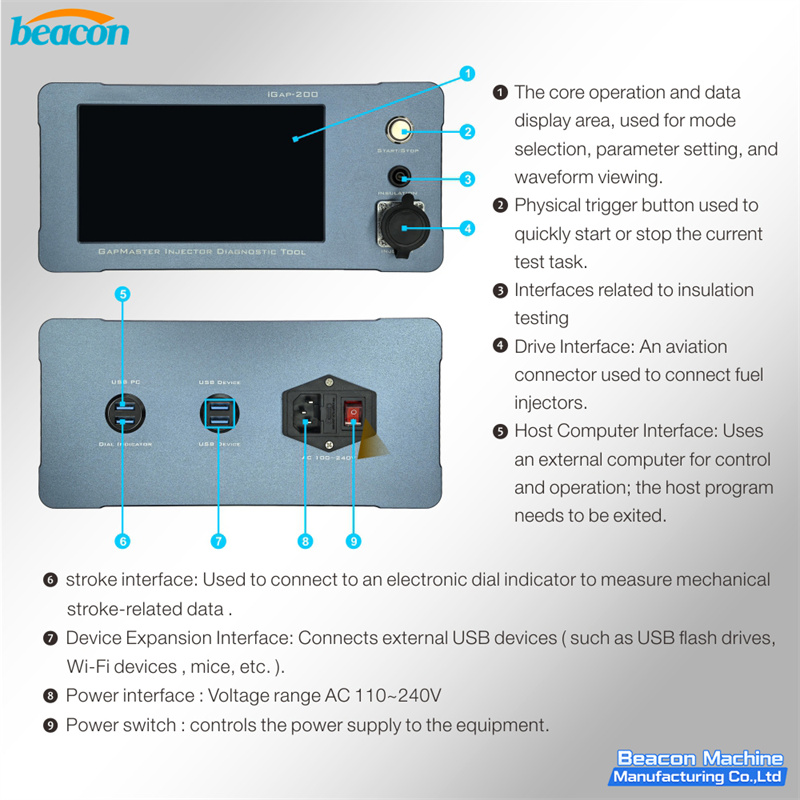

Interfaces and Connectivity

• Host computer interface for external computer control and operation

• Stroke interface for an electronic dial indicator

• USB device expansion interface for accessories and data devices

• Dedicated injector drive and insulation test interfaces

Key Advantages

• Six diagnostic modes integrated in one compact piezo injector tester

• Clear color touchscreen for mode selection, settings and waveform viewing

• Injector drive, electrical diagnosis and mechanical GAP or stroke checks in one workflow

• Physical START/STOP control for fast workshop operation

• Supports external computer control and USB device expansion

• AC 110-240V wide-range power input for international use

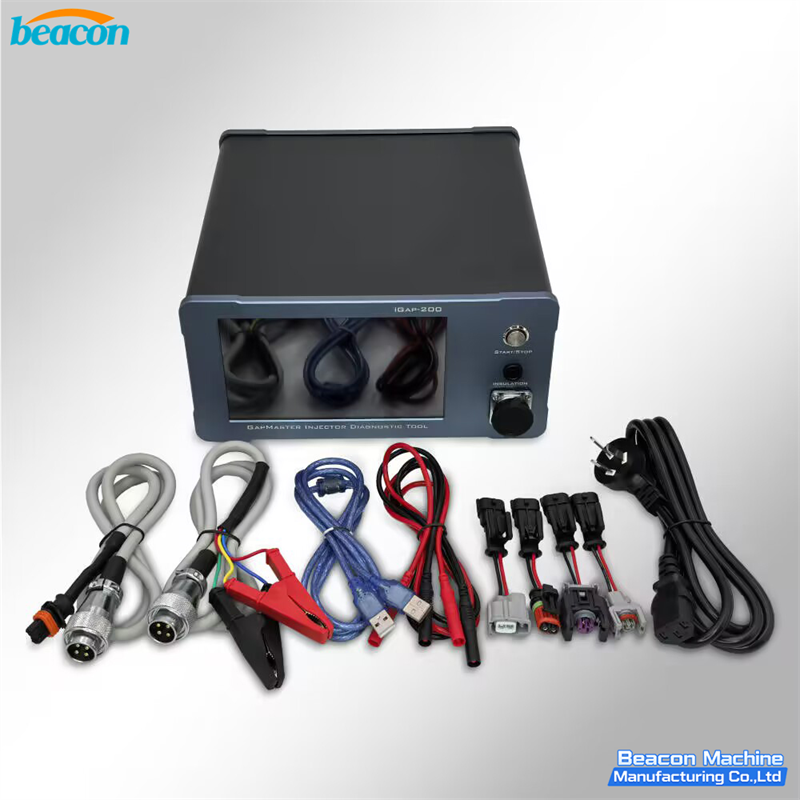

• Supplied with injector connection cables, test leads and power cable
