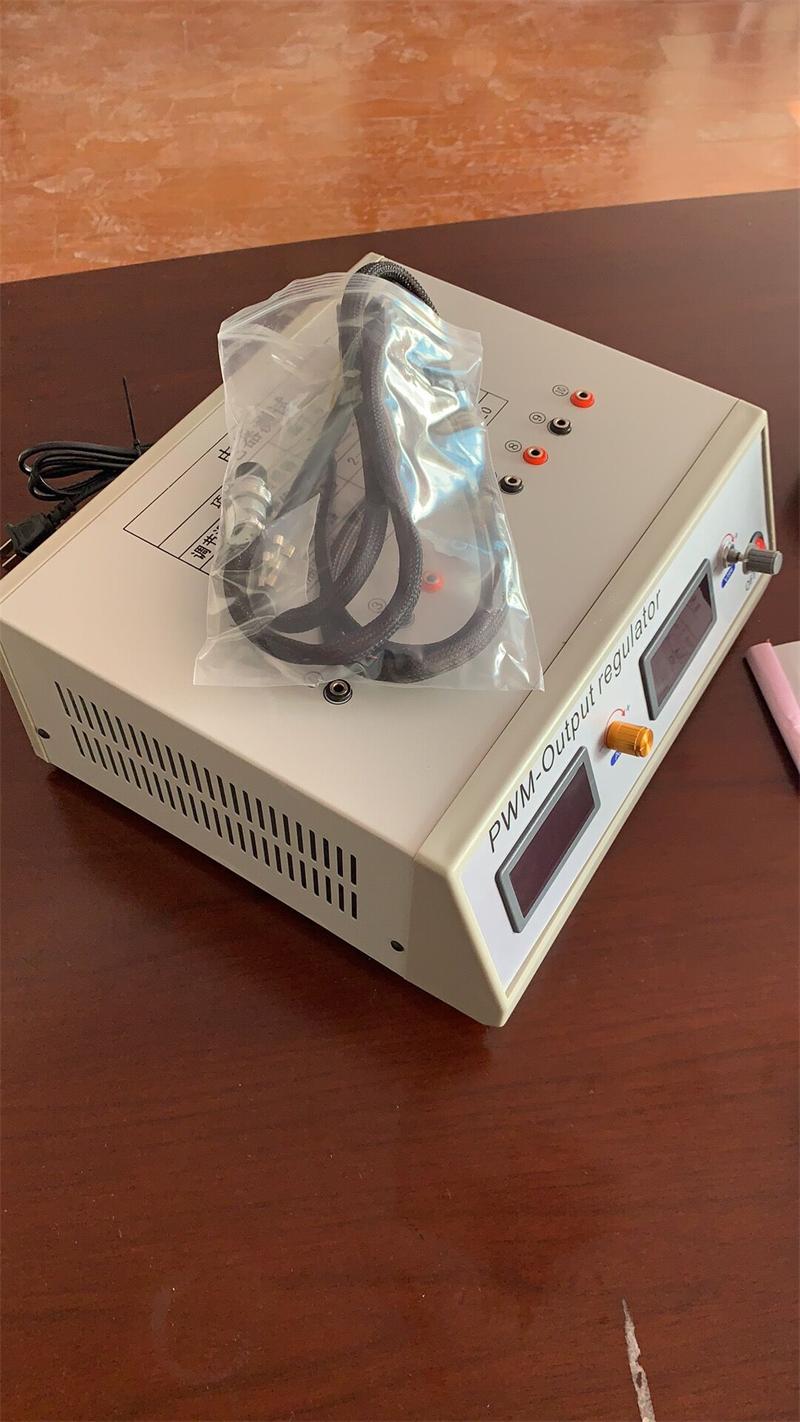

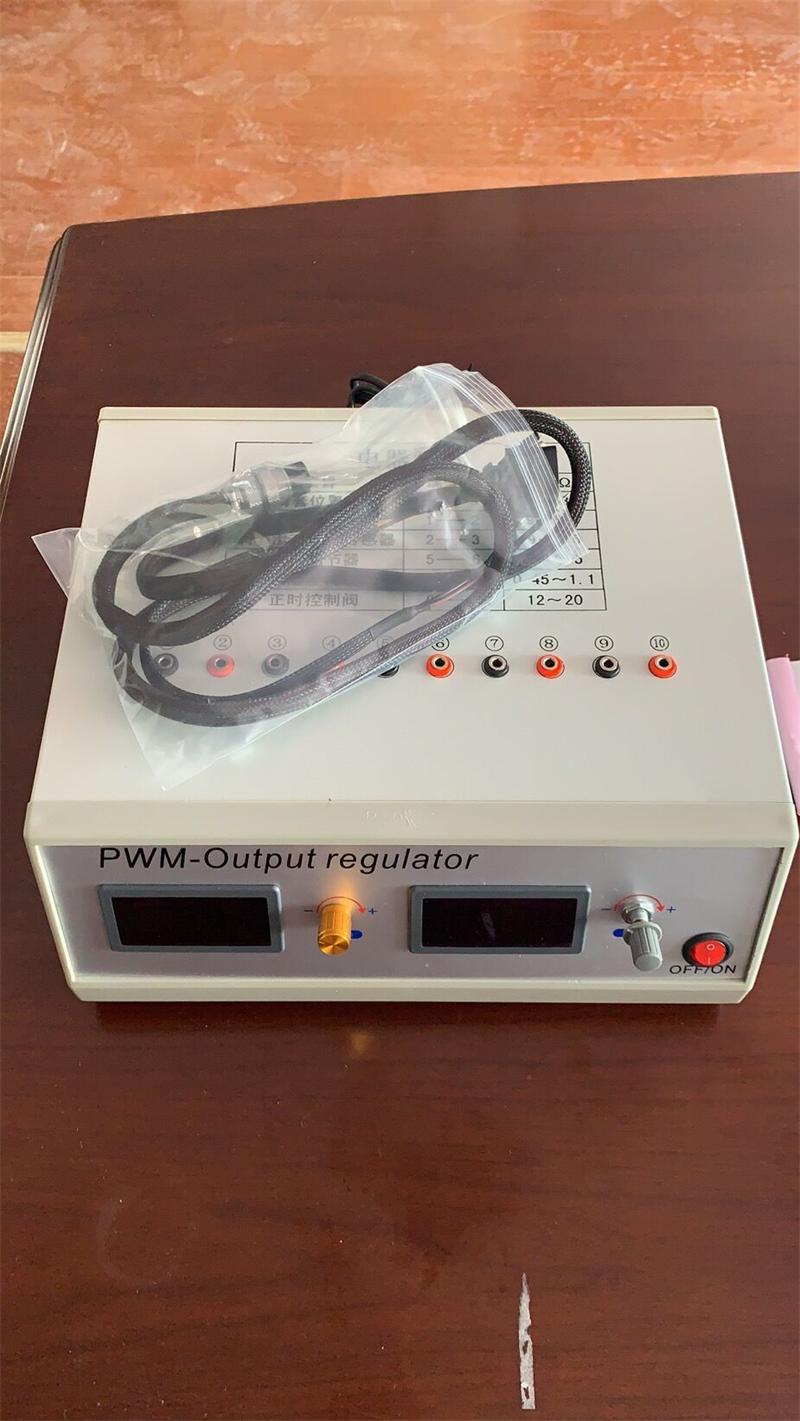

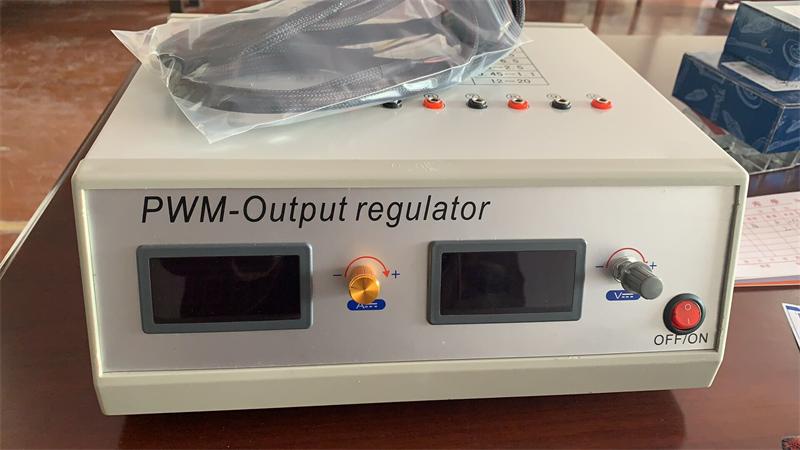

Professional VP37 RED4 Electronic Control Diesel Fuel Pump Tester and EDC Simulator

The VP37/RED4 Tester is a high-precision diagnostic instrument designed for the testing and maintenance of electronic control high-pressure diesel pumps. Its core driving module utilizes advanced ST (STMicroelectronics) current-mode analog control technology, perfectly replicating the ECU's control signals for high-pressure pumps. This device provides real-time digital displays of rail pressure and driving current, allowing technicians to observe parameter changes during calibration. Specifically optimized for VP37 and VE37 pump types, it features a built-in current protection system for safe operation. The tester also includes external wiring ports for convenient resistance checks, helping repair personnel quickly diagnose electrical faults in the diesel fuel injection system.

Professional VP37 RED4 Electronic Control Diesel Fuel Pump Tester and EDC Simulator Advantage

Authentic ECU Simulation: Uses ST chips to provide accurate current-mode control, ensuring the test mimics real engine operating conditions.
Comprehensive Pump Support: Specifically designed for the diagnostic and calibration needs of VP37 and VE37 electronic control pumps.
Real-Time Digital Monitoring: Clearly displays driving current and voltage, enabling quick and intuitive fault diagnosis.
Integrated Safety Protection: Features a built-in current protection system to safeguard the device and the pump during high-load testing.
Diagnostic Versatility: External ports allow for easy resistance (Ω) testing of various harness connectors using a multimeter.
Precision Calibration: Provides detailed calibration parameters for fuel delivery at different speeds (300, 700, 1000 r/min) to ensure optimal engine performance.
Durable & Reliable: Industrial-grade components designed to perform in harsh workshop environments from -5°C to 50°C.

parameter

Technical Specification	Parameter Details (VP37/RED4)
Compatible Pump Types	VP37, VE37, RED4
Driving Current Range	4.0 ~ 5.0 A
Driving Voltage Range	0 ~ 5.0 V
Current Frequency	165 ~ 195 Hz
Response Time	≤ 0.1 S
Operating Temperature	-5°C to 50°C
Power Supply	AC 220 V
Display Interface	Dual Digital Display (Current & Voltage)
