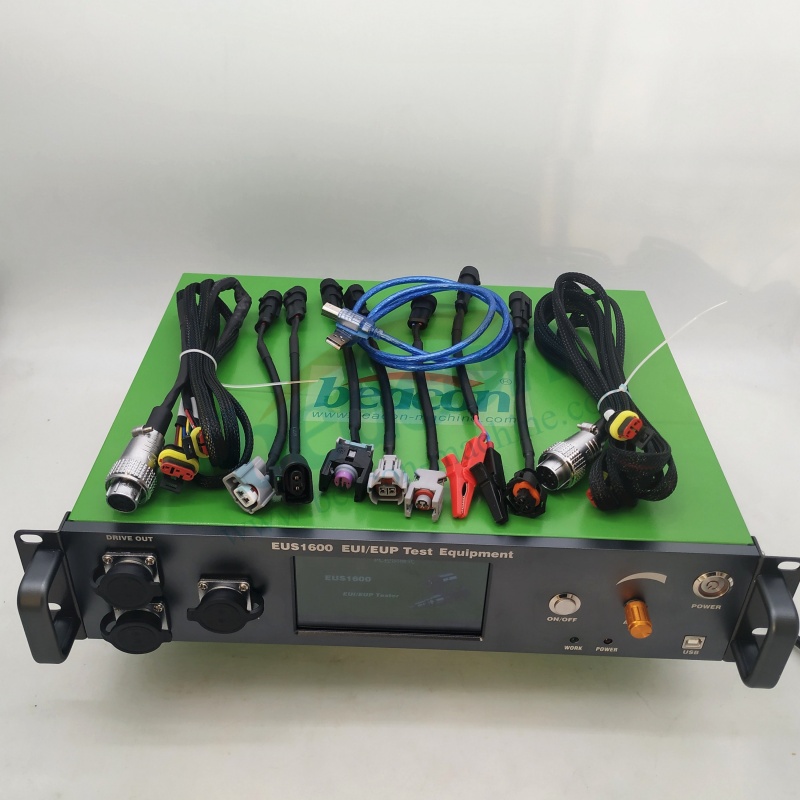

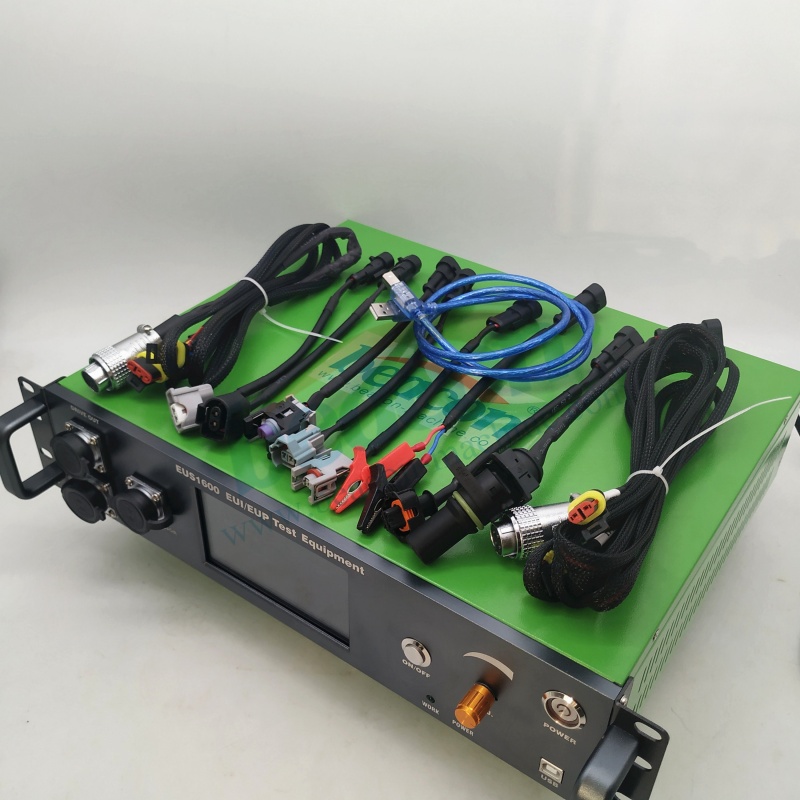

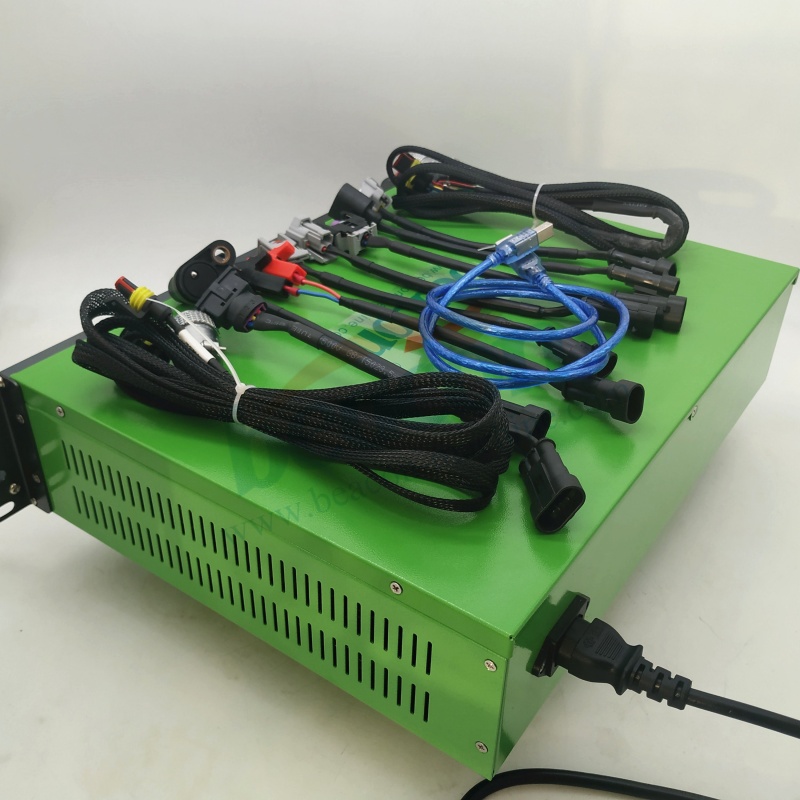

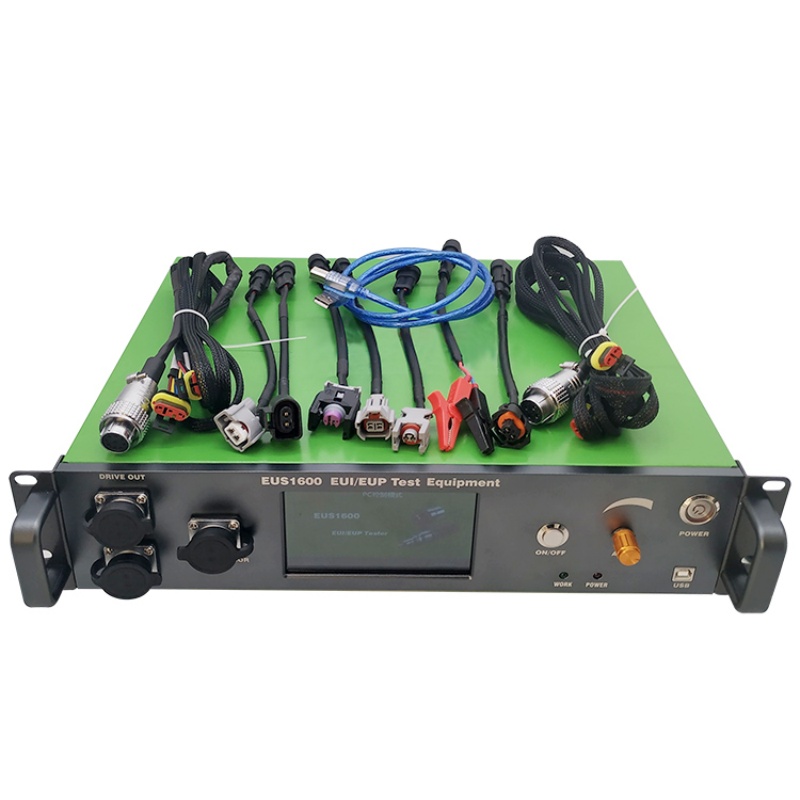

Eus1600 All-in-One EUI EUP Test System with BIP and IQA Coding Support

The Eus1600 is a state-of-the-art diagnostic control system designed for the most demanding diesel fuel injection services. It is an "All-in-One" solution that supports EUI/EUP (Electronic Unit Injectors/Pumps), including complex double-solenoid Delphi E3 and HPI X15 systems. Beyond standard testing, the Eus1600 features advanced BIP (Begin of Injection Period) signal input, IQA coding generation for common rail injectors, and HEUI (Hydraulic Electronic Unit Injector) drive capabilities. With over 3,500 built-in test plans and a real-time drive waveform display (oscilloscope function), it provides technicians with unparalleled precision and depth for high-end diesel engine component reconditioning.

Eus1600 All-in-One EUI EUP Test System with BIP and IQA Coding Support Advantage

Universal Injector Compatibility: Supports electromagnetic, piezoelectric, double pulse M11, and double solenoid Delphi E3, HPI X15, and QSK60.
IQA Coding Generation: Optional feature to generate high-precision IQA codes for common rail injectors, ensuring perfect engine calibration.
BIP Signal Monitoring: Integrated BIP sensor support for measuring exact solenoid response times, critical for heavy-duty engine timing.
Oscilloscope-Grade Waveform Display: Real-time visualization of drive current and voltage waveforms, allowing for deep electrical diagnostics.
Massive Database: Includes more than 3,500 standard test plans, which can be easily updated or edited by the user.
Flexible Operation: Can be operated directly via the built-in high-definition touch screen or connected to a laptop for remote control.
Dual Functionality: Not only a EUI/EUP specialist but also capable of driving HEUI and standard common rail injectors with AHE lift testing.

parameter

Technical Feature	Specification Details (Model Eus1600)
Supported Systems	EUI, EUP, HEUI, Common Rail (Solenoid & Piezo)
Advanced Functions	BIP Measurement, IQA Coding, AHE Lift, Waveform Display
Cam Signal Input	Hall Sensor, Magnetoelectric, Encoder
Drive Current/Voltage	Fully Adjustable (Supports Delphi E3/HPI/QSK60)
Electrical Testing	Resistance, Inductance, Capacitance
Interface Language	Multi-language (English, Russian, Chinese, etc.)
Control Method	Built-in Touch Screen / External PC Support
Database Capability	3,500+ Test Plans (Supports User Editing & Adding)
