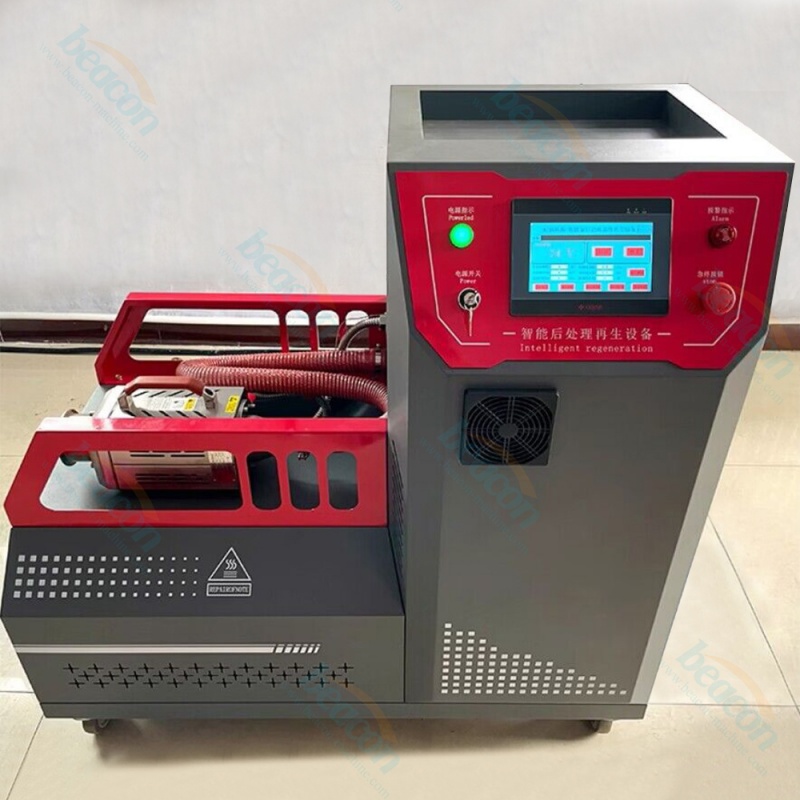

DPF-CL(S) Intelligent Diesel Particulate Filter Regeneration System for Euro 6 Engines

The DPF-CL(S) Smart Edition is a professional-grade diagnostic and regeneration solution that simulates vehicle engine conditions to restore Diesel Particulate Filters (DPF). This intelligent device acts as a high-performance engine, delivering continuous thermal energy from 0°C to 800°C within just 10 minutes. By heating directly from the core area, it ensures 96% cleaning efficiency without damaging the external insulation. Managed by a programmable PLC control system and a high-definition touch screen, the DPF-CL(S) automates the entire process of multi-stage temperature control and high-pressure purging, making it the ultimate tool for National VI (Euro 6) aftertreatment maintenance.

DPF-CL(S) Intelligent Diesel Particulate Filter Regeneration System for Euro 6 Engines Advantage

Smart PLC Control: Equipped with a programmable intelligent PLC system for multi-stage temperature management and fully automated operation.

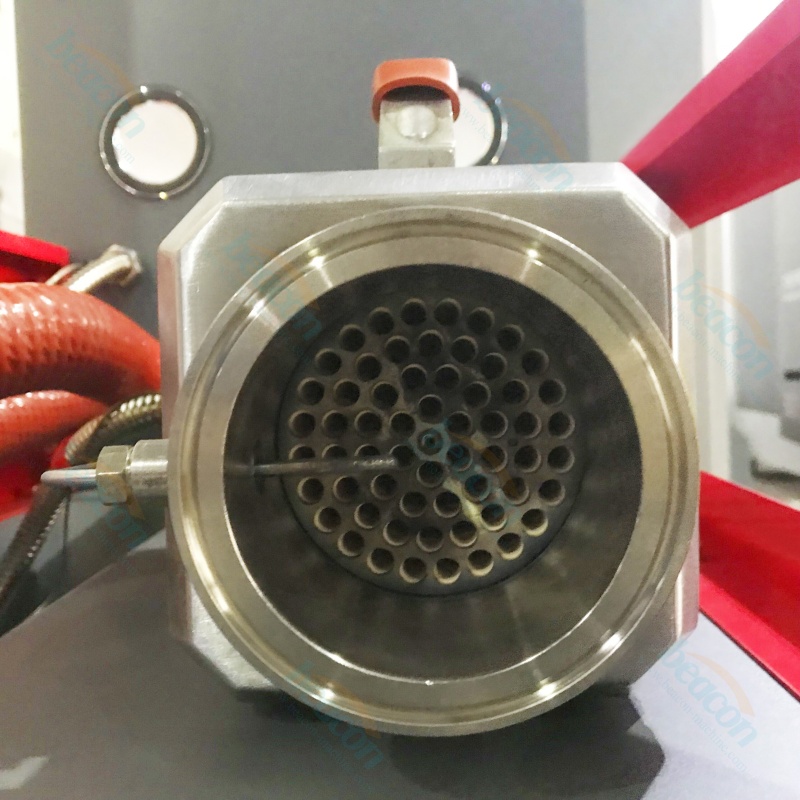

Core-Direct Heating: Simulates engine thermal output to heat the DPF core directly, reaching 800°C in 10 minutes for maximum soot and ash removal.
High Cleaning Efficiency: Achieves over 96% regeneration effect, effectively clearing carbon deposits and urea crystallization.
Rapid Cooling Mode: Automatically reduces temperature from high heat to 40°C within 10 minutes, significantly shortening the service cycle.
Integrated Pressure Testing: Built-in back pressure detection and alarm system to evaluate DPF condition before and after the regeneration process.

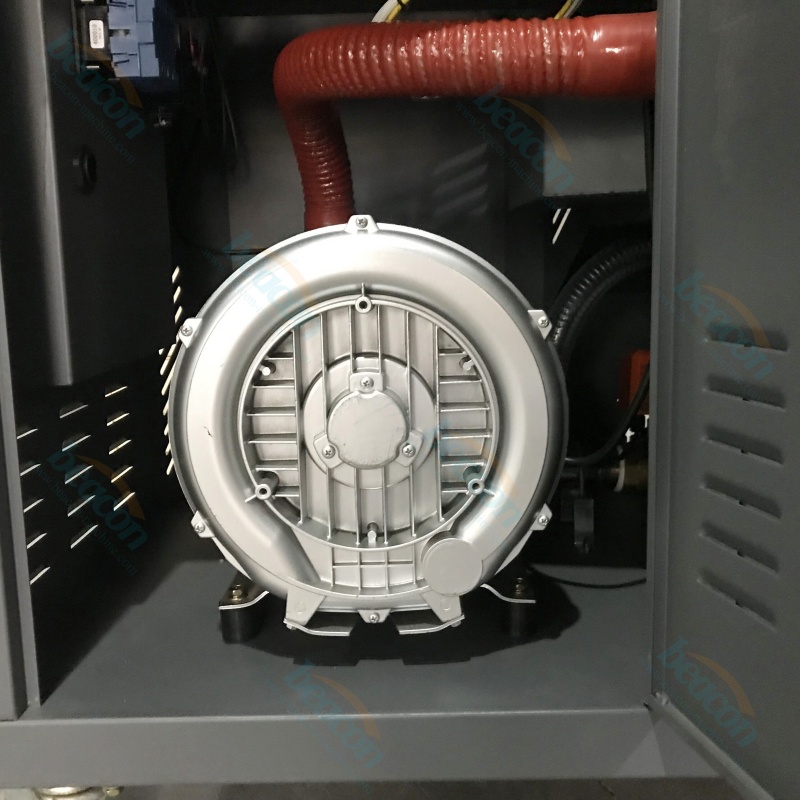

Explosion Purging: Features a powerful high-pressure "explosion blowing" mode to thoroughly clear residual ash from the exhaust pipe.
User-Friendly Interface: HD touch screen for intuitive human-machine interaction and real-time monitoring of regeneration data.

parameter

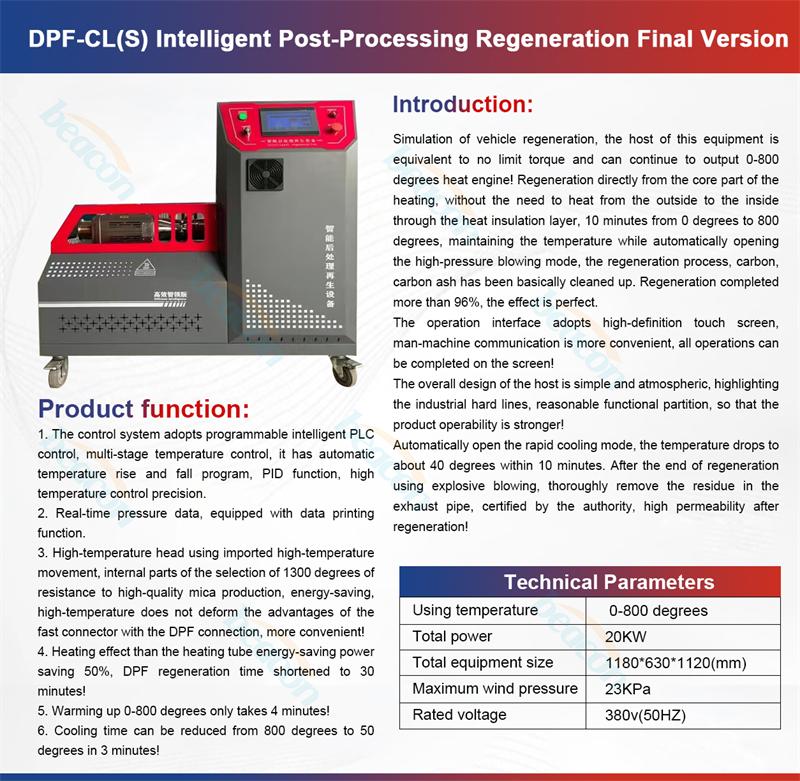

Technical Specification	Parameter Value (DPF-CL(S) Smart Edition)
Maximum Regeneration Temperature	800°C (Adjustable)
Heating Efficiency	0°C to 800°C in 10 minutes
Cooling Efficiency	High Temp to 40°C in 10 minutes

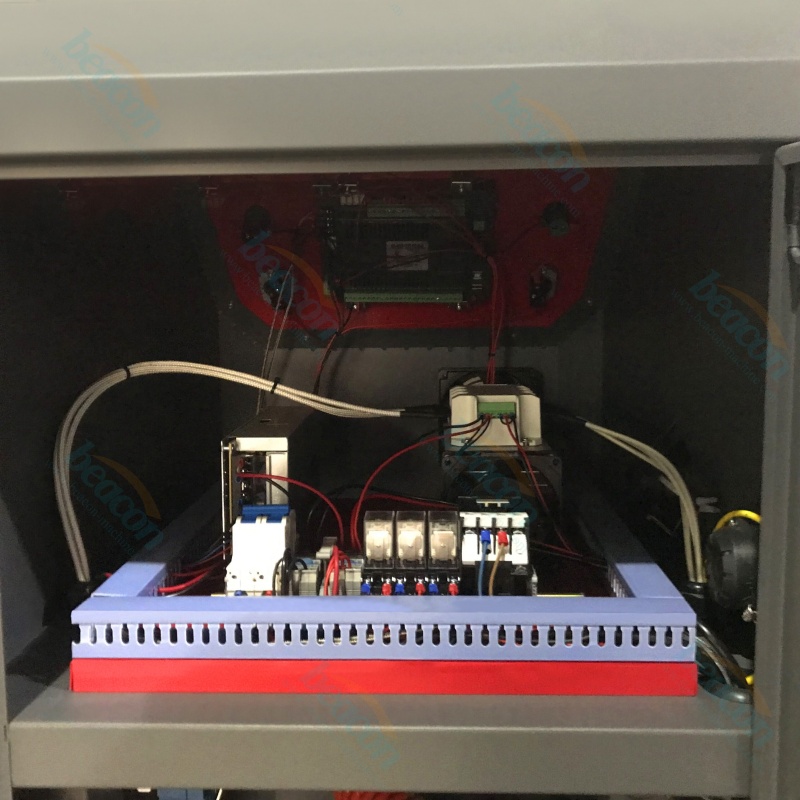

Control System	Programmable Intelligent PLC
Back Pressure Alarm Limit	> 40 KPa (Adjustable)
Interface	HD Touch Screen (HMI)
Purging Mode	Automatic High-Pressure Explosion Blowing
Applicable Filters	Euro 6 DPF, Circular DPF, Removable Carriers
