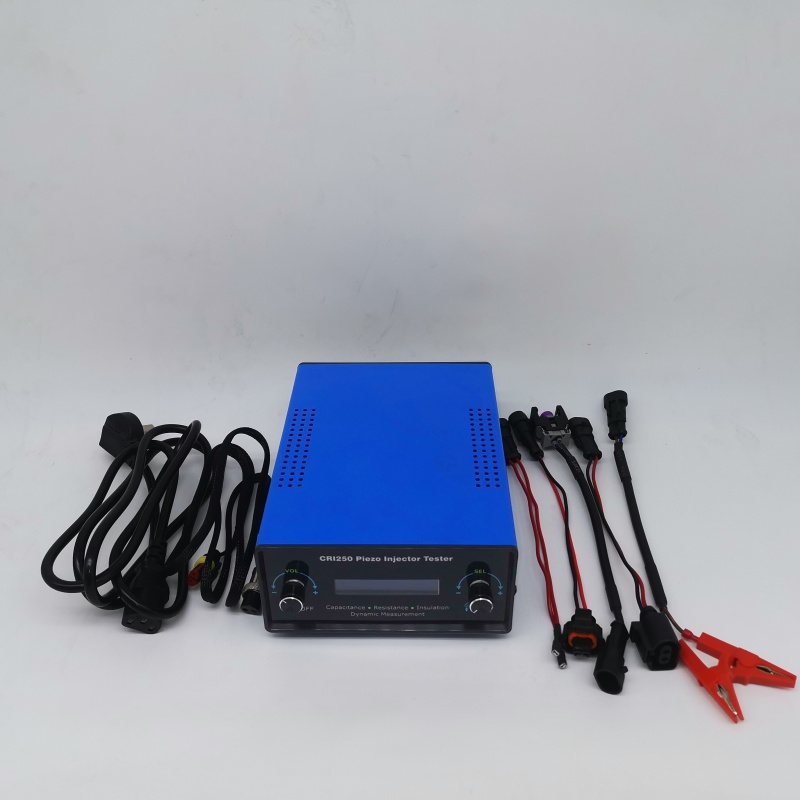

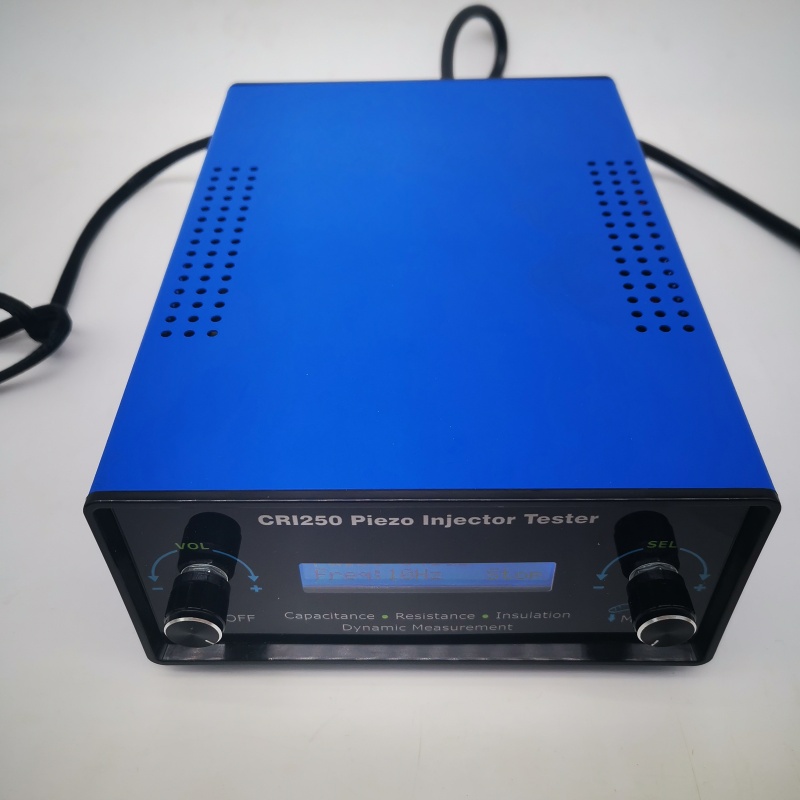

CRI250 Professional Piezo Injector Comprehensive Tester with Dynamic Lift Measurement

CRI250 Professional Piezo Injector Comprehensive Tester with Dynamic Lift Measurement

The CRI250 Piezo Injector Comprehensive Tester is a specialized diagnostic instrument designed for the complete evaluation of piezoelectric fuel injectors. It provides a multi-mode testing environment to accurately measure critical electrical and mechanical parameters, including crystal resistance, capacitance, and insulation integrity. Most notably, it features a dynamic lift measurement function and an independent driving mode, allowing technicians to verify the injector's performance under simulated operating conditions. Its wide voltage range (0-178V) and adjustable frequency (1-100Hz) make it compatible with various piezo injection systems.

Comprehensive Diagnostic Suite: Measures five key parameters: crystal resistance, capacitance, insulation resistance, dynamic lift, and active drive testing.

Precise Voltage Control: Features an adjustable voltage range from 0 to 178V to suit different piezoelectric crystal specifications.

Flexible Operating Modes: Supports adjustable pulse width (0-5000us) and injection frequency (1-100Hz) for deep performance analysis.

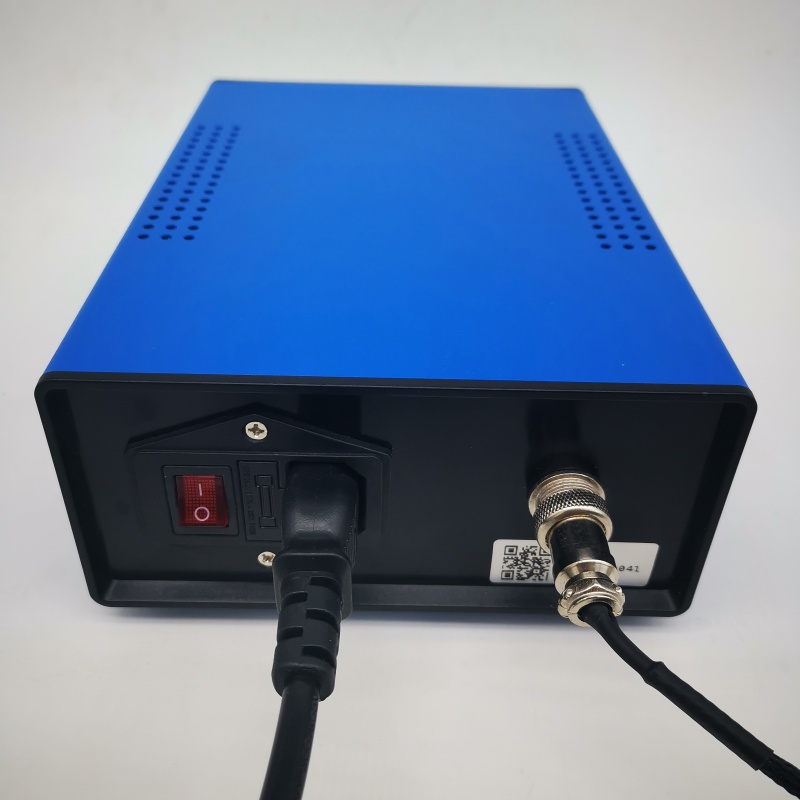

Safe and Reliable: Designed for professional use with high-quality drive harnesses and a wide-range power socket (AC 100-240V).

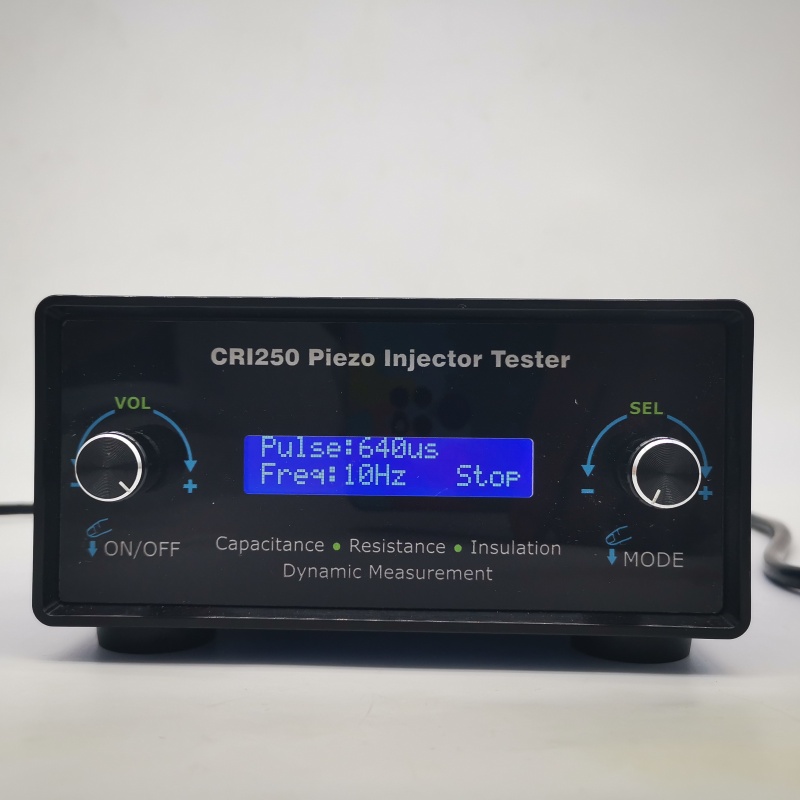

Intuitive Interface: Dual-knob (ON/OFF & MODE) operation with a clear digital display for real-time status monitoring.

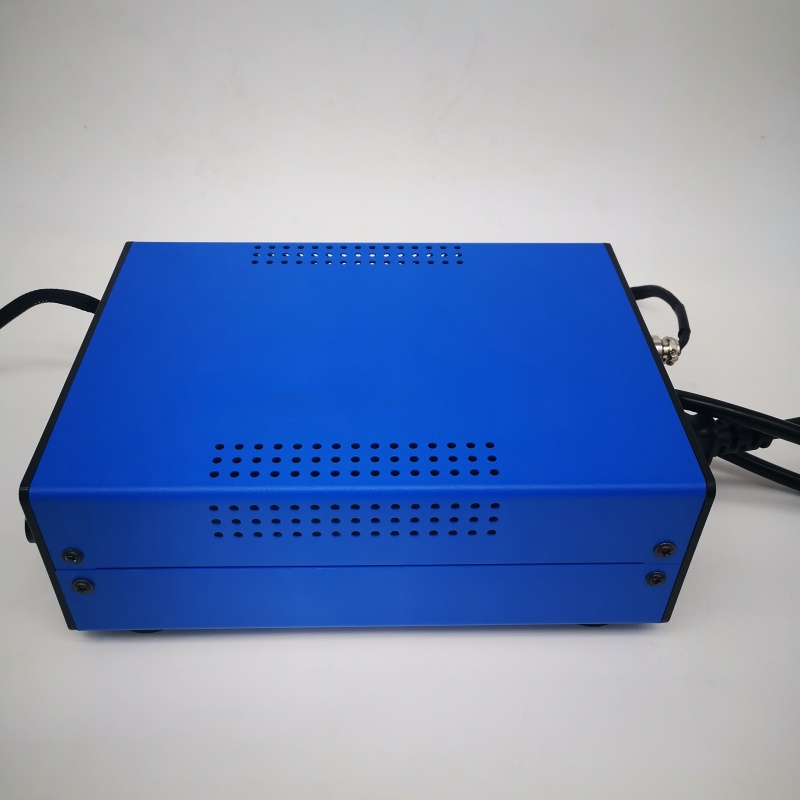

Compact and Durable: Lightweight design suitable for both laboratory testing and workshop environments.
