CRI220 CRI230 Common Rail Injector Tester for Electromagnetic Injectors with AHE Measurement

The CRI220 and CRI230 series are professional-grade diagnostic tools designed to drive and evaluate high-pressure common rail injectors. These testers are specifically optimized for electromagnetic (magnetic) injectors from global industry leaders such as Bosch, Denso, Delphi, and Caterpillar (CAT). While both models offer robust driving capabilities, the CRI230 is further equipped with advanced AHE (Dynamic Stroke) measurement functionality, allowing technicians to verify the internal mechanical lift of the injector solenoid. With an intuitive dual-knob interface for real-time pulse width and frequency adjustment, these testers provide a reliable and efficient solution for diesel workshops to diagnose injector performance under various simulated working conditions.

CRI230 Common Rail Injector Tester for Electromagnetic Injectors with AHE Measurement Advantage

Wide Solenoid Compatibility: Fully supports driving and testing of Bosch, Denso, Delphi, and Caterpillar (CAT) electromagnetic injectors.
AHE Dynamic Stroke Support: The CRI230 model enables precise measurement of injector dynamic lift, critical for advanced injector rebuilding.

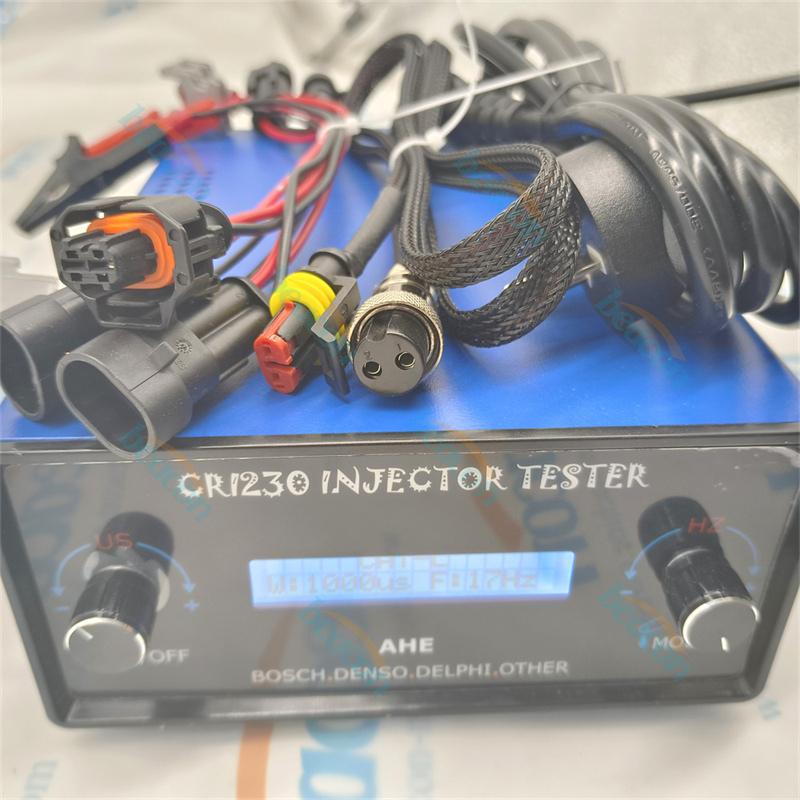

Intuitive Dual-Knob Control: Dedicated knobs for ON/OFF/Pulse Width and Mode/Frequency adjustment allow for rapid parameter changes.
Advanced Electrical Protection: Built-in overcurrent and short-circuit protection circuits ensure the safety of both the device and the injector.
Variable Signal Simulation: Adjustable pulse width (0-6000 us) and injection frequency (1-30 Hz) to simulate diverse engine operating states.
Versatile Power Compatibility: Supports a wide input voltage range of AC 100-240V, making it suitable for global use in different regions.
Compact & Portable: Lightweight design with a streamlined interface, perfect for benchtop testing or field diagnostics.

parameter

Technical Specification	Parameter Details (CRI220 / CRI230)
Supported Injector Types	Electromagnetic (Magnetic) Injectors
Supported Brands	BOSCH, DENSO, DELPHI, CAT_L, CAT_H
AHE Dynamic Stroke	CRI230: Supported (5-16A) \| CRI220: Not Supported
Pulse Width Range	0 - 6000 μs (Adjustable via ON/OFF knob)
Injection Frequency	1 - 30 Hz (Adjustable via MODE knob)
Power Input	AC 100 - 240 V
Safety Features	Overcurrent & Short Circuit Protection
Operation Mode	Continuous Driving / Single Trigger (AHE)
