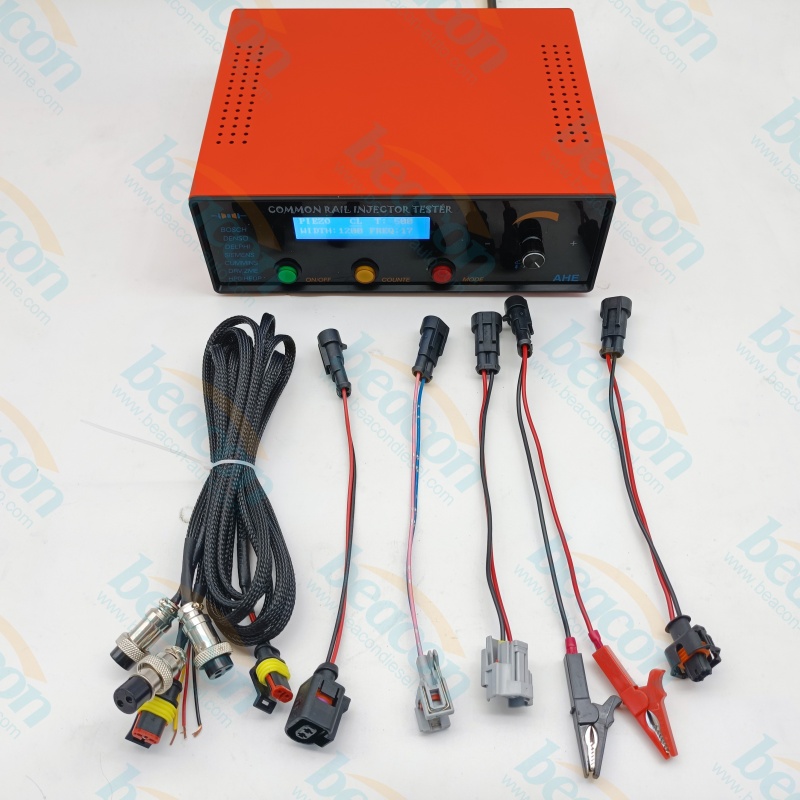

CRI205 Professional High Pressure Common Rail Injector Tester for Electromagnetic and Piezo Injectors

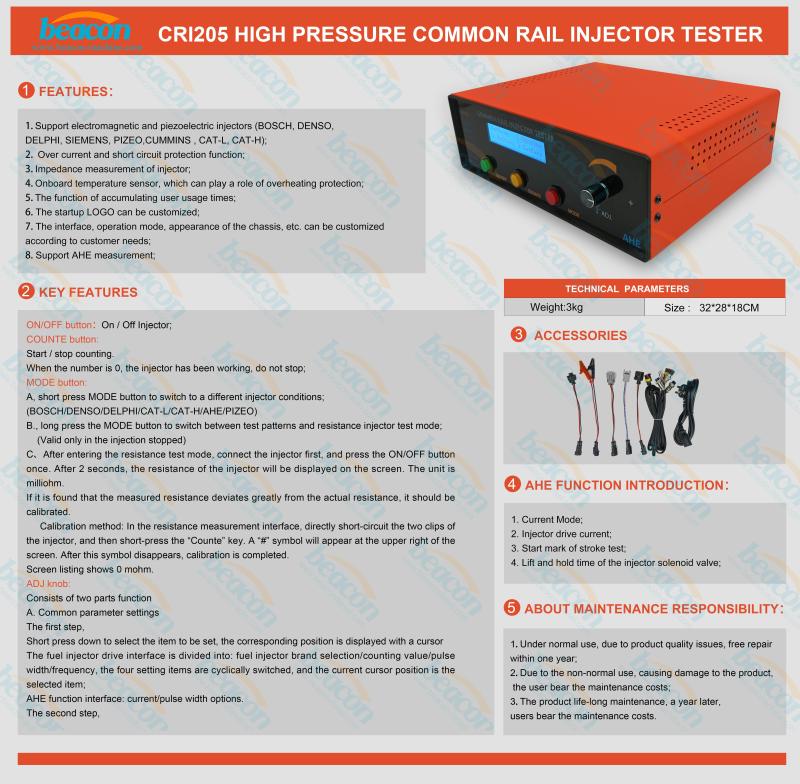

The CRI205 is a high-precision diagnostic tool engineered to drive and test high-pressure common rail injectors. It offers extensive support for both electromagnetic and piezoelectric injectors from major global brands, including Bosch, Denso, Delphi, Siemens, Cummins, and Caterpillar (CAT-L/H). A standout feature of the CRI205 is its support for AHE (dynamic lift) measurement, allowing technicians to verify the internal stroke of the injector. Additionally, the device provides real-time impedance and resistance measurement, ensuring comprehensive electrical health checks. With its customizable startup logo and industrial-grade protection, the CRI205 is the ultimate portable solution for professional diesel service workshops.

CRI205 Professional High Pressure Common Rail Injector Tester for Electromagnetic and Piezo Injectors Advantage

Universal Injector Support: Compatible with almost all electromagnetic and piezo injectors, covering Bosch, Denso, Delphi, Siemens, and more.
Advanced AHE Measurement: Specialized function for testing the dynamic lift (AHE) of injectors to ensure mechanical precision.
Integrated Impedance Testing: Built-in resistance measurement with a calibration mode to accurately detect solenoid health.
Comprehensive Protection: Features over-current, short-circuit, and overheating protection via an onboard temperature sensor.
Customizable Parameters: Allows users to set drive signals (frequency, pulse width, count) based on specific working conditions.
Industrial Flexibility: Supports customized interface designs and startup logos to meet specific business branding needs.

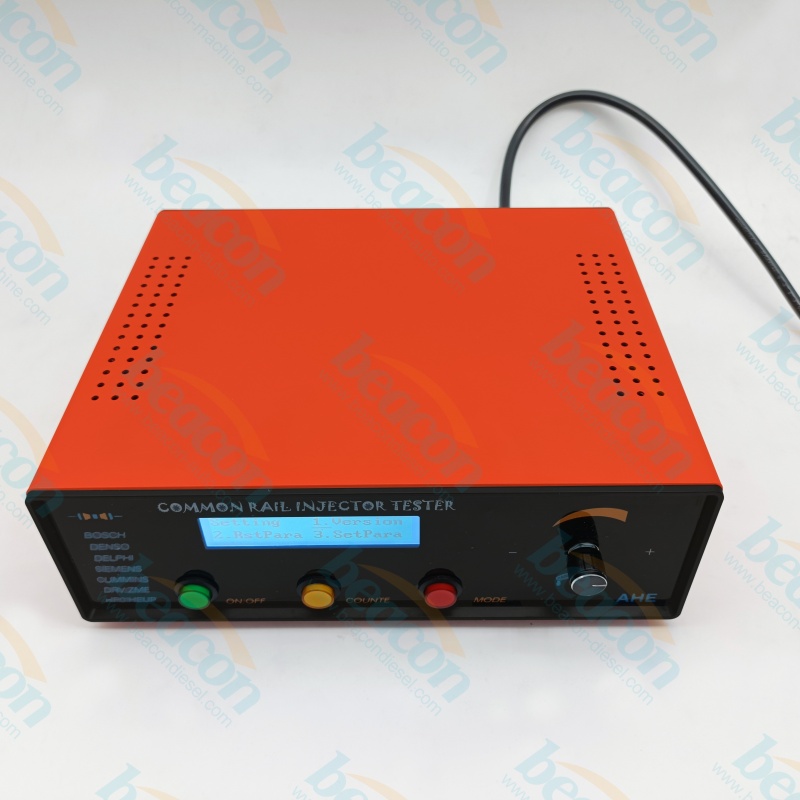

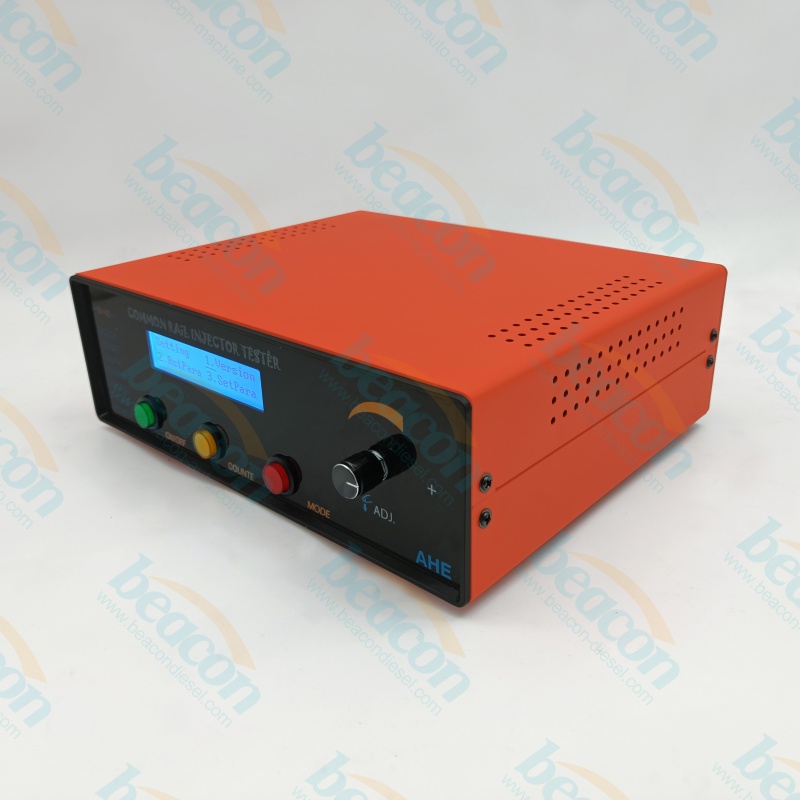

User-Friendly Operation: Equipped with an ADJ rotary knob for quick parameter adjustment and a clear digital display for real-time monitoring.

parameter

Technical Specification	Parameter Details (Model CRI205)
Supported Injector Types	Electromagnetic and Piezoelectric
Brand Coverage	BOSCH, DENSO, DELPHI, SIEMENS, CUMMINS, CAT-L, CAT-H
Measurement Functions	AHE Dynamic Stroke, Impedance (Resistance), Flow Driving
Protection Circuits	Short-circuit, Over-current, Overheating Protection
Adjustable Range	Pulse Width (PW), Frequency, and Counting Values
Output Units	Resistance in Milliohm (mΩ)
Display Interface	Multi-line Digital Screen with Cursor Selection
Calibration Mode	Support for Resistance Short-circuit Zero-calibration
