CR319 Common Rail Injector Test Bench with BIP and QR Coding Function

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

Details

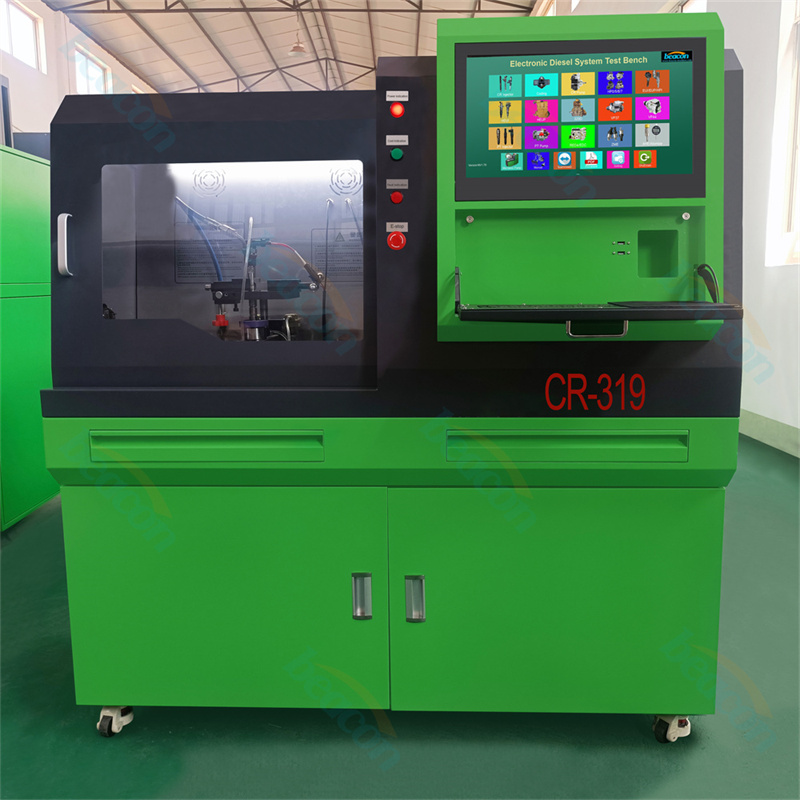

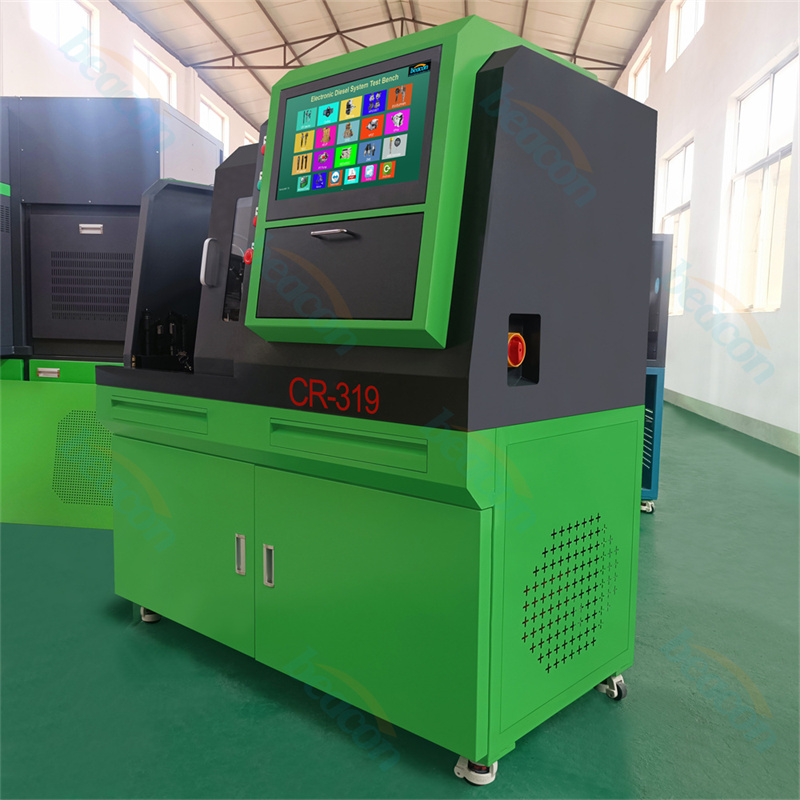

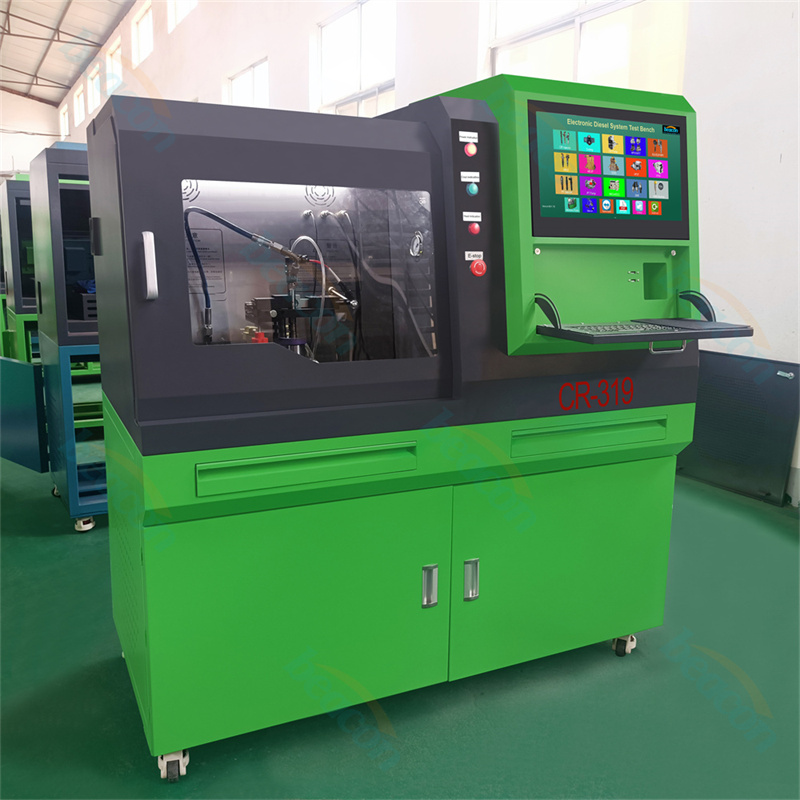

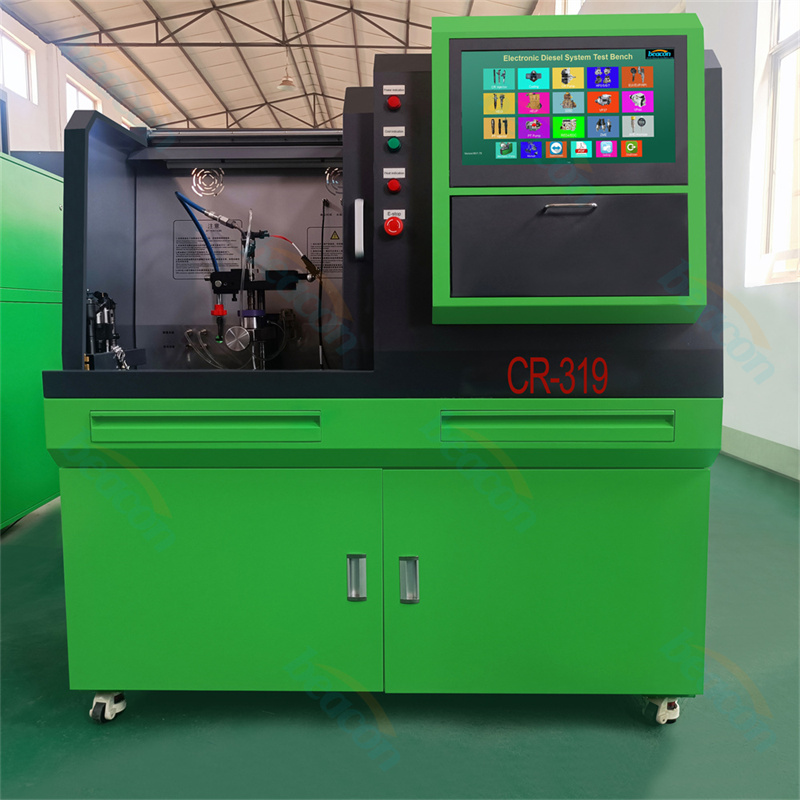

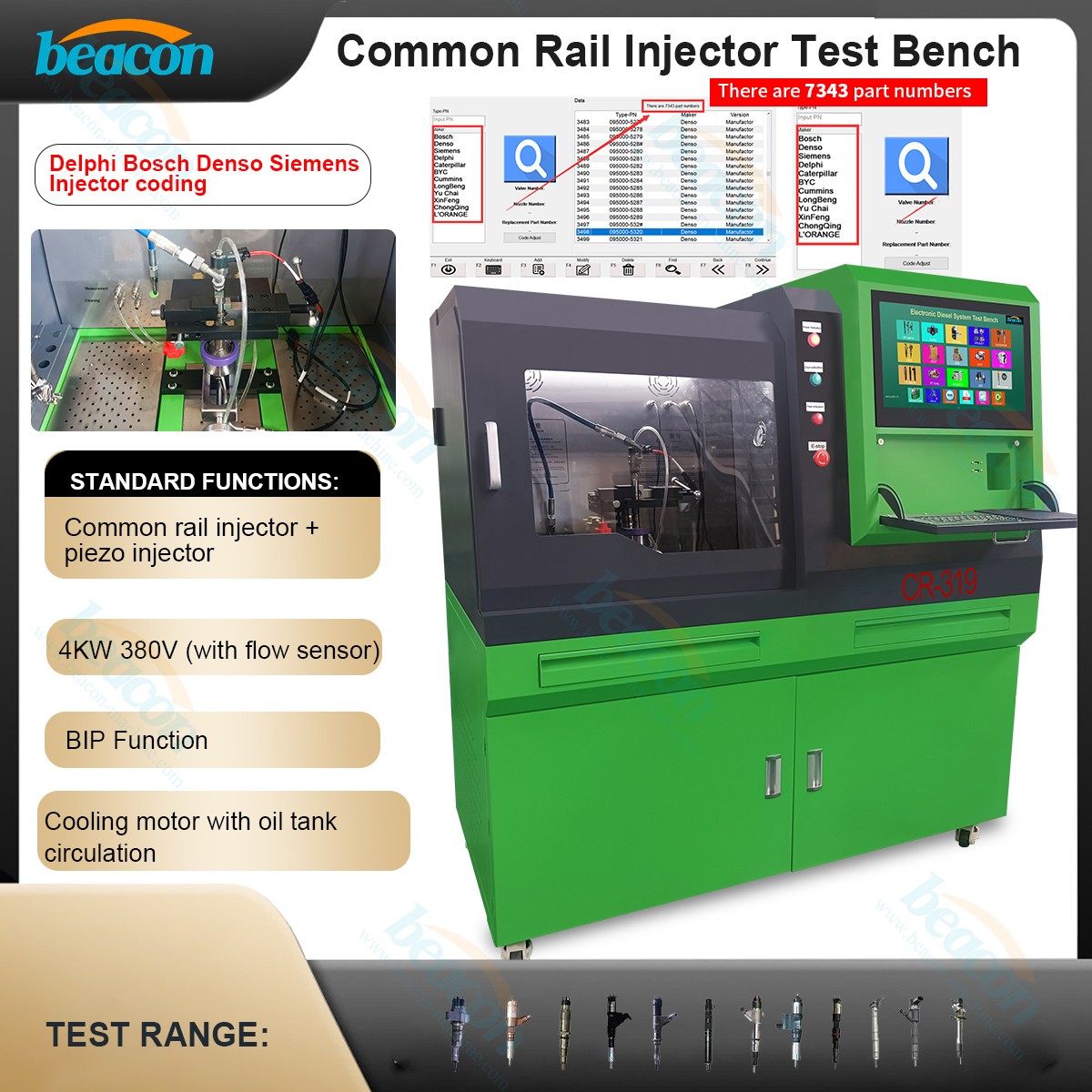

CR319 Common Rail Injector Test Bench with BIP and QR Coding

The CR319 Common Rail Injector Test Bench is a professional diagnostic platform designed for advanced diesel injection system maintenance. Controlled by an industrial computer with a Windows-based interface, it supports the testing of high-pressure common rail injectors from major global brands including Bosch, Denso, Delphi, Siemens, and Piezoelectric ceramics. The machine is uniquely equipped to measure BIP (Beginning of Injection Period) response time and automatically generate QR/IMA/ISA compensation codes. With its integrated high-precision electronic flow sensors and robust 2400 bar pressure capability, the CR319 ensures laboratory-grade accuracy for every repair.

CR319 Common Rail Injector Test Bench with BIP and QR Coding Function Advantage

Comprehensive System Support: Capable of testing both electromagnetic solenoid injectors and the latest generation of Piezoelectric (Piezo) crystal injectors.
BIP Response Time Testing: Features professional sensors to measure the Begin of Injection Period, allowing for precise evaluation of injector solenoid health and timing.
Automatic QR Coding: Automatically generates fuel quantity correction codes (QR, IMA, ISA) to restore factory-standard performance and engine smoothness.
Pre-Cleaning Protection: Equipped with dedicated injection and return cleaning interfaces (Interfaces 8 & 9) to protect the main flow sensors from contaminants in uncleaned injectors.

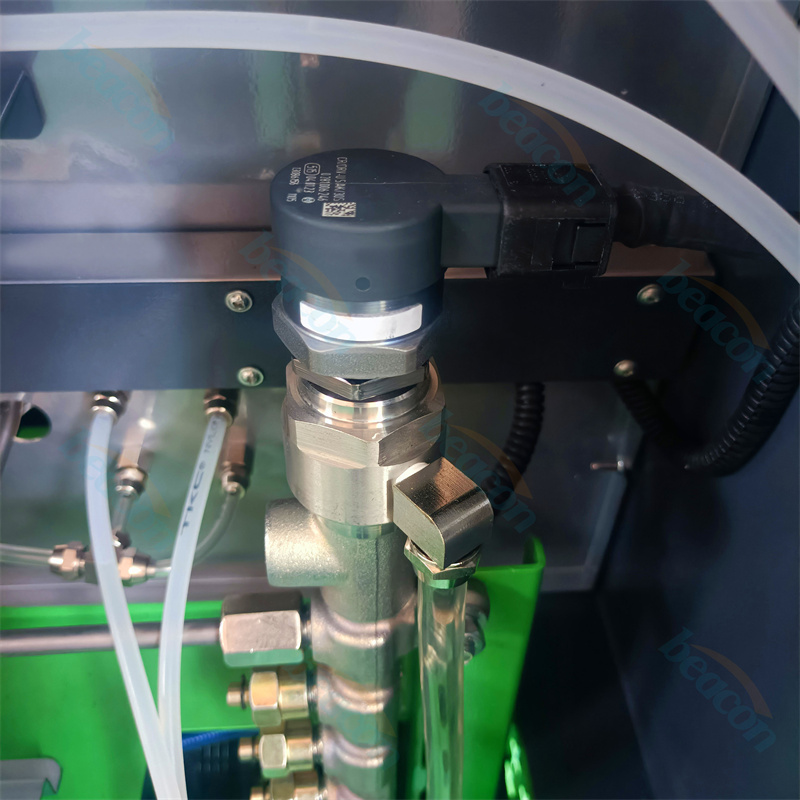

High-Pressure Stability: Provides ultra-stable rail pressure up to 2400 bar (240MPa), simulating the most demanding modern diesel engine conditions.
Intelligent Software & Database: Features a searchable database with thousands of test plans and automated reporting in PDF format for professional record-keeping.
Human-Machine Interface: Includes a 19-inch large LCD touch screen and industrial PC for intuitive operation and real-time monitoring of all test parameters.

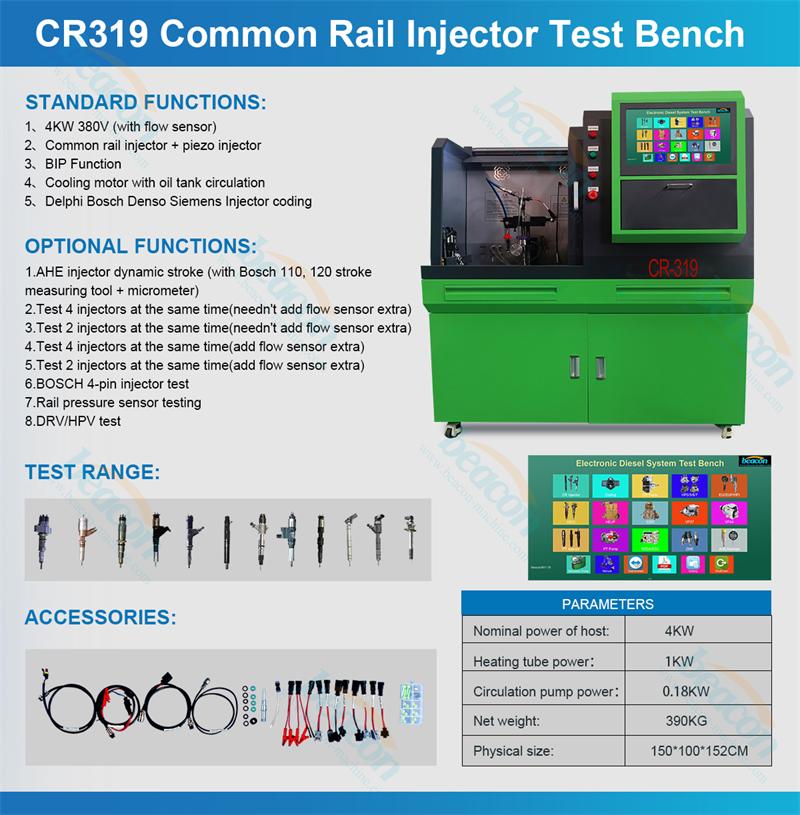

parameter

Technical Parameter	Specifications (Model CR319)

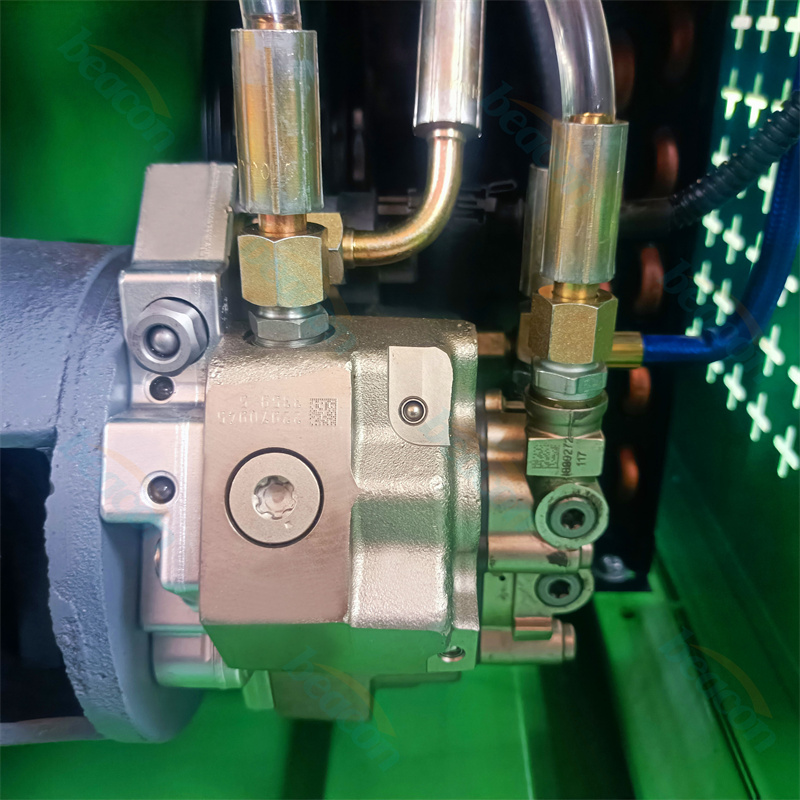

Main Motor Power	4KW / 5.5KW (Optional)
Maximum Rail Pressure	2400 Bar (240 MPa)
Testing Compatibility	Solenoid Valve & Piezoelectric Injectors
Control System	Industrial PC with Windows OS & 19-inch Touch Screen

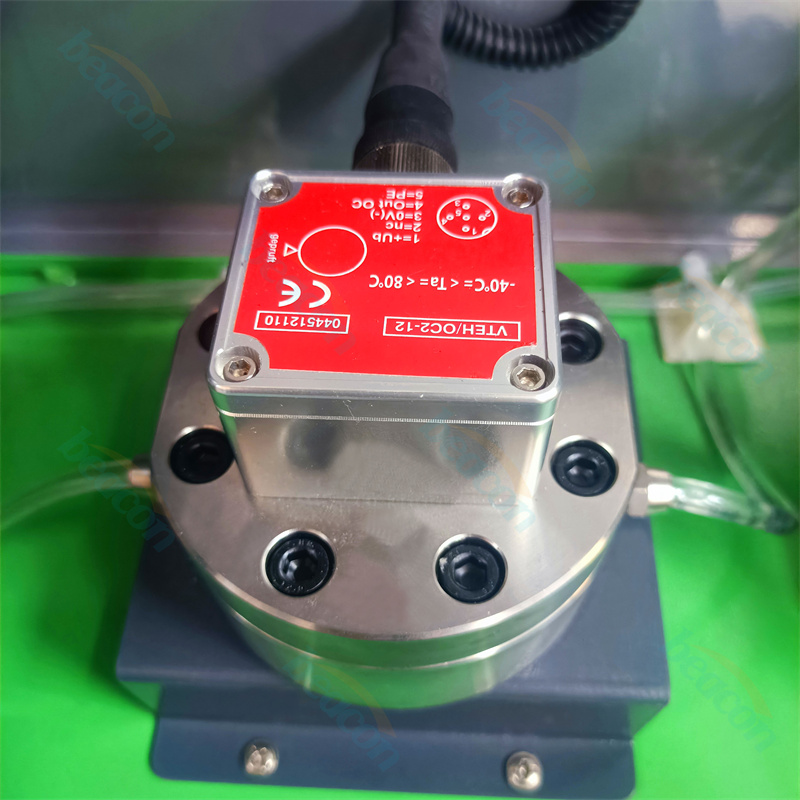

Measurement Technology	High-Precision Electronic Flow Sensors
Advanced Functions	BIP Response Time, QR/IMA/ISA Coding
Test Conditions	Full Load, Idle, Pre-injection, Backleak, Sealing
Protection System	Emergency Stop & Pressure Overload Protection
Dimensions & Weight	145 * 110 * 175 CM / Approx. 450 KG
