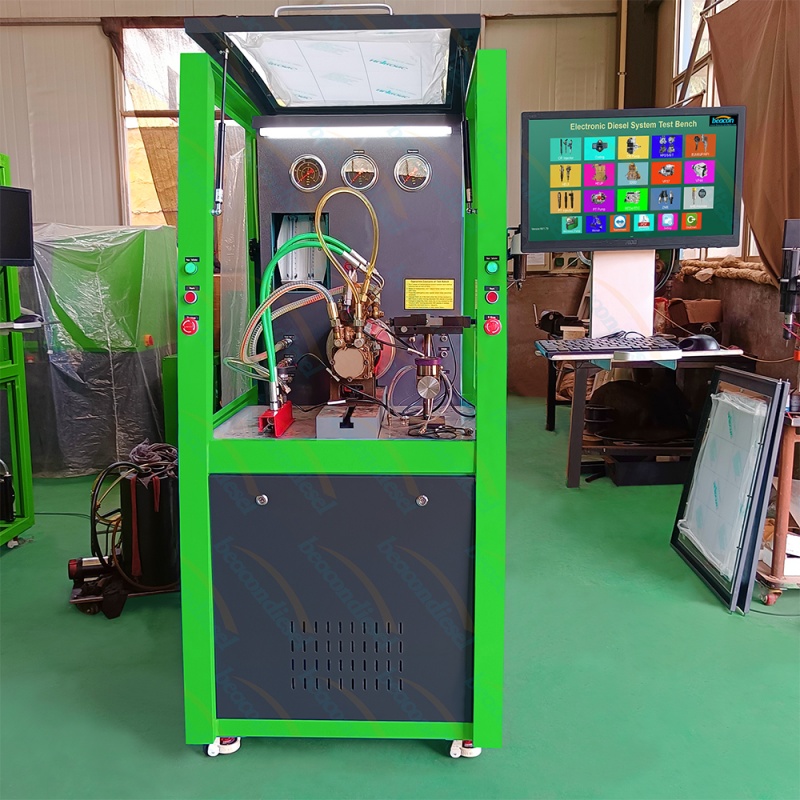

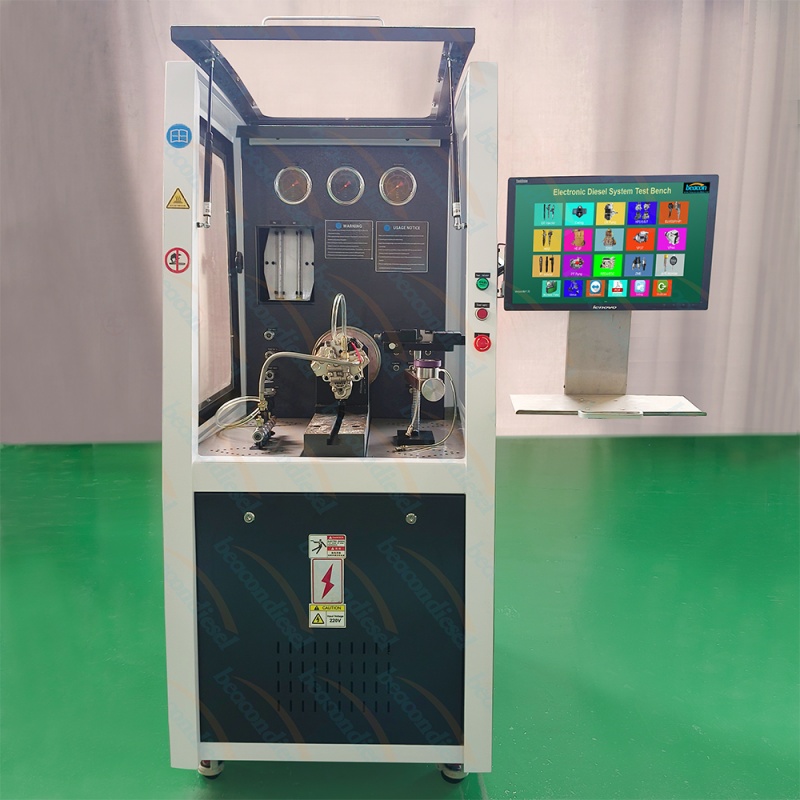

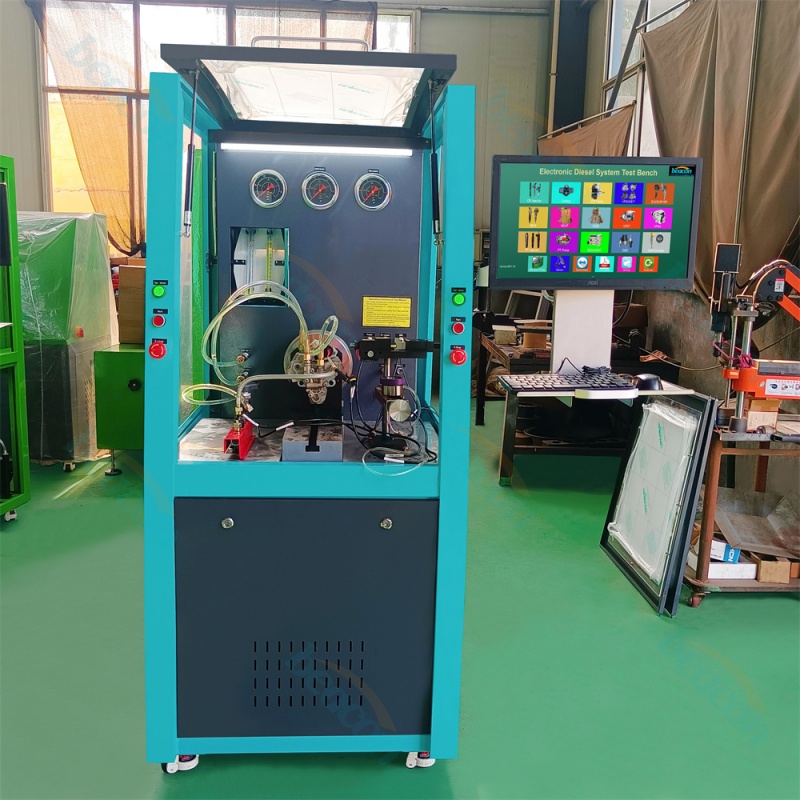

CR1019 Professional Common Rail Injector and Fuel Pump Integrated Test Bench

The CR1019 is a highly versatile, industrial-grade diagnostic platform designed for comprehensive diesel fuel system service. It combines the functionality of a high-pressure common rail injector tester and a fuel pump calibration bench into one efficient workstation. Controlled by an industrial PC with a Windows-based system, the CR1019 supports a wide array of brands including Bosch, Denso, Delphi, Siemens, Caterpillar, and Cummins. Beyond standard testing, it features advanced QR compensation coding and can be expanded to test EUI/EUP (Electronic Unit Injectors and Pumps), making it the ultimate all-in-one solution for modern diesel workshops.

Common Rail Injector Tester, Diesel Fuel Pump Test Bench, EUI EUP Calibration

CR1019 Professional Common Rail Injector and Fuel Pump Integrated Test Bench Advantage

Comprehensive Integrated Testing: Capable of testing both high-pressure common rail injectors (solenoid and piezo) and fuel pumps (CP1, CP2, CP3, HP3, HP4, etc.) on a single machine.
Precision QR Coding: Automatically generates fuel quantity correction codes (QR, IMA, ISA, IQA) to restore engine performance to original manufacturer specifications.
EUI/EUP & HEUI Expandability: Supports testing of Electronic Unit Injectors and Unit Pumps (EUI/EUP) as well as Caterpillar HEUI systems with additional fixtures.
Advanced Control System: Features an industrial-grade PC with a multi-language Windows interface, providing stable performance and massive built-in test plan databases.

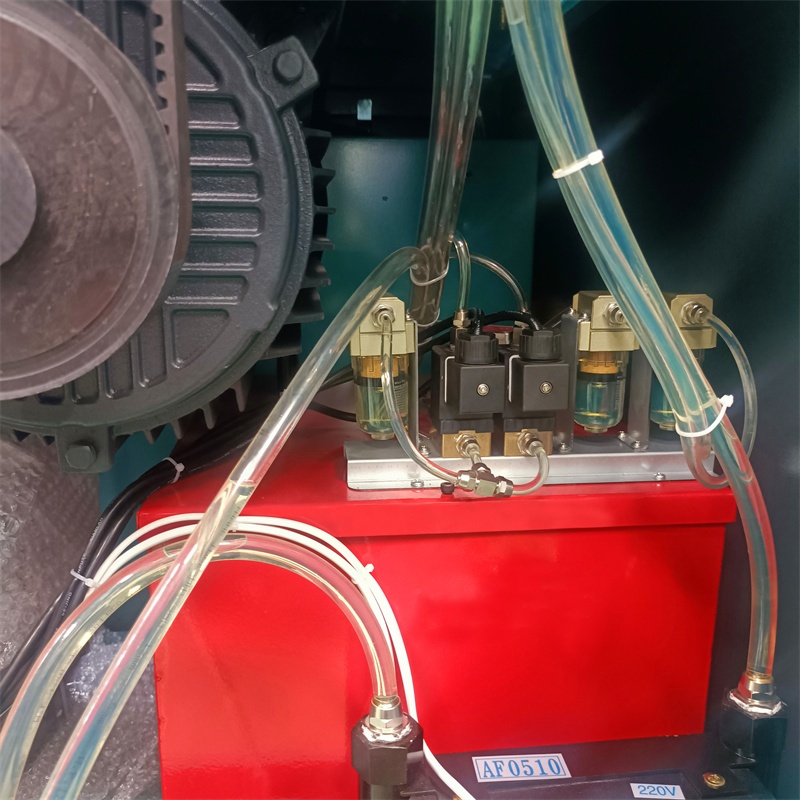

Automated Measurement: Utilizes high-precision electronic flow sensors for fully automatic measurement of injection volume, return flow, and response time (BIP).
High-Pressure Stability: Equipped with an original common rail pump and intelligent PID pressure control, achieving stable rail pressure up to 2400 Bar.
Remote Support: Built-in remote update and maintenance features ensure your equipment is always running the latest database and software versions.

parameter

Technical Parameter	Specifications (Model CR1019)

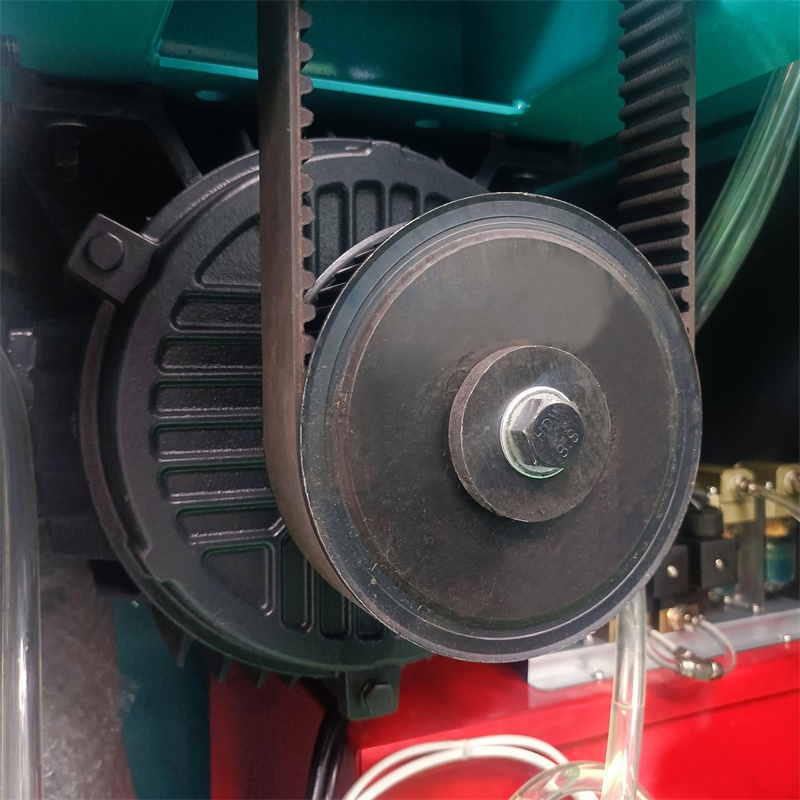

Main Motor Power	7.5KW / 11KW / 15KW (Optional)
Input Power Supply	380V 3-Phase / 220V (Customizable)
Max Rail Pressure	2400 Bar (240 MPa)
Compatible Injectors	Bosch, Denso, Delphi, Siemens, Caterpillar, Cummins (Piezo & Solenoid)
Compatible Pumps	CP1, CP2, CP3, HP0, HP3, HP4, HP5, Jier, etc.
Measurement Accuracy	0.1ml High-Precision Electronic Flow Meter
Coding Support	Automatic QR, IQA, IMA, ISA, c2i, c3i coding
Testing Modes	Standard Full-Step Test & Rapid Quick Test (20s)
Operating System	Windows OS with Searchable Database
