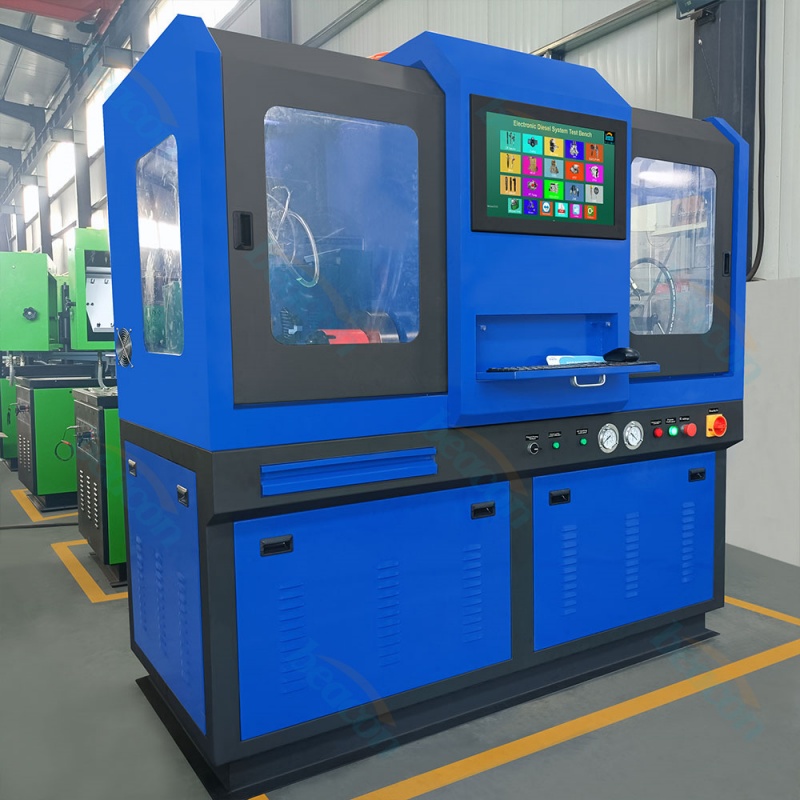

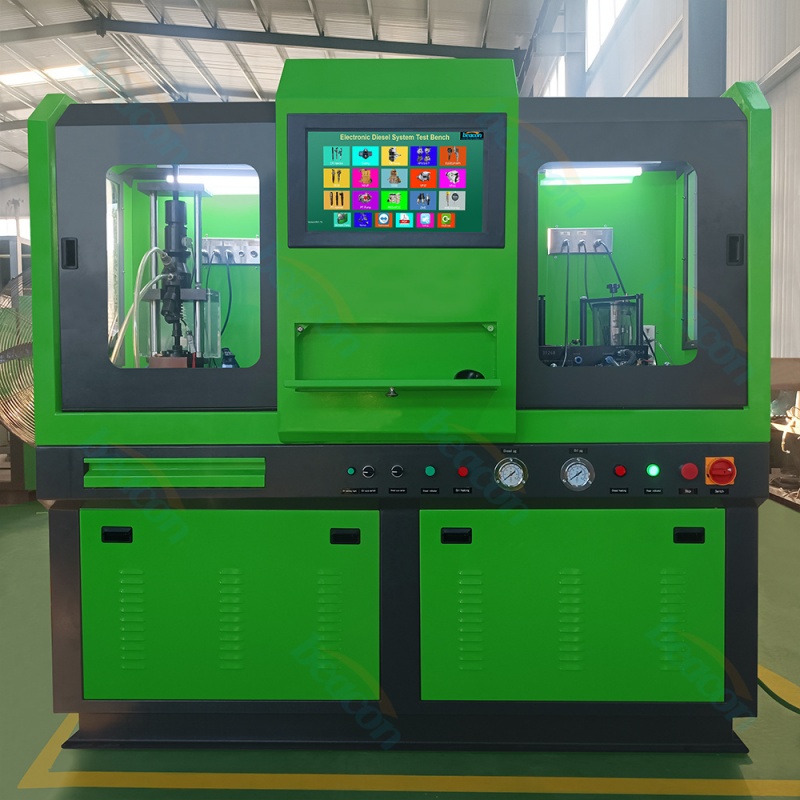

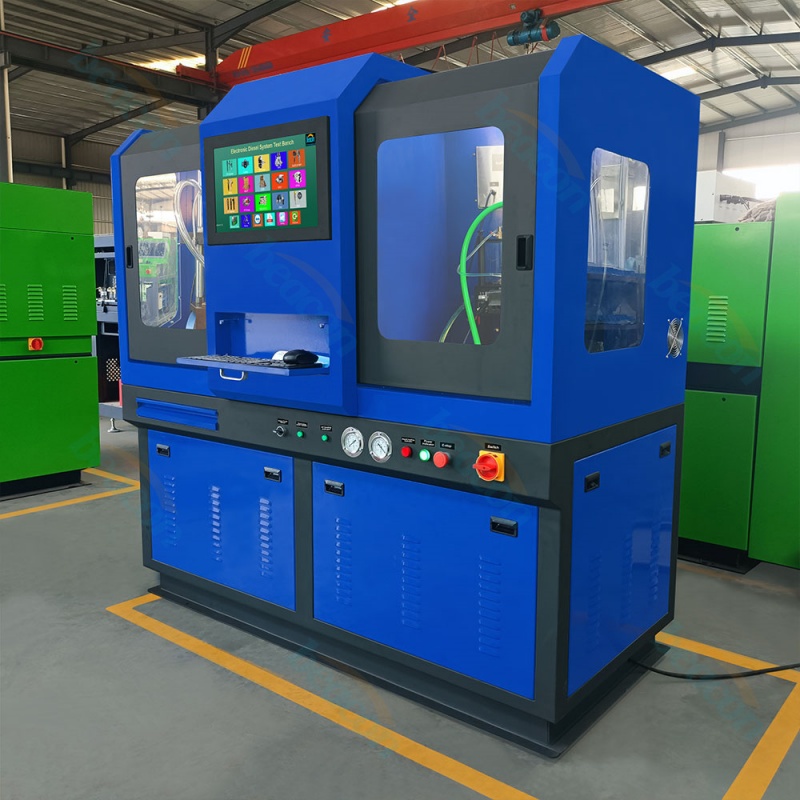

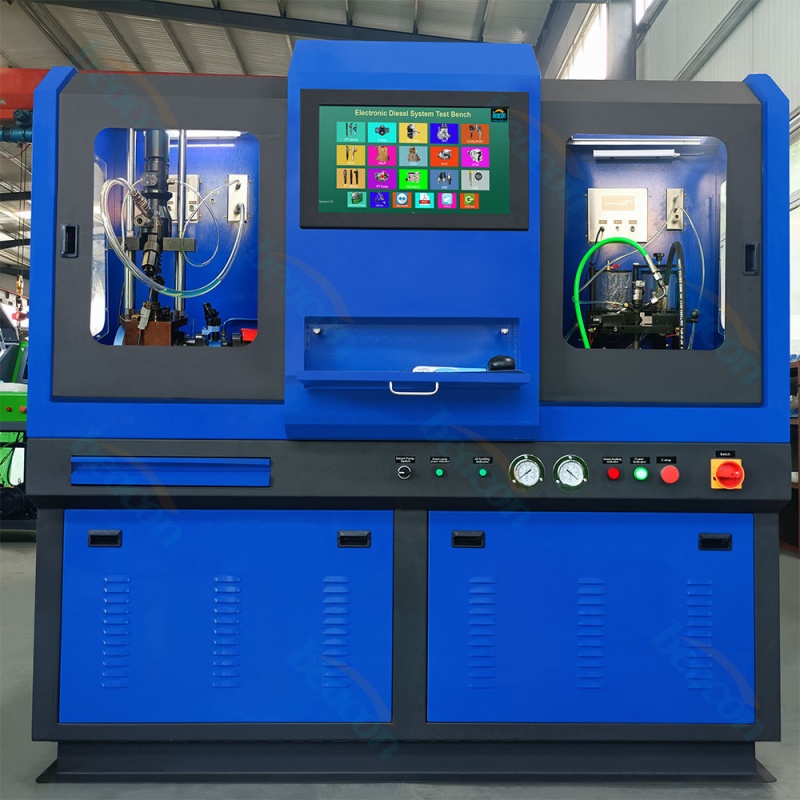

CR1016 Professional Common Rail Injector and Fuel Pump Test Bench

The CR1016 is an ultra-comprehensive high-pressure common rail test bench designed for heavy-duty diesel service centers. Powered by a high-performance 11KW or 15KW motor, it offers a total solution for testing common rail injectors (solenoid and piezo), high-pressure fuel pumps, and is expandable to support HEUI, EUI, EUP, and Cummins PT systems. With a stable pressure control up to 2400 bar and an industrial-grade Windows control system, the CR1016 provides unmatched precision for Bosch, Denso, Delphi, Caterpillar, and Cummins fuel systems.

Common Rail Test Bench, Diesel Injector Pump Tester, HEUI EUI EUP Calibration

CR1016 Professional Common Rail Injector and Fuel Pump Test Bench Advantage

All-in-One Testing Platform: A single machine capable of testing common rail injectors, fuel pumps, HEUI, EUI/EUP, and even Cummins PT injectors with specific accessories.

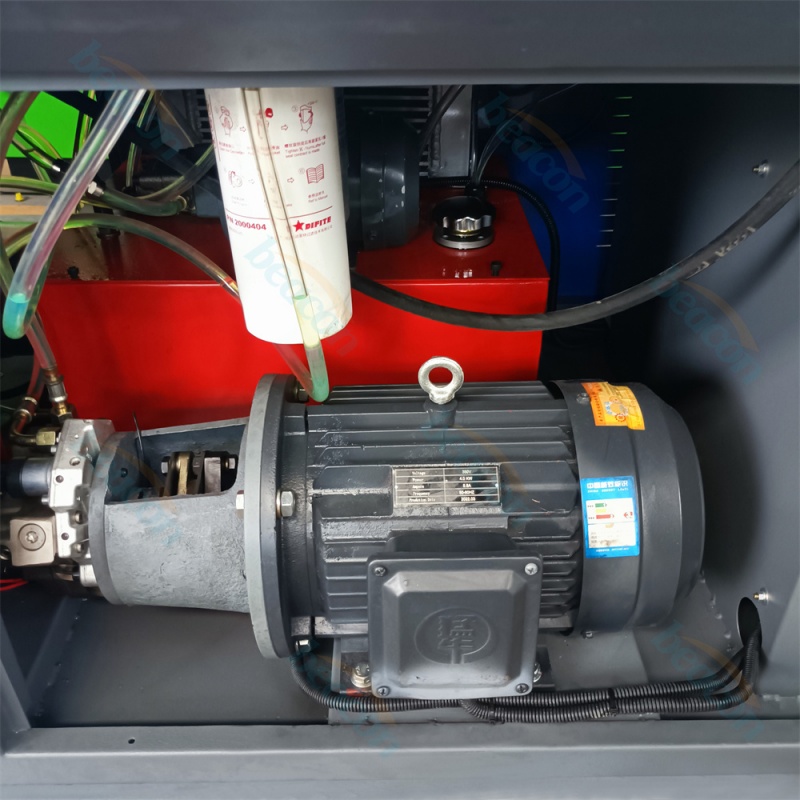

High Power Output: Equipped with an 11KW (standard) or 15KW (optional) motor to handle large-flow heavy-duty pumps and injectors with ease.
Extreme Pressure Capability: Supports rail pressure simulation up to 2400 bar, meeting the requirements of the latest Euro VI diesel technology.
Advanced Response Time (BIP): Integrated BIP function allows for precision measurement of injection response time, essential for diagnosing complex solenoid issues.

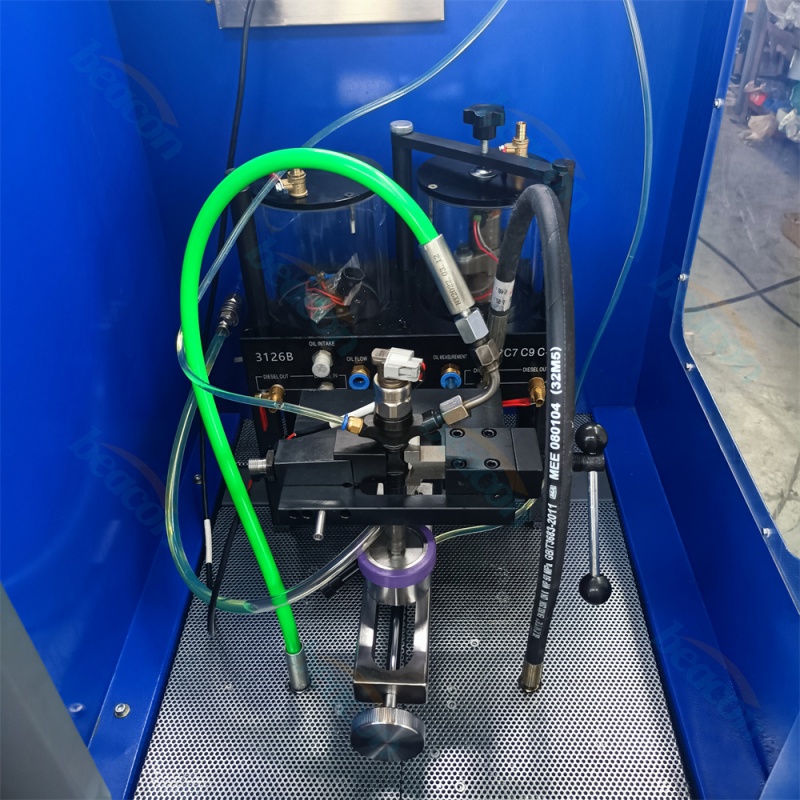

HEUI & EUI/EUP Excellence: Professional support for Caterpillar HEUI injectors and various Electronic Unit Injectors/Pumps with high-accuracy test data.
Expandable Multi-Injector Testing: Supports testing 2 or 4 injectors simultaneously with additional flow sensors, greatly improving workshop efficiency.

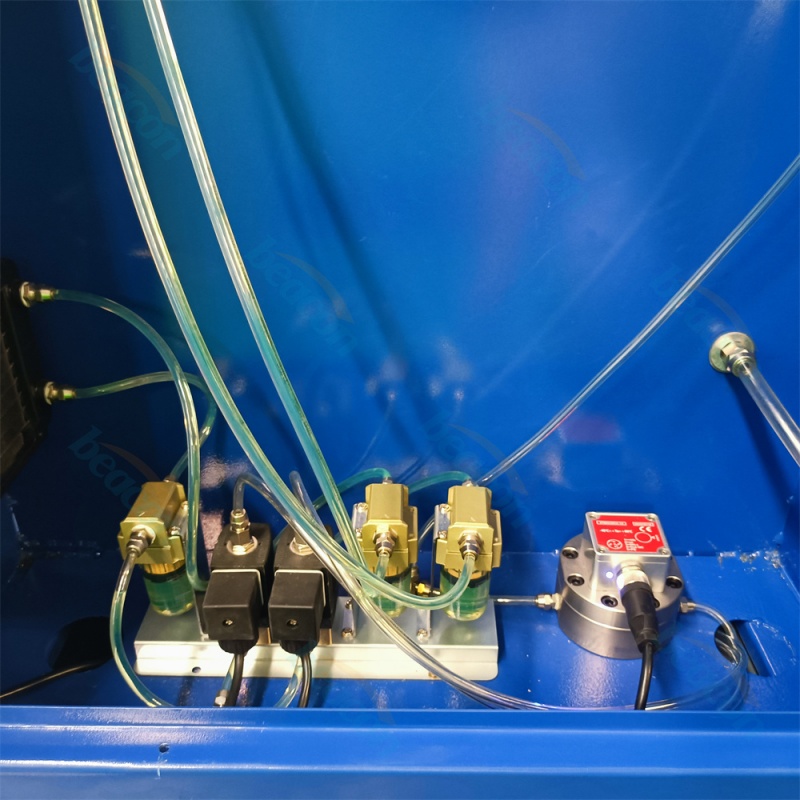

Precision Flow Measurement: Uses high-precision electronic flow sensors for automatic data collection, ensuring accuracy across full load, idle, and pre-injection conditions.

parameter

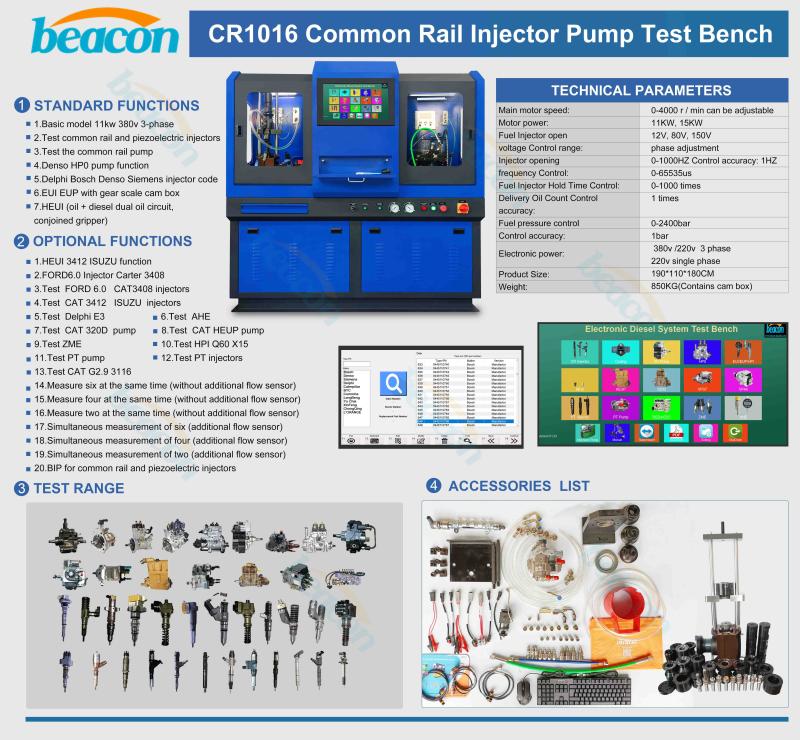

Technical Parameter	Specifications (Model CR1016)
Motor Power	11KW / 15KW (Optional)
Main Motor Speed	0 - 4000 RPM (Adjustable)
Fuel Pressure Control	0 - 2400 Bar (240 MPa)
Injector Opening Voltage	12V, 80V, 150V (Adjustable)
Frequency Range	0 - 1000 HZ (Precision: 1HZ)
Measurement System	Automatic Electronic Flow Sensors
Special Testing Support	HEUI, EUI/EUP, BIP, Cummins PT, ZME, DRV/HPV
Machine Dimensions	180 * 90 * 180 CM
Standard Accessories	Universal Fixture, High-Pressure Pipes, Special Harnesses
