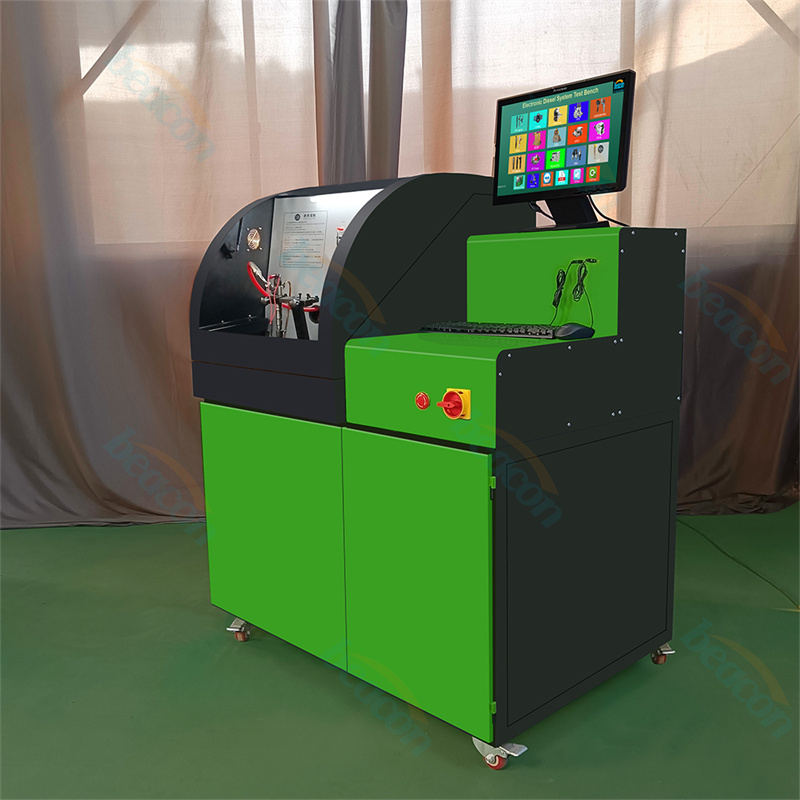

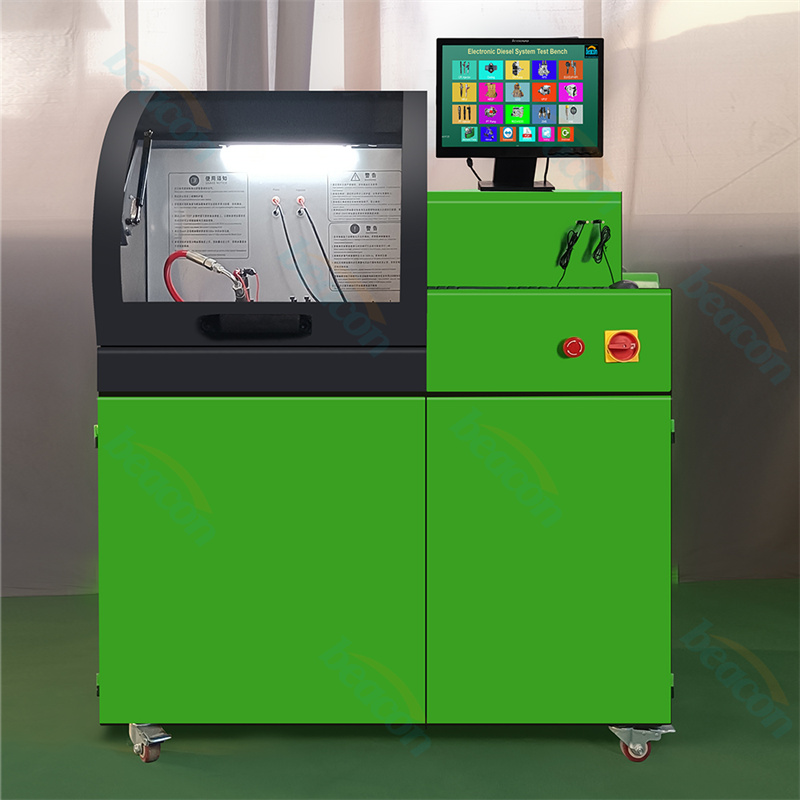

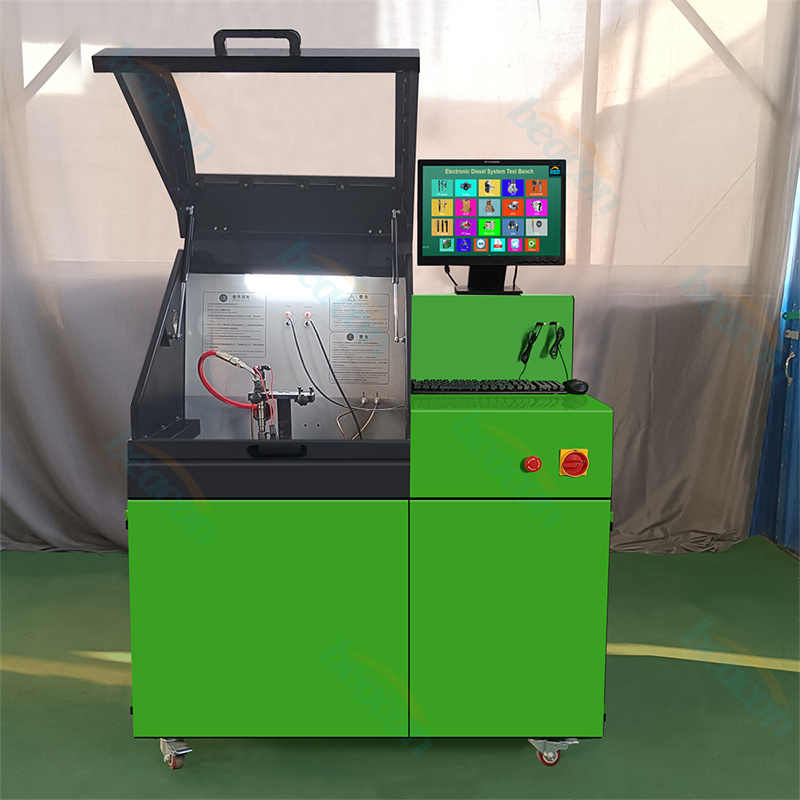

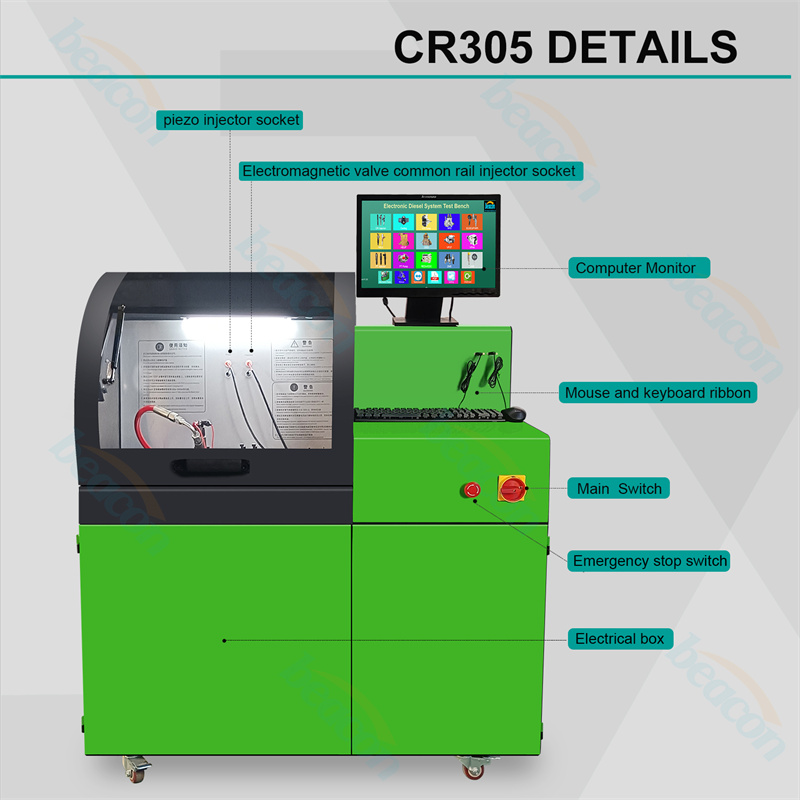

BC-CR305 Common Rail Injector and Fuel Pump Test Bench with BIP Function

The BC-CR319 Common Rail Test Bench is a high-precision diagnostic system designed for the simultaneous testing of high-pressure common rail injectors and fuel pumps. Powered by an industrial-grade control system, it supports a wide range of components from Bosch, Denso, Delphi, and Siemens, including both solenoid and Piezoelectric (Piezo) injectors. A standout feature of the BC-CR305 is its integrated BIP (Beginning of Injection Period) sensor, which measures injector response time to ensure peak engine performance. It provides a stable rail pressure of up to 2000 Bar and generates comprehensive test reports automatically.

Common Rail Injector Tester, Diesel Pump Test Bench, Injector BIP Testing

BC-CR305 Common Rail Injector and Fuel Pump Test Bench with BIP Function Advantage

2-in-1 Diagnostic Capability: Efficiently tests both high-pressure common rail injectors and fuel pumps on a single platform, saving workshop space and costs.
Advanced BIP Measurement: Specifically designed to detect the response time of injector injection, providing critical data for precision tuning and diagnostic accuracy.
Solenoid & Piezo Support: Comprehensive compatibility with traditional solenoid-valve injectors and the latest third-generation piezoelectric crystal technology.
Automated Flow Measurement: Utilizes high-precision electronic flow sensors for automatic measurement of injection volume and backleak under all conditions (Full load, Idle, Pre-injection).

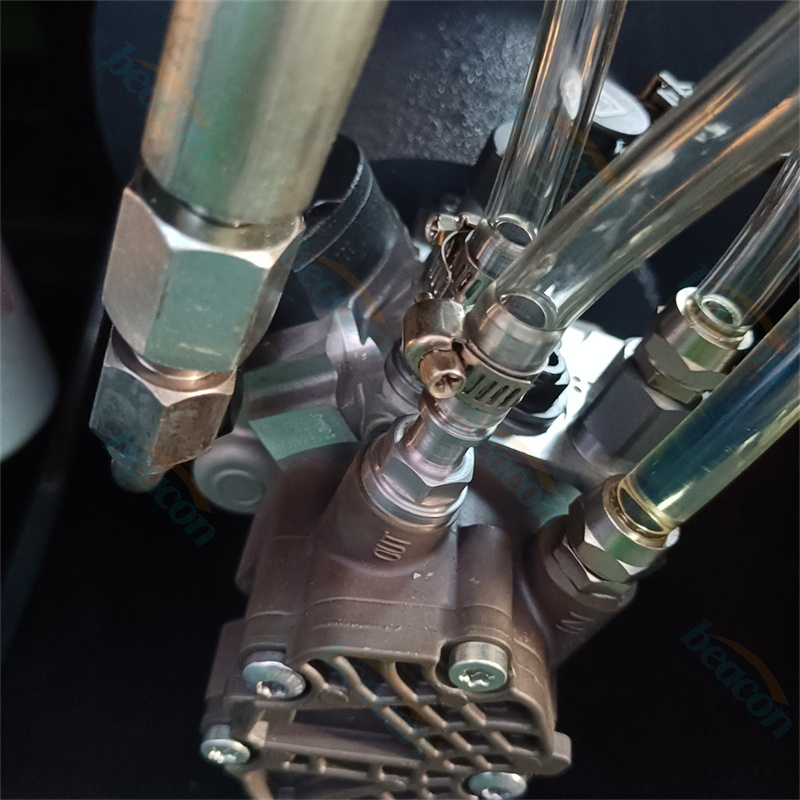

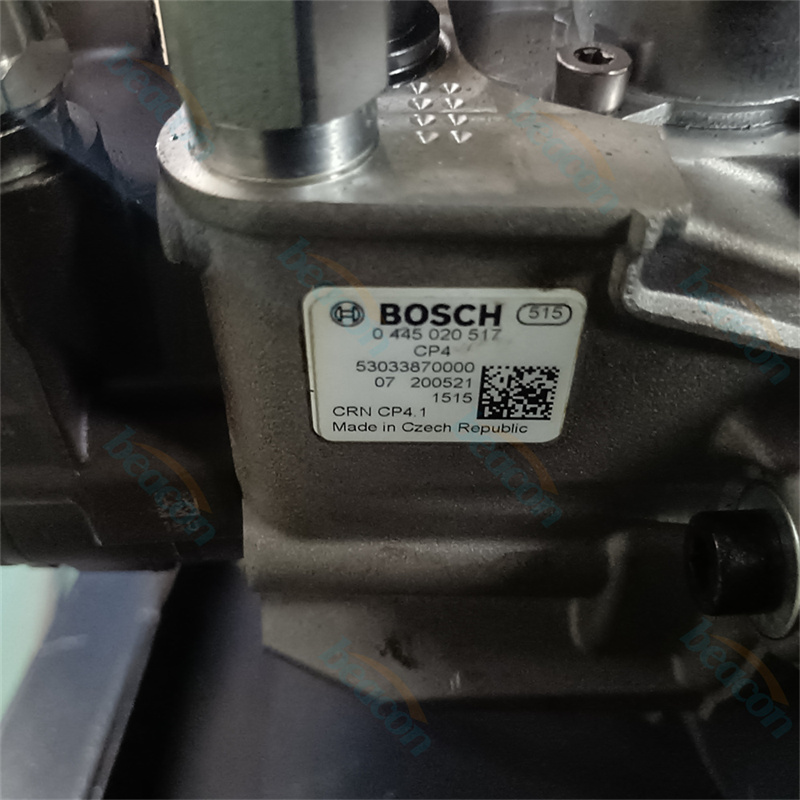

High-Pressure Stability: Equipped with an original Bosch (or Denso) common rail pump to provide reliable pressure from 0 to 2000 Bar with automatic adjustment.
Smart Testing Modes: Features "Normal Test" for detailed analysis and "Fast Test" (20 seconds per step) for rapid screening of injector conditions.
User-Friendly Industrial PC: Runs on a Windows-based operating system with a large display, searchable database, and multi-language support.

parameter

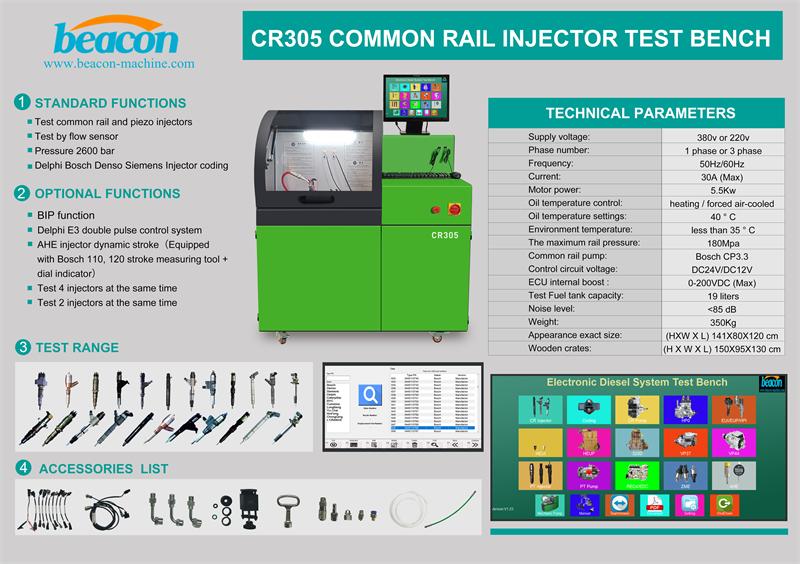

Technical Parameter	Specifications (Model BC-CR305)
Application	Common Rail Injectors (Solenoid/Piezo) & High Pressure Pumps
Main Motor Power	4KW / 5.5KW / 7.5KW (Optional)
Max Rail Pressure	2000 Bar (200 MPa)
Operating System	Windows OS with Industrial Computer Control
Flow Measurement	Automatic High-Precision Flow Sensor
Special Function	BIP (Response Time) Detection & QR Coding (Optional)
Pressure Protection	Automatic Overload Protection System
Data Management	Searchable Database, Data Editing & PDF Report Generation
