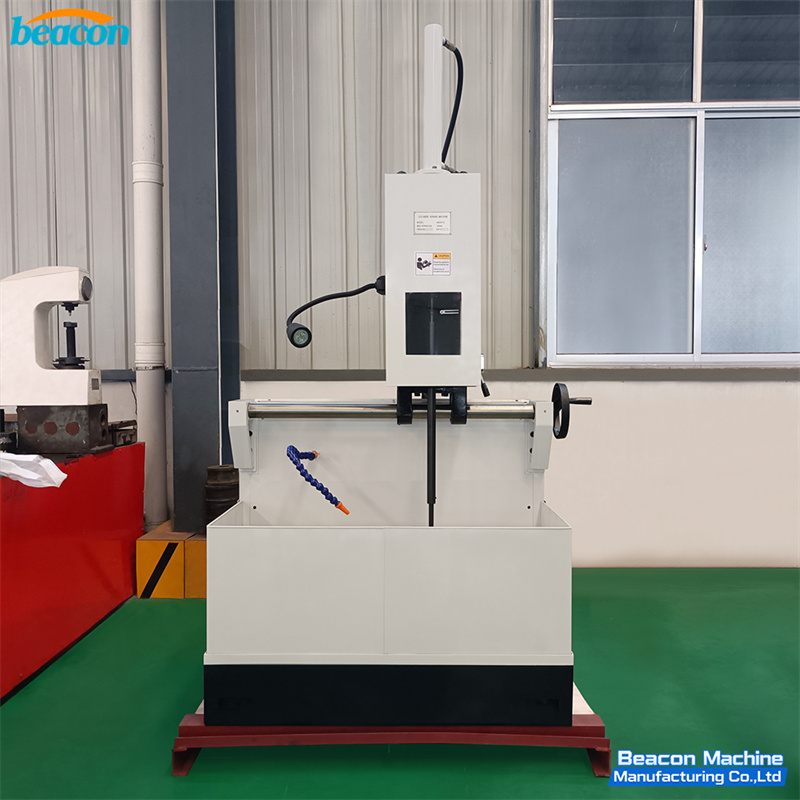

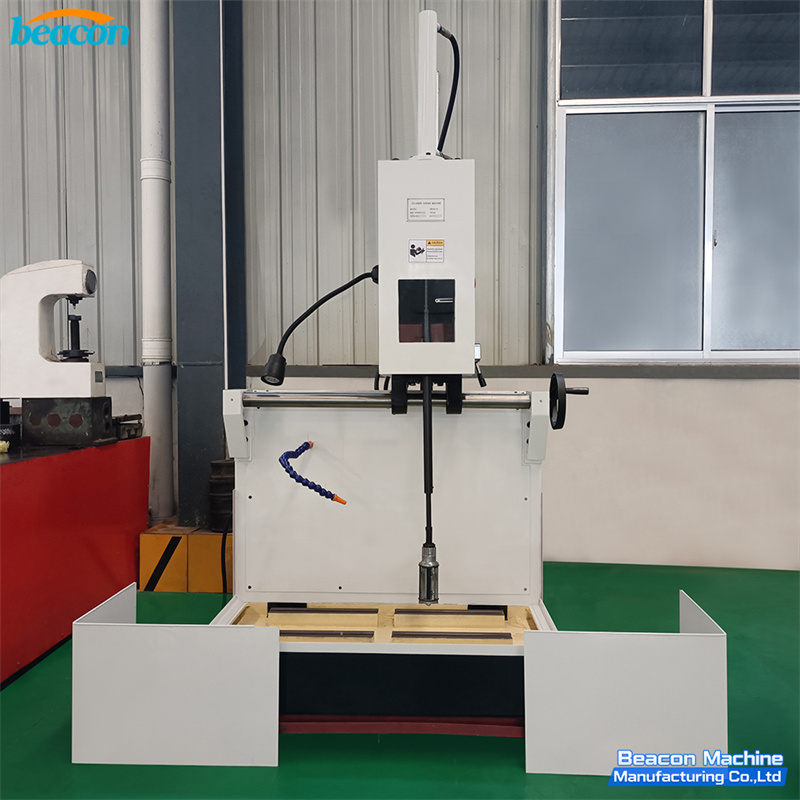

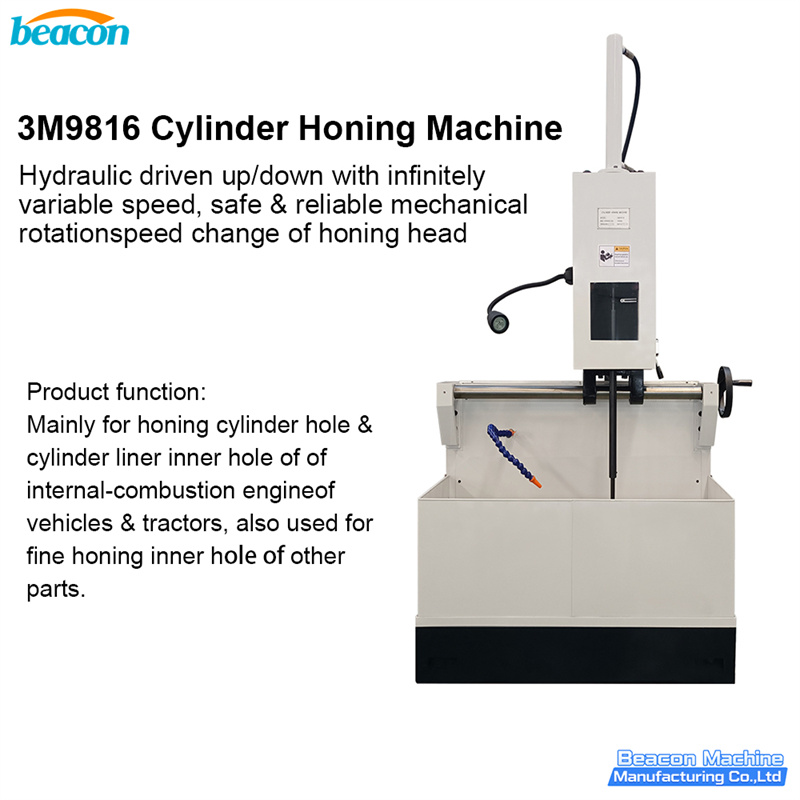

3M9816 Vertical Cylinder Honing Machine with Infinitely Variable Hydraulic Drive

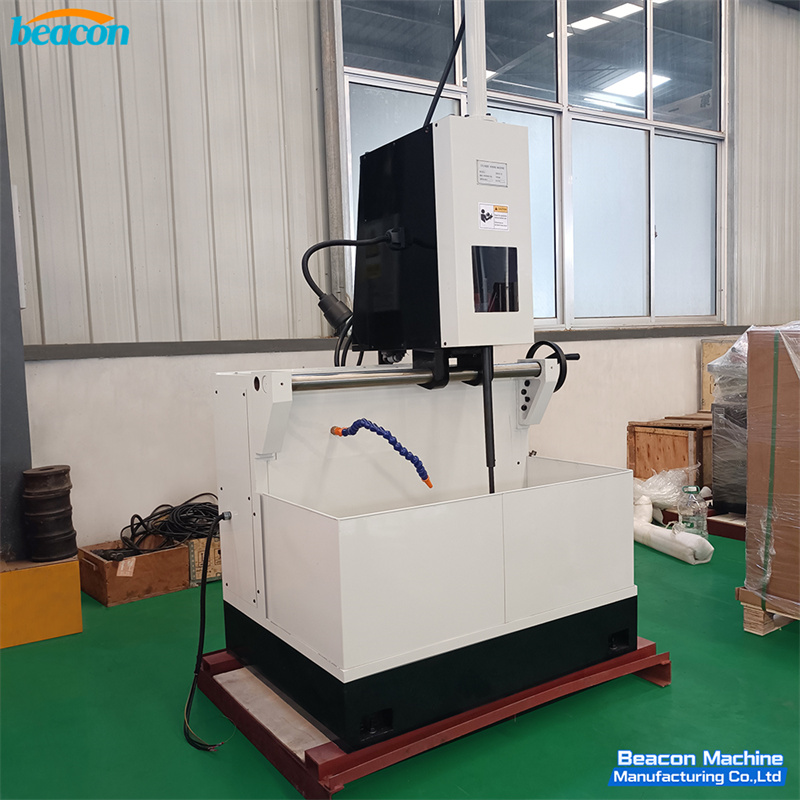

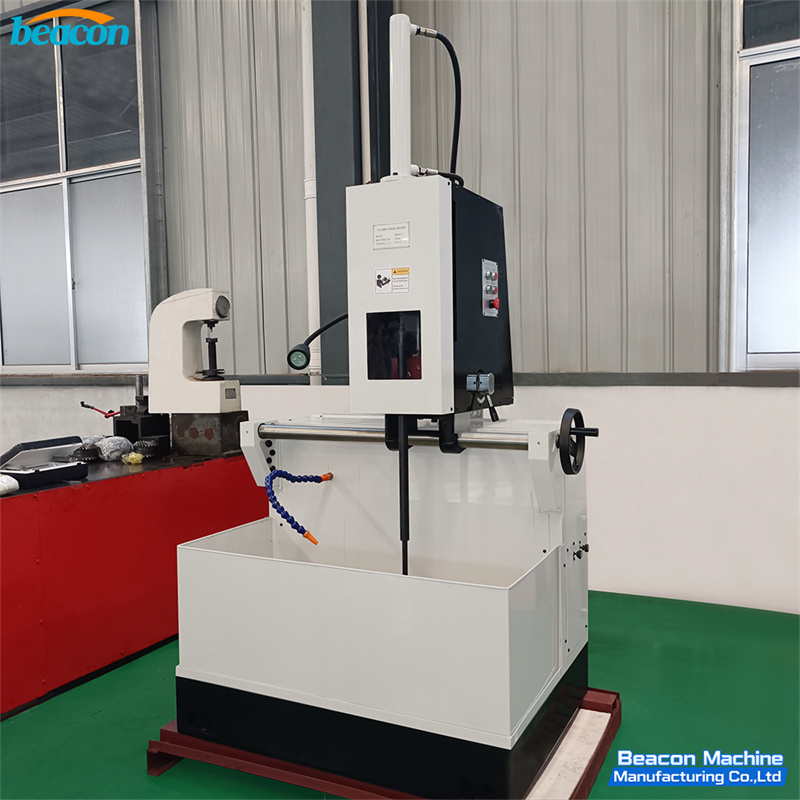

The 3M9816 is a high-precision vertical cylinder honing machine primarily designed for honing cylinder holes and cylinder liner inner holes of internal-combustion engines in vehicles and tractors. It is also an excellent solution for the fine honing of other mechanical parts requiring a superior surface finish. The machine features a advanced hydraulic drive system for up and down movement with infinitely variable speed control, ensuring a safe, reliable, and smooth honing process. With its mechanical rotation speed change for the honing head, the 3M9816 offers the perfect combination of power and delicate control for engine reconditioning professionals.

3M9816 Vertical Cylinder Honing Machine with Infinitely Variable Hydraulic Drive Advantage

Hydraulic Precision: The honing head movement is driven by a high-quality hydraulic system, providing smooth operation and superior finishing quality.
Infinitely Variable Speed: Reciprocating speeds can be adjusted from 0 to 10 m/min, allowing for optimized cross-hatch patterns and surface textures.

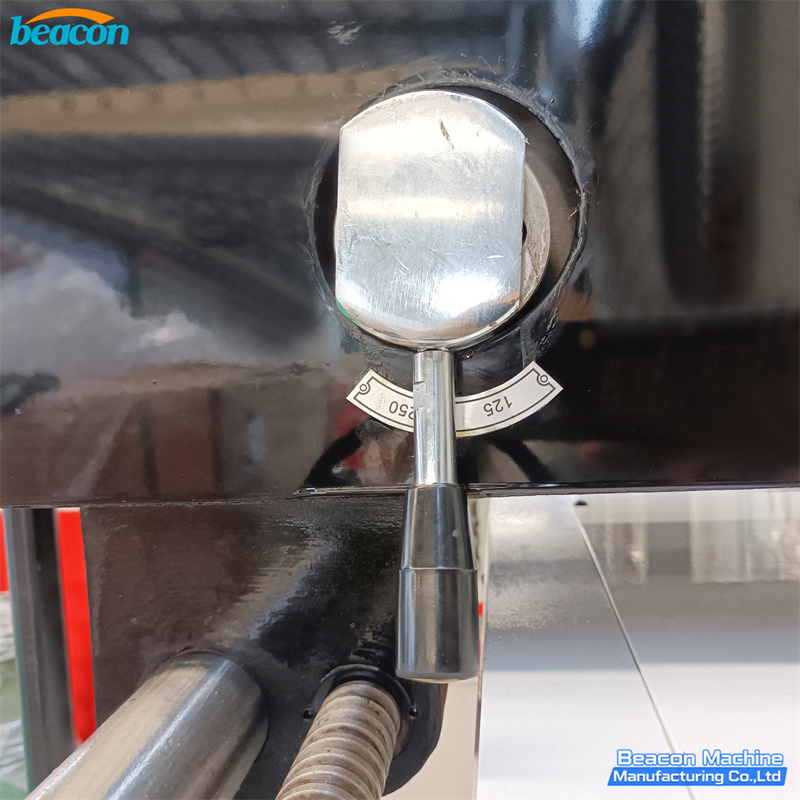

Mechanical Speed Stability: Features dedicated mechanical rotation speed changes (125/250 RPM) to maintain constant torque during the honing process.
Wide Processing Range: Capable of honing diameters from 45mm up to 160mm, covering a broad spectrum of automotive and agricultural engine liners.
Safety & Reliability: The vertical design and hydraulic controls are engineered for safe industrial use and consistent, long-term reliability.
Versatile Applications: While optimized for engine blocks, it is equally effective for precision finishing of various industrial inner holes.
Compact Footprint: Efficient overall dimensions (1240x850x2310mm) make it suitable for both large-scale factories and specialized repair workshops.

parameter

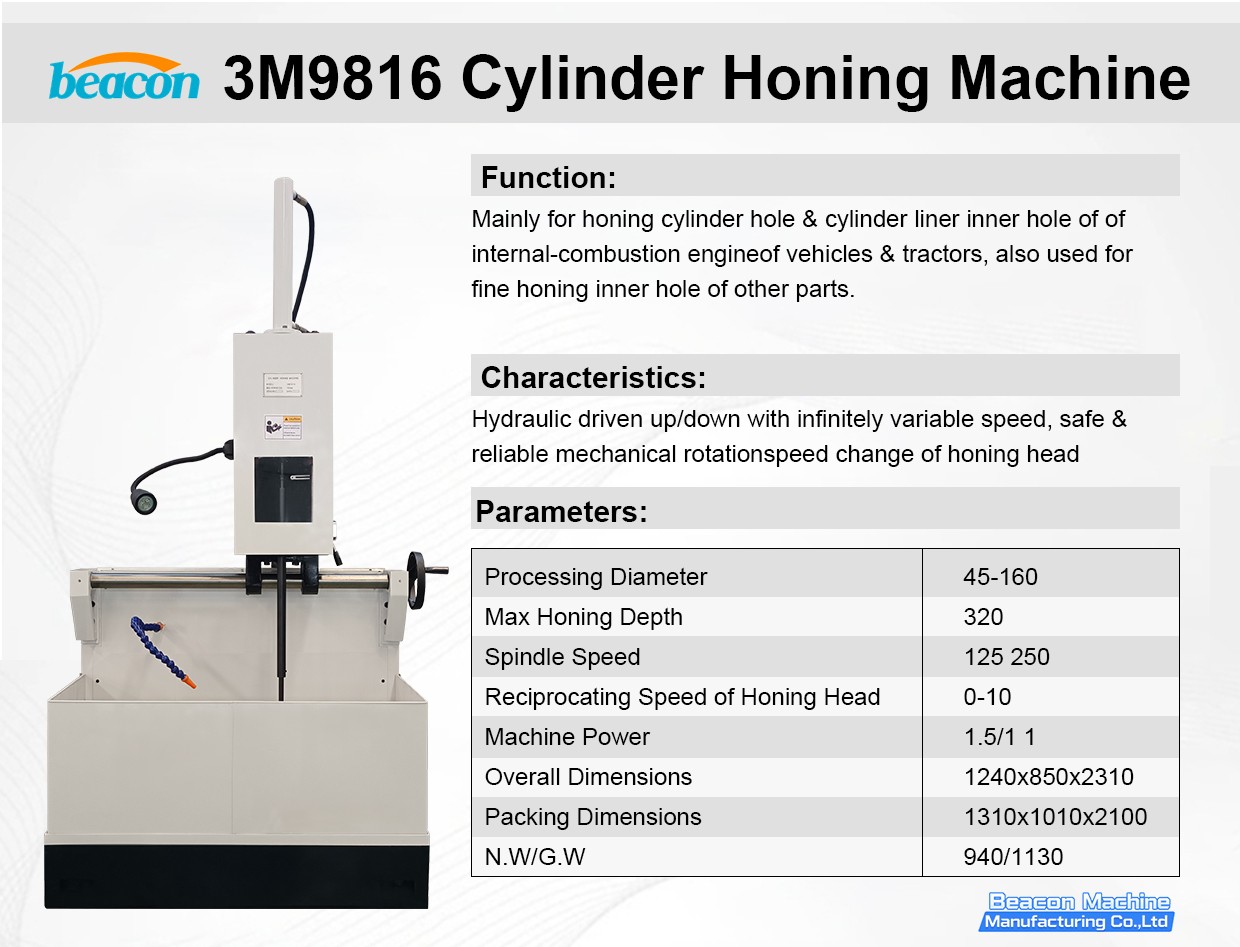

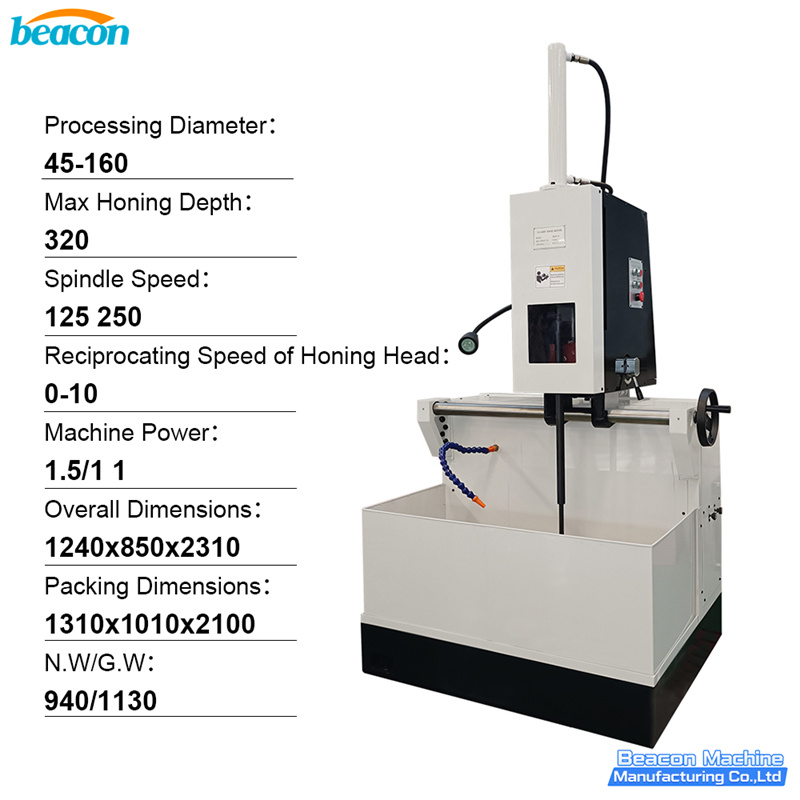

Main Specifications	Technical Data (Model 3M9816)
Processing Diameter Range	45 - 160 mm
Max. Honing Depth	320 mm
Spindle Rotation Speeds	125 / 250 r/min
Reciprocating Speed of Honing Head	0 - 10 m/min (Infinitely Variable)
Machine Total Power	1.5 / 1.1 KW
Overall Dimensions (L x W x H)	1240 x 850 x 2310 mm
Packing Dimensions (L x W x H)	1310 x 1010 x 2100 mm
Net Weight / Gross Weight	940 kg / 1130 kg
