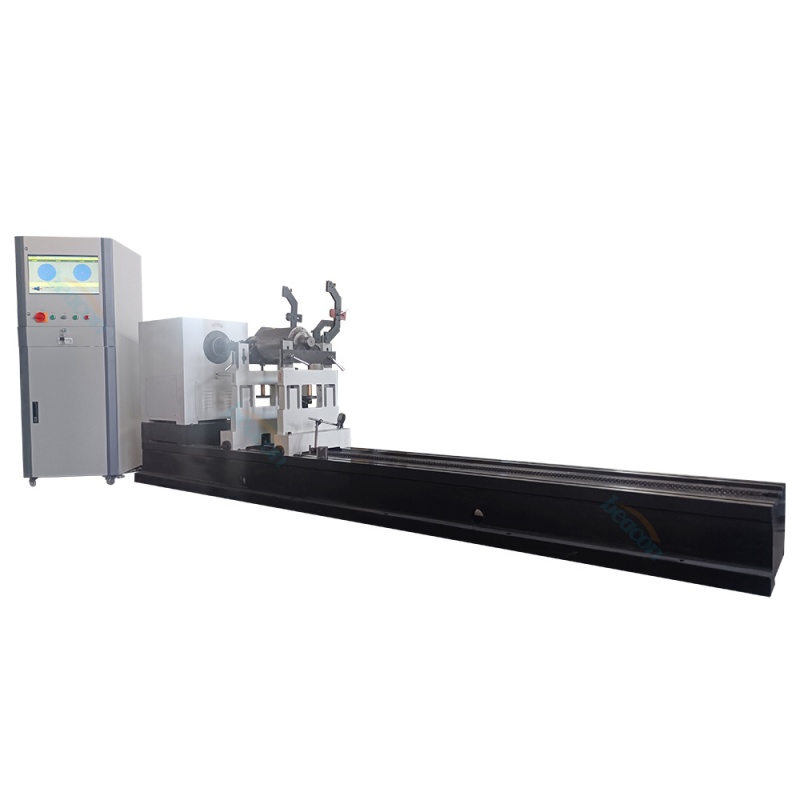

YYW-300S Universal Joint Drive Dynamic Balancing Machine

YYW-300S Universal Joint Drive Dynamic Balancing Machine

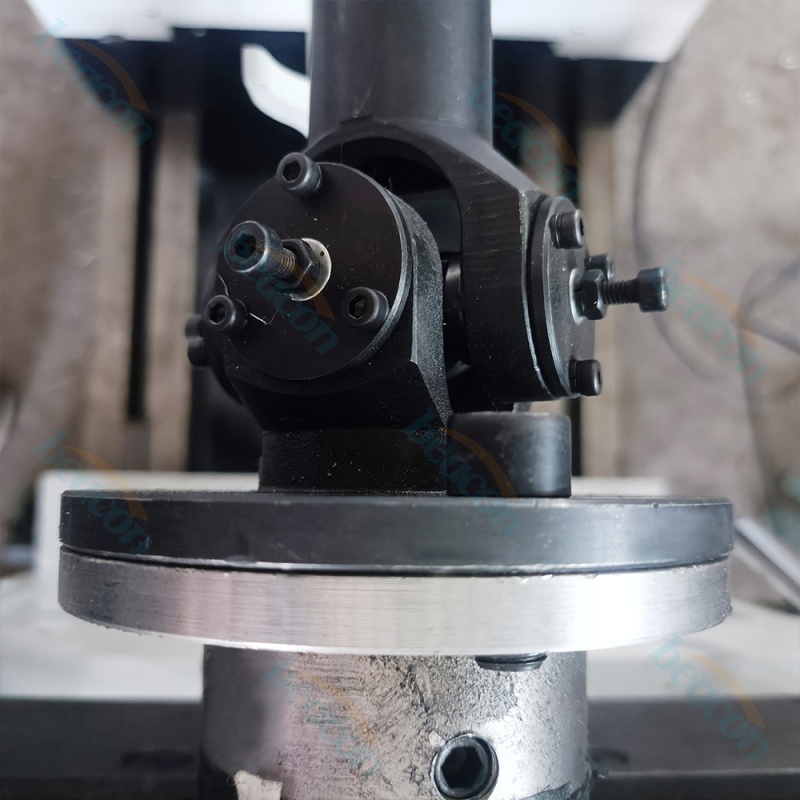

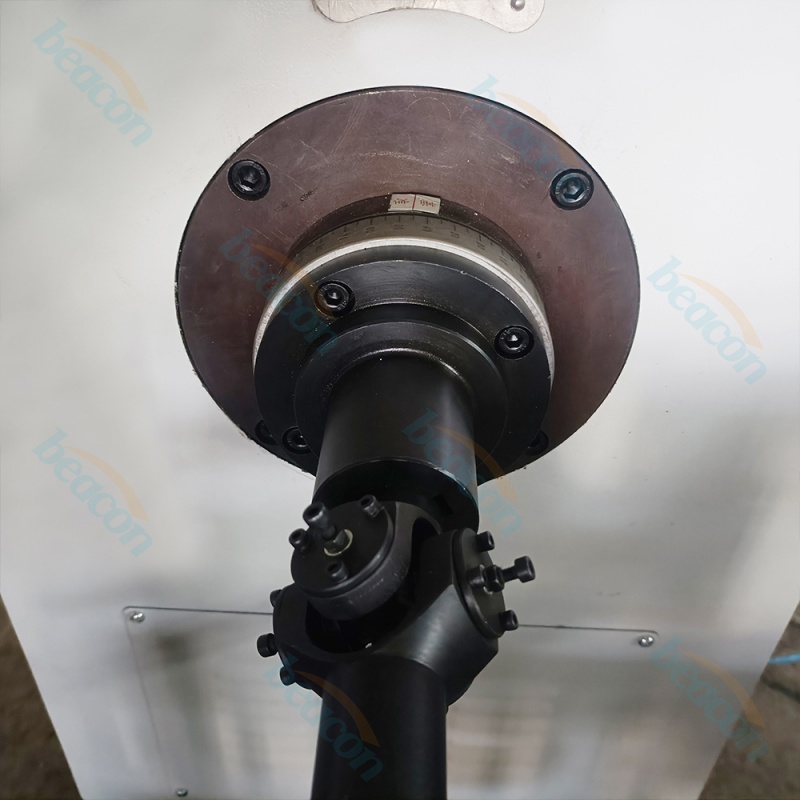

The YYW-300S is a universal hard-bearing dynamic balancing machine strictly manufactured according to GB/T 4201-2006 standards. It features roller supports and a universal joint drive system, integrated with an industrial control computer for high-precision data processing. The 19-inch LCD screen displays unbalance amount, phase angle, and real-time speed. This machine is widely used in paper-making, textile, agricultural machinery, motors, and blowers, supporting single-side, double-side, and multi-plane balancing for large shafts and disc-shaped rotors.

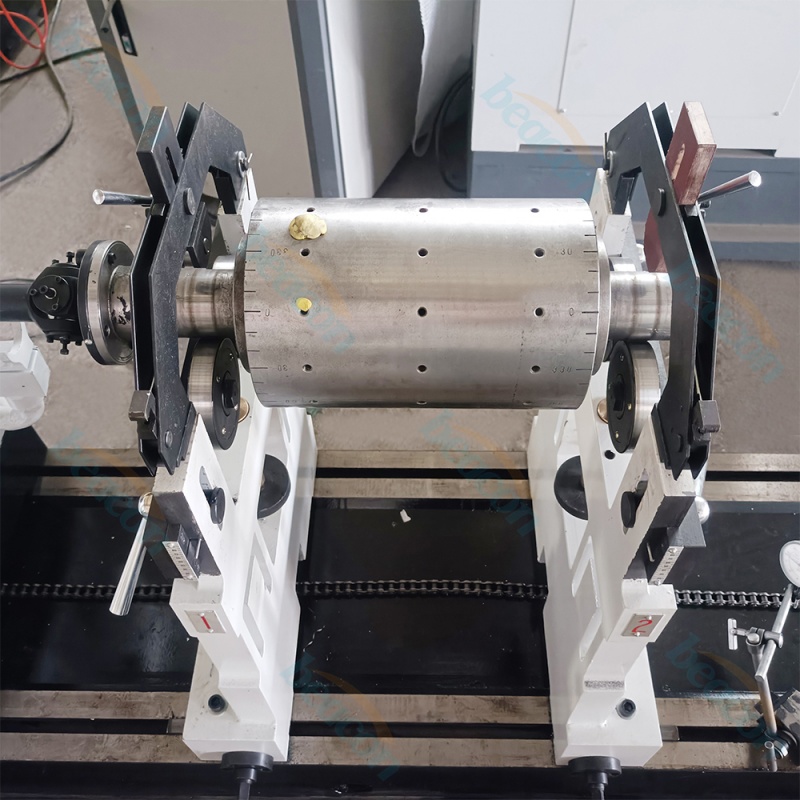

High Versatility: Ideal for a wide range of rotors, including large shafts, discs, and rotors with overhanging centers of gravity.

Advanced Measuring System: Equipped with self-developed professional balancing software and a 32-bit industrial control computer.

Step-less Speed Regulation: Uses a high-quality frequency converter to achieve smooth and precise speed control.

Robust Construction: The swing frame is made of QT450 cast iron with an integral structure and piezoelectric sensors for stable measuring.

User-Friendly Interface: Features a 19-inch flat-panel LCD monitor and standard anti-interference keyboard/mouse for easy operation.

High Precision: Capable of achieving a minimum residual unbalance of ≤1 gmm/kg with an unbalance reduction ratio of ≥90%.
