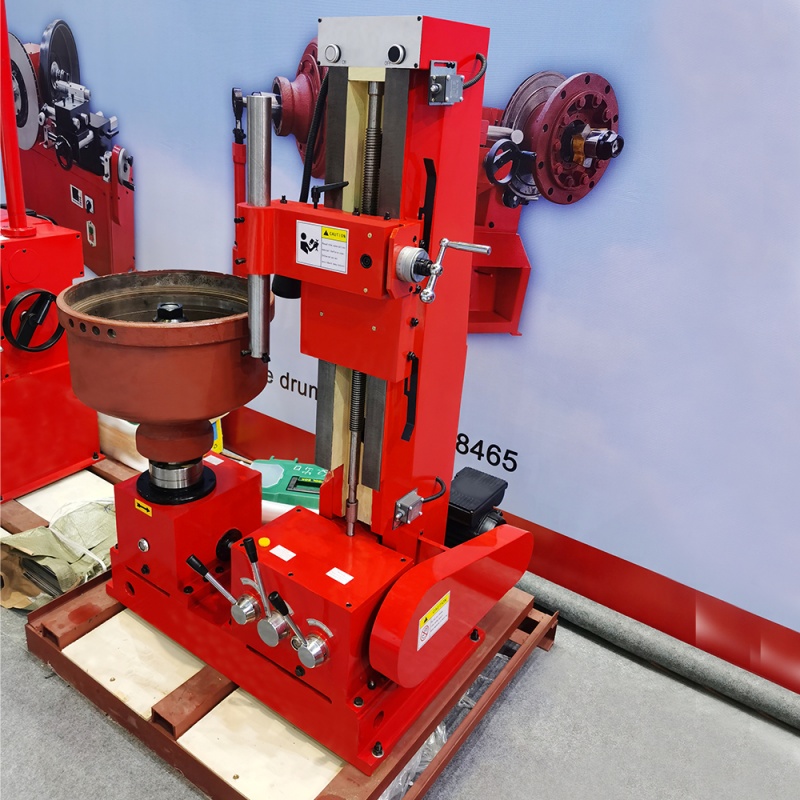

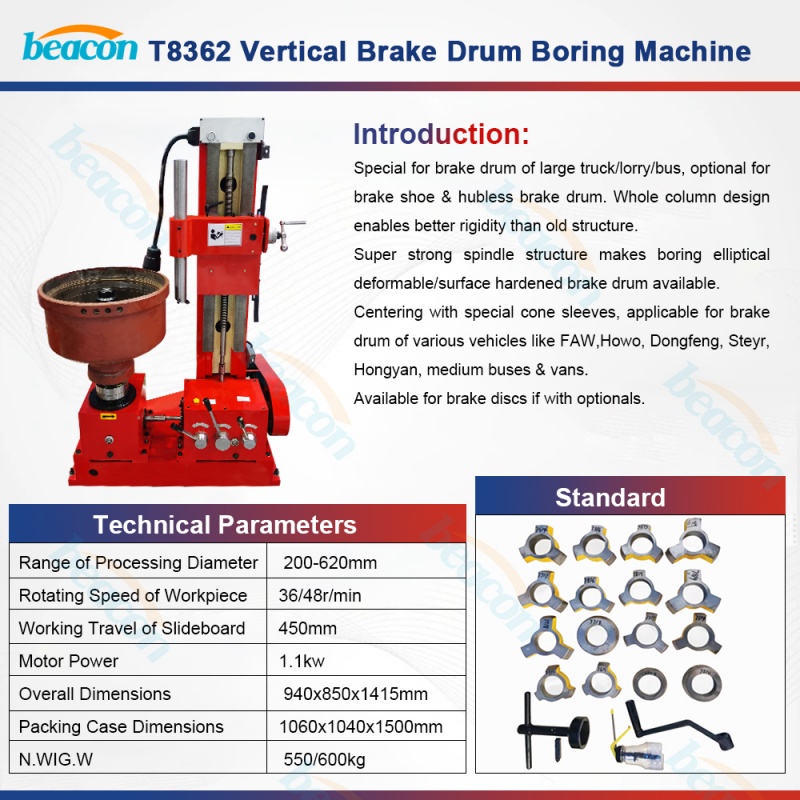

T8362 Heavy Duty Vertical Brake Drum Boring Machine for Trucks and Buses

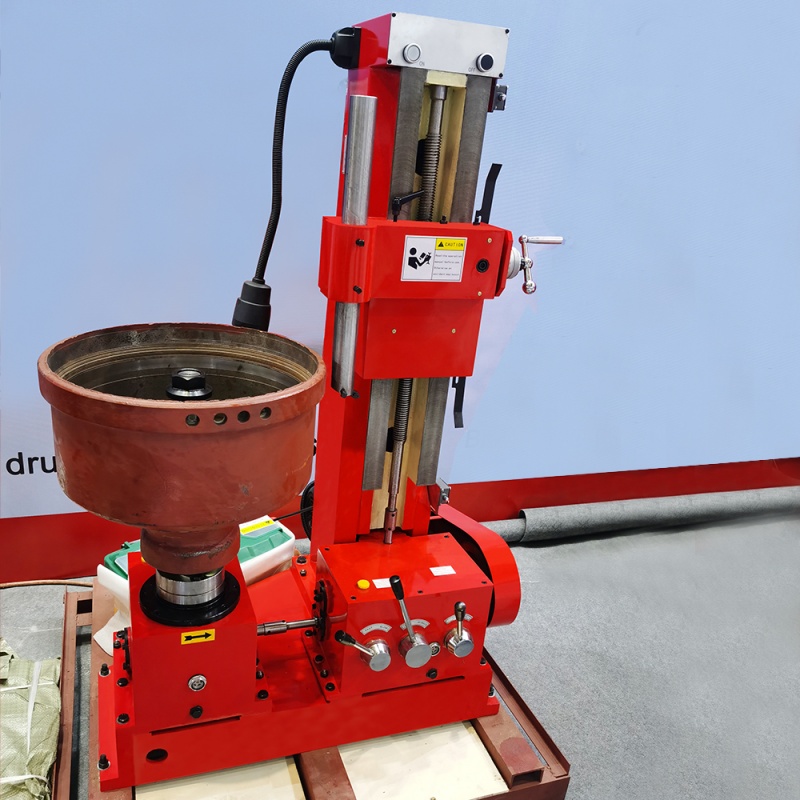

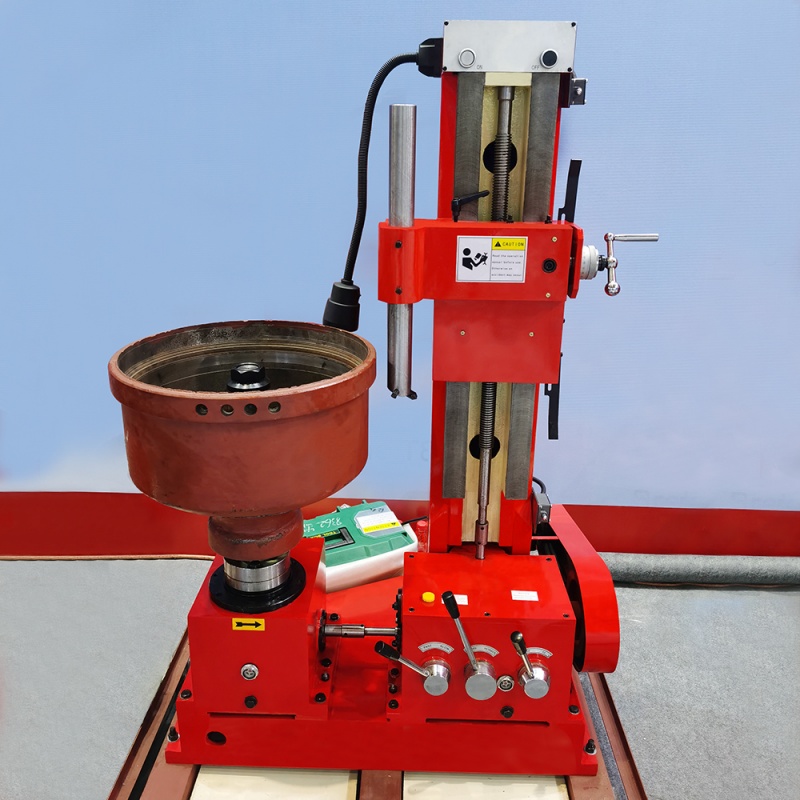

The T8362 Vertical Brake Drum Boring Machine is a specialized, high-performance solution designed specifically for the maintenance of large vehicles, including heavy-duty trucks, lorries, and buses. Unlike traditional horizontal lathes, its whole column design provides superior rigidity and stability. Engineered with a super-strong spindle structure, the T8362 can effortlessly handle elliptical, deformed, or surface-hardened brake drums. With its specialized cone sleeve centering system, it is perfectly compatible with a wide range of heavy-duty vehicles such as FAW, HOWO, Dongfeng, and Steyr, making it an indispensable tool for heavy-vehicle brake service centers.

Brake Drum Boring Machine, Truck Brake Lathe, Vertical Brake Lathe

T8362 Heavy Duty Vertical Brake Drum Boring Machine for Trucks and Buses Advantage

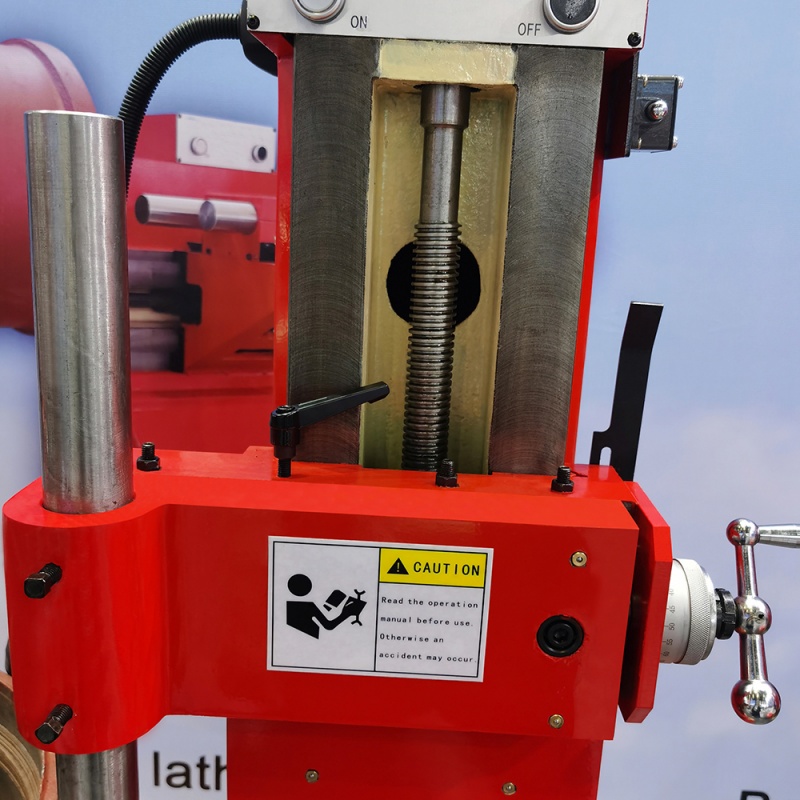

Superior Rigidity: The unique whole column design provides significantly better structural stability compared to older structures, ensuring vibration-free operation.

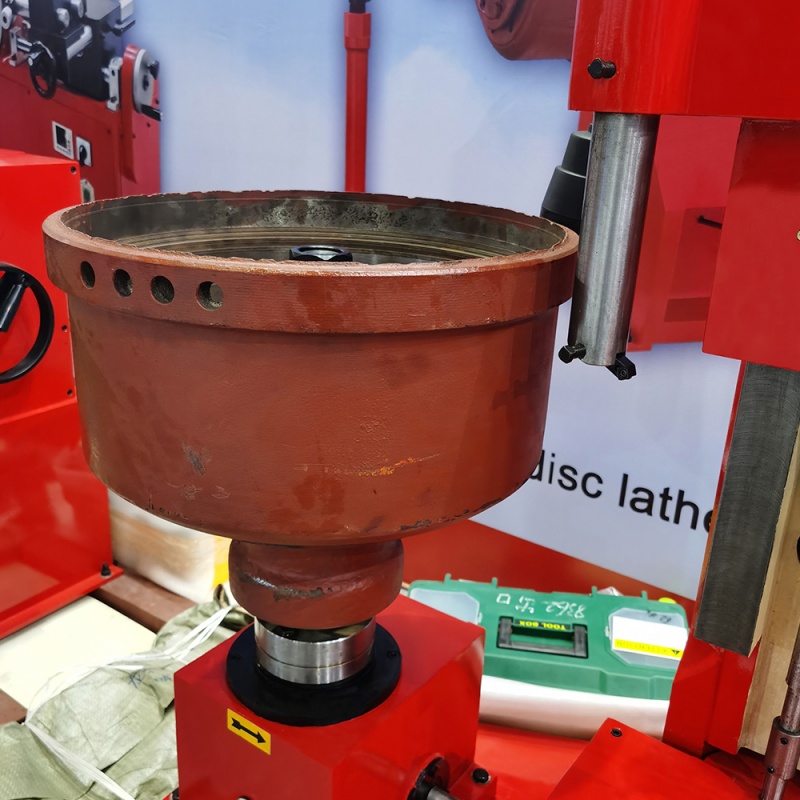

Heavy-Duty Spindle: Features an ultra-strong spindle structure specifically designed to bore through hardened surfaces and deformed/elliptical brake drums.
Large Processing Range: Specifically optimized for large vehicles, with a processing diameter ranging from 200mm up to 620mm.

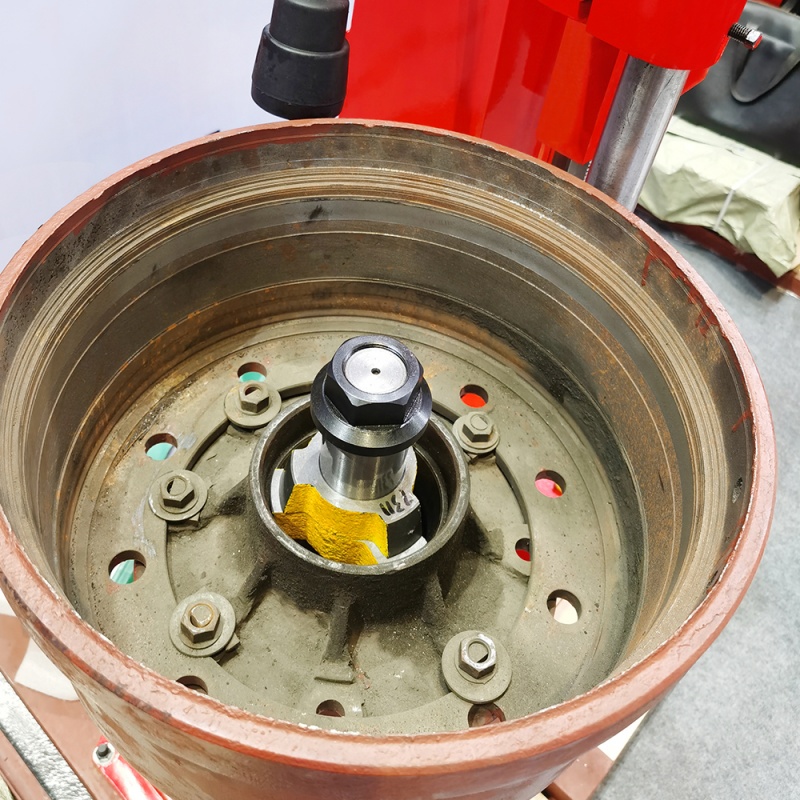

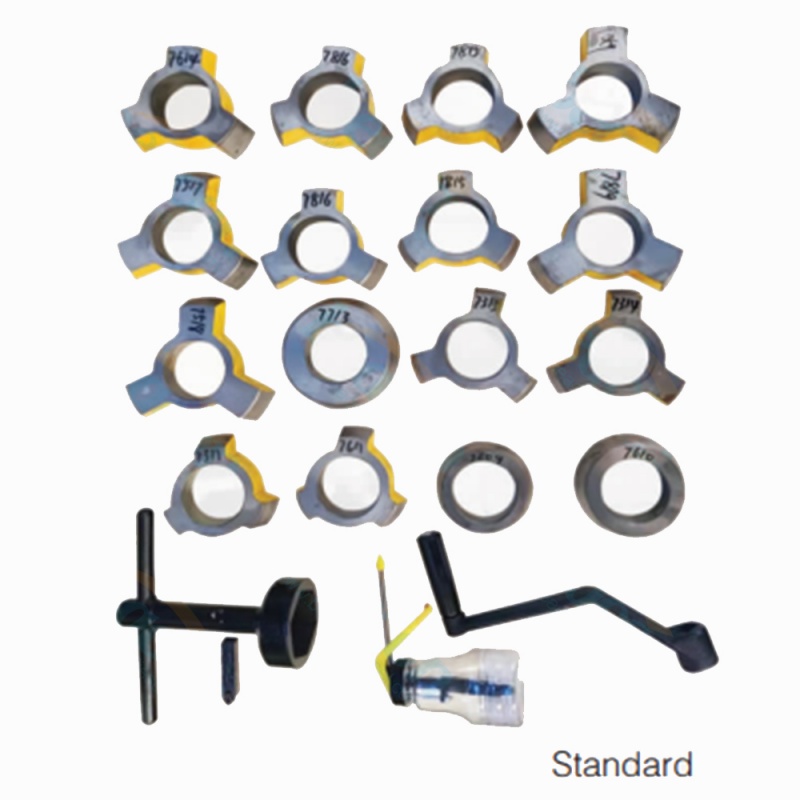

Universal Centering System: Equipped with special cone sleeves that allow for accurate centering on brake drums from various truck brands like FAW, Howo, and Steyr.
Multi-Function Versatility: While specialized for brake drums, optional fixtures allow it to process brake shoes, hubless brake drums, and even brake discs.
Vertical Space-Saving Design: The vertical orientation is ideal for handling heavy workpieces more easily while maintaining a compact footprint in the workshop.
Professional Accuracy: Designed to restore braking surfaces to factory specifications, improving vehicle safety and braking efficiency.

parameter

Technical Parameter	Specifications (Model T8362)
Range of Processing Diameter	200 mm - 620 mm

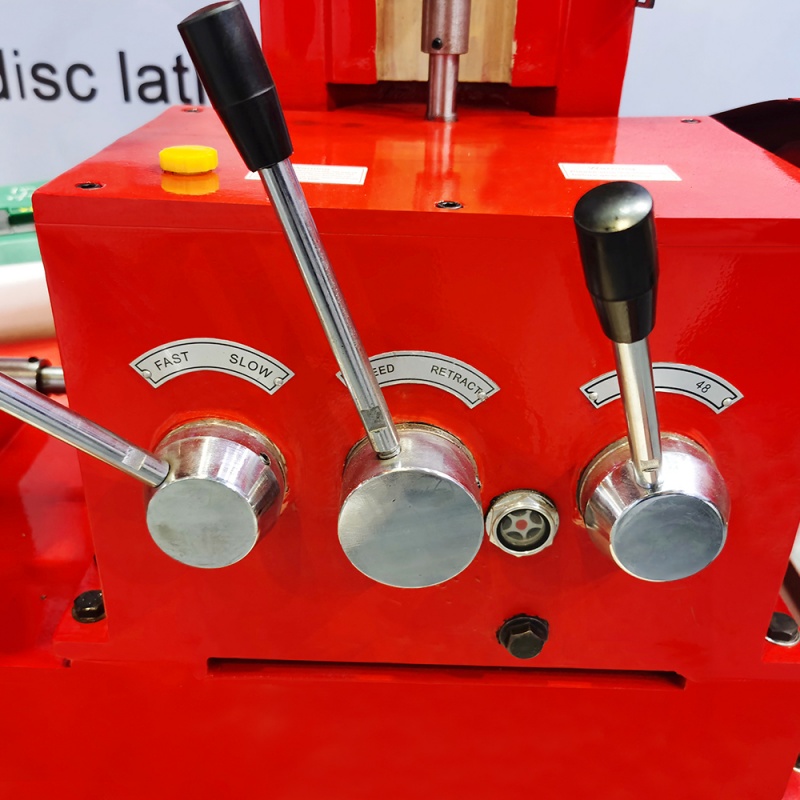

Rotating Speed of Workpiece	36 / 48 r/min
Working Travel of Slideboard	450 mm
Motor Power	1.1 KW
Application Scope	Heavy Trucks, Lorries, Buses (Brake Drum/Shoe)
Overall Dimensions (LWH)	940 x 850 x 1415 mm
Packing Case Dimensions	1060 x 1040 x 1500 mm
Net Weight / Gross Weight	550 kg / 600 kg
