HEUI-FS HEUI Common Rail Injector Test Bench

HEUI-FS HEUI common rail injector Test Bench

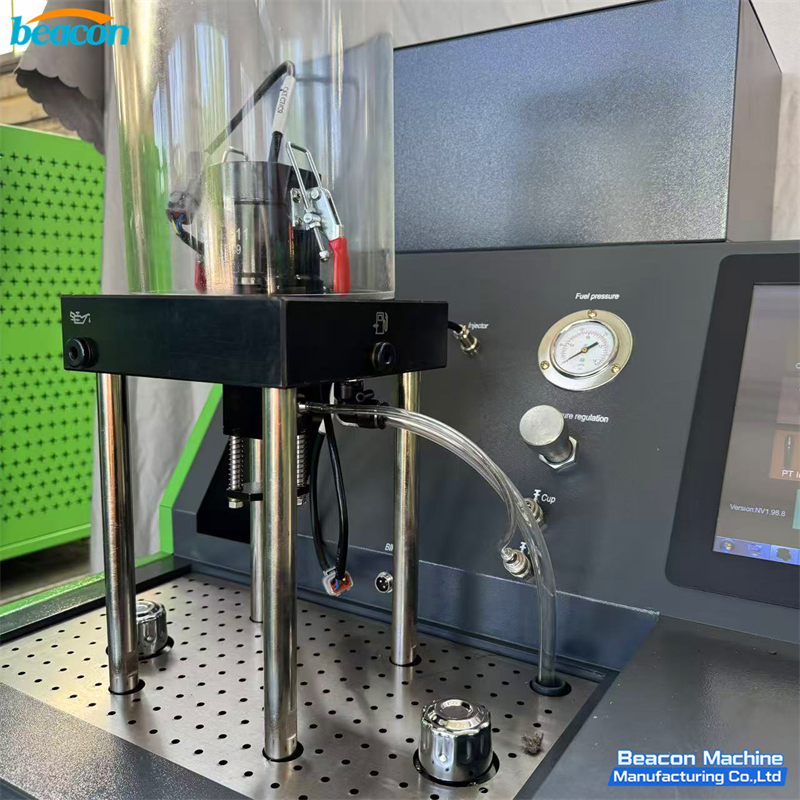

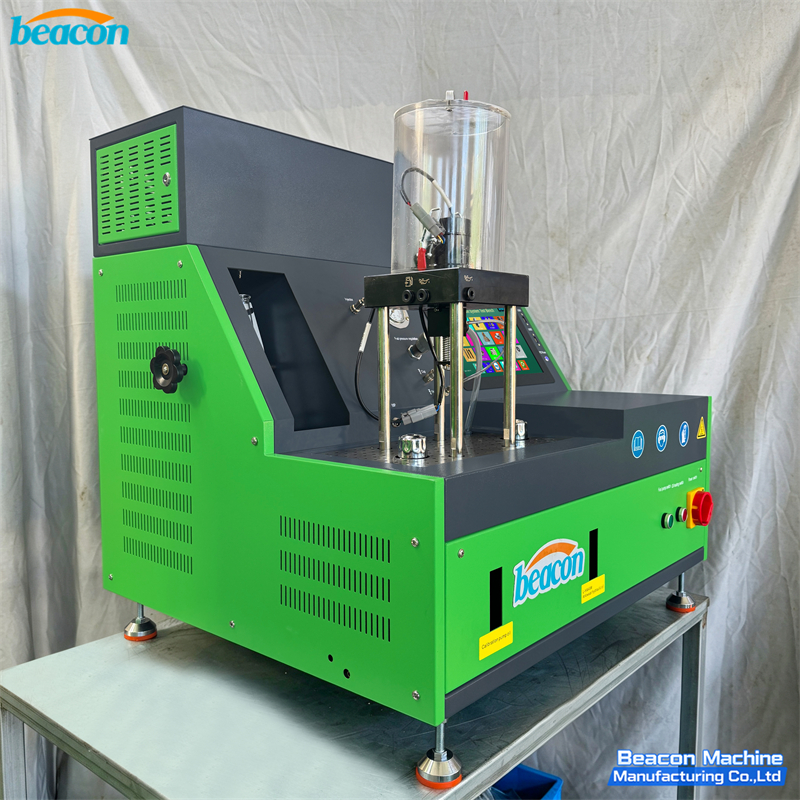

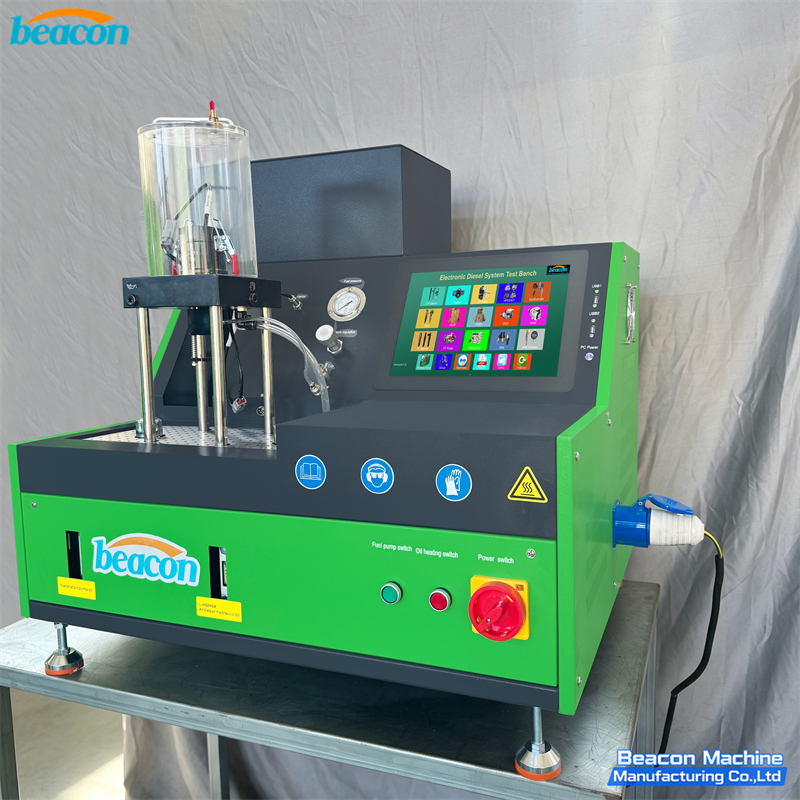

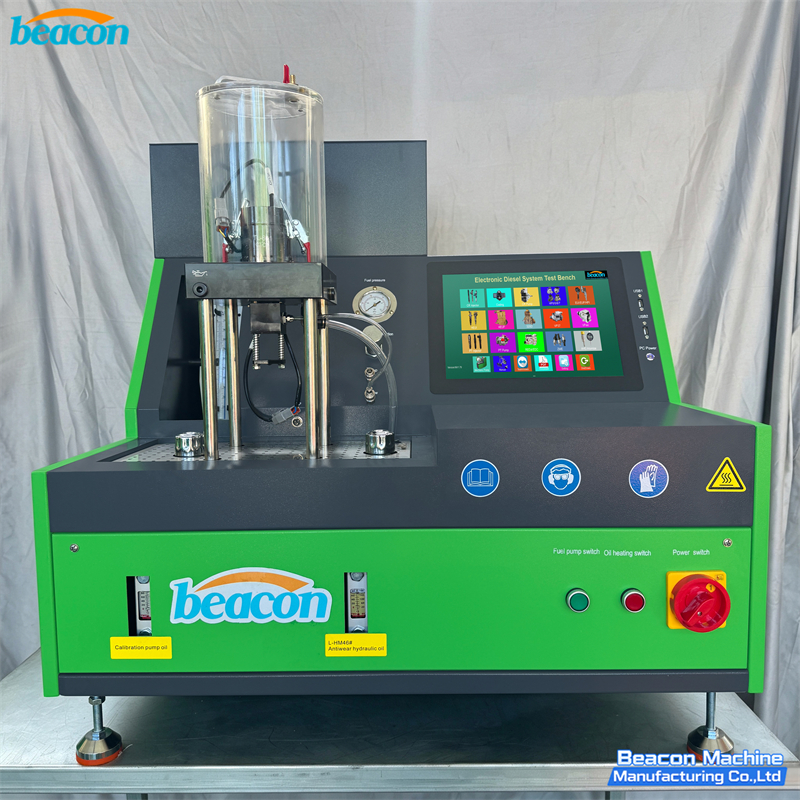

The HEUI-FS HEUI Common Rail Injector Test Bench is a professional test bench specially designed for HEUI (Hydraulically actuated Electronically controlled Unit Injector) injector testing. It imitates the working conditions of the diesel engine ECU and provides control signals for CAT C7, C9, 3126B and similar HEUI injectors, allowing maintenance personnel to judge and maintain the working status of the high-pressure common rail system.

Equipped with a dual oil system (HEUI 74 data), the bench tests HEUI injectors with two fixtures for CAT C7/C9 and 3126B as standard. Optional functions extend testing to CAT 3126A, 3412E, NAVISTAR, ISUZU, Ford G2.8 and G2.9 HEUI injectors. The control system software supports 15 languages, can be updated automatically and remotely, and can print test reports with your own logo.

Main Functions

• Test HEUI injectors with two fixtures for CAT C7/C9 and 3126B

• Dual oil system HEUI 74 data

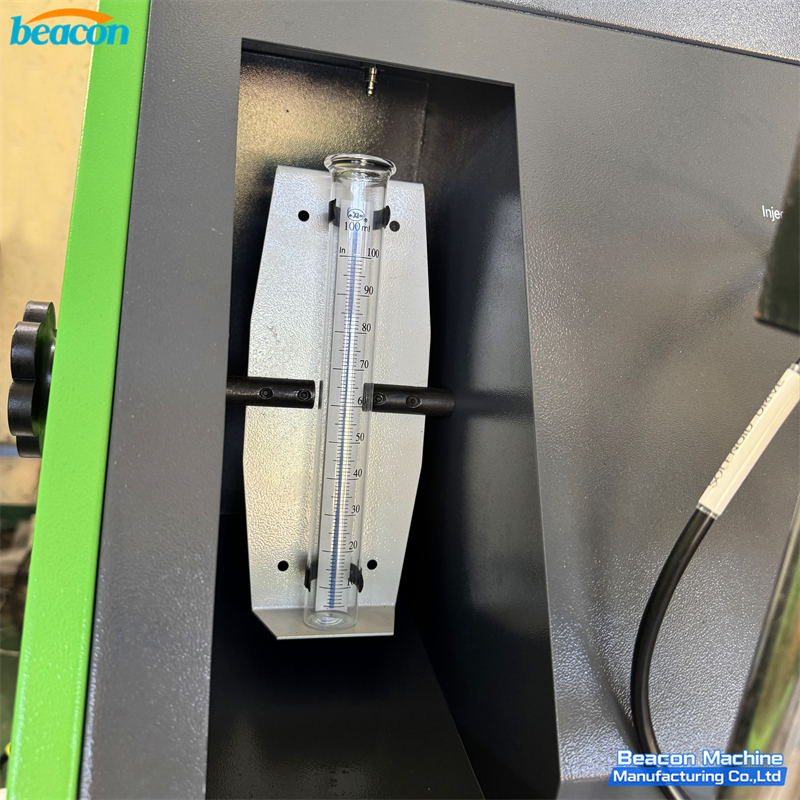

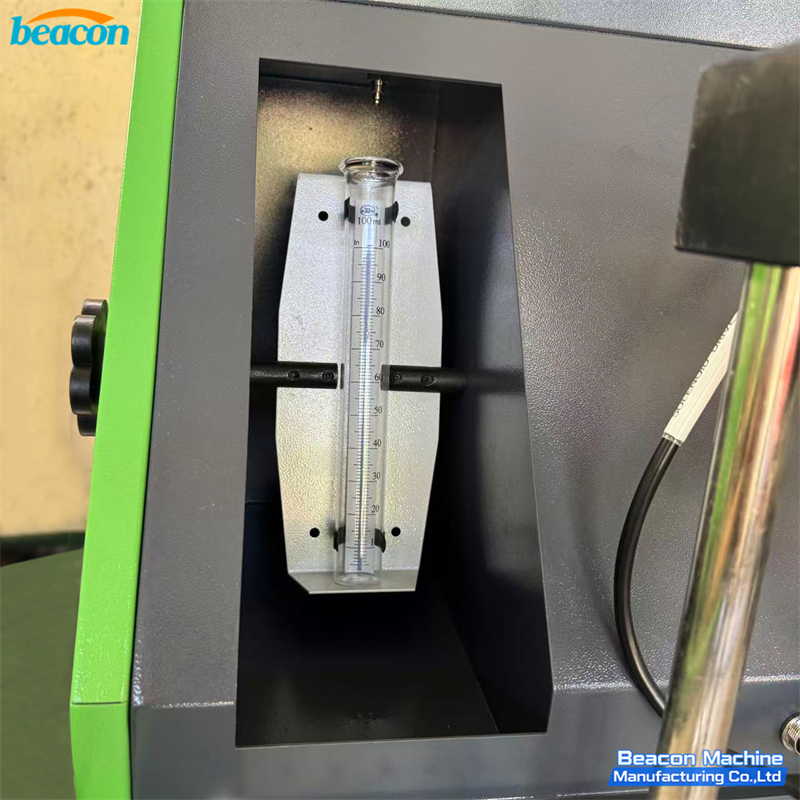

• With graduated cylinder for delivery measurement

• Optional: test CAT 3126A, 3412E, NAVISTAR, ISUZU, Ford G2.8, G2.9

• Software supports 15 languages (Chinese, English, Spanish, French, Russian, etc.)

• System can be updated automatically; free upgrade within one year; remote upgrade

• System can add your logo and print report data

Test Range

• CAT C7 / C9 / 3126B HEUI injectors (standard fixtures)

• CAT 3126A / 3412E / NAVISTAR / ISUZU / Ford G2.8 / G2.9 (optional)

Supported HEUI Injector and Pump Applications

The HEUI test platform covers Caterpillar C7 / C9 / C12 3126B, Navistar DT466 / DT570 / DT530, Ford Power Stroke 7.3L / 6.0L, Perkins 1300 series and International HEUI applications. Representative OEM references include Caterpillar 10R-7675 / 10R-7676 / 10R-7677, Navistar / International 1807329C92 / 1845428C92 / 1882080C92, and Ford F81Z-9E527-AA / F6TZ-9E527-AA.

Hydraulic Electronic Unit Injector Calibration Workflow

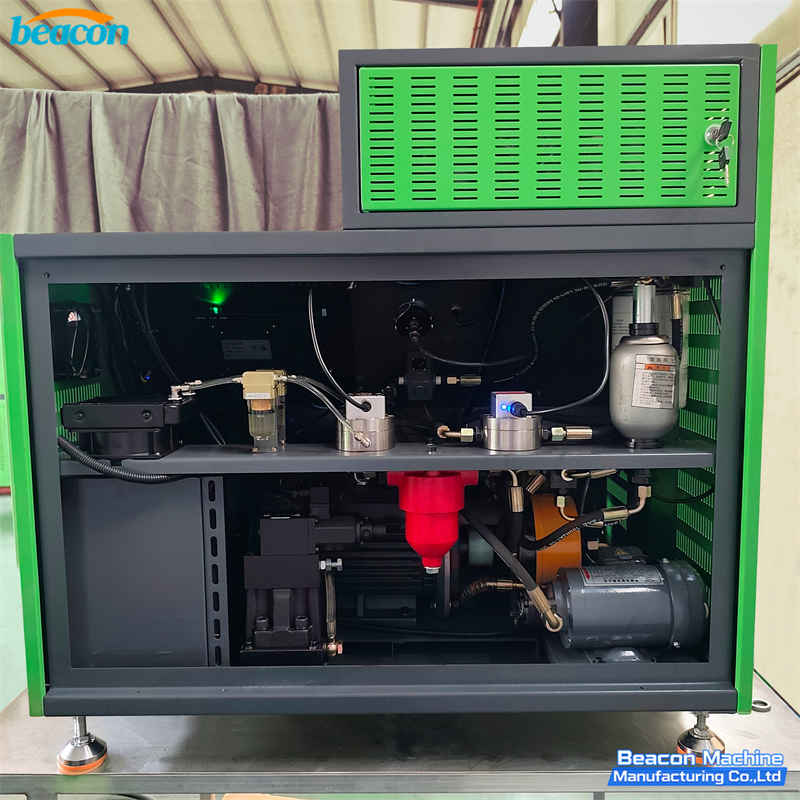

The hydraulic actuation is generated by the high-pressure oil pump driven by the test bench. The platform performs injector response time measurement, injection quantity calibration and full-load sealing tests across 6 / 8 cylinder configurations without engine removal.

FAQ — Frequently Asked Questions

Q1. Which diesel engines are covered by this HEUI platform?
A: Caterpillar C7 / C9 / C12 3126B, Navistar DT466 / DT570, Ford Power Stroke and similar HEUI applications.

Q2. Is hydraulic actuation integrated?
A: Yes. The integrated high-pressure oil pump drives HEUI actuation without engine dismount.

Q3. Can this test bench test both HEUI injectors and HEUI pumps?
A: Yes. Both HEUI injectors and HEUI pumps are supported with dedicated adapter kits.

Features

• 2.2kW main motor, 380V 3-phase (220V 1-phase/3-phase optional)

• Fully automatic control system with one-key operation

• Automatic flow sensor for oil volume measurement

• Test solenoid valve type and piezoelectric injectors

• Test common rail high pressure pumps (Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins)

• Test HEUI medium pressure common rail injectors and actuation pumps (optional)

• Open database, part number can be increased

• Injector compensation codes can be generated

• Injector resistance and inductance can be tested

• Maximum pressure 2400bar for common rail injector testing, safety door protection

• One-year warranty + lifetime technical support

After-Sales Service and Warranty

• Remote Diagnostics: Online support via TeamViewer and remote desktop tools for software configuration, calibration profile updates and database upgrades.

• Spare Parts Supply: Genuine spare parts available for shipment within 48 hours from the regional service center.

• Training and Onboarding: On-site or remote operator training covering operation, calibration and software upgrades.

• 12 Months Warranty: Full machine warranty covers spare parts and remote support for one year after delivery.
