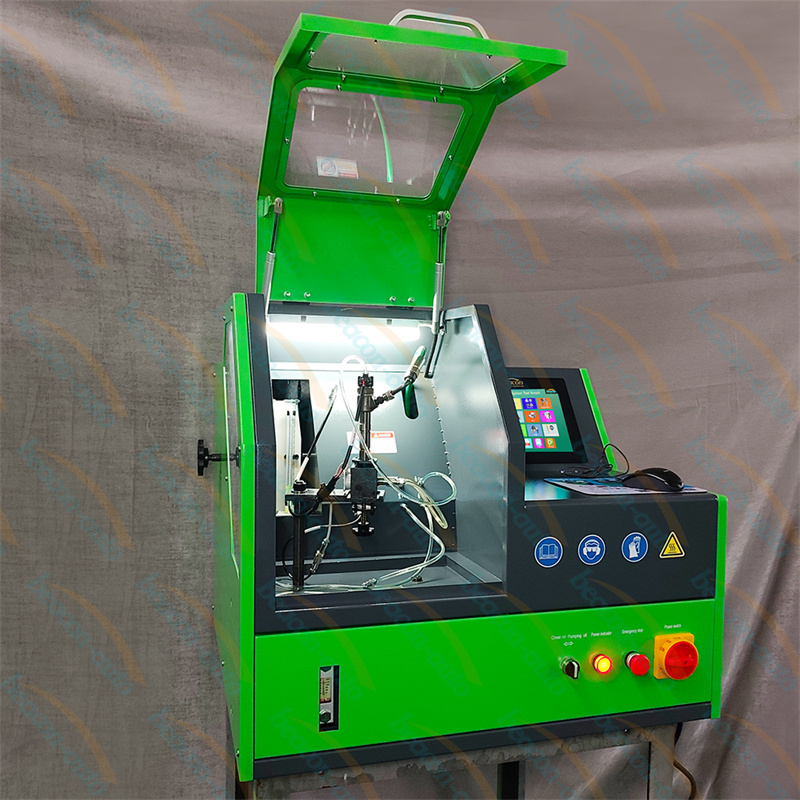

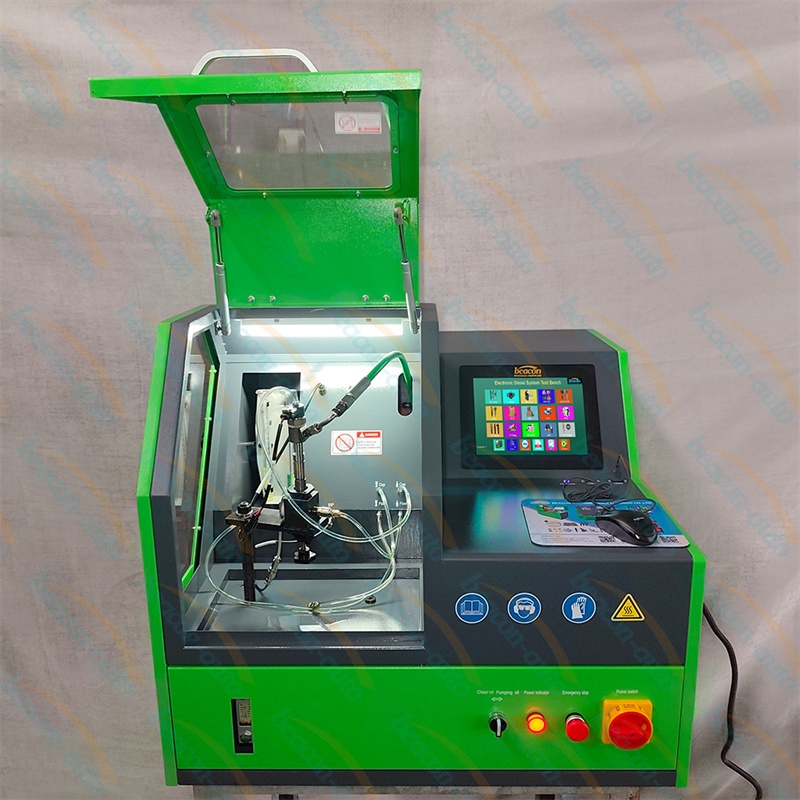

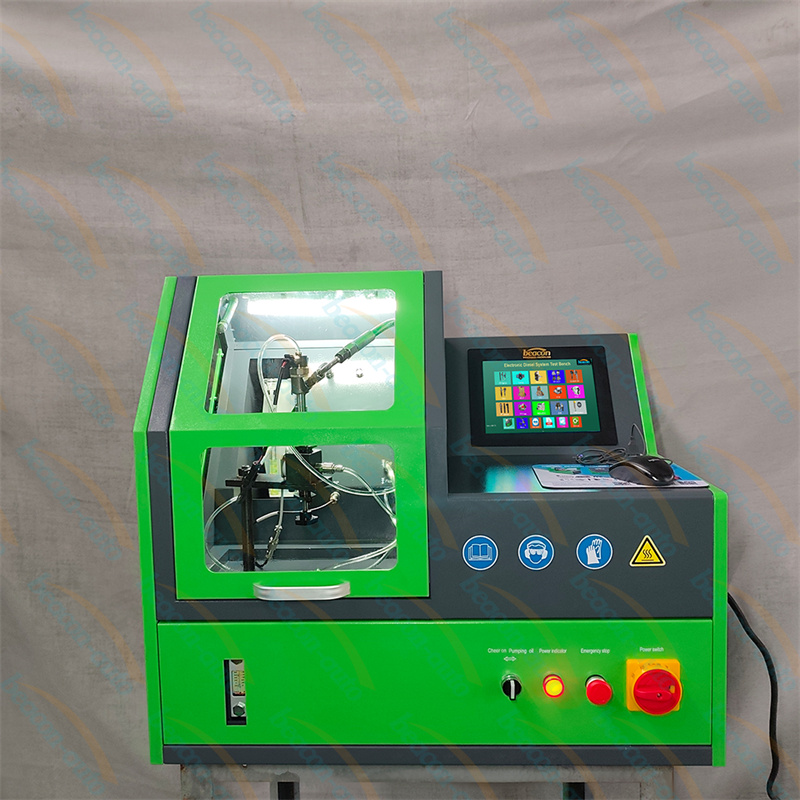

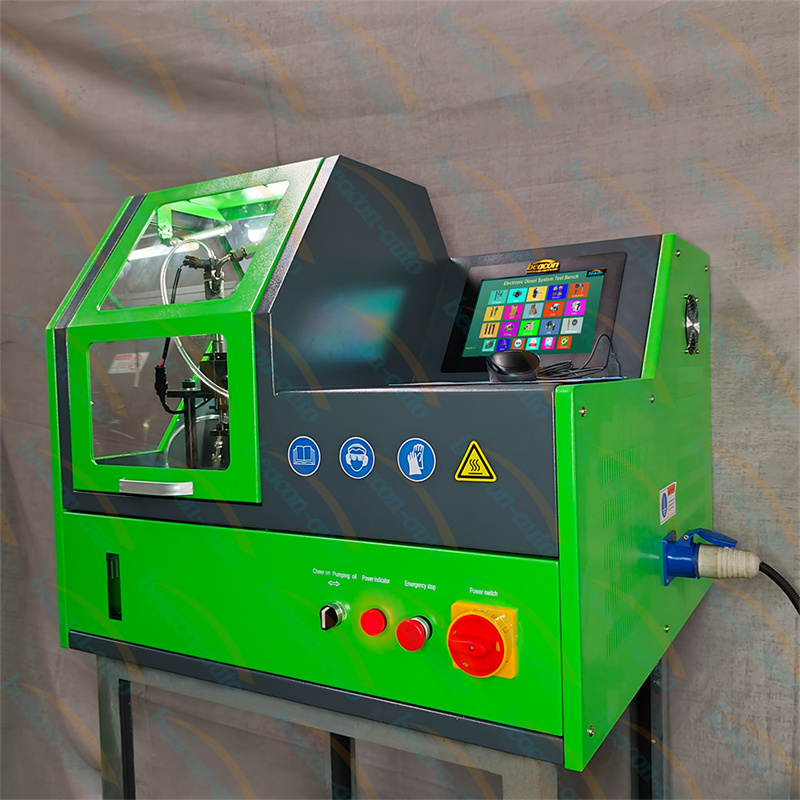

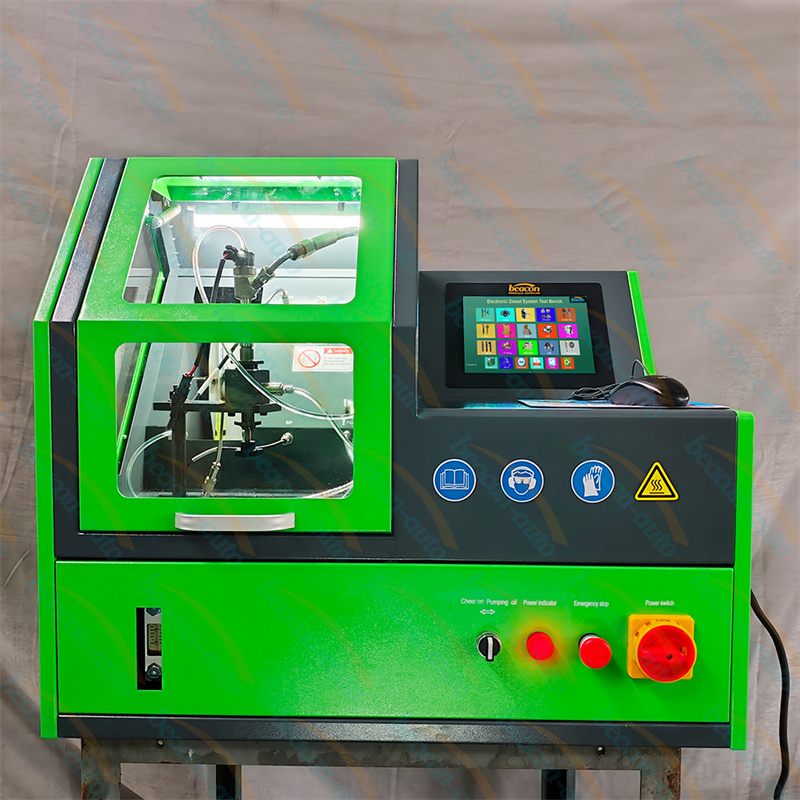

EPS210S Desktop Common Rail Injector Test Bench for Solenoid and Piezo

The EPS210S Common Rail Injector Test Bench is a highly compact, desktop-style diagnostic solution designed for modern diesel service centers with limited space. Powered by a 2.6KW motor and running on a standard 220V single-phase supply, it offers professional-grade testing for both solenoid valve and piezoelectric (Piezo) injectors from leading brands like Bosch, Denso, Delphi, and Siemens. Despite its small footprint, it provides a stable rail pressure up to 200MPa (2000 Bar) and features an advanced electronic flow meter system for fully automated measurement and reporting.

EPS210S Desktop Common Rail Injector Test Bench for Solenoid and Piezo Advantage

Compact Desktop Design: Space-saving dimensions (80*75*93cm) make it ideal for smaller workshops without compromising on professional testing capabilities.
Broad Compatibility: Supports a wide range of common rail injectors, including high-speed solenoid types and third-generation piezoelectric crystal injectors.

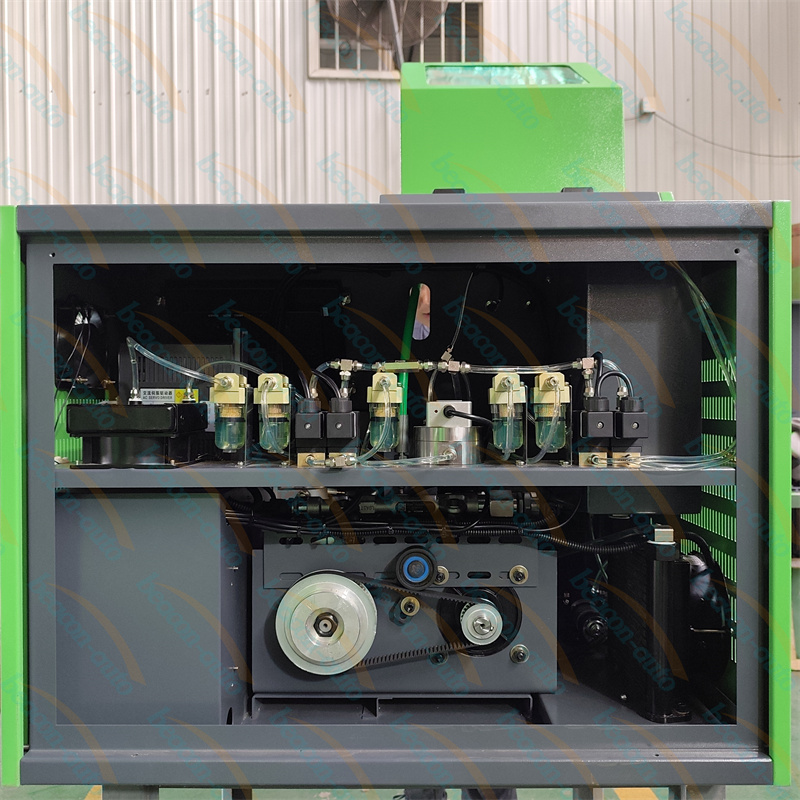

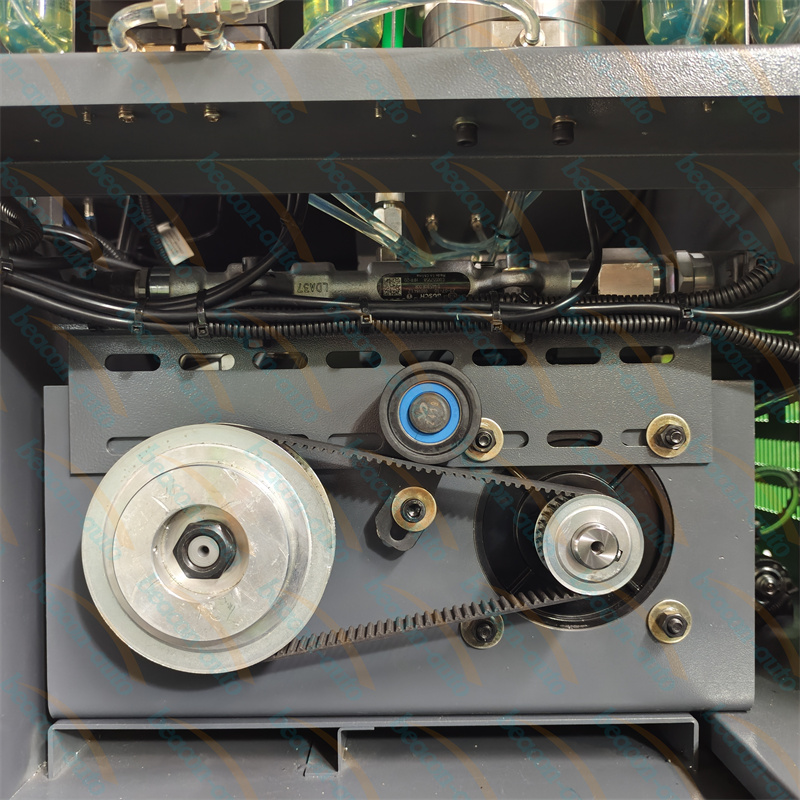

Precise Pressure Management: Equipped with a CP1H common rail pump and intelligent PID control, ensuring accurate rail pressure from 0 to 200MPa.
Automated Measurement & Coding: Features high-precision flow sensors for automatic oil quantity measurement and supports the generation of QR/IMA/ISA compensation codes.
Rich Optional Functions: Can be upgraded to test Bosch 4-pin injectors, AHE injector dynamic stroke, rail pressure sensors, and DRV/HPV valves.

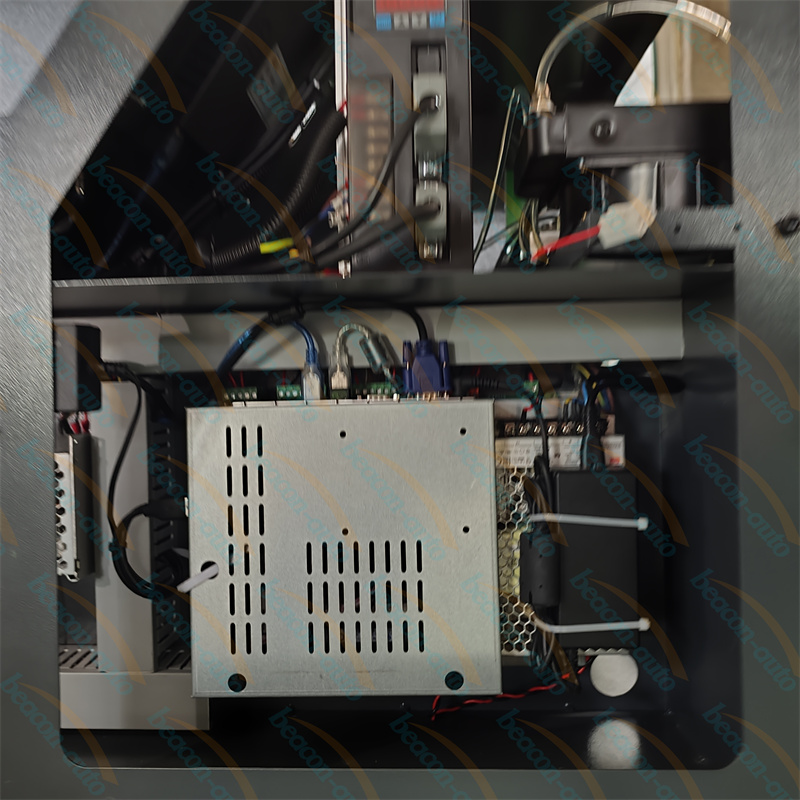

User-Friendly Interface: Operated via an industrial computer with multiple language support and a comprehensive database of thousands of injector test plans.
High Efficiency: Features both Standard and Fast test modes, with the ability to generate and print professional test reports automatically.

parameter

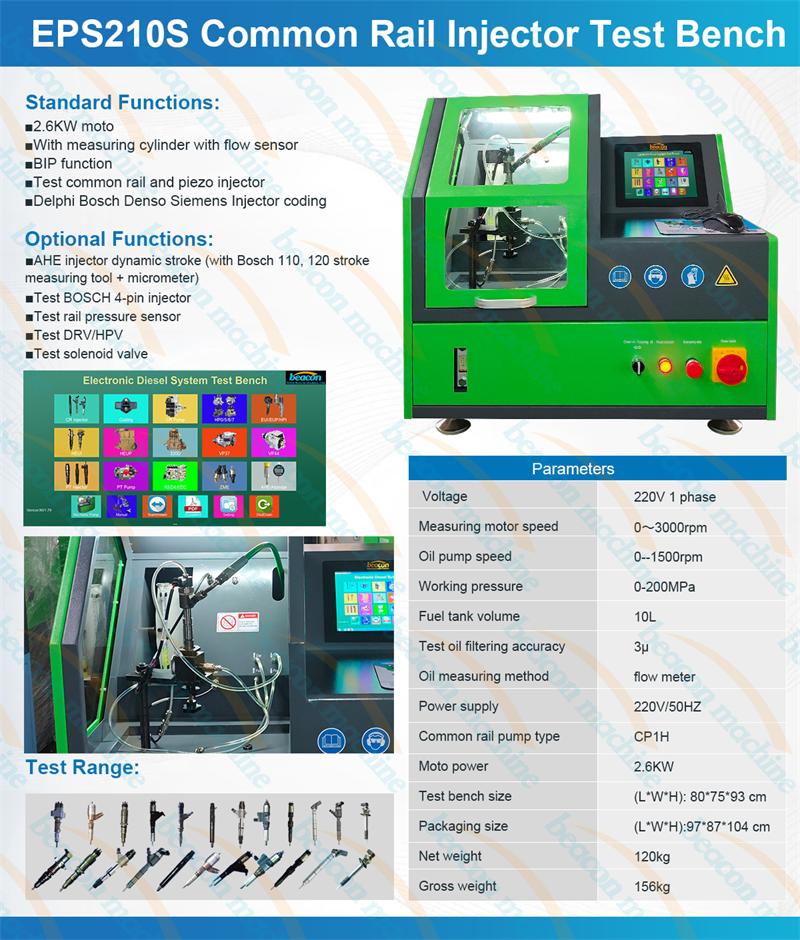

Technical Parameter	Specifications (Model EPS210S)
Output Power	2.6 KW
Power Supply	220V Single Phase, 50/60Hz
Working Pressure Range	0 - 200 MPa (2000 Bar)
Common Rail Pump Type	CP1H

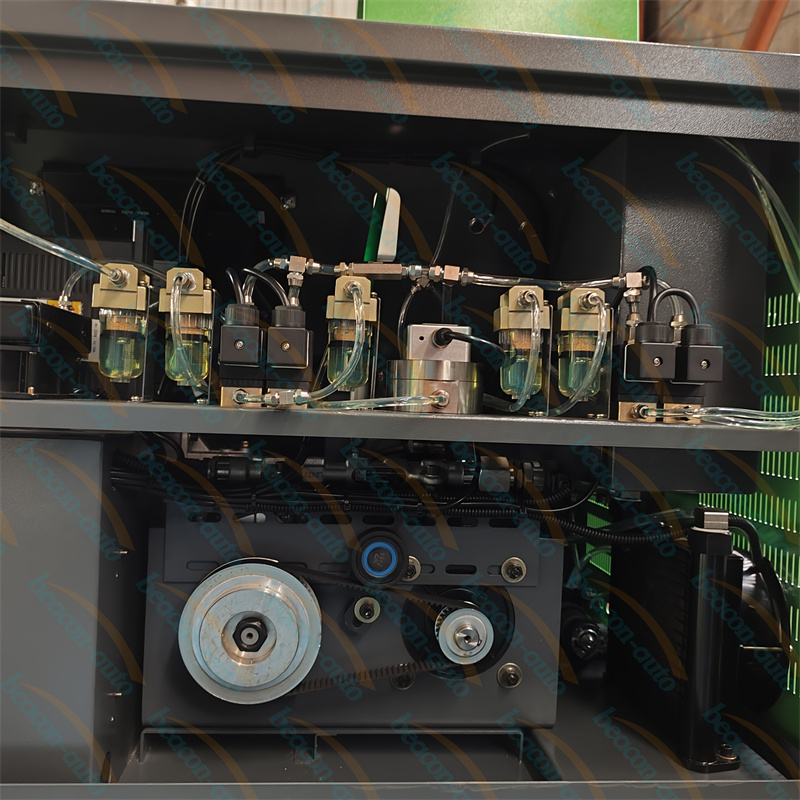

Oil Measuring Method	High-Precision Flow Meter
Oil Tank Volume	10 Liters
Filtering Accuracy	3μ (Micron)
Machine Size (LWH)	80 * 75 * 93 cm
Net Weight	Approx. 130 KG
