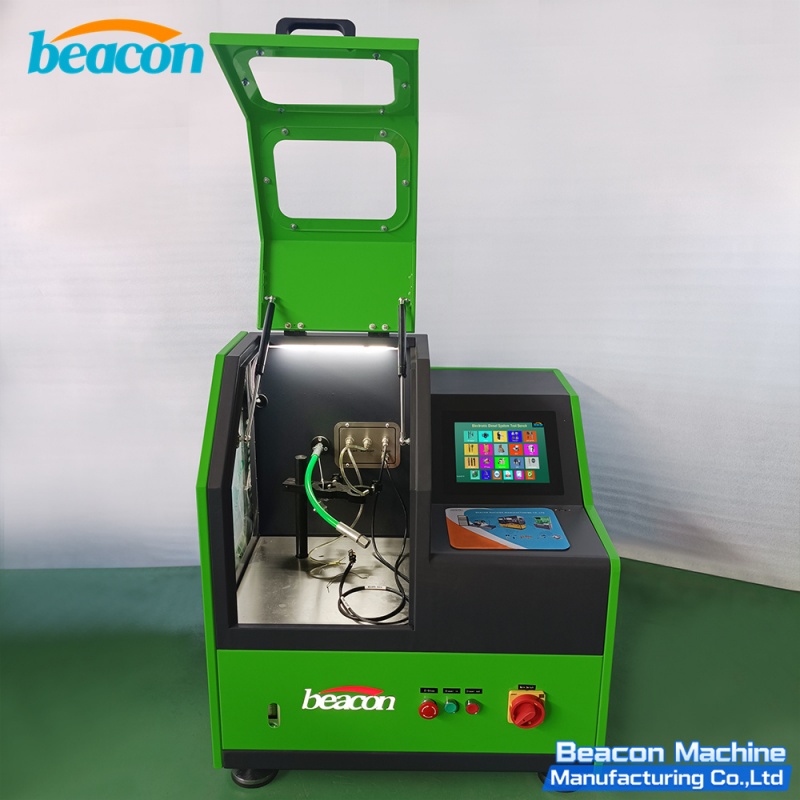

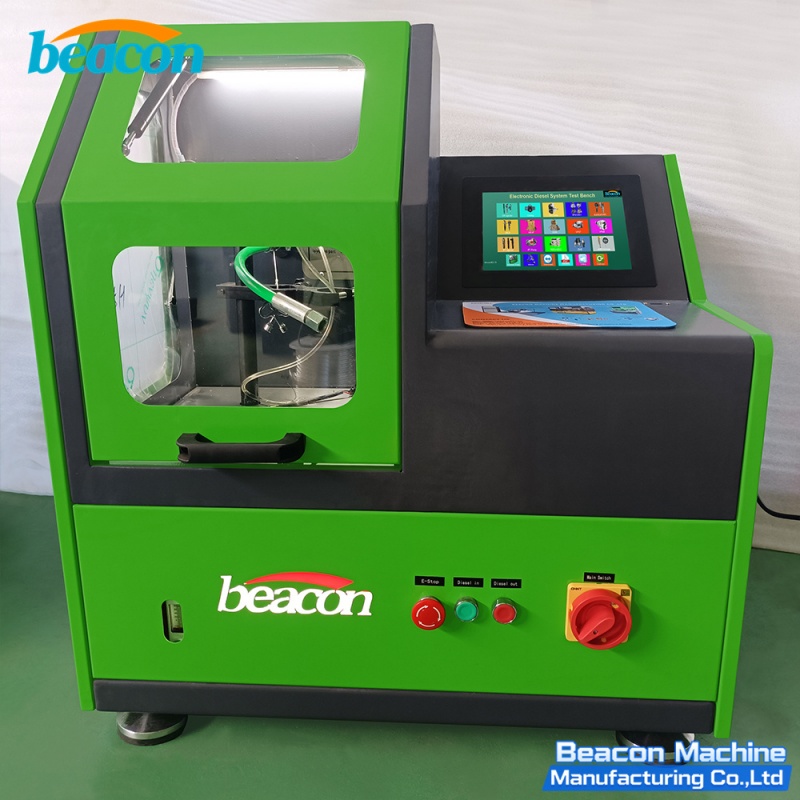

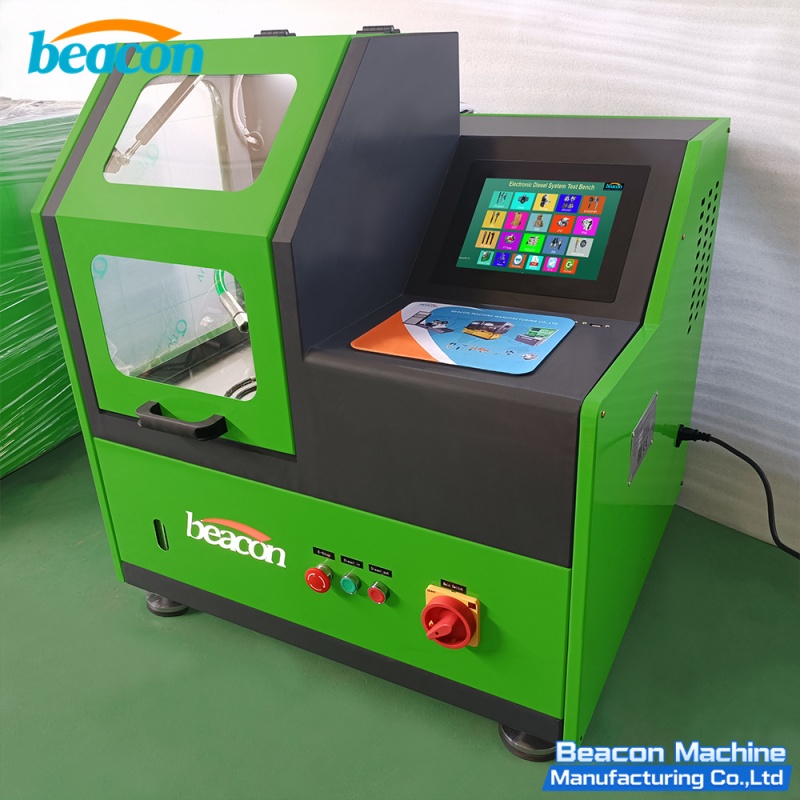

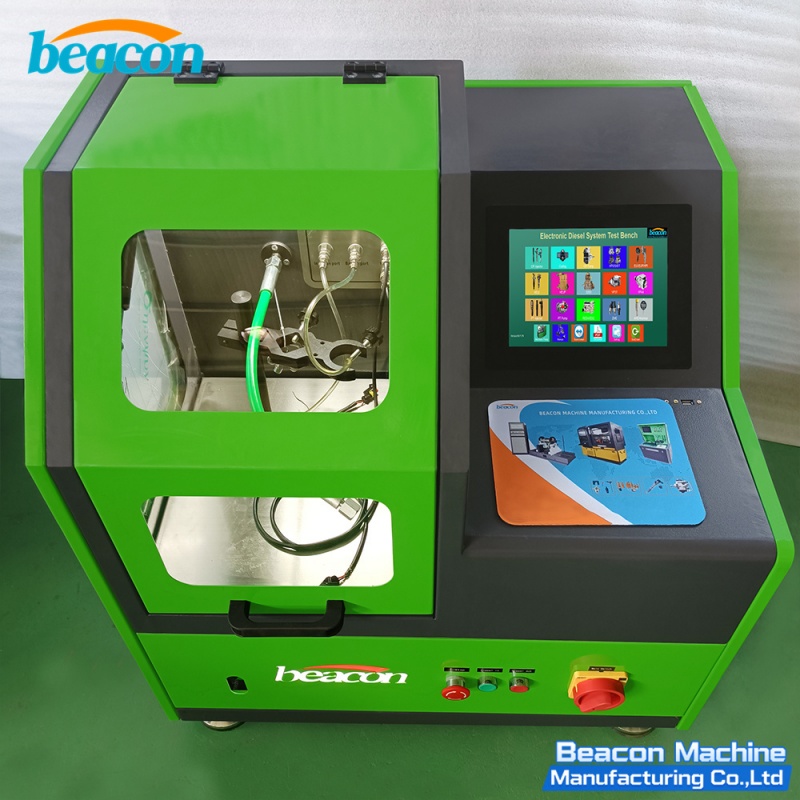

EPS208 High Pressure Common Rail Injector Test Bench for Solenoid and Piezo

Supported High-Frequency Injectors, Engines and Pumps

Brand Coverage

• Bosch CR Systems: CP1, CP2, CP3 — Mercedes Actros, VW, FAW J6P

• Denso CR Systems: HP3, HP4 — Toyota, Isuzu, Hino

• Delphi CR Systems: 2835 series — Volvo, DAF

• Siemens / VDO: Piezo injectors — Ford 6.0, Cummins

Frequently Asked Questions

What is the EPS208 rated power?

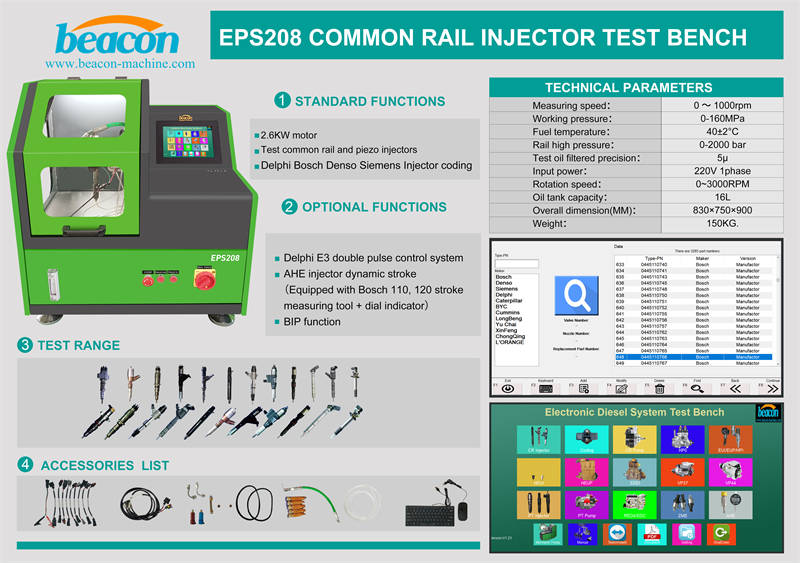

The EPS208 has a rated power of 2.6KW, optimized for high-speed solenoid valve injectors and third-generation piezoelectric crystal injectors.

Which brands are supported?

Bosch, Denso, Delphi and Siemens common rail injector systems.

Does it imitate the engine ECU?

Yes, it provides precision control signals by imitating the diesel engine ECU for various common rail systems.

Is it compact?

Yes, it is a compact high-pressure common rail test bench suitable for modern diesel workshops.

Can it test EUI/EUP?

No, the EPS208 is optimized for common rail injectors only; for EUI/EUP please consider the BC300 or BC808.

• Advanced Technology Support: Fully supports both electromagnetic solenoid injectors and third-generation piezoelectric crystal common rail injectors.

• Precision Pressure Control: Utilizes an intelligent PID algorithm to ensure more stable and precise rail pressure during various test conditions.

• Broad Compatibility: Supports multiple rail pressure sensors from BOSCH, DENSO, and DELPHI, ensuring versatile calibration options.

• Hardware & Software Protection: Integrated with short-circuit protection in both hardware and software to ensure long-term machine reliability and operator safety.

• Automated Testing Workflow: Features a user-friendly interface with pre-set test plans for leak tests, warm-up, full load (VL), emissions (EM), idle (LL), and pre-injection (VE).

• Customizable Parameters: Drive signal parameters can be set, grouped, and saved by the user according to actual repair requirements.

• High-Frequency Coverage: Compatible with Bosch 0445116018, 0445110183, 0445110352, 0445110369, 0445110441, 0445110557, 0445110698, 0445120288, Denso 094000-0342, 095000-0760, 095000-5471, 095000-7950, 23670-30450, Delphi 28353991, EJBR0181A, 21569200, 28230973 and Siemens BK2Q-9K546-AG, 5WS4xxxx — the most searched injector models for Google visibility.
