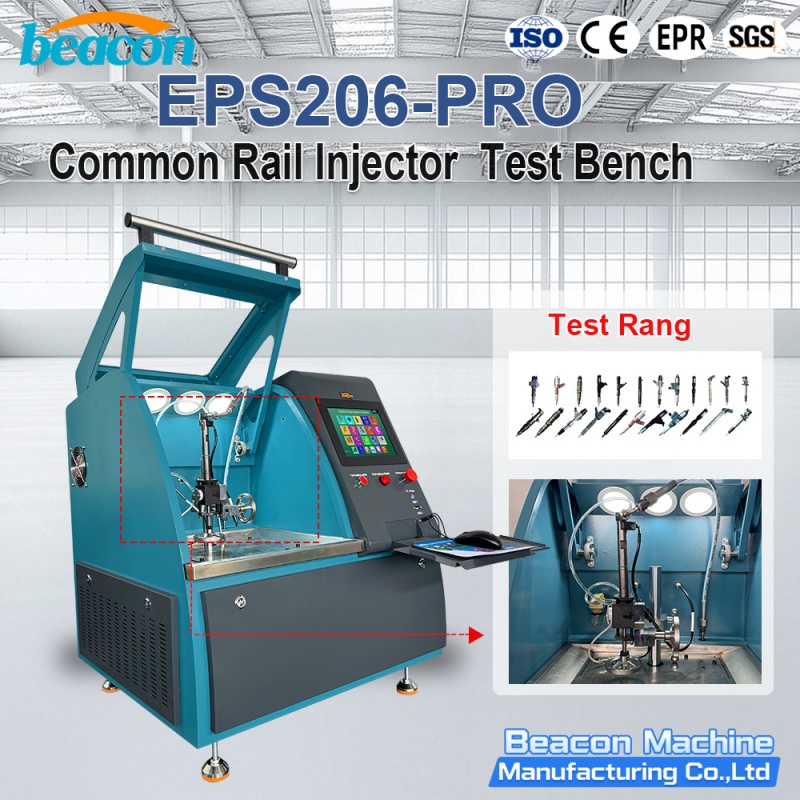

EPS206-PRO Professional Common Rail Injector Test Bench for Solenoid and Piezo Injectors

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

Details

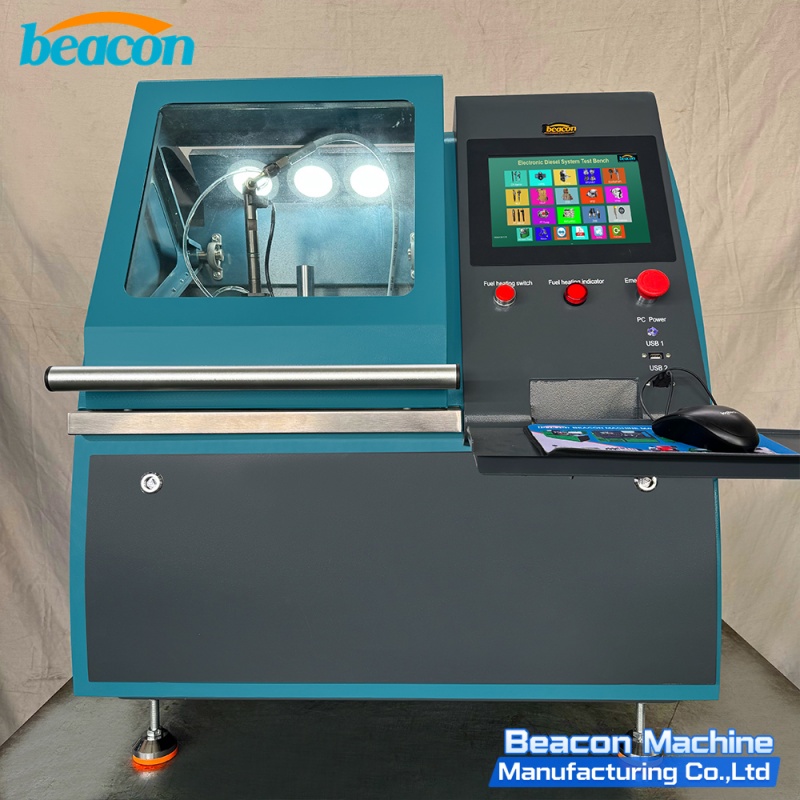

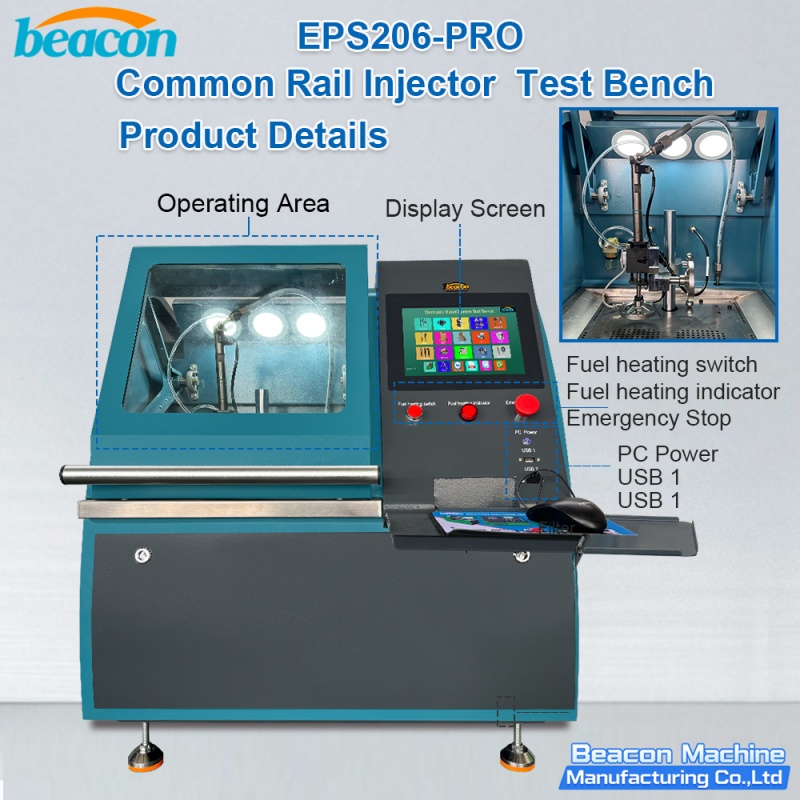

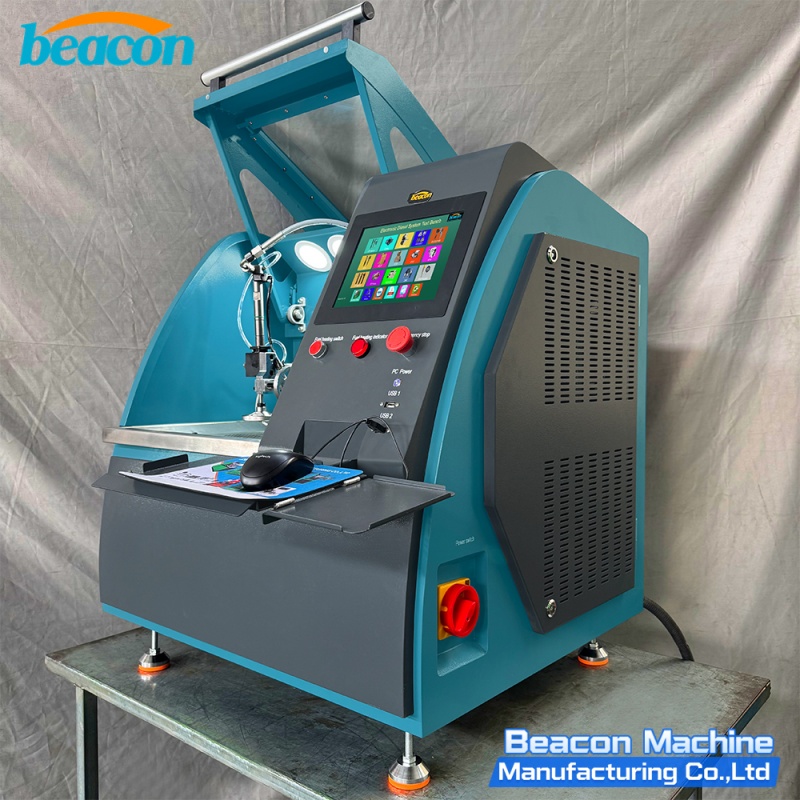

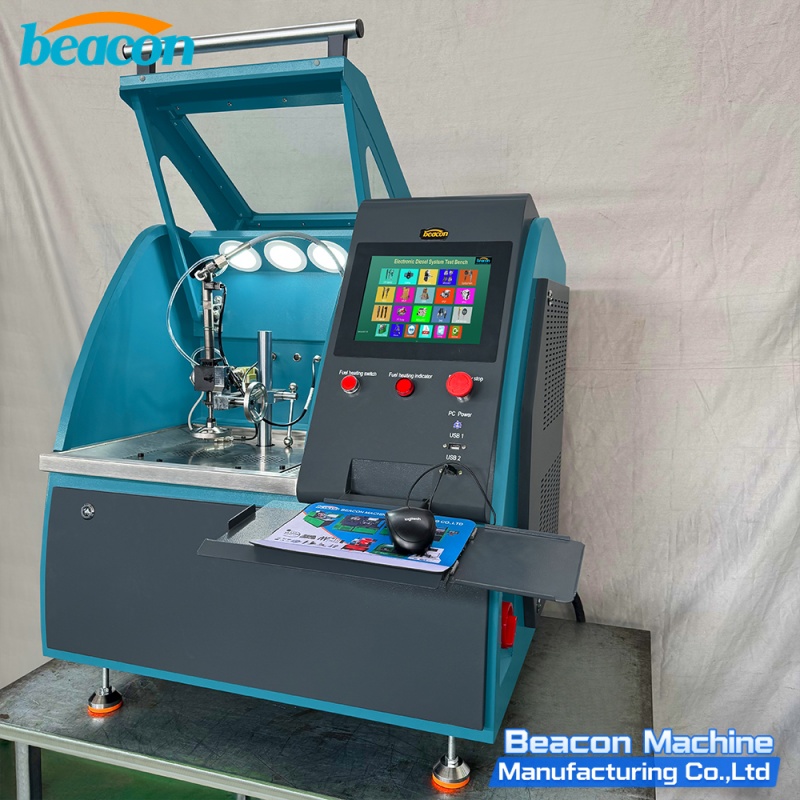

EPS206-PRO Professional Common Rail Injector Test Bench for Solenoid and Piezo Injectors

The EPS206-PRO is a sophisticated yet compact diagnostic solution designed for high-precision testing of modern diesel fuel systems. It supports both high-speed solenoid valve injectors and the latest third-generation piezoelectric crystal common rail injectors. Featuring an advanced intelligent PID algorithm, the machine achieves exceptionally precise pressure control for reliable results. The EPS206-PRO covers all essential test phases including sealing, full load, mid-load, idling, and pre-injection performance. With its dual hardware and software short-circuit protection and multi-language interface, it offers a safe, professional, and user-friendly experience for diesel technicians worldwide.

Common Rail Injector Tester, Piezo Injector Test Rig, Diesel Injector Diagnostic Bench

EPS206-PRO Professional Common Rail Injector Test Bench for Solenoid and Piezo Injectors Advantage

Full Injector Compatibility: Supports all mainstream high-speed solenoid injectors and advanced piezoelectric (Piezo) technology.
Precision Pressure Management: Utilizes a smart PID algorithm to ensure stable and precise rail pressure during all test cycles.
Comprehensive Testing Suite: Includes dedicated protocols for Sealing, Full Load, Mid-Load, Idling, and Pre-injection performance analysis.
Advanced Safety System: Integrated short-circuit protection in both software and hardware ensures maximum reliability and equipment longevity.
Global Accessibility: Features a user-friendly interface with multiple language options to suit international workshop requirements.
High-Precision Sensors: Compatible with multiple rail pressure sensors from industry leaders like BOSCH, DENSO, and DELPHI.
Compact Industrial Design: Professional 80x75x90cm dimensions allow for easy integration into workshops with limited floor space.

parameter

Technical Item	Specifications (Model EPS206-PRO)
Voltage / Power	220V 1 Phase / 2.6 KW
Motor Speed Range	0 ~ 3000 RPM
Oil Pump Speed	0 ~ 1500 RPM
Maximum Pressure	200 MPa (2000 Bar)
Fuel Tank Volume	10 Liters
Filter Accuracy	3 μ (Microns)
Measurement Method	High-Precision Flow Meter
Machine Dimensions	80 x 75 x 90 cm
Net Weight	140 kg
