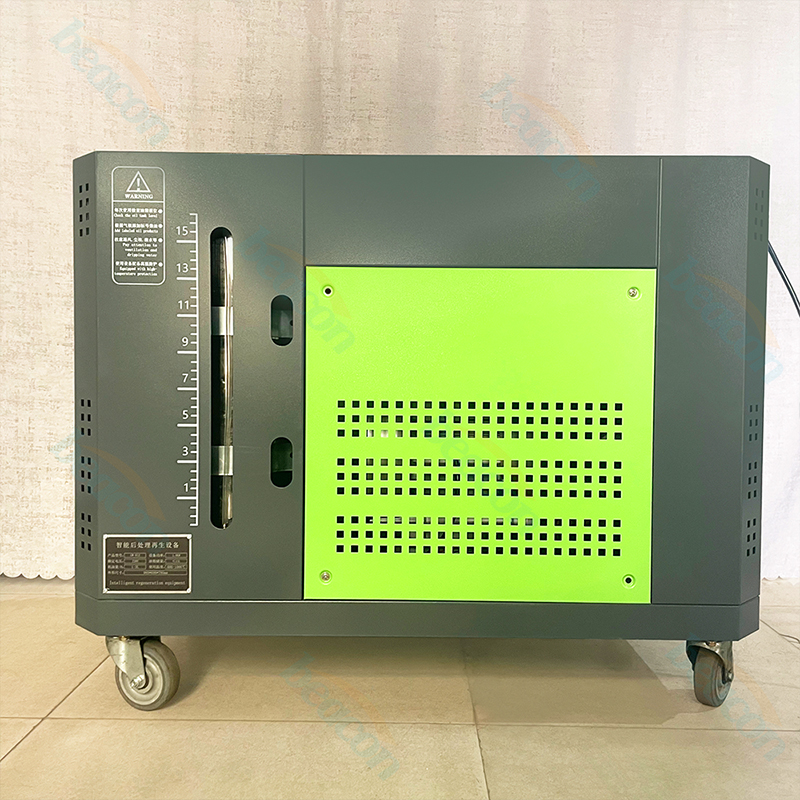

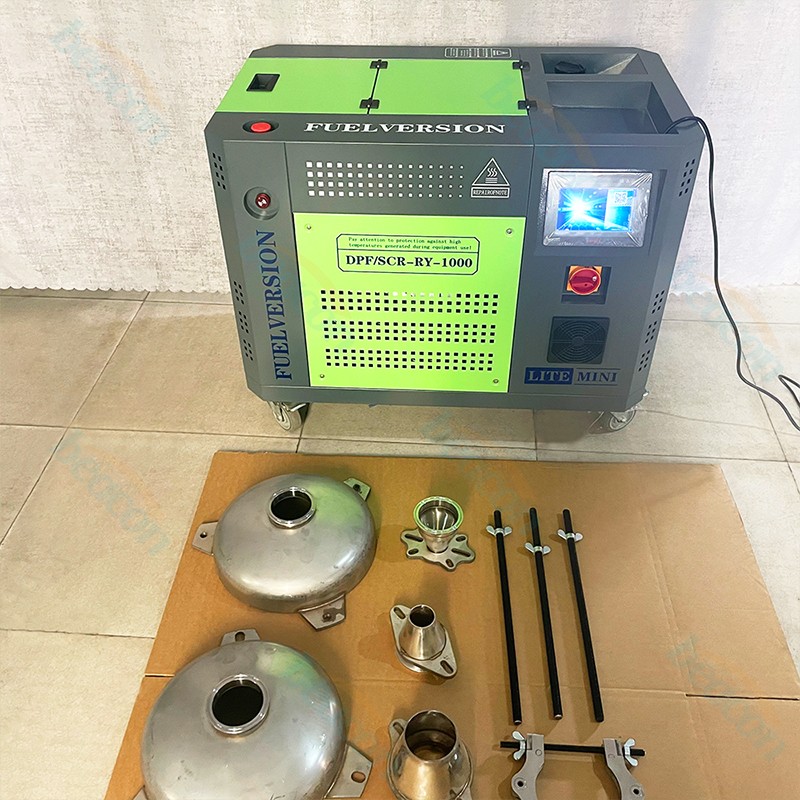

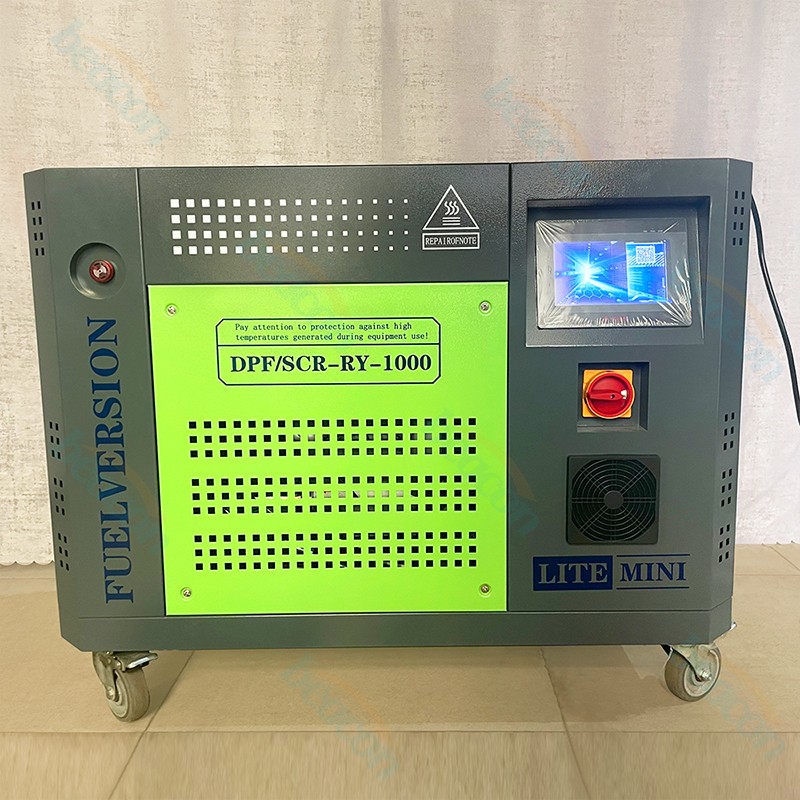

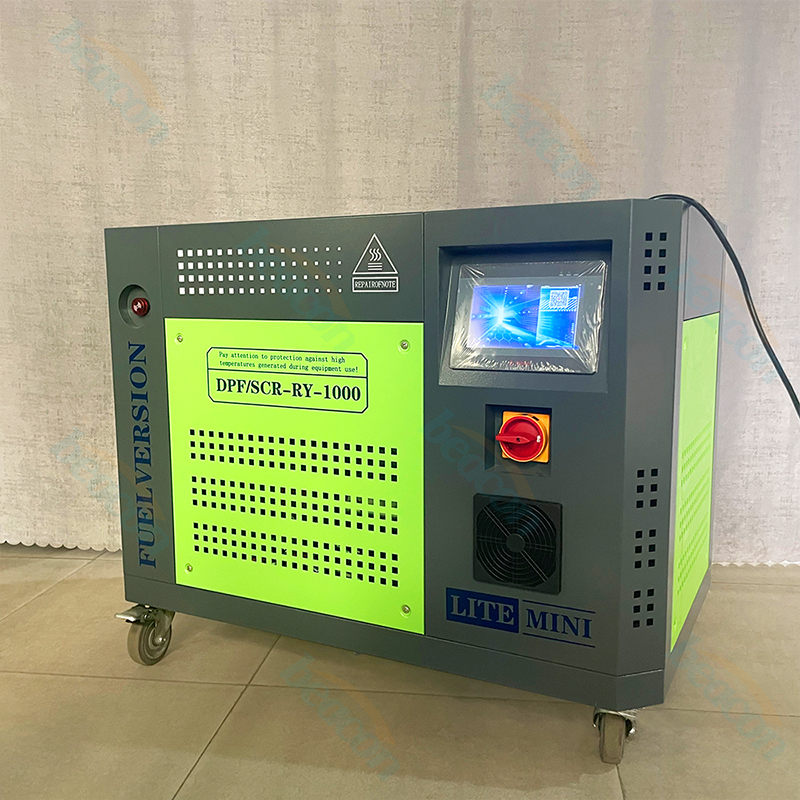

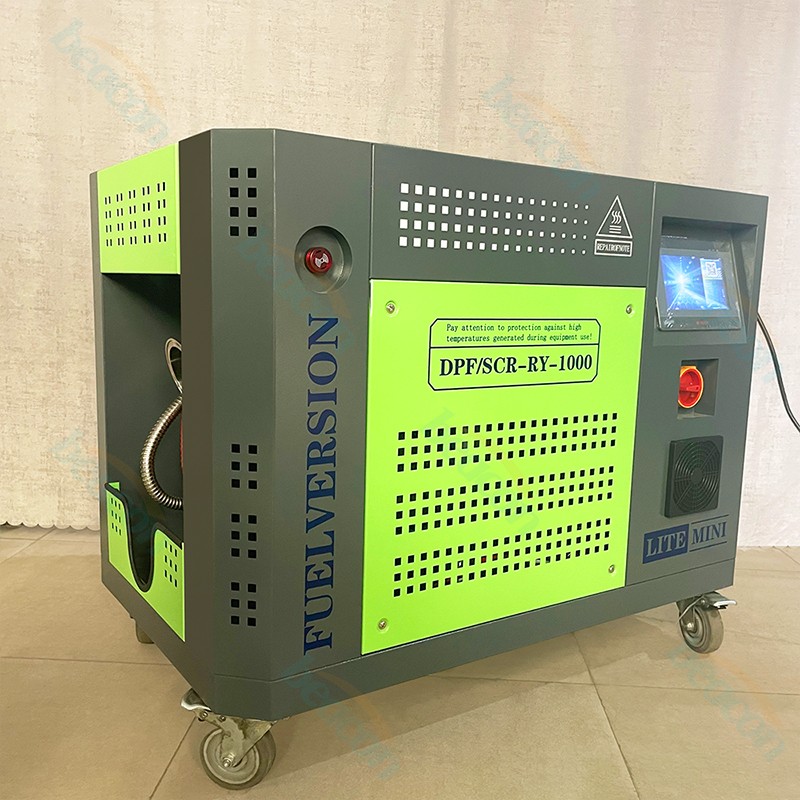

DPF-CL Mini Fuel-Powered Diesel Particulate Filter Regeneration and Cleaning Machine

The DPF-CL (MINI FUEL) is a cutting-edge diagnostic and regeneration system designed to simulate vehicle engine conditions for the effective cleaning of Diesel Particulate Filters (DPF). Unlike traditional external heating methods, this host acts as a high-torque engine outputting up to 1000 degrees of thermal energy directly into the core area. With its remarkable efficiency, it can heat from 0°C to 1000°C in just 10 minutes while automatically activating high-pressure blowing modes. It is the professional choice for removing soot, ash, and urea crystallization from various exhaust pipe types, including circular, national six, and removable DPF units.

DPF Regeneration Machine, Diesel Particulate Filter Cleaner, DPF Baking Furnace

DPF-CL(Mini Fuel) Powered Diesel Particulate Filter Regeneration and Cleaning Machine Advantage

Rapid Thermal Regeneration: Heats from 0°C to 1000°C within 10 minutes, significantly reducing service time compared to conventional ovens.

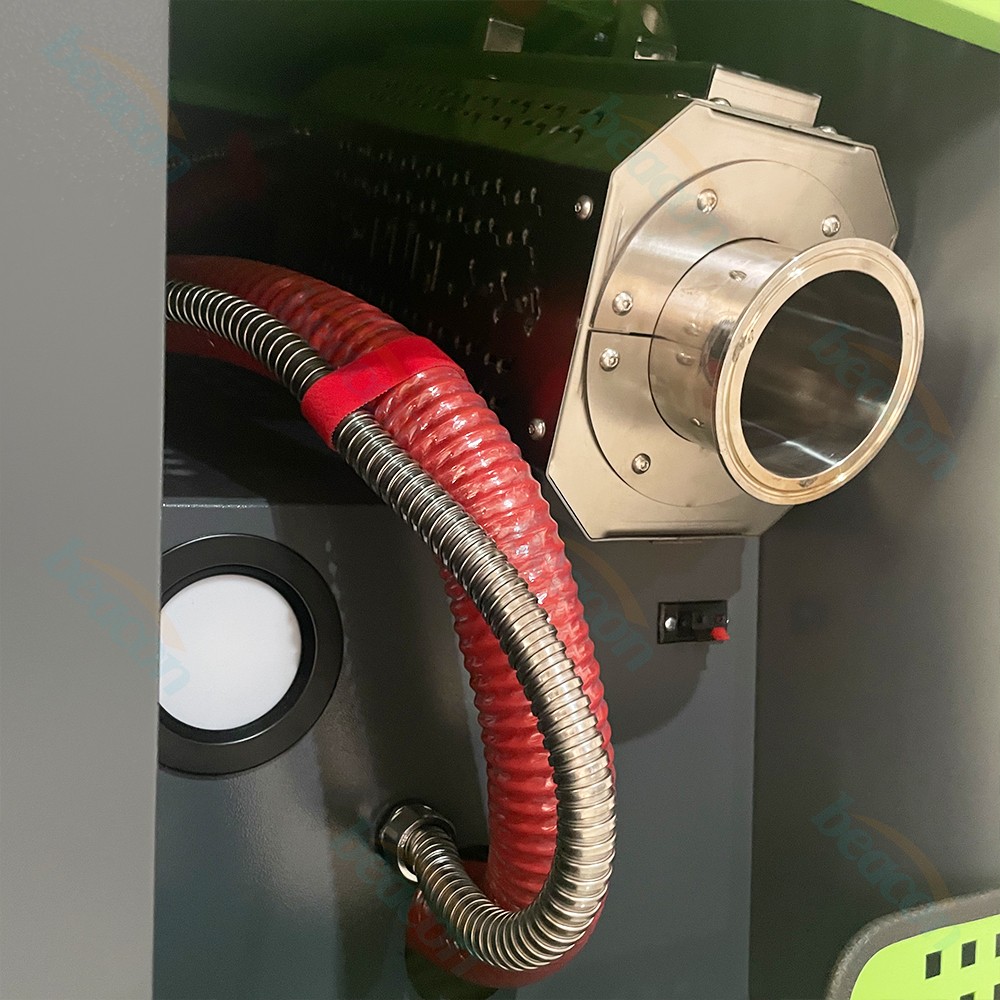

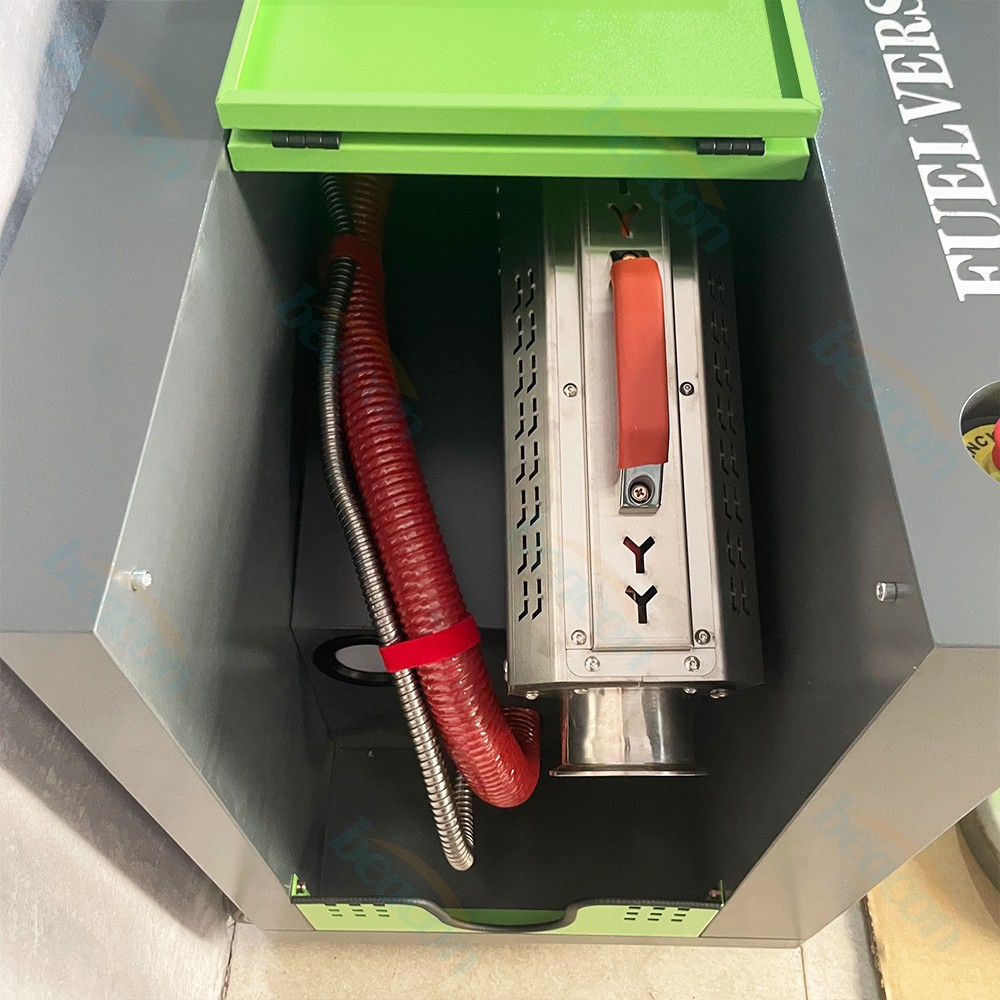

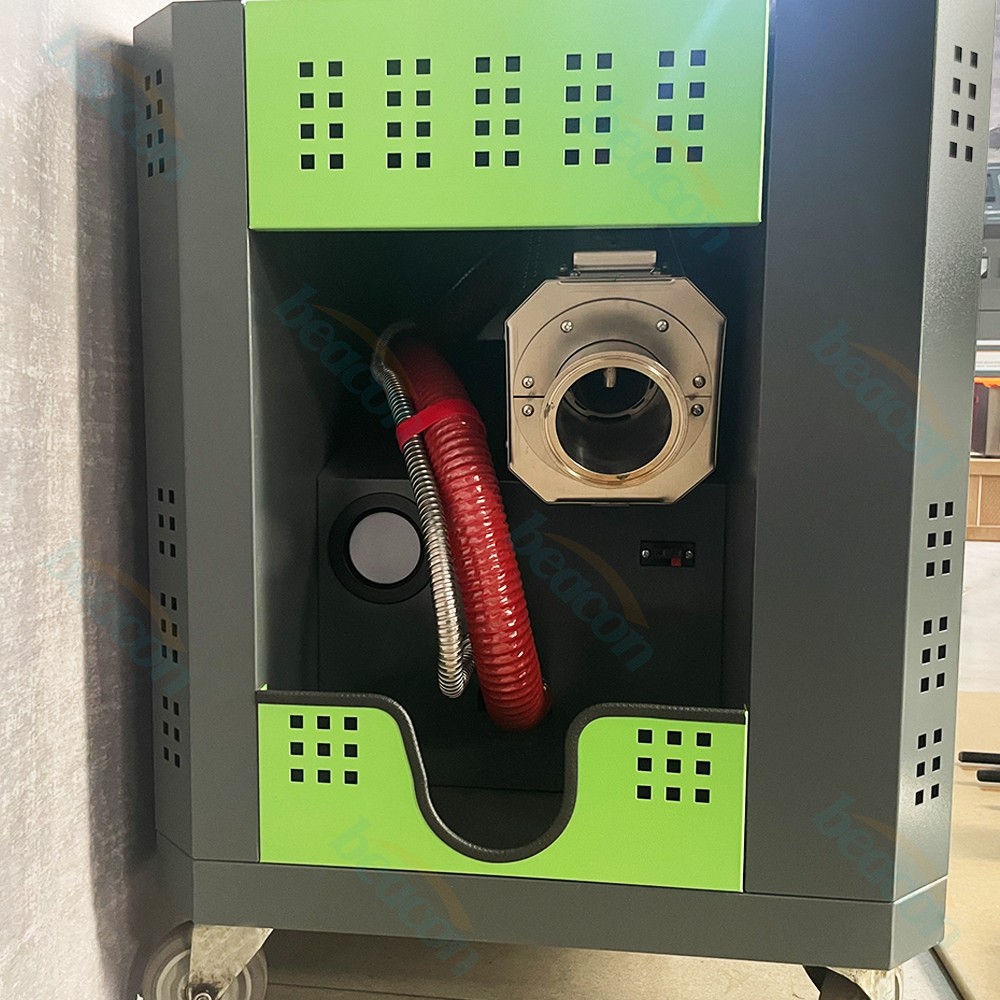

Core-Focused Heating: Applies heat directly to the DPF core, avoiding energy loss through external insulation layers for maximum efficiency.
Automatic High-Pressure Blowing: Features an integrated high-pressure air system to remove loosened ash and particles during the heating cycle.
Safety Pressure Testing: Built-in pressure detection allows for pre-test and post-test verification to ensure gas discharge and monitor back pressure.
Intelligent Alarms: Automated safety system sounds an alarm if back pressure exceeds limits or if the carrier has reached its sintering limit.
Universal Compatibility: Optimized for multiple DPF types, including National VI (Euro 6) exhaust pipes, circular pipes, and removable carriers.
Effective Urea Removal: Specifically designed to handle large blocks of urea crystallization that hinder exhaust flow.

parameter

Feature / Type	Technical Parameter / Propose Values
Regeneration Temperature Range	Up to 1000°C (Adjustable 600°C - 800°C for most DPFs)
Heating Speed	0°C to 1000°C in 10 minutes
Explosion Blowing Pressure	6 - 8 MPA (Safe Range)
Fuel Type	Diesel (Mini Fuel Host System)
Euro 6 (National VI) Regeneration	650-700°C \| 40-60 min
Circular Exhaust Pipe Regeneration	700-800°C \| 50-80 min
Cooling Time	10 - 25 minutes (Depending on DPF type)
System Protection	Back pressure alarm & overheating protection
