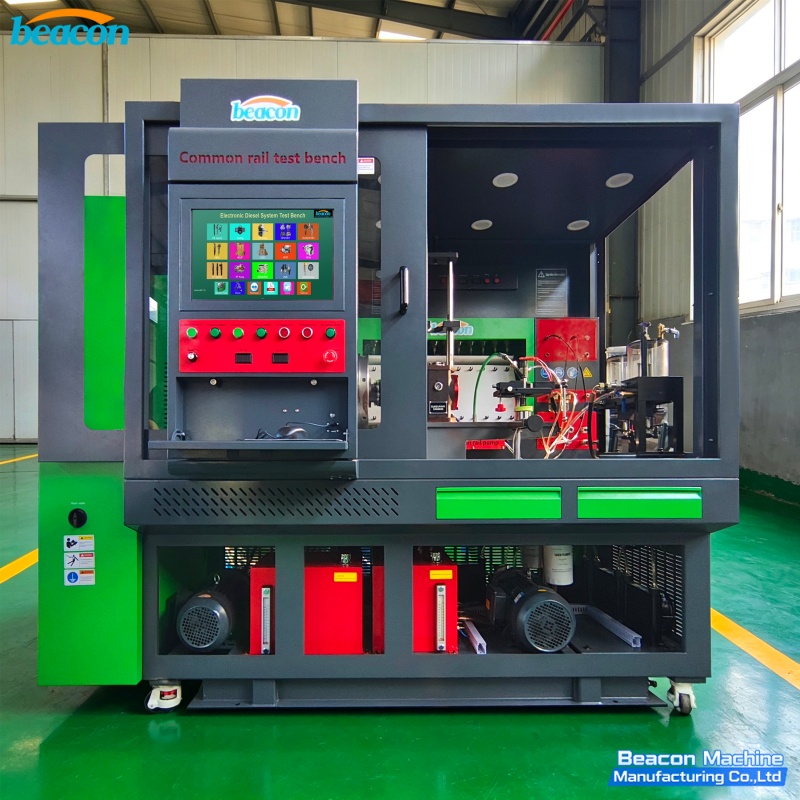

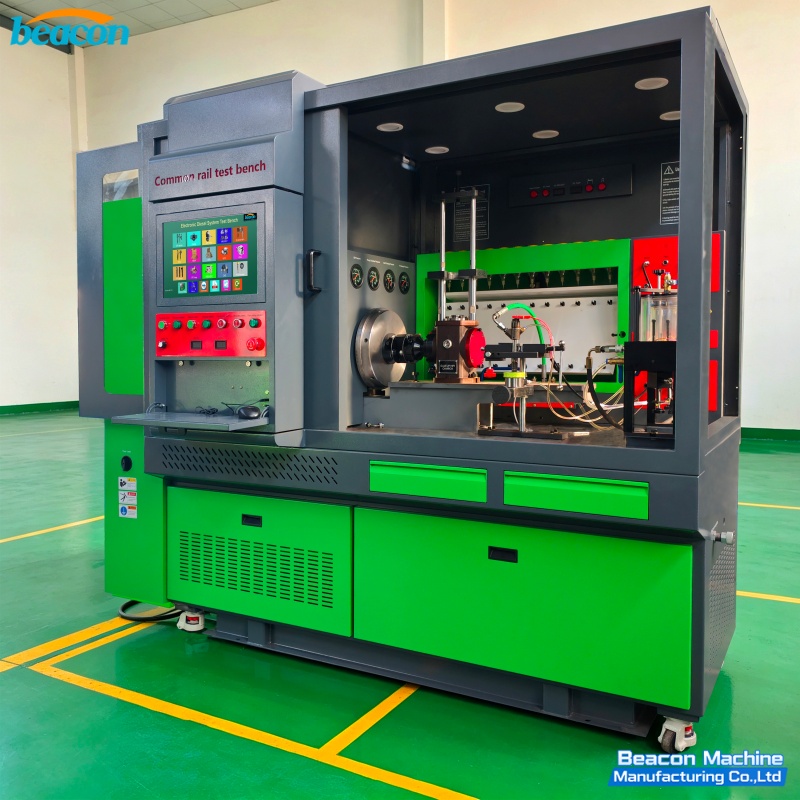

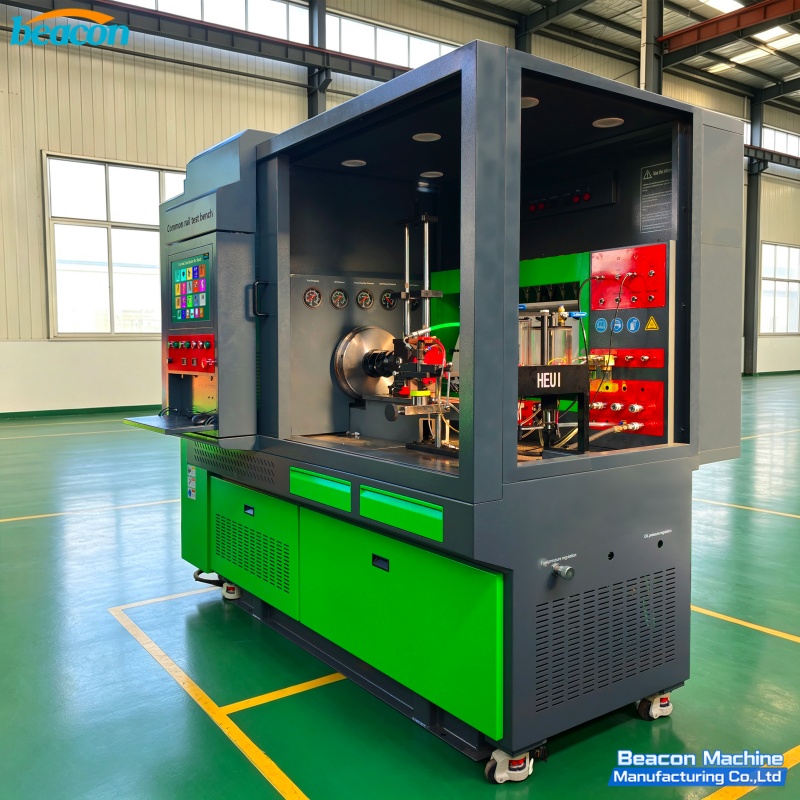

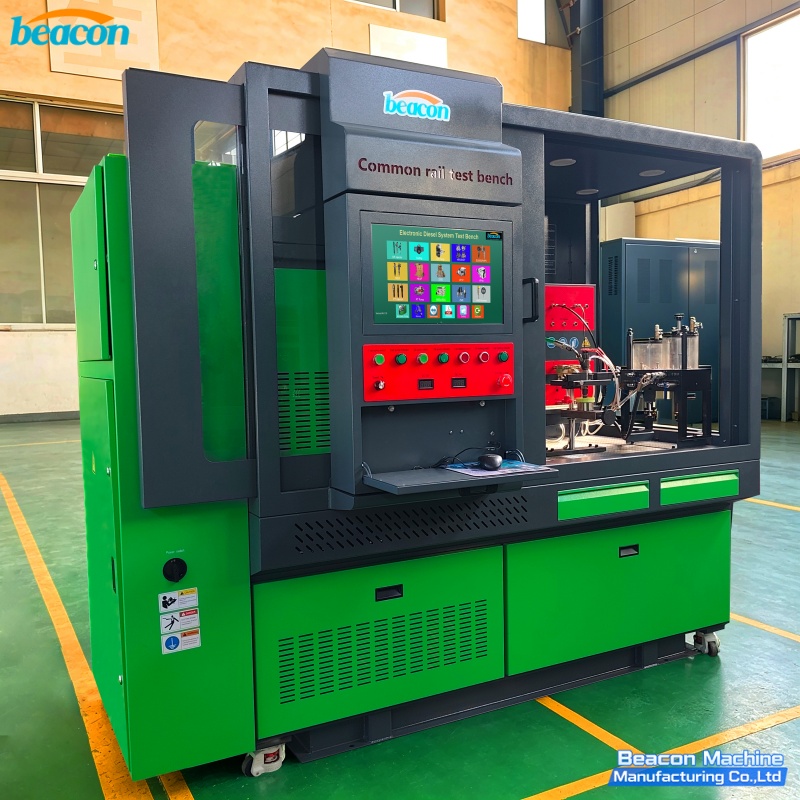

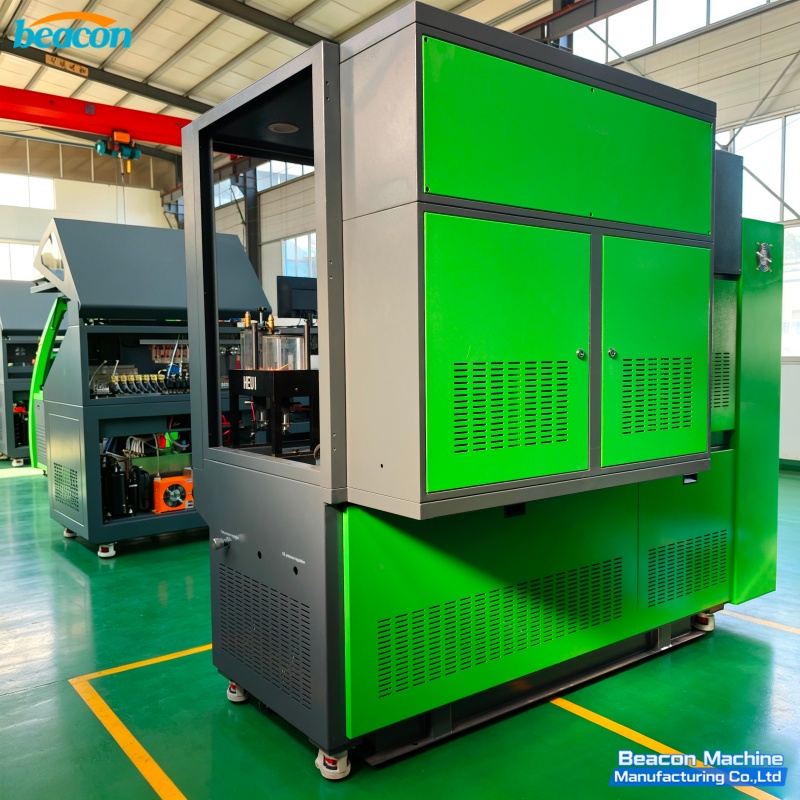

The CR919PLUS High Pressure Common Rail Comprehensive Performance Test Bench is a high-pressure common rail comprehensive performance test bench built for modern diesel electronic injection workshops. It integrates fully automatic control of test bench speed, fuel rail pressure, flow measurement, and report analysis — one-key operation produces the measurement result.

Injector Coverage

• Bosch solenoid and piezo injectors

• Denso solenoid and piezo injectors

• Siemens / Continental piezo injectors

• Delphi common rail injectors

• Caterpillar C7 / C9 / 3126B HEUI injectors (dual oil system)

• Cummins HPI Q60 X15 injectors (with TU-cam box)

• Cummins XPI injectors

• Bosch 4-pin injectors (with dedicated harness)

Pump Coverage

• Bosch CP1 / CP2 / CP3 / CP4 high-pressure common rail pumps

• Delphi common rail pumps

• Denso HP0 / HP5 / HP6 / HP7 pumps

• Caterpillar 320D high-pressure pump

• Caterpillar HEUI actuation pump

• HPI injector and PT pump

• VP37 / VP44 / RED4 / Denso V3 / V4 / V5 distributors

• Euro II mechanical pumps (inline and rotary)

• EUI / EUP unit injectors and unit pumps (Bosch, CAT, Cummins, Delphi, Nanyue Hengyang, Wittur)

• Delphi E3 dual-solenoid unit pumps

Key Functions

• Test 2 / 4 / 6 / 8 injectors simultaneously

• Print test reports (logo customizable)

• Generate injector compensation codes (Delphi, Bosch, Denso, Siemens)

• Test response time of fuel injection

• Measure injector resistance and inductance

• Test rail pressure sensor, DRV / HPV, and solenoid valve

• BIP function for piezo injectors

• AHE injector dynamic stroke (with Bosch 110 / 120 stroke measuring tool and dial indicator)

• ZME test measurement unit

• Auto system update, remote upgrade, free upgrade within one year

• System available in 15 languages

• Network port can be added to the control system

Frequently Asked Questions

Q1. Can the test bench run without a connection to the Internet?
Yes. The standard delivery includes the offline database. The auto-update and remote upgrade features only activate when the system is online.

Q2. Which fuel pumps can this bench test?
Bosch CP1 / CP2 / CP3 / CP4, Delphi common rail, Denso HP0 / HP5 / HP6 / HP7, Caterpillar 320D, HEUI actuation pump, HPI injector and PT pump, VP37 / VP44 / RED4, Denso V3 / V4 / V5, Euro II mechanical pumps, and Delphi E3 dual-solenoid unit pumps.

Q3. How many injectors can be tested at the same time?
The bench supports simultaneous testing of 2, 4, 6, or 8 injectors when the matching multi-injector fixture and additional flow sensors are installed.

Q4. Can the test report use my own logo?
Yes. The test report and the main interface can carry a custom logo provided by the buyer.

About Beacon

Beacon is a leading manufacturer of diesel fuel injection test equipment in China, covering common rail test benches, balancing machines, brake lathes, and repair tools. Beacon products are exported to more than 80 countries, with full after-sales support and a free one-year system upgrade.

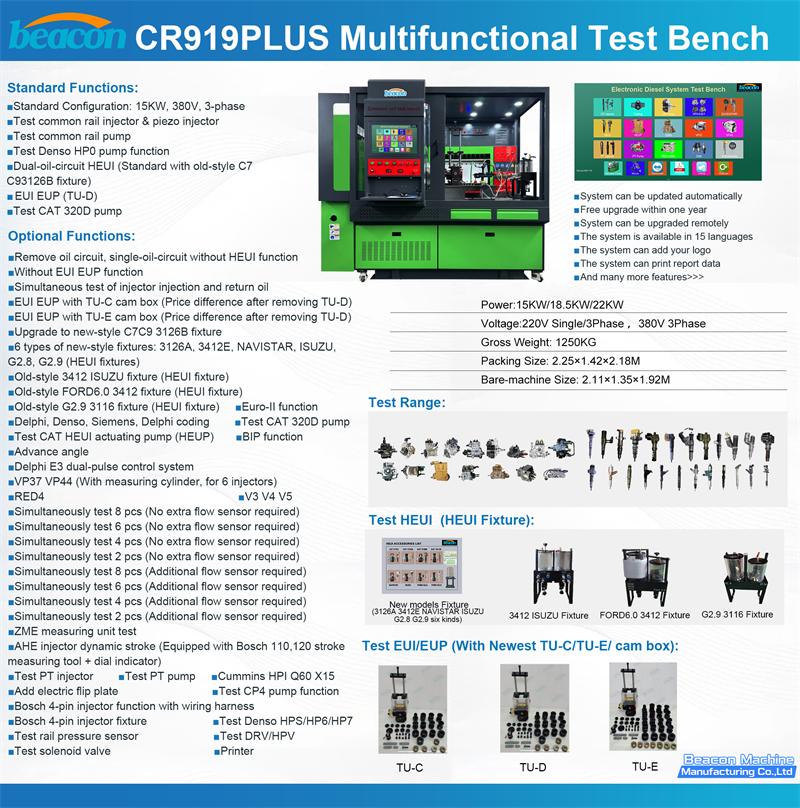

Specifications and Optional Add-ons

The CR919PLUS test bench is delivered with a standard configuration for high pressure common rail diagnostics. Optional add-ons expand its coverage to HEUI injectors, EUI / EUP unit injectors, Caterpillar 320D pumps, PT injectors and pumps, and multi-injector simultaneous testing.

Standard Configuration

• Main electronic control system with 15-language interface

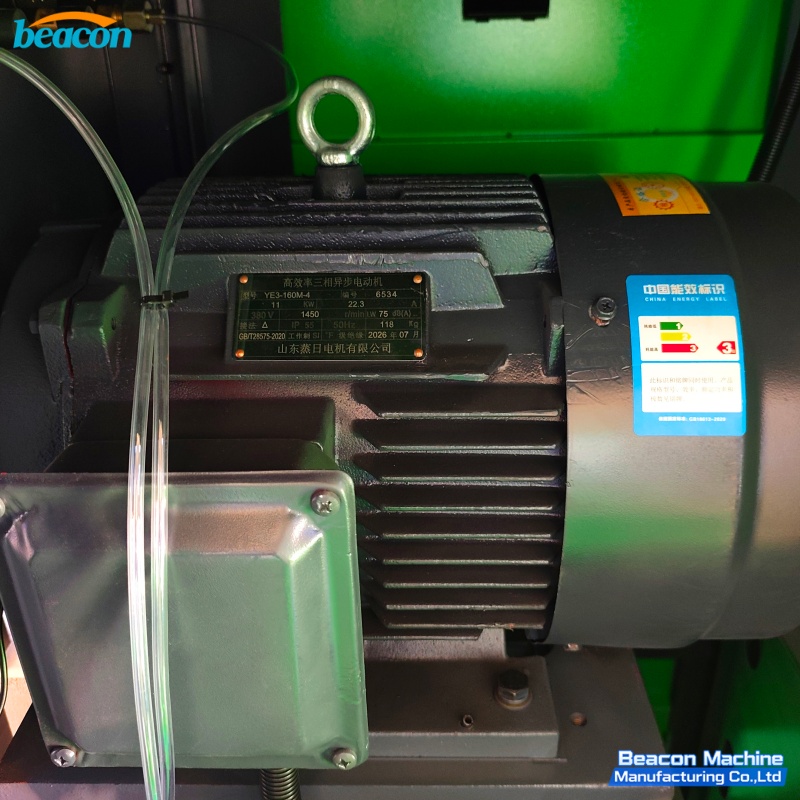

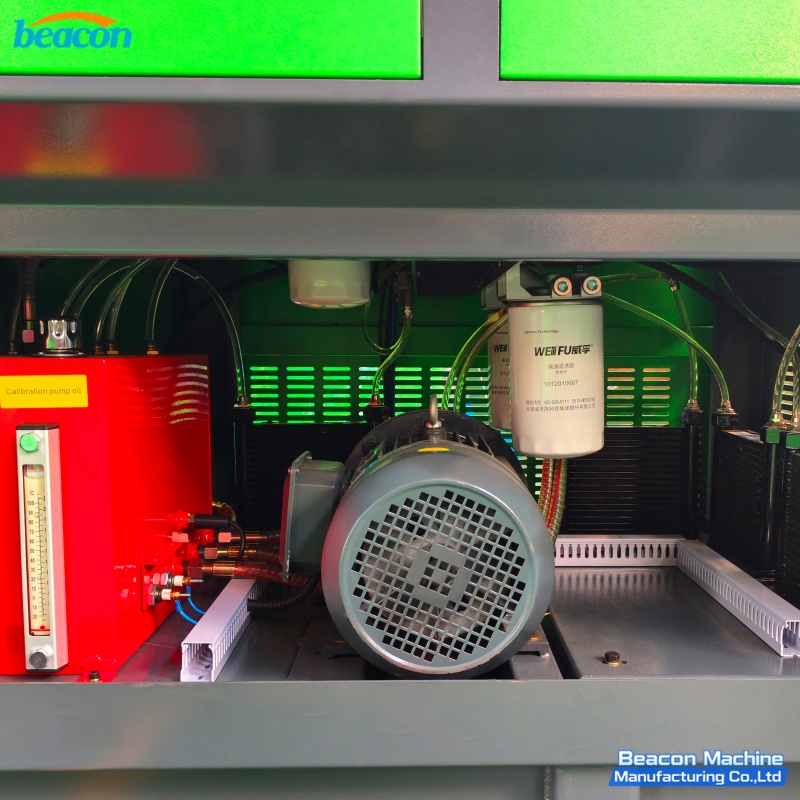

• 15KW motor and 380V three-phase power supply

• Common rail injector test (7725 part numbers)

• Common rail pump test (1821 part numbers)

• Denso HP0 pump test (83 part numbers)

• Test report printing with custom logo support

• One year free system upgrade and remote upgrade

Optional Functions

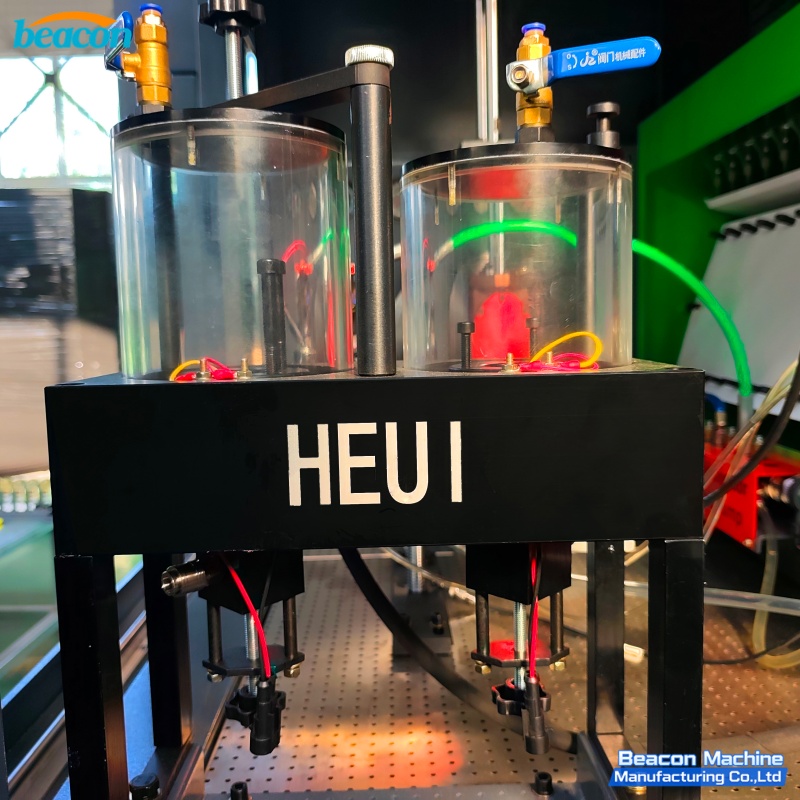

• HEUI test (C7 / C9 / 3126B dual oil system)

• EUI / EUP test (with TU-D cam box)

• Caterpillar 320D pump test

• Caterpillar HEUI actuation pump test

• PT injector and PT pump test

• CP4 pump test

• Bosch 4-pin injector harness and fixture

• Cummins HPI Q60 X15 injector test (TU-cam box required)

• Denso HP5 / HP6 / HP7 pump test

• AHE injector dynamic stroke measurement

• ZME test measurement unit

• Rail pressure sensor test

• DRV / HPV test

• Solenoid valve test

• BIP function for piezo injectors

• Multi-injector simultaneous test (2 / 4 / 6 / 8 injectors)

Why Choose CR919PLUS

CR919PLUS combines the largest injector and pump library in the segment with full HEUI / EUI / EUP coverage, multi-injector parallel test, free one-year upgrade, and a 15-language interface. For a complete product range, you may also check the related CR919 series, EPS series piezo test benches, and the dedicated EUI / EUP cam box.

For pricing and configuration, please contact Beacon.
