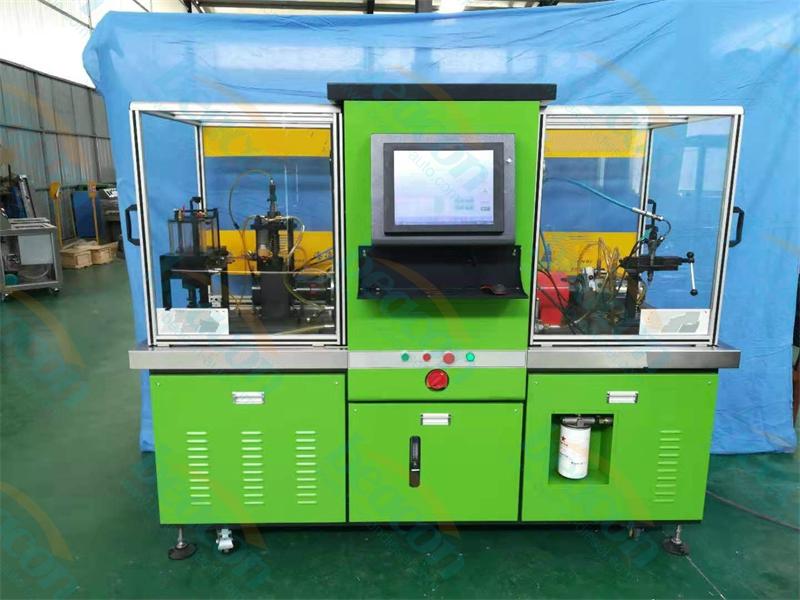

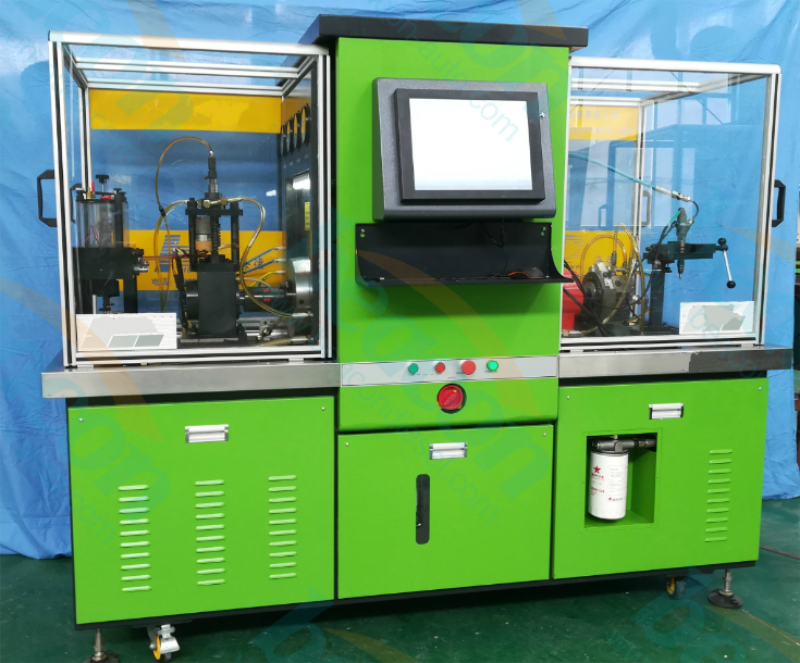

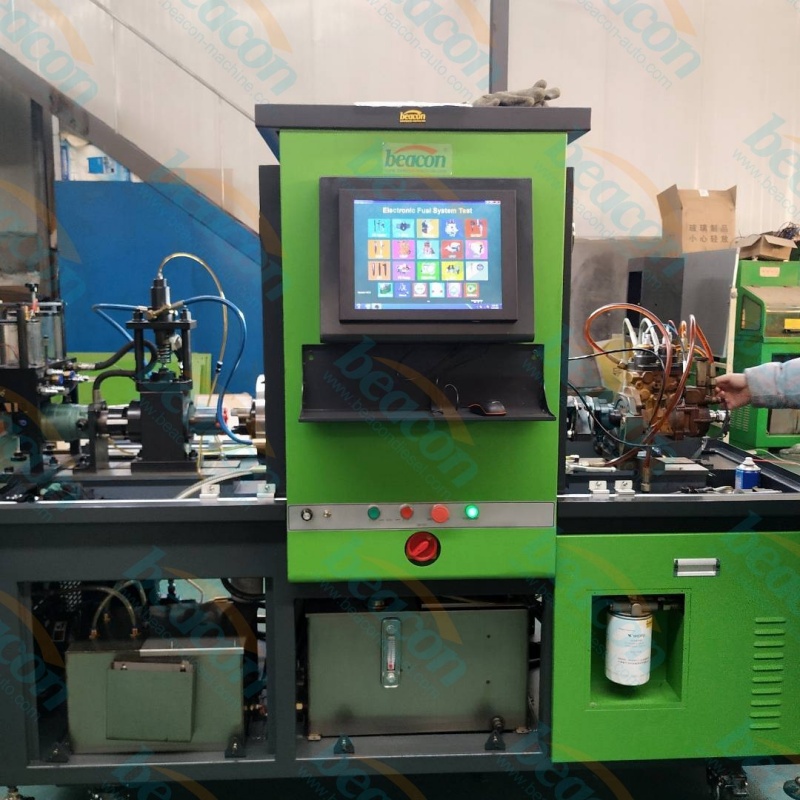

CR916S Professional Common Rail Test Bench for EUI EUP HEUI and Injector Testing

The CR916S is a high-performance, computerized measuring system designed for both conventional and modern diesel injection systems. As a professional-grade test bench, it offers a complete solution for high-pressure common rail functional testing. The CR916S excels in versatility, supporting Solenoid CRI/CRIN (Bosch, Delphi, Denso) and Piezo injectors. Beyond standard common rail systems, it is fully equipped for HEUI testing (CAT C7/C9, 3126) and EUI/EUP calibration with an integrated Cambox. Its electronic fuel delivery measuring system guarantees a high level of re-productivity and accuracy, making it an indispensable tool for advanced diesel fuel system diagnostics.

Professional Common Rail Test Bench, EUI EUP HEUI Test Rig, Diesel Fuel Injection Calibration

CR916S Professional Common Rail Test Bench for EUI EUP HEUI and Injector Testing Advantage

Comprehensive Diagnostic Coverage: All-in-one testing for Common Rail injectors, HEUI (Caterpillar series), and EUI/EUP systems.
Multi-Brand Support: Professional testing protocols for Bosch, Denso, Delphi, Siemens, and Piezoelectric injectors.
Computerized Measuring System: Electronic delivery measurement ensures high precision, repeatability, and detailed test data analysis.

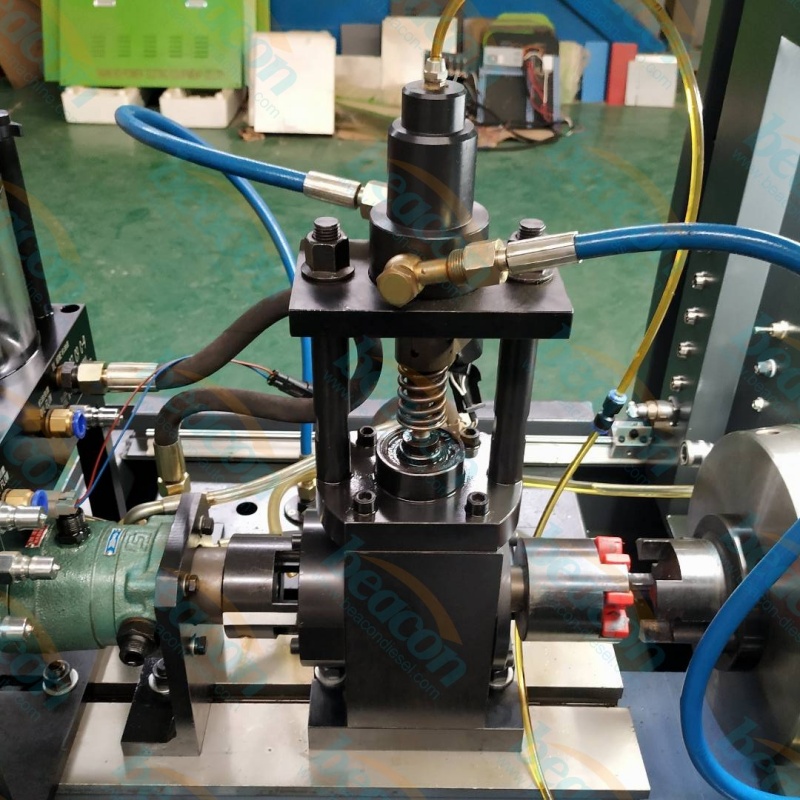

Integrated Cambox: Built-in support for EUI/EUP testing, allowing for professional calibration of unit injectors and pumps.
Flexible Power Options: Available in multiple motor power configurations (7.5KW to 18.5KW) to meet different workshop requirements.
Precision Accuracy: High-precision flow measurement (0.1ml accuracy) and stable pressure adjustment up to 2000 bar.
Advanced Cooling: Features both standard fan cooling and optional forced cooling to maintain optimal oil temperature (40±2°C) during long testing sessions.

parameter

Technical Item	Specifications (Model CR916S)
Motor Power Options	7.5KW / 11KW / 15KW / 18.5KW
Electronic Power	3 Phase 380V / 3 Phase 220V
Motor Speed	0 - 4000 RPM
Pressure Adjustment	0 - 2000 Bar
Flow Testing Range	0 - 600 ml / 1000 times
Flow Accuracy	0.1 ml
Temperature Range	40 ± 2 °C
Cooling System	Fan or Forced Cooling (Optional)
Compatibility	CRI/CRIN (Bosch, Denso, Delphi), Piezo, HEUI (C7/C9/3126), EUI/EUP
