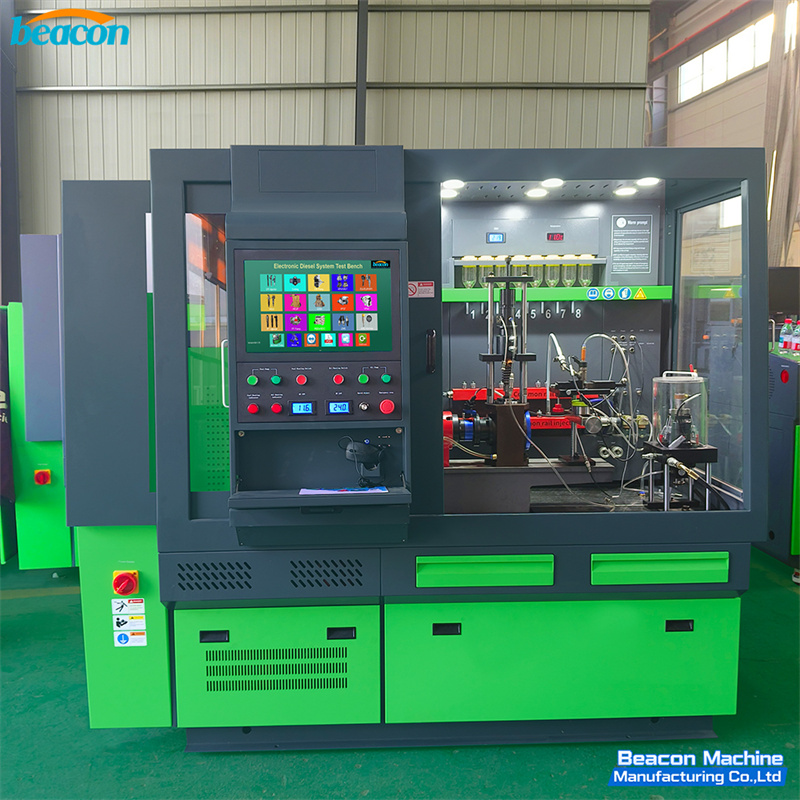

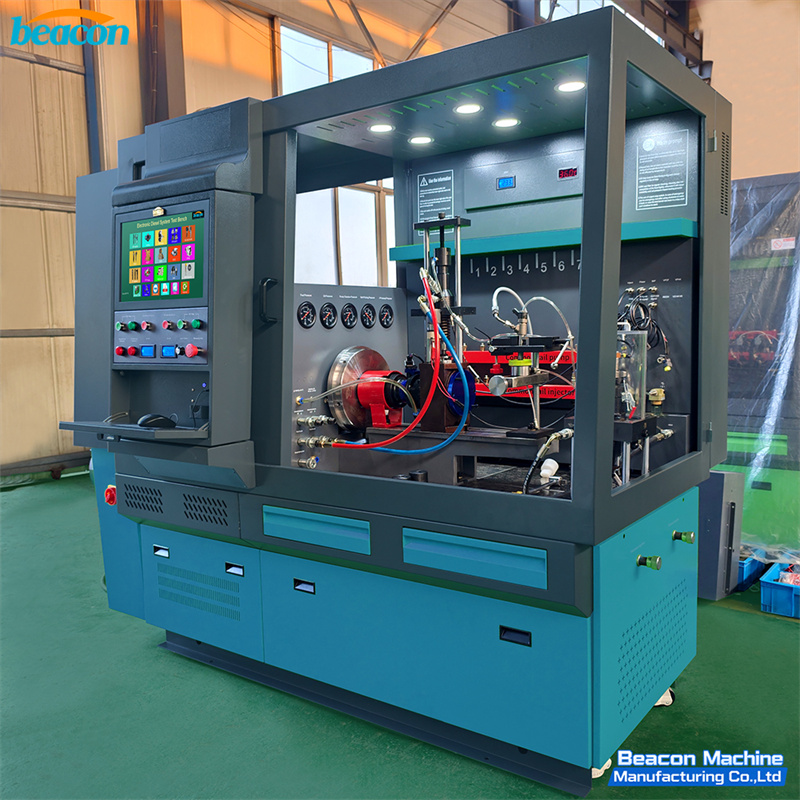

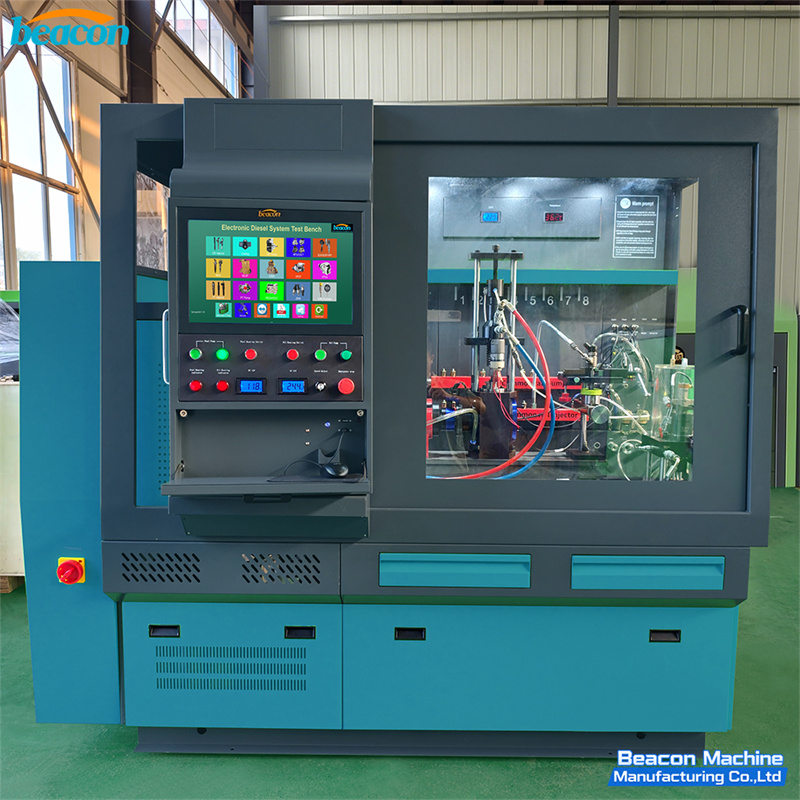

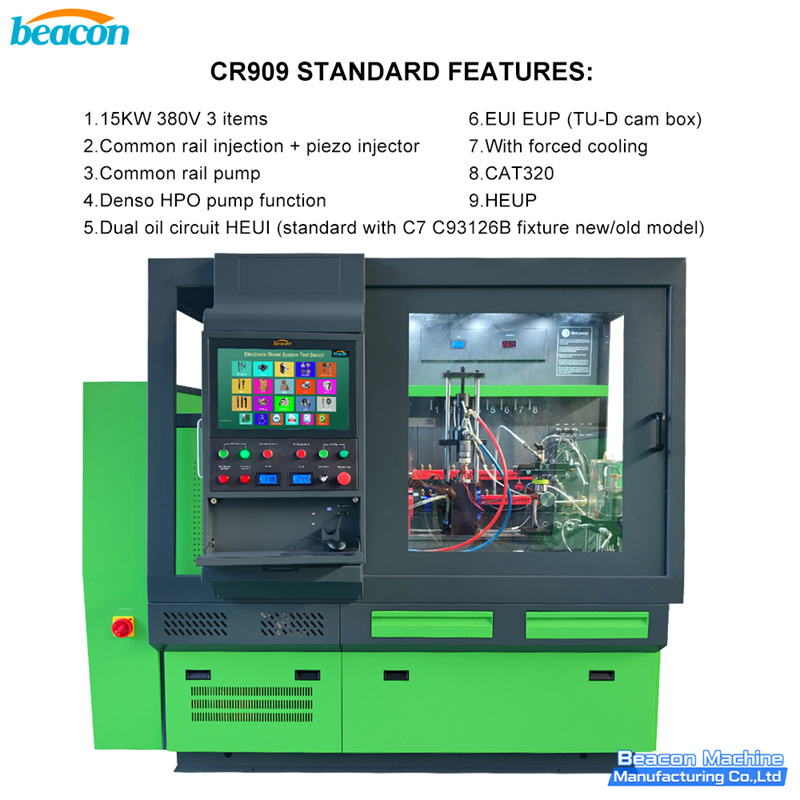

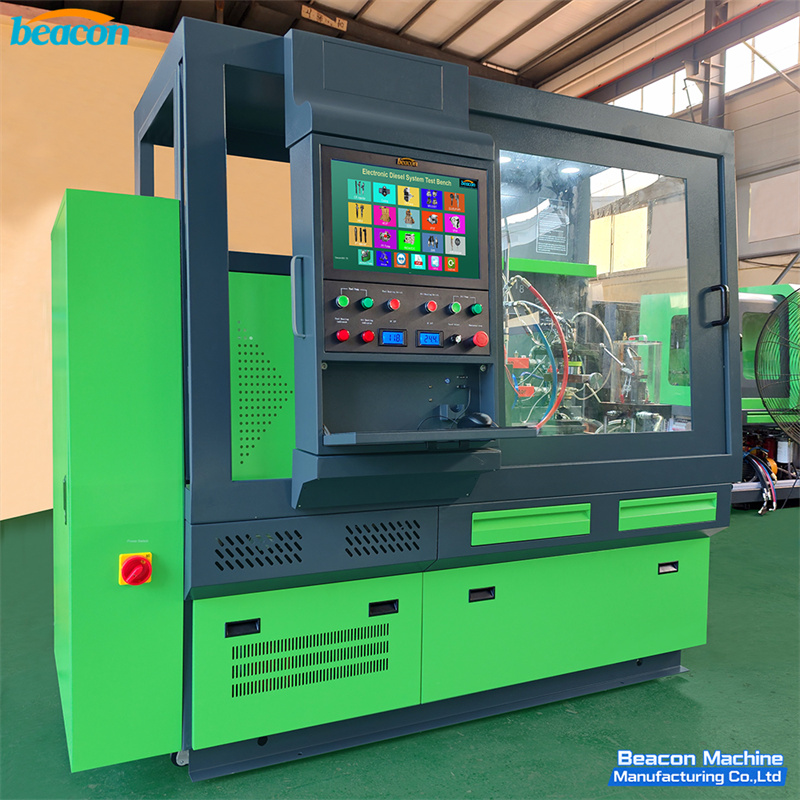

CR909 High Pressure Common Rail Comprehensive Performance Test Bench

The CR909 is a top-tier, integrated diagnostic platform designed for full-scale diesel fuel system service. It mimics the Engine Control Unit (ECU) to provide precise control signals for high-pressure common rail injectors (solenoid and piezo), fuel pumps, EUI/EUP, and HEUI systems. Compatible with global brands like Bosch, Denso, Delphi, Siemens, Caterpillar, and Cummins, the CR909 features a high-precision electronic flow measurement system and an industrial PC-based control system. Its ability to generate compensation codes (QR coding) and handle extreme pressure conditions makes it the ultimate solution for professional diesel remanufacturing workshops.

CR909 High Pressure Common Rail Comprehensive Performance Test Bench Advantage

All-In-One Comprehensive Testing: A truly universal bench that supports Common Rail Injectors, Common Rail Pumps, EUI/EUP, HEUI, and specialized components like Caterpillar 320D pumps.
High-Precision Electronic Measurement: Equipped with industrial-grade automatic flow sensors to ensure accurate recording of fuel injection, return volume, and sealing performance.
Automated QR/IMA Coding: Features professional software for generating injector compensation codes (QR, IMA, ISA, IQA) to restore factory-standard engine performance.
Industrial PC Control: Powered by a stable Windows-based industrial computer with a user-friendly interface and support for remote system updates and maintenance.
Stable High-Pressure System: Utilizes an original common rail pump and intelligent PID control to maintain highly stable rail pressure for accurate diagnostics.
Extensive Test Database: Includes thousands of built-in test plans for a wide range of injectors and pumps, with the ability for users to add and edit custom data.
Safety & Protection: Built-in short-circuit and pressure overload protection for both software and hardware, ensuring the safety of operators and expensive components.

parameter

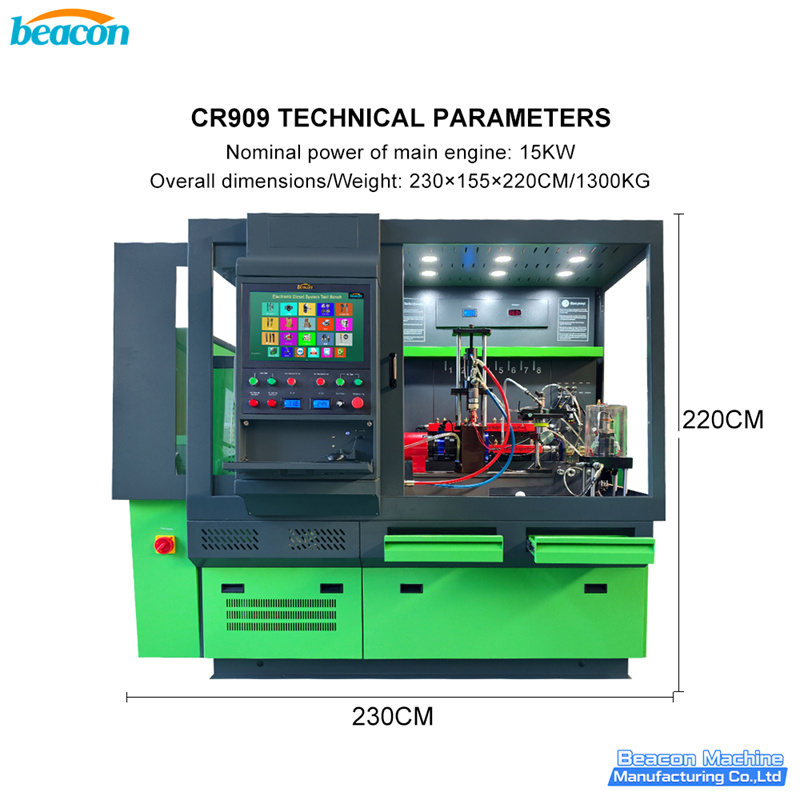

Technical Parameter	Specifications (Model CR909)

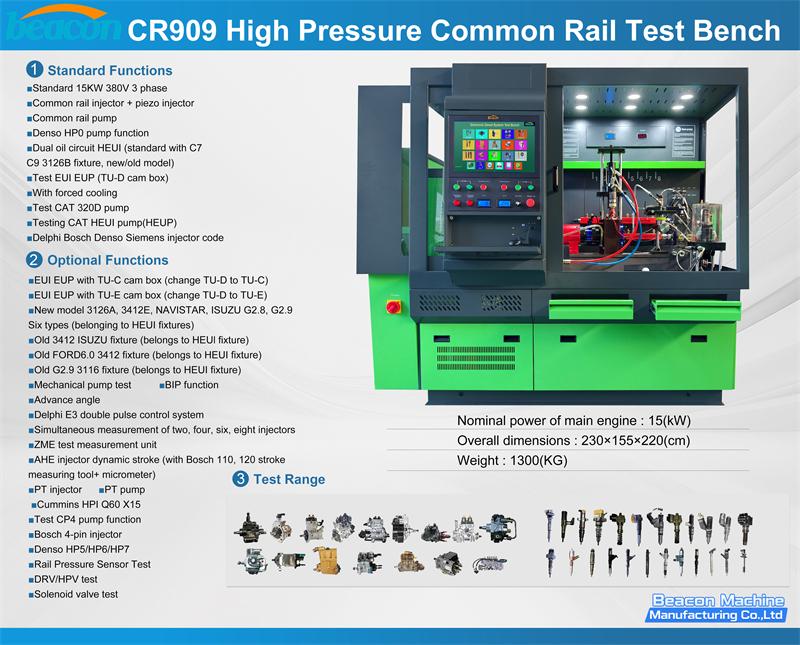

Application Scope	CR Injectors (Solenoid/Piezo), CR Pumps, EUI/EUP, HEUI, CAT 320D
Control System	Industrial PC with Windows OS
Measurement Method	Automatic Electronic Flow Sensor
Rail Pressure Control	Intelligent PID Automatic Adjustment
Main Functions	Sealing, VL, EM, LL, VE Test, QR Coding, BIP Testing
Testing Modes	Normal Test & Fast Test (20s per step)
Special Features	Database Search & Editing, Automatic Report Generation
Safety System	Short-circuit & Over-pressure Hardware/Software Protection
