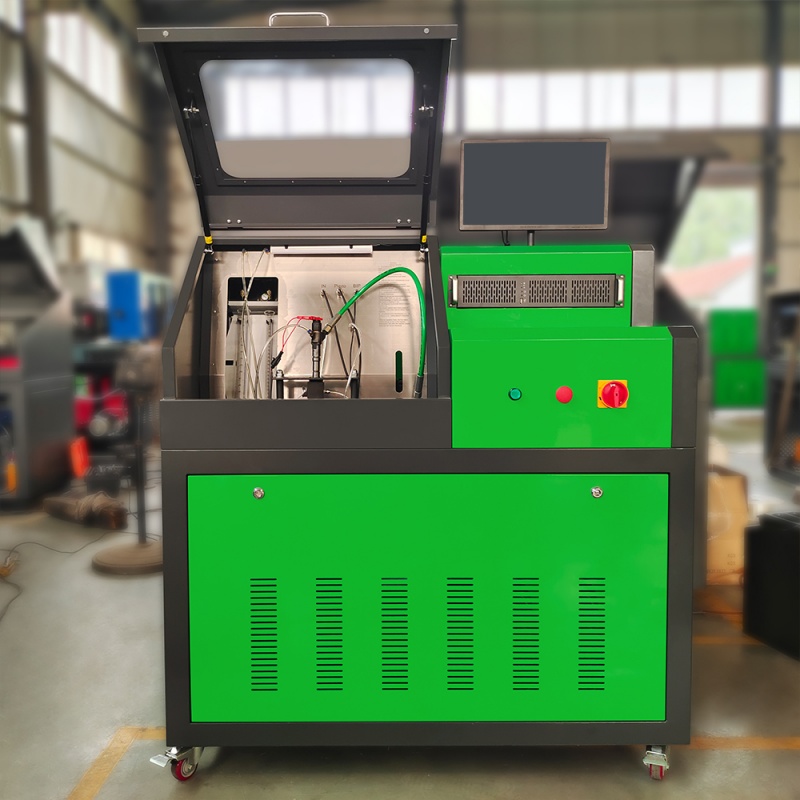

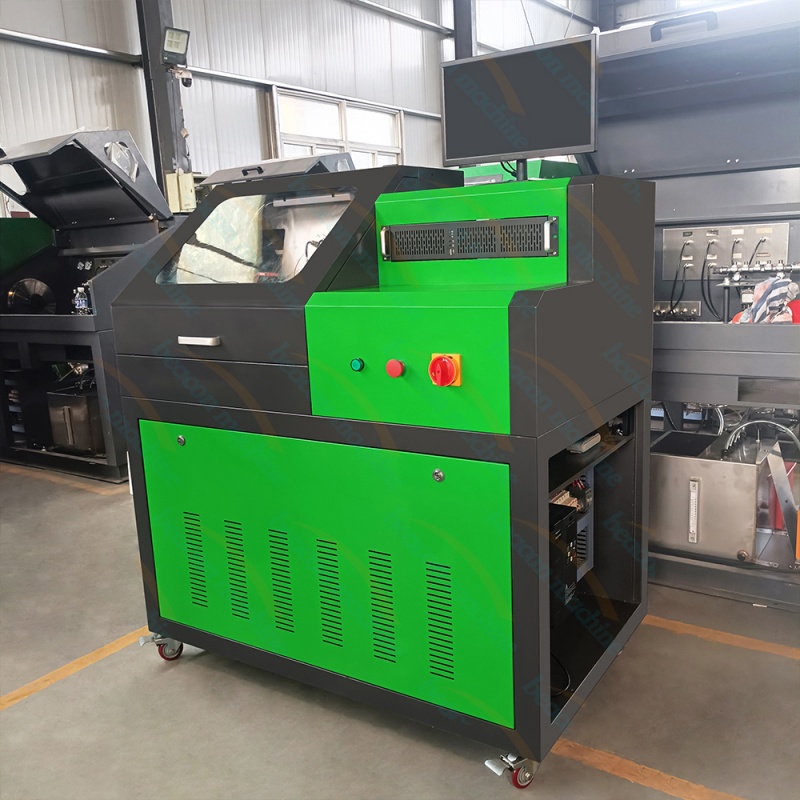

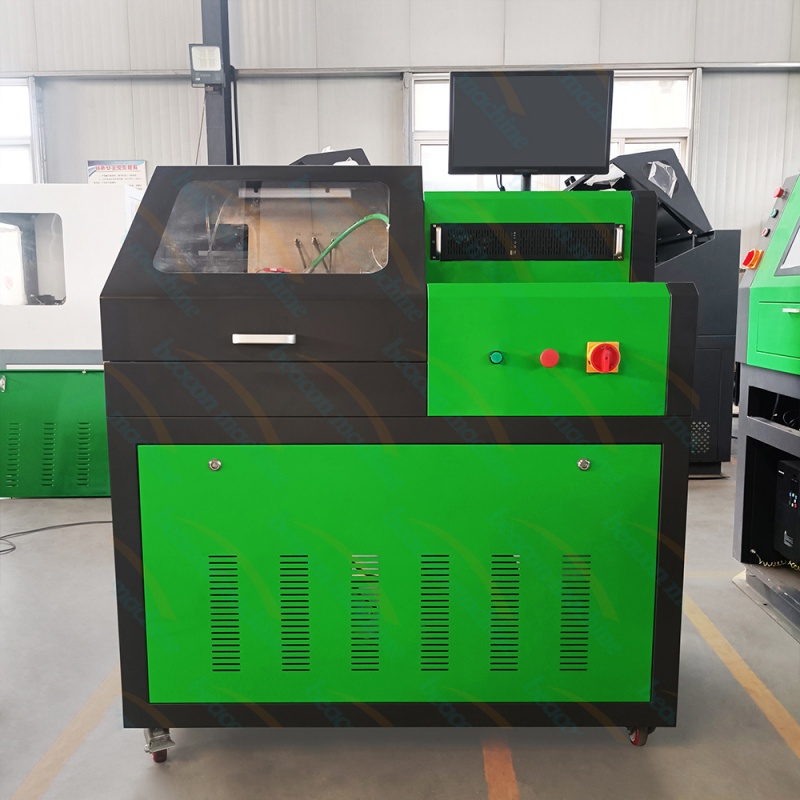

CR310 High Pressure Common Rail Injector and Fuel Pump Test Bench

The CR310 Common Rail Test Bench is a multifunctional diagnostic platform designed for high-precision testing of modern diesel fuel systems. Controlled by an industrial computer with a Windows-based operating system, it allows technicians to test both high-pressure common rail injectors (solenoid and piezo) and common rail pumps on a single machine. Additionally, the CR310 is engineered to support EUI/EUP (Electronic Unit Injectors and Pumps) testing. With its high-precision electronic flow measurement system and integrated database, it provides accurate analysis of fuel delivery and return, helping workshops deliver factory-standard repairs.

Common Rail Injector Tester, Diesel Pump Test Bench, EUI EUP Calibration

CR310 High Pressure Common Rail Injector and Fuel Pump Test Bench Advantage

Dual-Function Integration: Combines injector and fuel pump testing in one compact station, maximizing workshop efficiency and ROI.
Broad Compatibility: Supports common rail injectors and pumps from Bosch, Denso, Delphi, Siemens, and Caterpillar.
EUI/EUP Support: Advanced capability to test various Electronic Unit Injectors and Unit Pumps, providing a complete solution for heavy-duty diesel repair.
Automatic QR Coding: Features professional software to generate fuel quantity correction codes (QR/IMA codes), ensuring smooth engine operation after injector installation.
Precision Flow Sensors: Equipped with high-accuracy electronic flow meters for fully automated measurement of injection volume, backleak, and sealing.
Intelligent Software: User-friendly interface with thousands of built-in test plans, automated reporting, and searchable part number databases.
Safety & Reliability: Includes automatic rail pressure adjustment up to 2000 Bar and pressure overload protection for safe daily operation.

parameter

Technical Parameter	Specifications (Model CR310)
Application	Common Rail Injectors (Solenoid/Piezo), CR Pumps, EUI/EUP
Main Motor Power	4KW / 5.5KW (Standard Configuration)
Max Rail Pressure	2000 Bar (200 MPa)

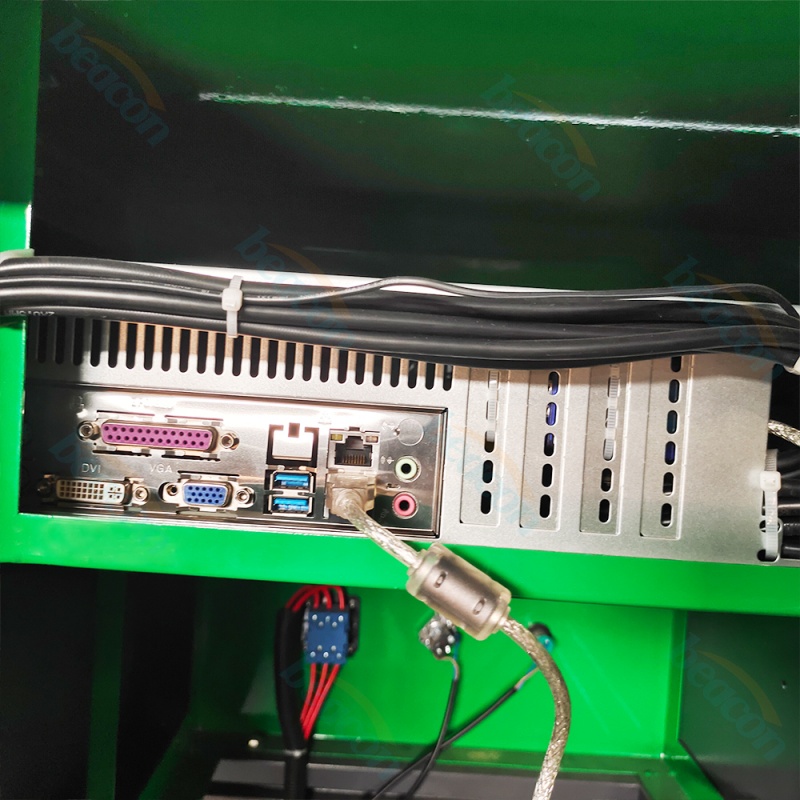

Control System	Industrial PC + Windows OS

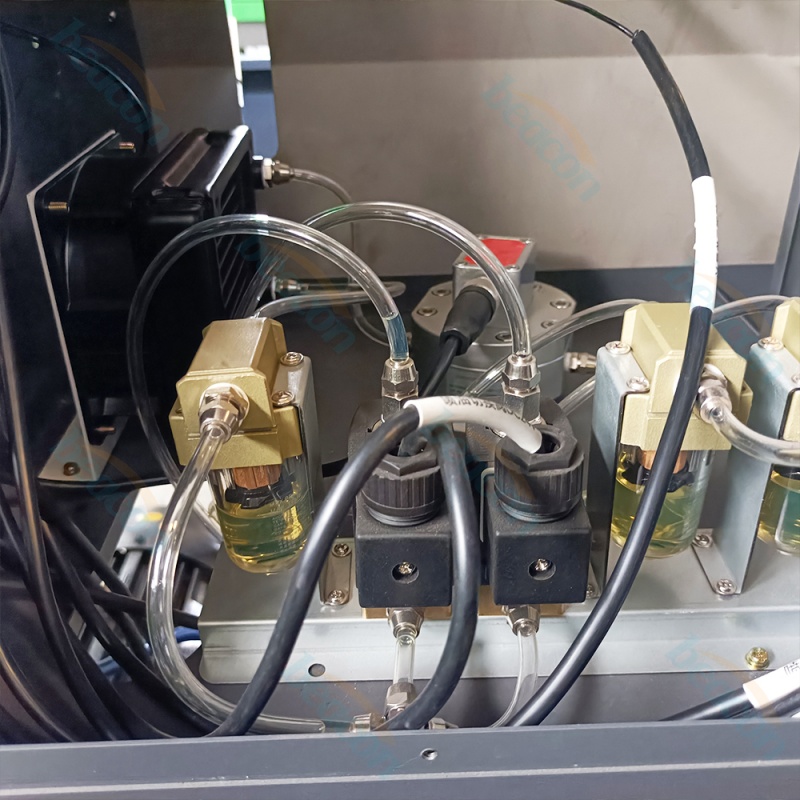

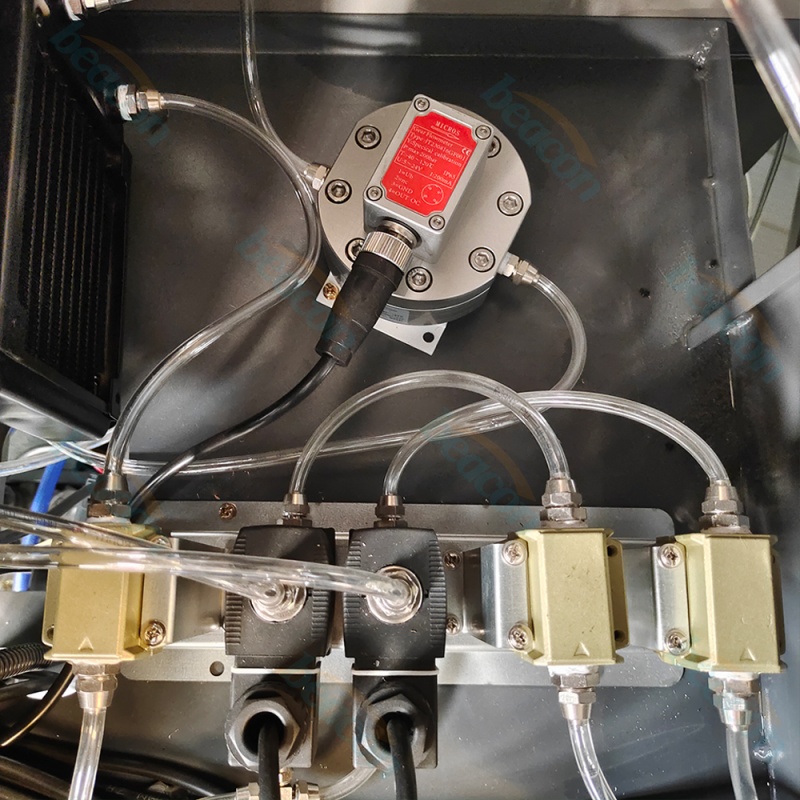

Measurement Method	Automatic Electronic Flow Sensor

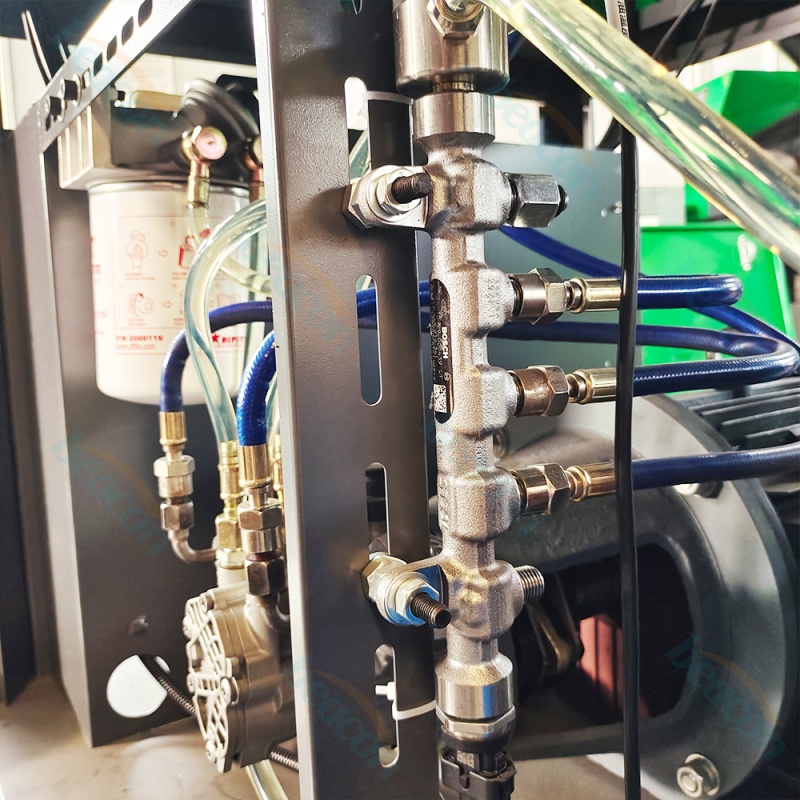

Rail Pressure Pump	Original BOSCH / DENSO Pump
Special Functions	QR Compensation Coding, EUI/EUP Data Editing
Safety Protection	Pressure Overload Protect & Emergency Stop
Testing Modes	Normal Test & Fast Test (20s per step)
