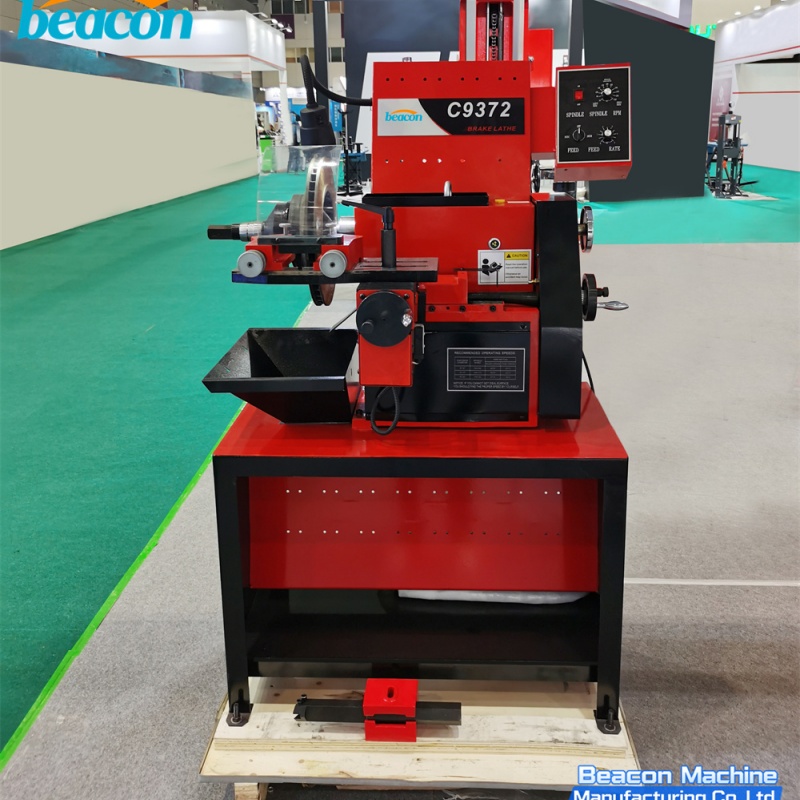

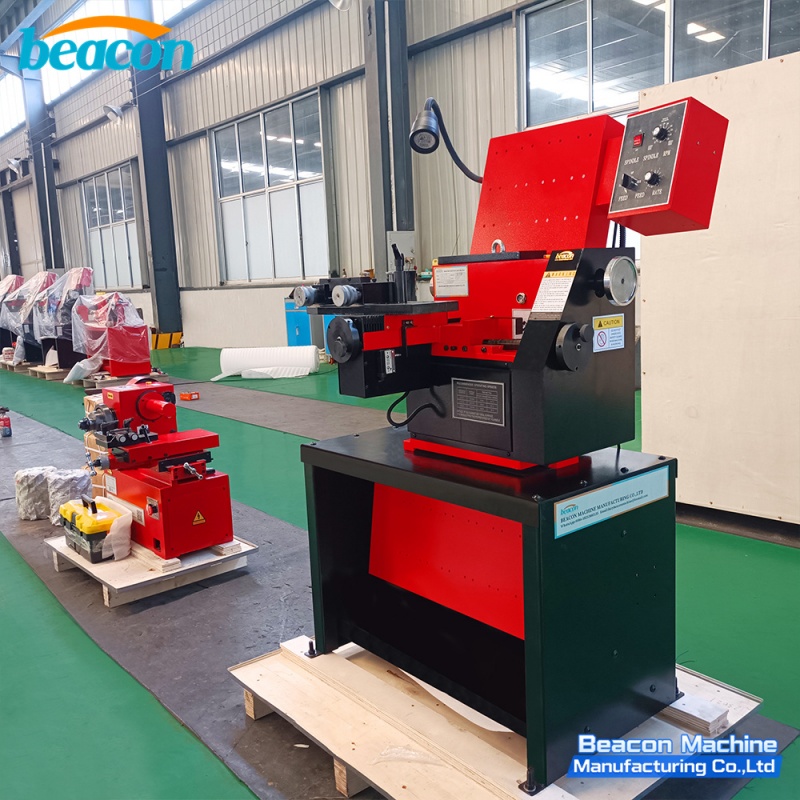

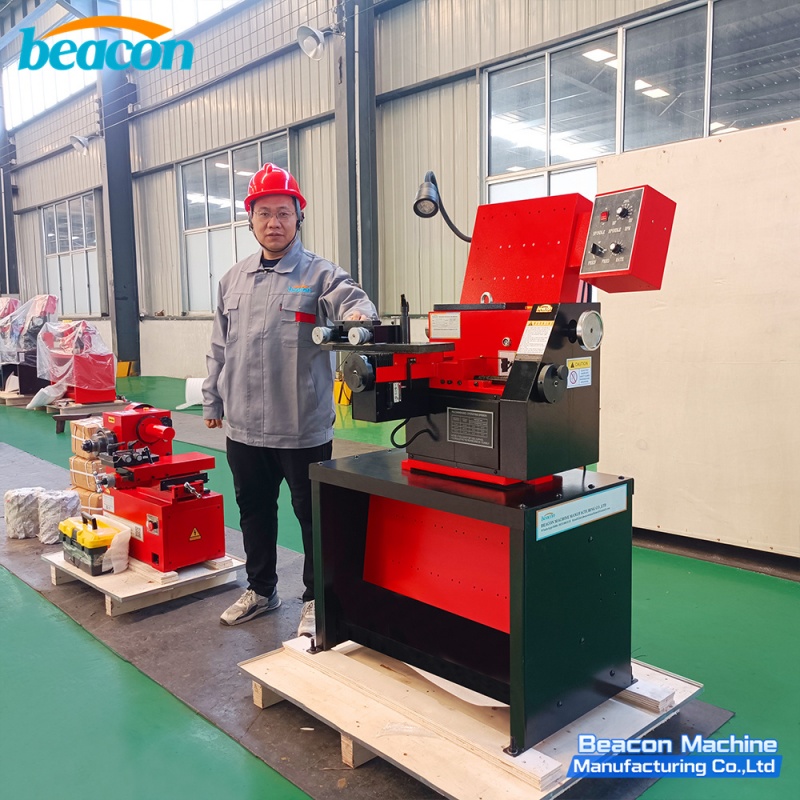

C9372 Professional Brake Disc and Brake Drum Lathe Machine

The C9372 Brake Lathe is a versatile and heavy-duty solution designed for modern automotive repair shops. It provides technicians with the ability to quickly, accurately, and efficiently cut both brake rotors and brake drums. Featuring an infinitely variable spindle speed and cross-feed rate, the C9372 ensures a perfect surface finish that meets or exceeds OEM specifications. Its robust design minimizes vibration, while the integrated tool board and adapter package make it a convenient, all-in-one workstation for professional brake resurfacing.


C9372 Professional Brake Disc and Brake Drum Lathe Machine Advantage

  • Dual Functionality: Convenient design allows for rapid switching between rotor and drum cutting modes, maximizing workshop efficiency.

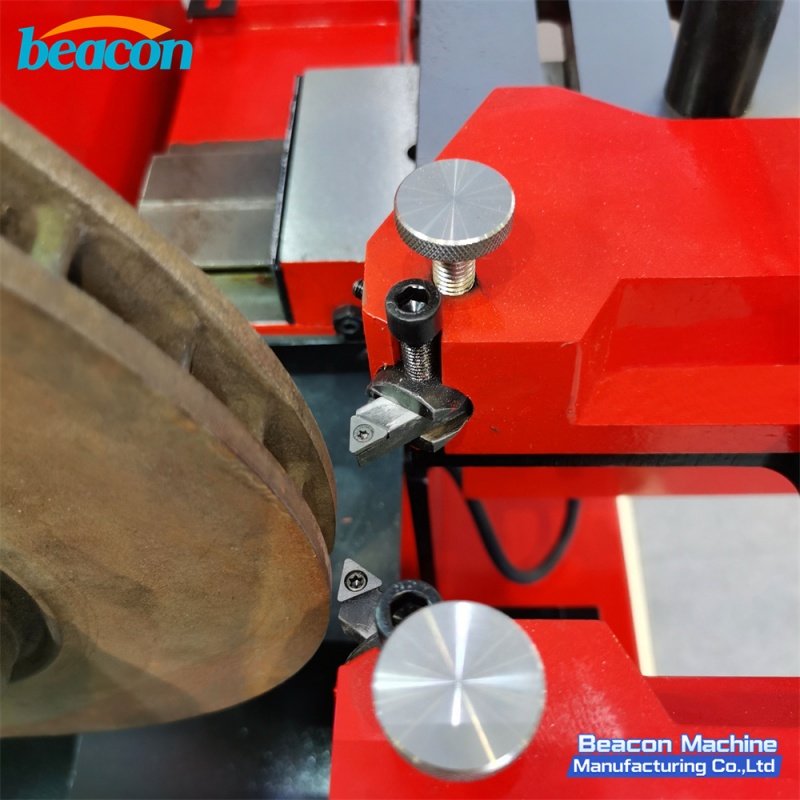

  • Perfect Surface Finish: Positive rate tooling and heavy workbench design reduce vibration and chatter, providing a smooth finish in a single pass.

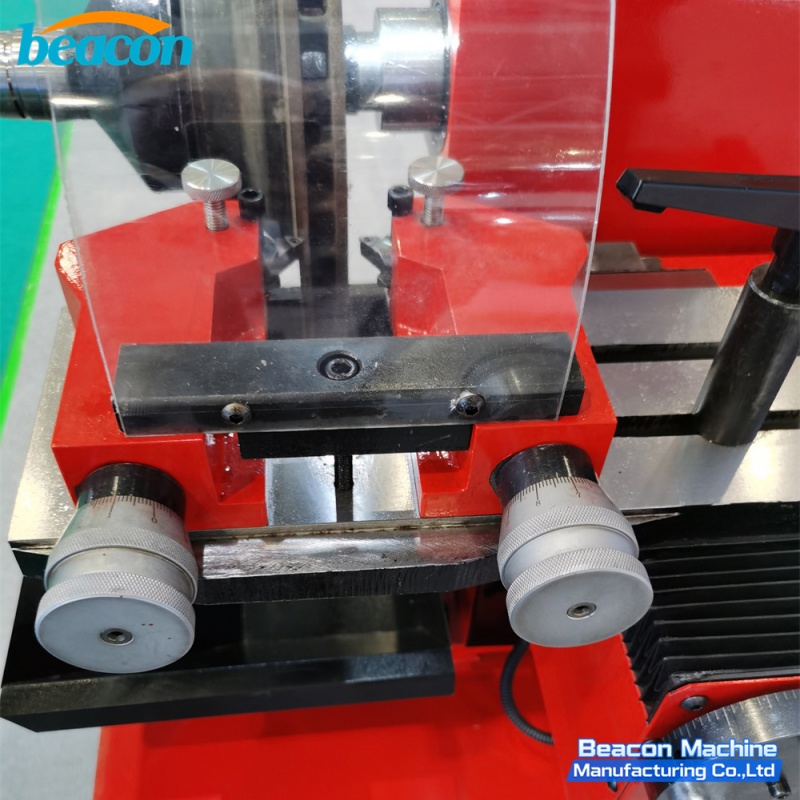

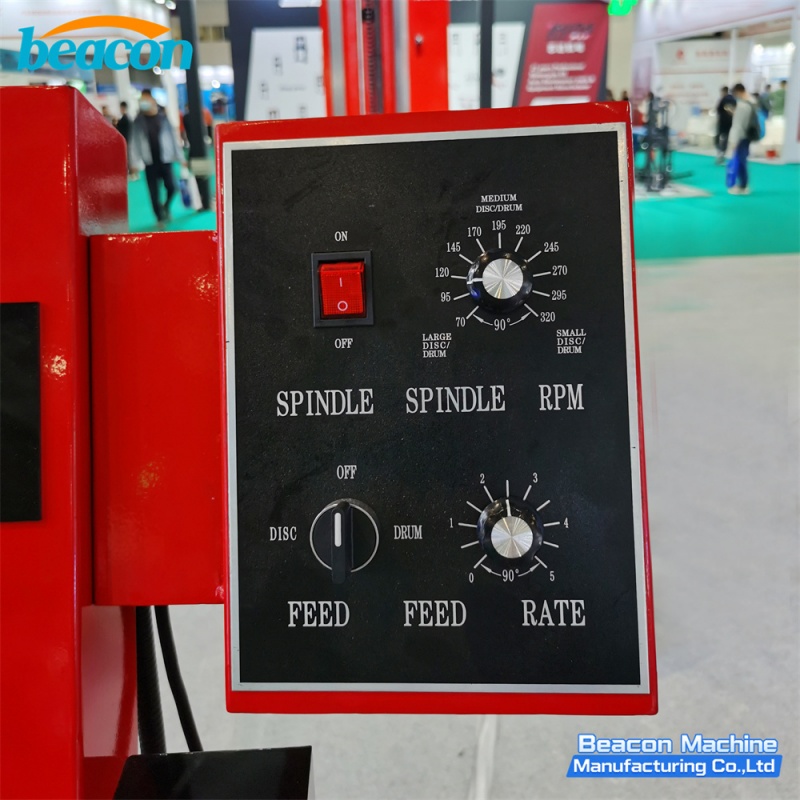

  • Variable Speed Control: Features infinitely variable spindle speed and cross-feed settings to handle different materials and diameters with precision.

  • Automatic Safety Shut-off: Equipped with two automatic shut-off switches that stop the motor once the cutting process is finished.

  • Safe & Clean Workspace: Includes an integrated chip bin to catch debris and a work lamp to keep the piece lighted even in dark areas.

  • Expanded Capacity: The cross-feed extension plate increases the maximum rotor diameter capability up to 22 inches (588mm).

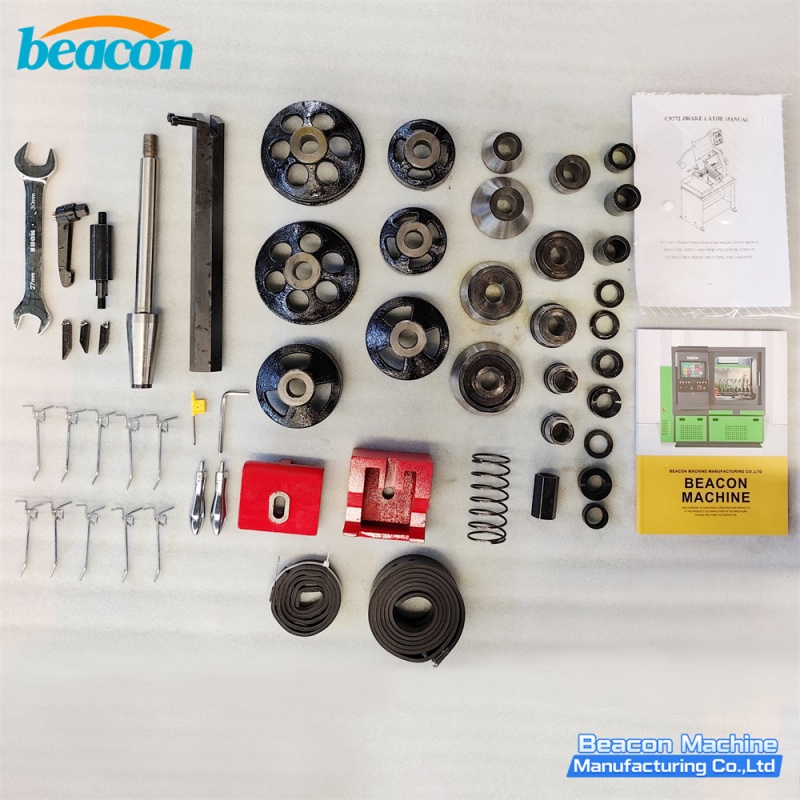

  • Full Accessory Kit: Comes with a fully equipped adapter package and a tool board for easy organization and access to all necessary components.


parameter

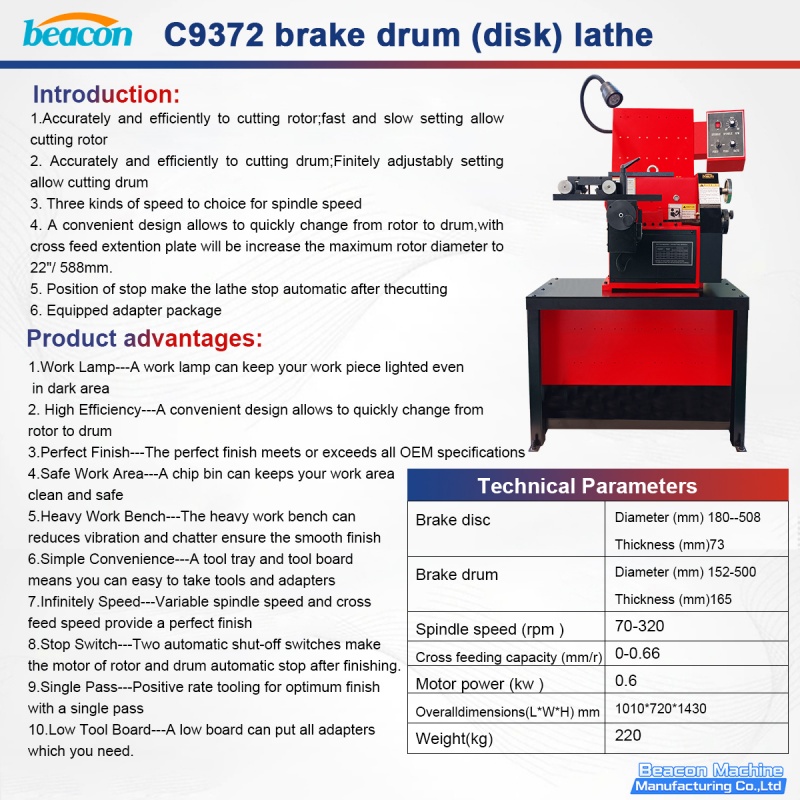

Technical ParameterSpecifications (Model C9372)
Brake Disc Diameter180 mm - 508 mm (Up to 588 mm with extension)
Max. Disc Thickness73 mm
Brake Drum Diameter152 mm - 500 mm
Max. Drum Depth165 mm
Spindle Speed70 - 320 rpm (Variable)
Cross Feeding Capacity0 - 0.66 mm/r (Variable)
Motor Power0.6 KW
Overall Dimensions1010 * 720 * 1430 mm
Weight220 kg
