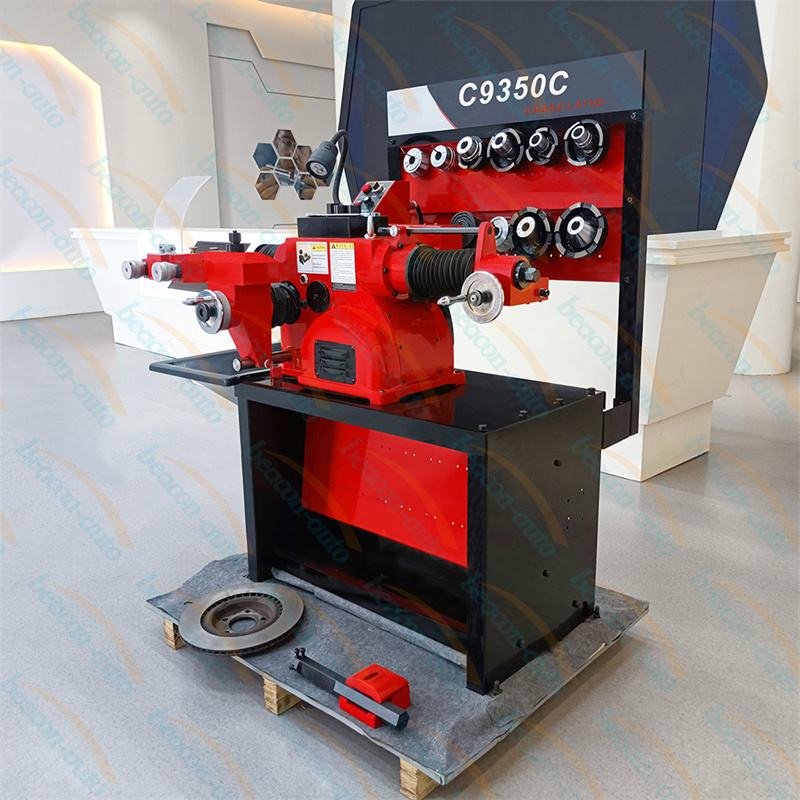

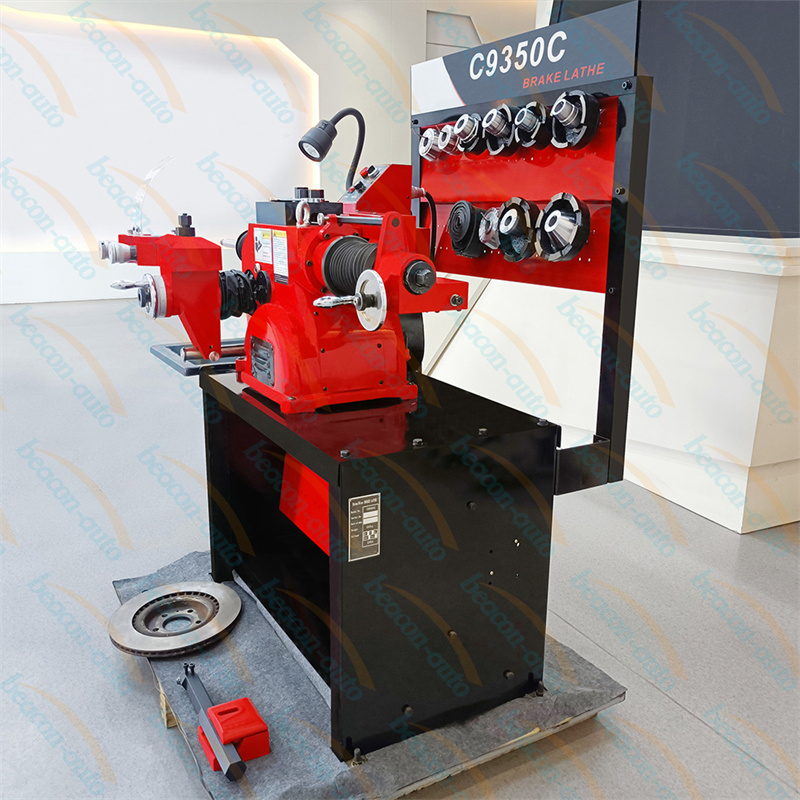

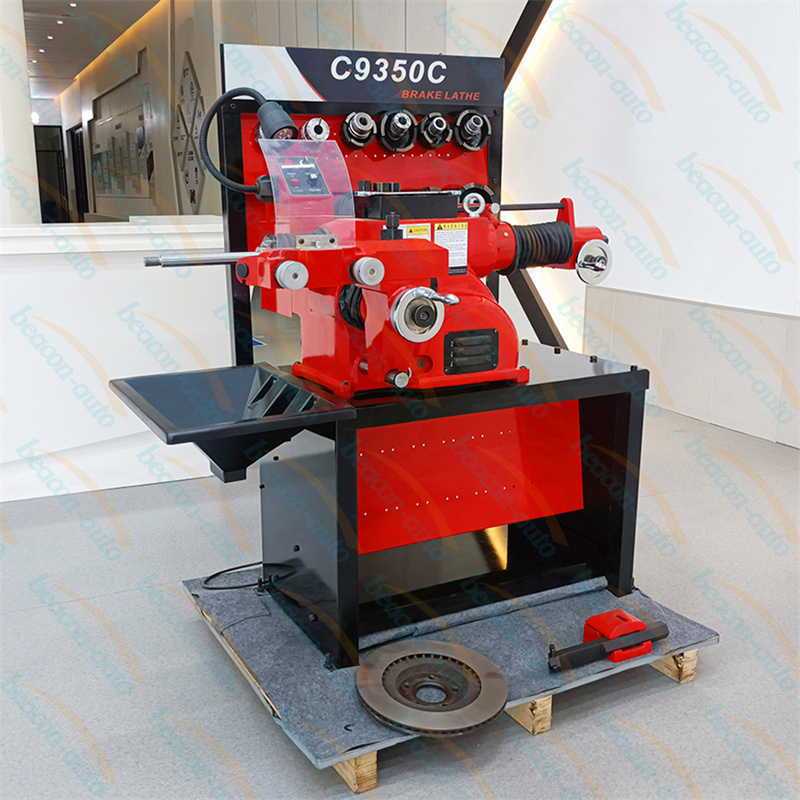

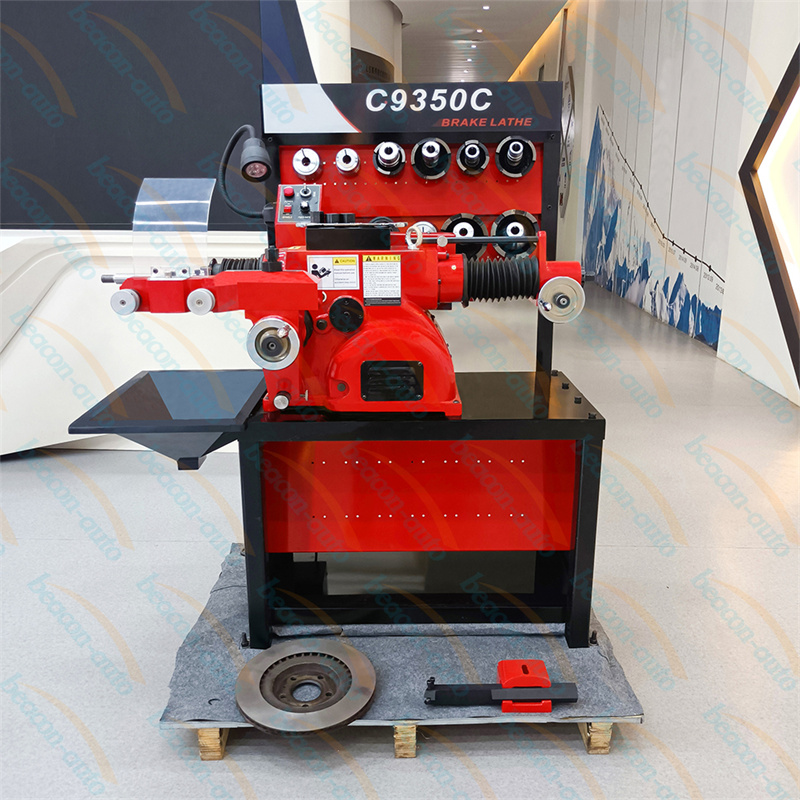

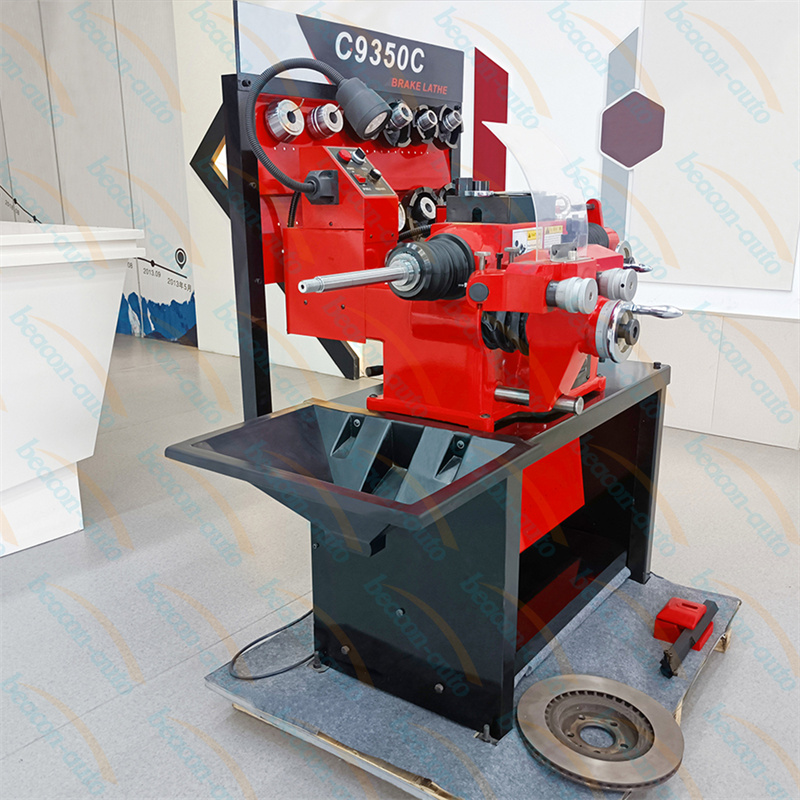

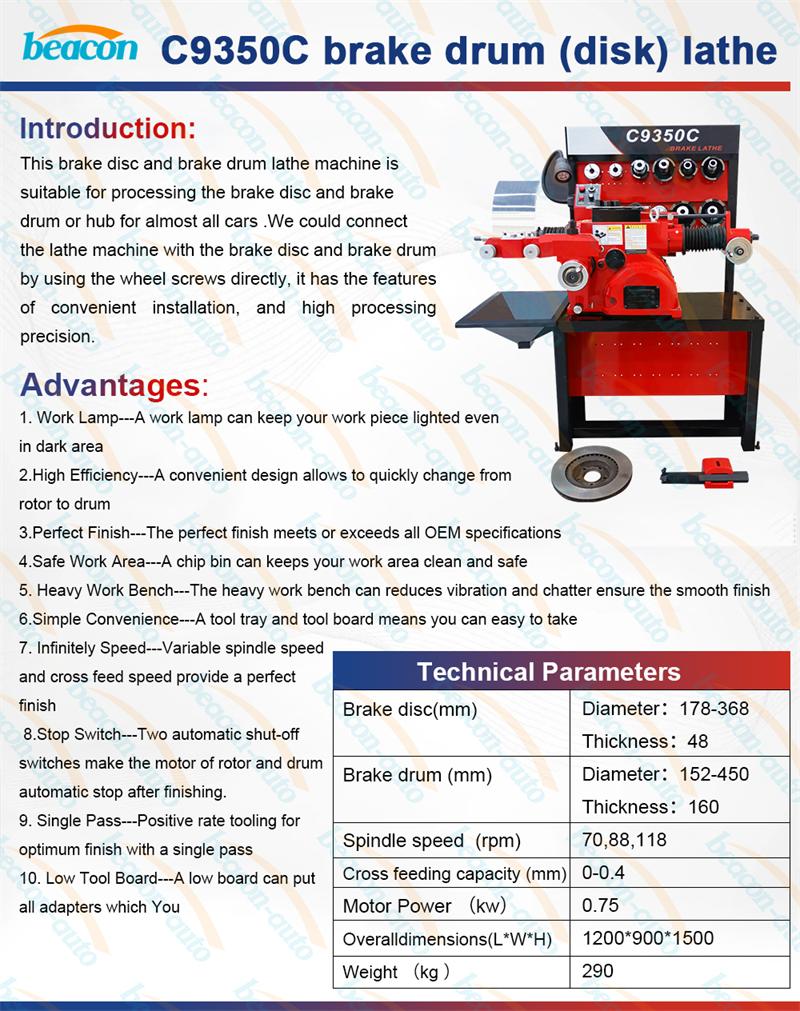

C9350C High-Efficiency Brake Disc and Brake Drum Resurfacing Lathe

The C9350C Brake Lathe is an advanced, high-performance machine capable of faster, more accurate, and easier resurfacing of brake rotors and drums. Designed for professional automotive technicians, it features infinitely adjustable feed rates that allow you to modify cut speeds with a simple turn of a dial. This flexibility enables you to speed through initial rough cuts or achieve a precision single-pass micro-finish. Whether for passenger cars or light trucks, the C9350C ensures a perfect surface finish that meets or exceeds all OEM specifications, significantly improving the efficiency of your brake service department.

C9350C High-Efficiency Brake Disc and Brake Drum Resurfacing Lathe Advantage

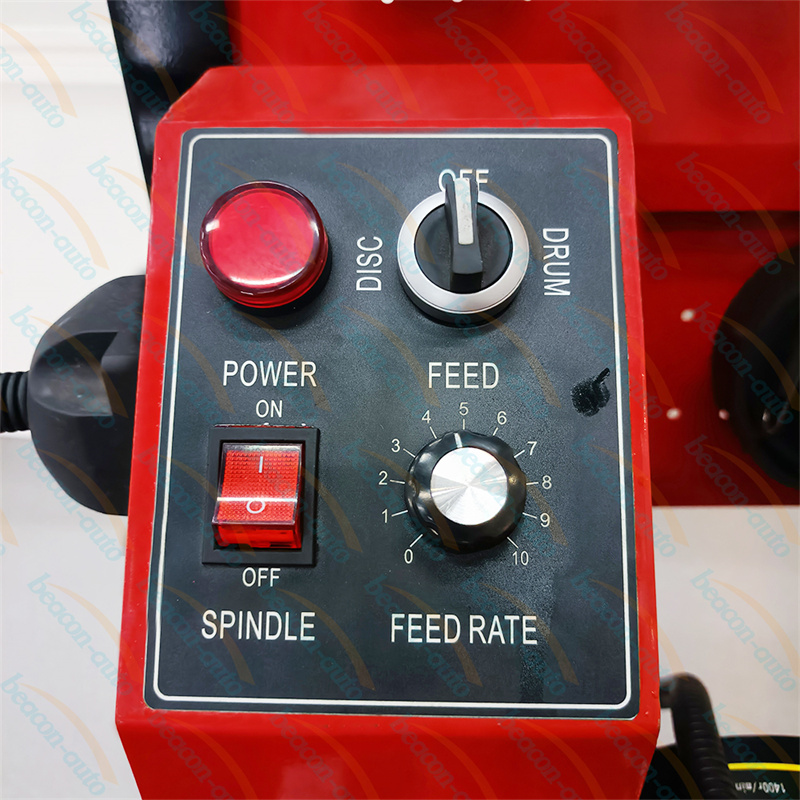

Infinitely Adjustable Feed: Allows technicians to easily modify cut speeds for both roughing and finishing passes to achieve the best surface results.
High Efficiency Design: The convenient mechanical structure allows for a quick changeover from rotor to drum testing, maximizing workshop productivity.
OEM Standard Finish: Positive rate tooling and a heavy-duty workbench ensure a perfect finish that meets or exceeds original equipment manufacturer specifications.
Vibration & Chatter Reduction: The massive, heavy-duty workbench design minimizes vibration, ensuring a consistently smooth finish on every workpiece.
Integrated Safety System: Features two automatic shut-off switches that stop the motor automatically once the cutting process is completed.

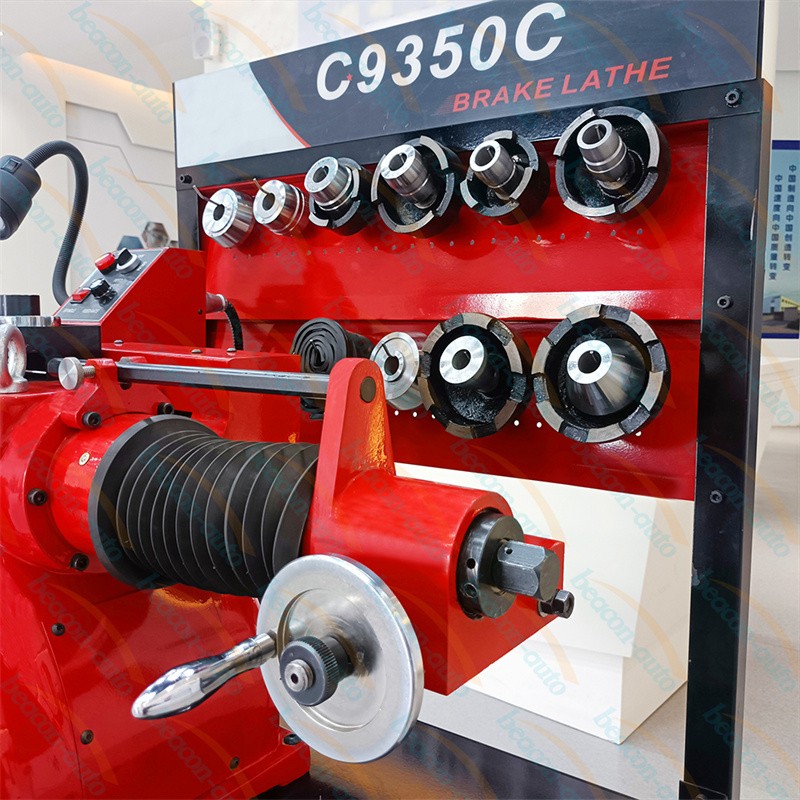

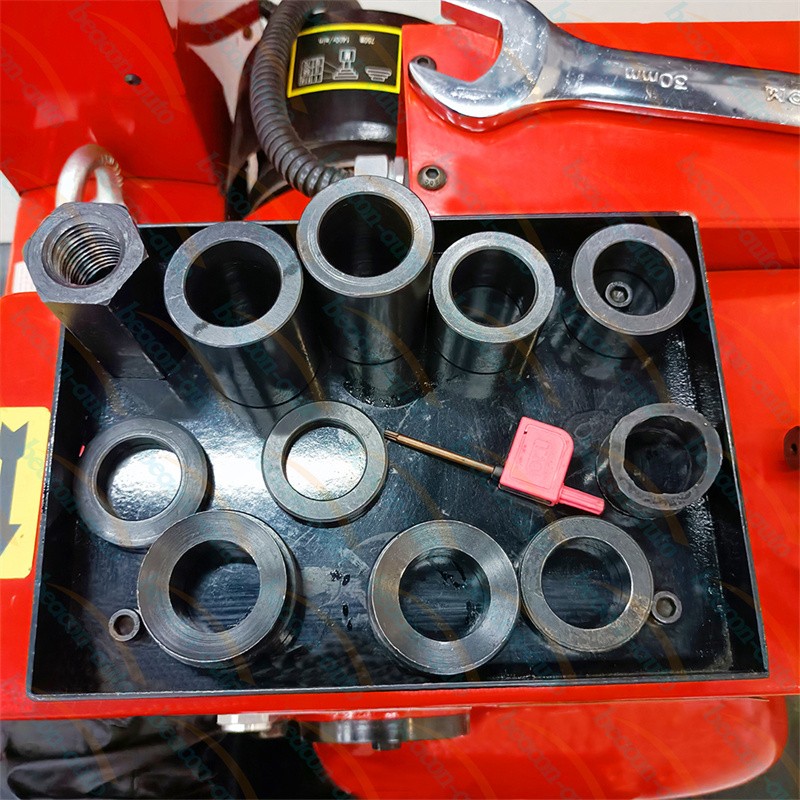

Organized Work Area: Includes a built-in tool tray and adapter board for easy access, plus a chip bin to keep the workspace clean and safe.
Enhanced Visibility: Equipped with an adjustable work lamp to keep the workpiece clearly lighted even in dark or poorly lit workshop areas.

parameter

Technical Parameter	Specifications (Model C9350C)
Brake Disc Diameter Range	178 mm - 368 mm
Max. Disc Thickness	48 mm
Brake Drum Diameter Range	152 mm - 450 mm
Max. Drum Depth	160 mm

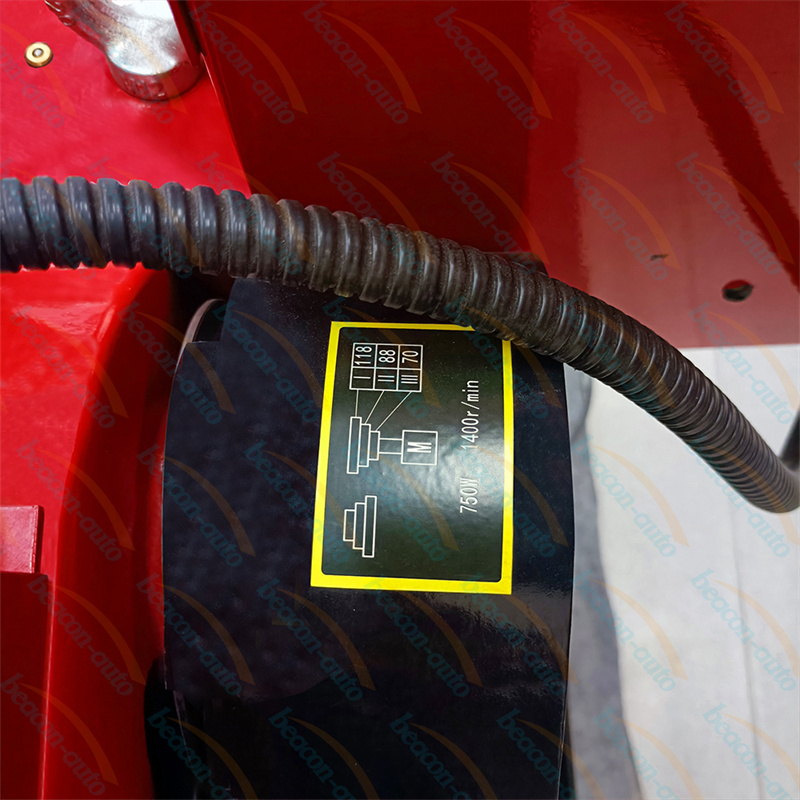

Spindle Speed	70, 88, 118 rpm (Three Stages)
Cross Feeding Capacity	0 - 0.4 mm/r (Infinitely Variable)
Motor Power	0.75 KW (Powerful Performance)
Overall Dimensions	1200 * 900 * 1500 mm
Net Weight	290 kg
