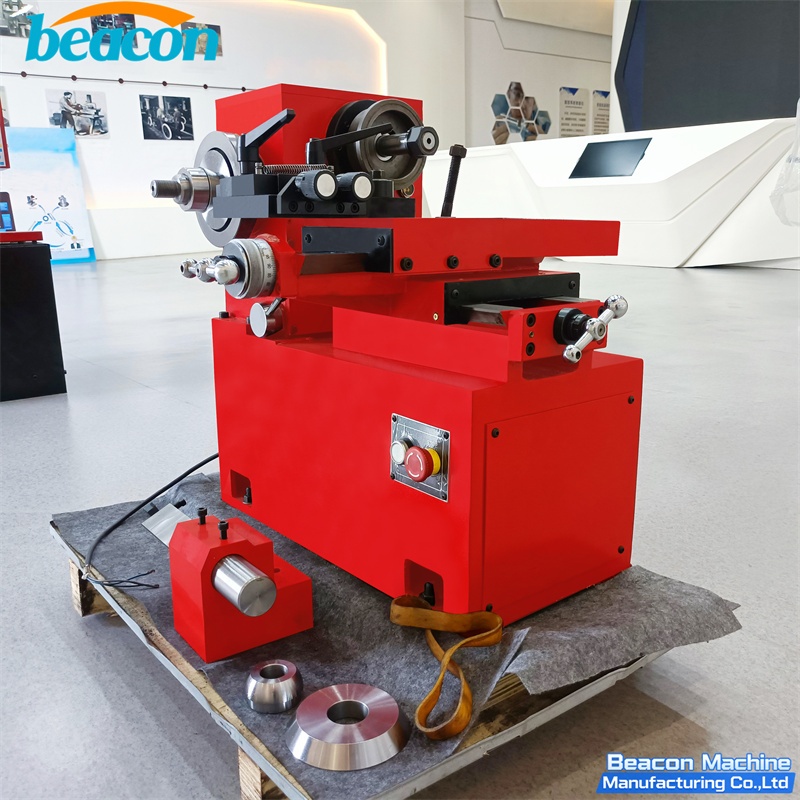

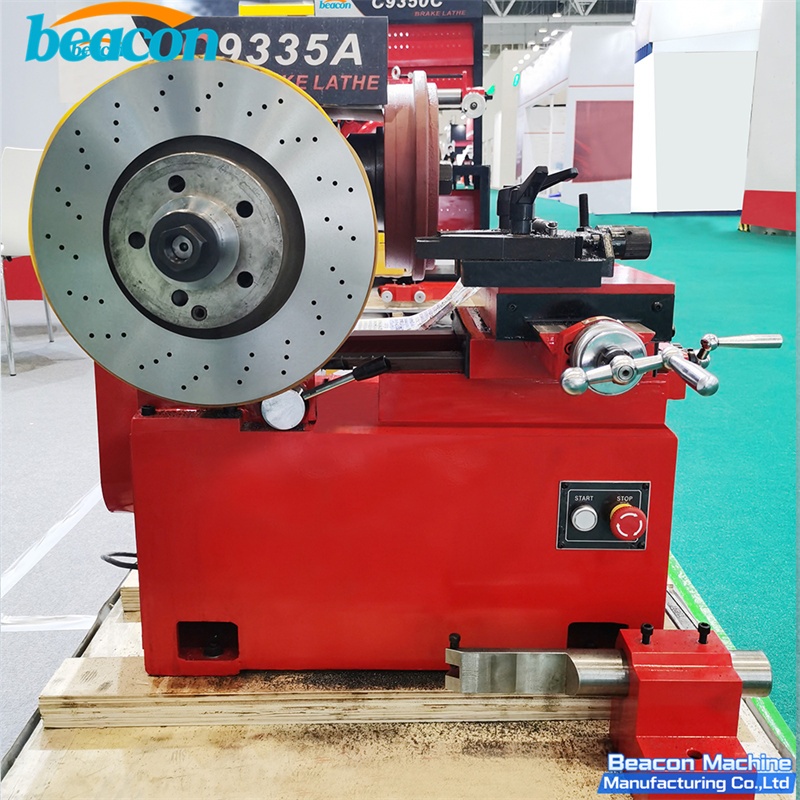

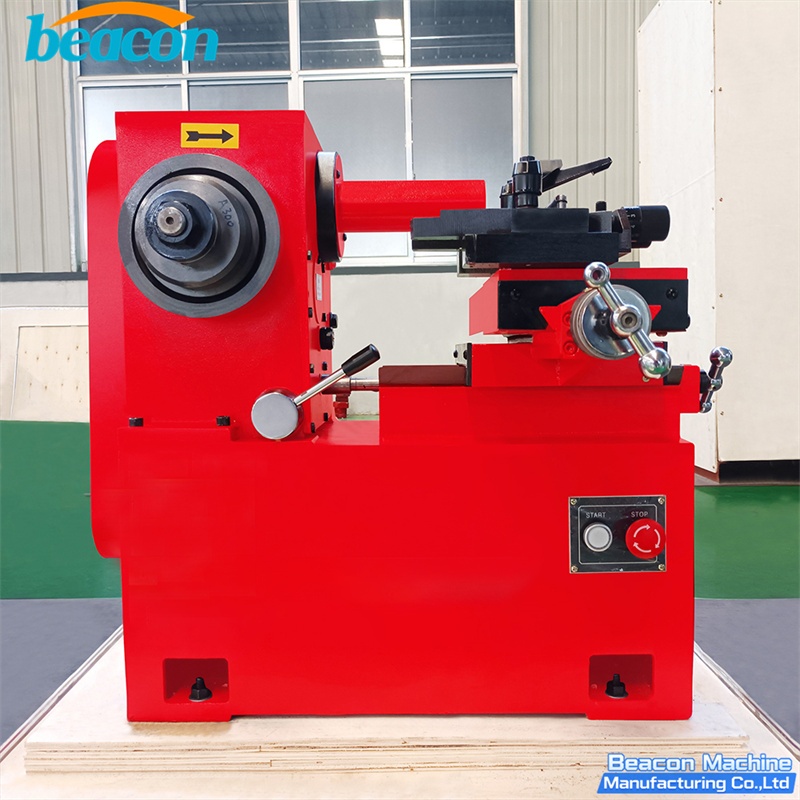

C9335 Brake Lathe Machine for Brake Disc & Drum Repair

The C9335 Brake Lathe is a professional machine designed for processing and repairing brake discs and drums for almost all passenger cars. It offers a convenient installation process by connecting the lathe directly to the workpiece using wheel screws, ensuring high processing precision and stability.

C9335 Brake Lathe Machine for Brake Disc Drum Repair Advantage

Automatic Feeding: Adopts auto-feeding cutters via oil-free self-lubricating wear-resistant stainless steel ball screws.

High Rigidity: Features cutters with great rigidity for rapid and efficient milling and cutting.

Powerful Performance: Equipped with a professional 1.1kW three-phase asynchronous motor for high accuracy.

Stable Operation: Heavy machine frame (up to 200kg) ensures zero vibration even during high-speed operation.

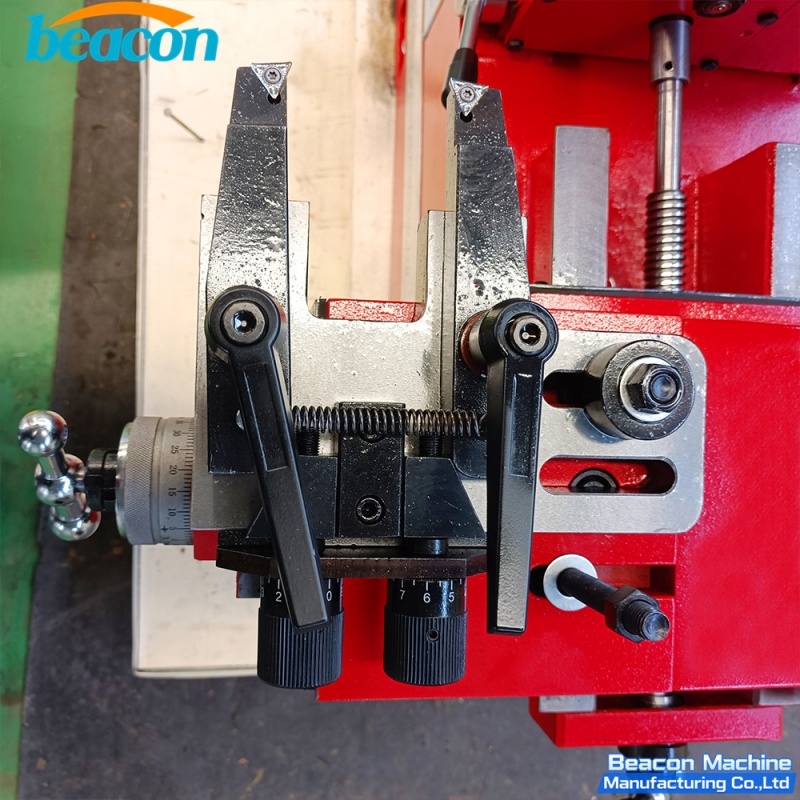

Easy Adjustment: Optimized double-knife structure makes it more convenient to adjust the feed amount.

Flexibility: Optional universal wheels can be installed on the base for easy movement within the workshop.

parameter

Parameter Item	Specifications (Model C9335)
Range of Processing (Brake Drum)	180 - 350 mm
Range of Processing (Brake Disc)	180 - 350 mm
Rotating Speed of Workpiece	75 / 130 r/min
Max Travel of Tool	100 mm
Feeding Capacity	0.15 mm/r
Motor Power	1.1 Kw
Net Weight / Gross Weight	200 kg
