BCQZ-2D All-purpose Automobile Electric Test Bench for Alternator and Starter Motor

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

Details

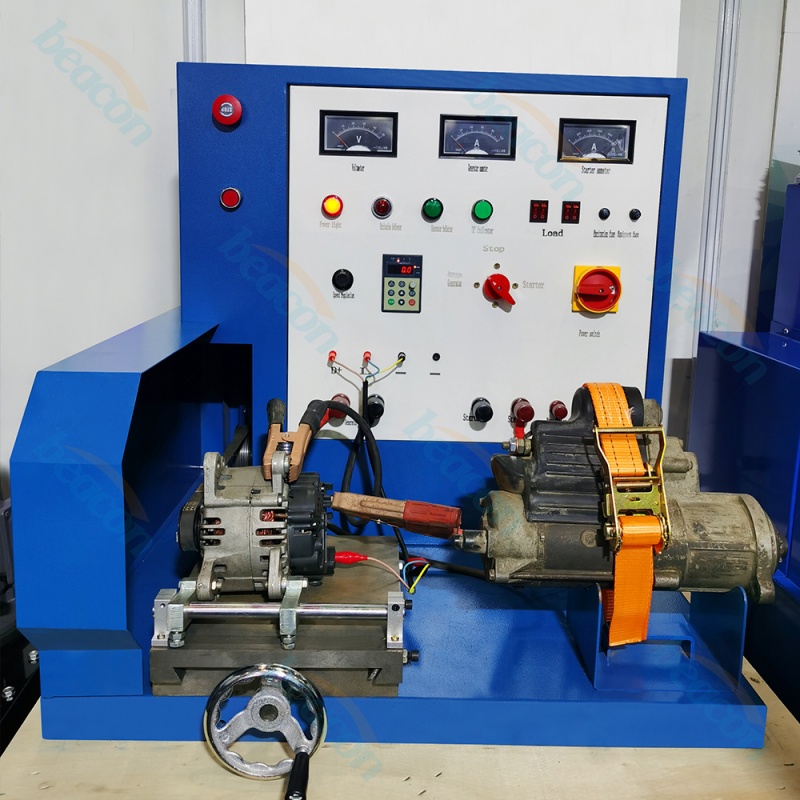

BCQZ-2D All-purpose Automobile Electric Test Bench for Alternator and Starter Motor

The BCQZ-2D is an advanced, all-purpose automobile electric test bench specifically engineered for the detection and maintenance of power alternators and starter motors. Featuring a modern frequency-control LED digital screen, this equipment provides highly sensitive regulation and stable performance for 12V and 24V vehicle electrical systems. It allows technicians to accurately simulate real-world operating conditions, monitoring key parameters like voltage and current with precision. Designed for both durability and ease of use, the BCQZ-2B is an essential diagnostic station for any professional automotive repair shop specializing in electrical system calibration and troubleshooting.

Universal Alternator Tester, Starter Motor Test Bench, Automotive Electrical Diagnostic Tool

BCQZ-2D All-purpose Automobile Electric Test Bench for Alternator and Starter Motor Advantage

Digital Accuracy: Equipped with a frequency-control LED digital screen for clear and precise real-time monitoring of test data.
Variable Frequency Speed Regulation: Features a 1.5KW adjustable speed motor controlled by a frequency transformer for smooth and accurate speed adjustment.
Universal Compatibility: Supports a wide range of automotive electrical components, primarily focusing on 12V and 24V alternators and starters.

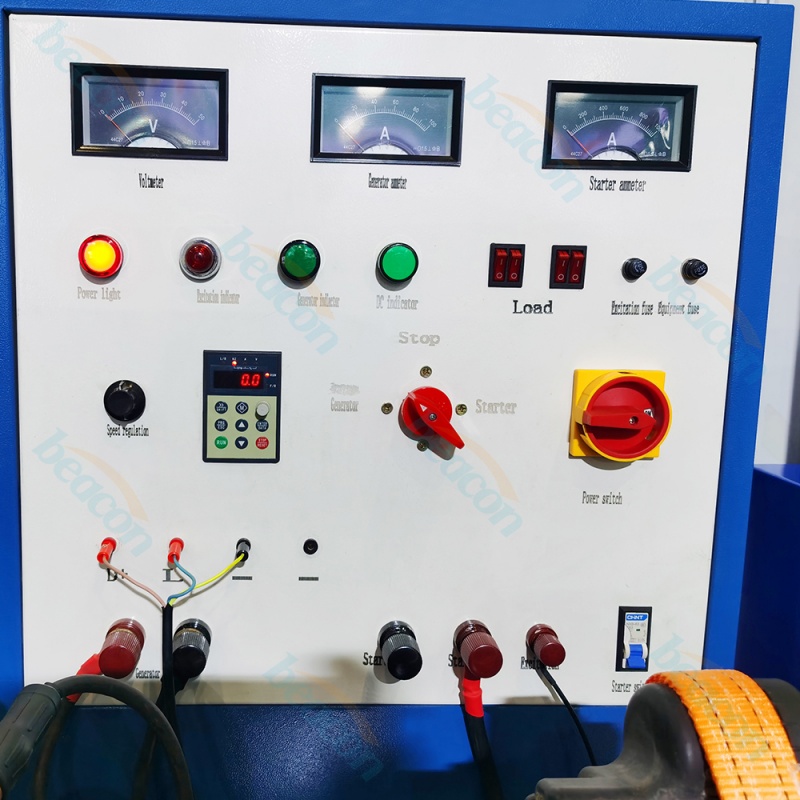

Safety-Focused Operation: Built-in indicators for RUN, STOP, JOG, FWD, and REV status to ensure correct and safe operating procedures.
Compact Desktop Design: Rugged and space-efficient structure suitable for various workshop environments.
External Battery Integration: Designed to work with external batteries to provide authentic power supply modes for more reliable starter testing.
High Sensitivity: Offers strong controllability and quick response times for identifying internal faults in electrical components.

parameter

Technical Item	Specifications (Model BCQZ-2D)
Input Power (Internal)	AC 220V, 50Hz Single Phase
External Power Supply	DC 12V / 24V
Motor Type	Adjustable Speed Motor (Frequency Control)
Motor Power	1.5 KW
Alternator Test Range	0 - 600 W
Maximum Restraint Current	1000 A (Analog)
Display Technology	LED Digital Screen
Excitation Current/Fuse	10 A
Operation Indicators	RUN, STOP, JOG, FWD, REV
