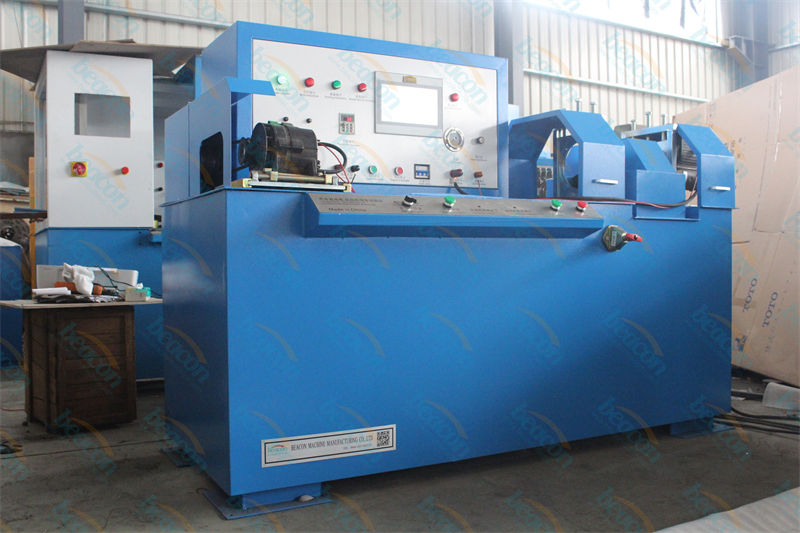

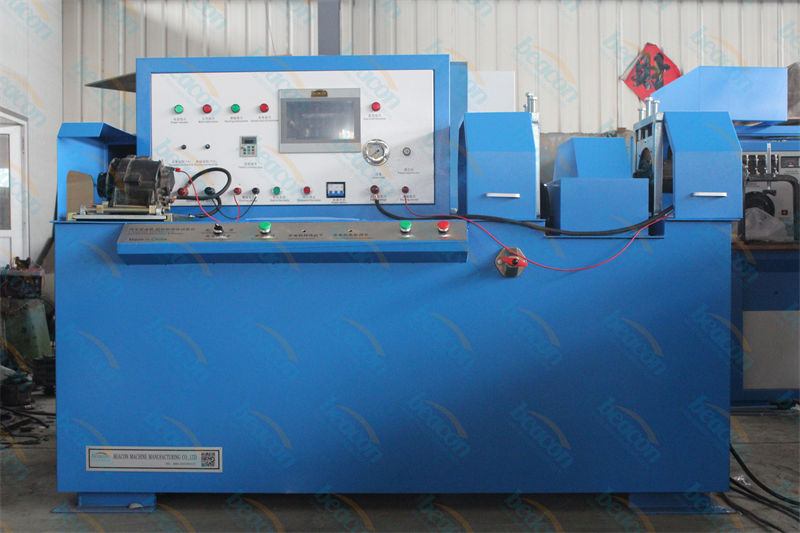

BCQZ-2C 15KW Professional Automobile Generator and Starter Comprehensive Test Bench

The BCQZ-2C is a high-capacity, multi-functional diagnostic platform designed for the performance evaluation of automotive generators (alternators) and starters. Equipped with a powerful 15KW motor and variable frequency speed regulation, this test bench utilizes a sophisticated PLC and touch screen control system to provide precise and automated testing. It supports dynamic detection for various types of motors, offering electronic modular loading that is both safe and reliable. Whether for professional repair shops or specialized motor manufacturing, the BCQZ-2C ensures high sensitivity and controllability, displaying real-time waveform curves and printing detailed detection results for complete quality assurance.

BCQZ-2C 15KW Professional Automobile Generator and Starter Comprehensive Test Bench Advantage

Dual-Function Diagnostics: A comprehensive solution that tests both automobile generators and starter motors on a single machine.
High Power Output: Featuring a 15KW motor and frequency converter, suitable for testing heavy-duty electrical components.
Advanced Intelligent Control: Integrated PLC and 10-inch touch screen system for automated data processing and intuitive operation.
Precise Speed Regulation: Offers a wide speed range (0-8000 RPM no load) with both forward and reverse steering capabilities.
Electronic Modular Loading: Uses a safe, adjustable electronic load (0-300A) to simulate real-world operating conditions for generators.
Real-time Data Visualization: Displays detection results and performance waveform curves directly on the screen for instant analysis.
Automated Reporting: Built-in printing and data export functions for professional maintenance records and quality documentation.

parameter

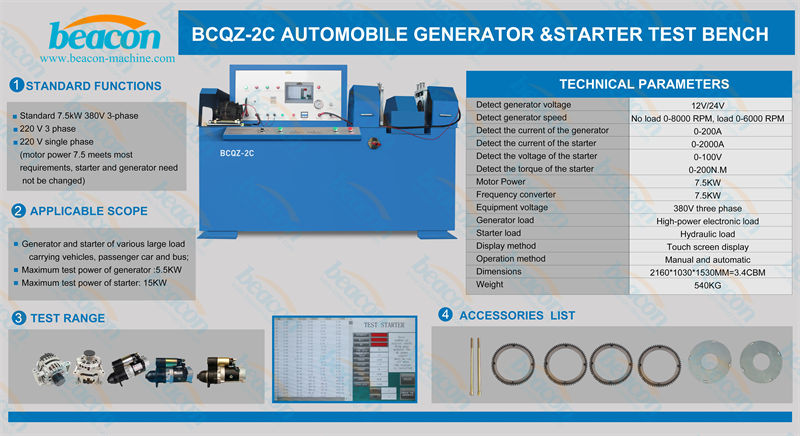

Technical Item	Specifications (Model BCQZ-2C)
Input Voltage	380V AC, 50Hz (3-Phase)
Motor / Converter Power	15 KW
Speed Range	No-load 0-8000r/min; Load 0-6000r/min
Generator Load Mode	Electronic Modular DC (0-300A Continuously Adjustable)
Excitation Voltage	DC 12V / 24V (Excitation Current 10A)
Starter Test Current	0 - 2000 A
Starter Torque	0 - 200 N.m
Generator Clamp	Electric Clamp for secure operation
Control Hardware	PLC Control with Touch Screen Interface
