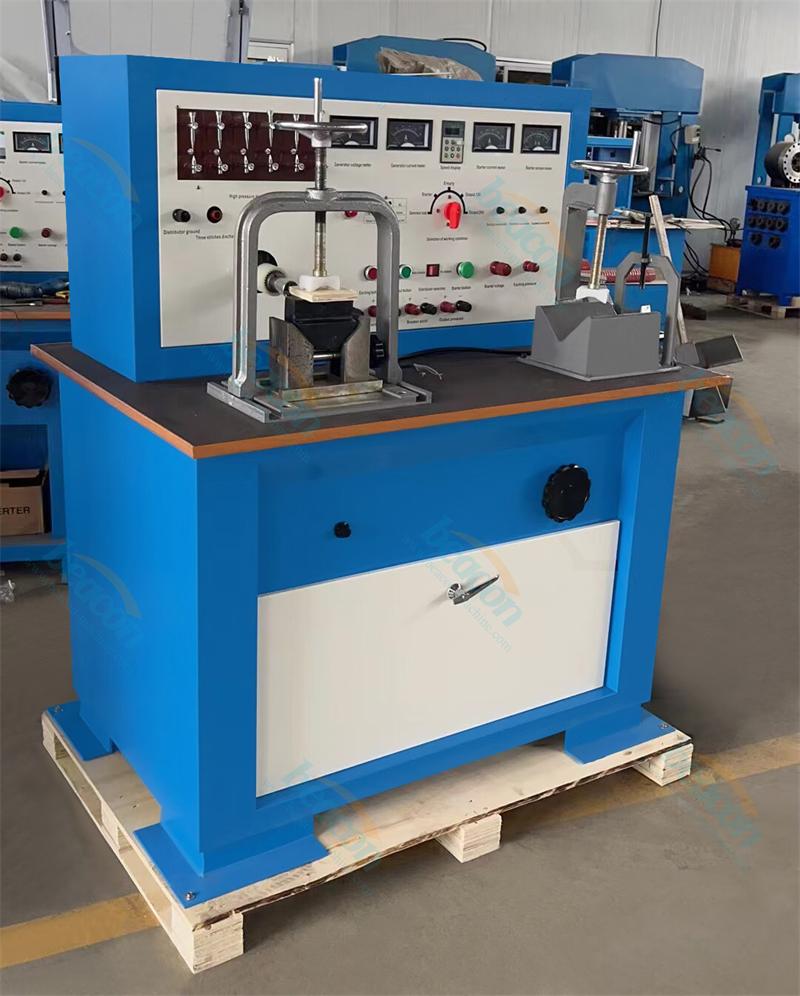

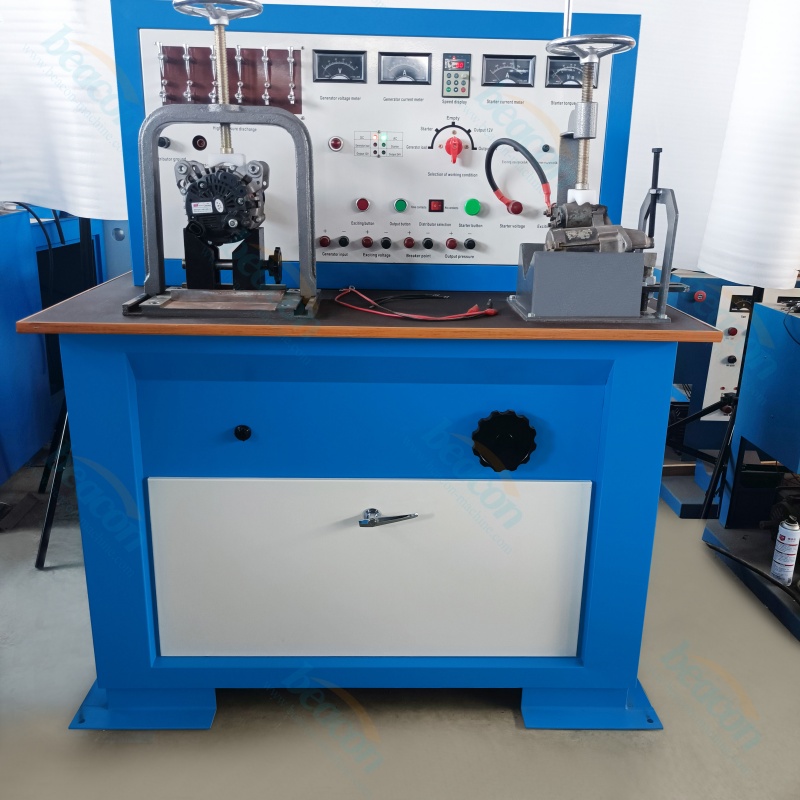

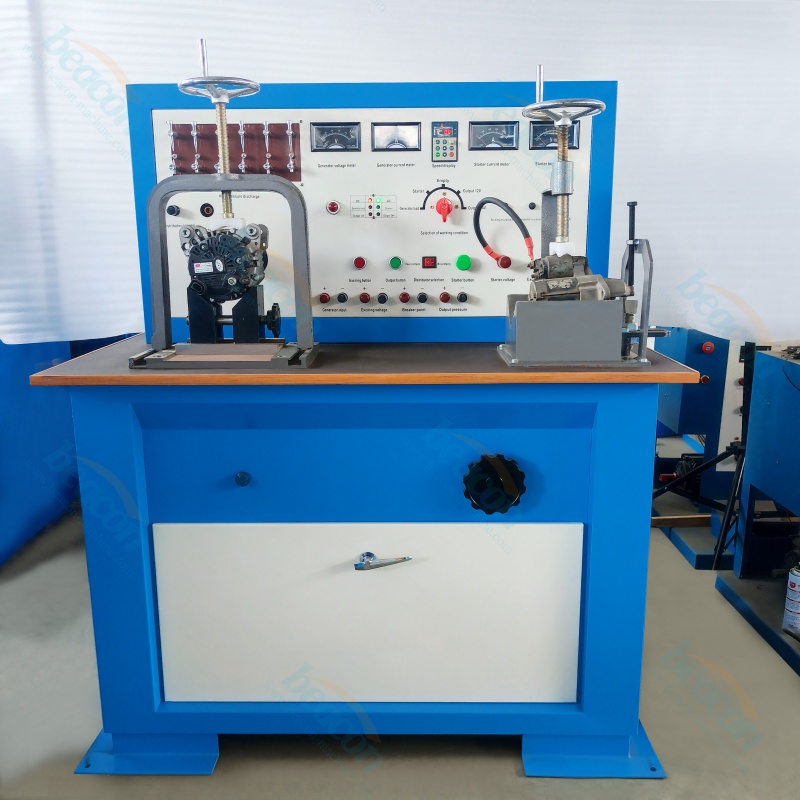

BCQZ-2B Automotive Electrical Starter and Alternator Test Bench with Variable Frequency Speed Control

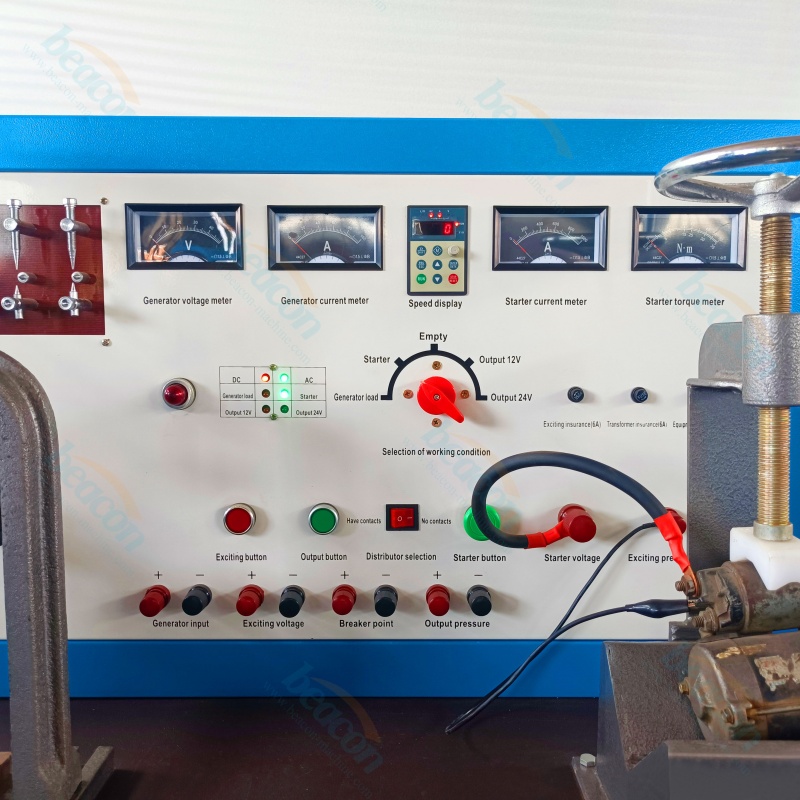

The BCQZ-2B is a versatile and cost-effective diagnostic solution designed for testing a wide range of automotive electrical components. This bench is primarily used to evaluate the performance of generators (alternators) and starters for 12V and 24V vehicle systems. Utilizing variable frequency speed regulation and high-sensitivity pointer instruments, it provides clear and immediate feedback on voltage, current, and torque. Beyond motors, it is uniquely equipped to test distributors, electric horns, wipers, and ignition coils, making it an all-in-one workstation for professional auto electrical repair shops.

BCQZ-2B Automotive Electrical Starter and Alternator Test Bench with Variable Frequency Speed Control Advantage

Multi-functional Diagnostic Center: Integrated testing for alternators, starters, distributors, ignition coils, horns, and wipers.
Variable Frequency Technology: Equipped with a frequency converter for precise speed regulation during generator testing.

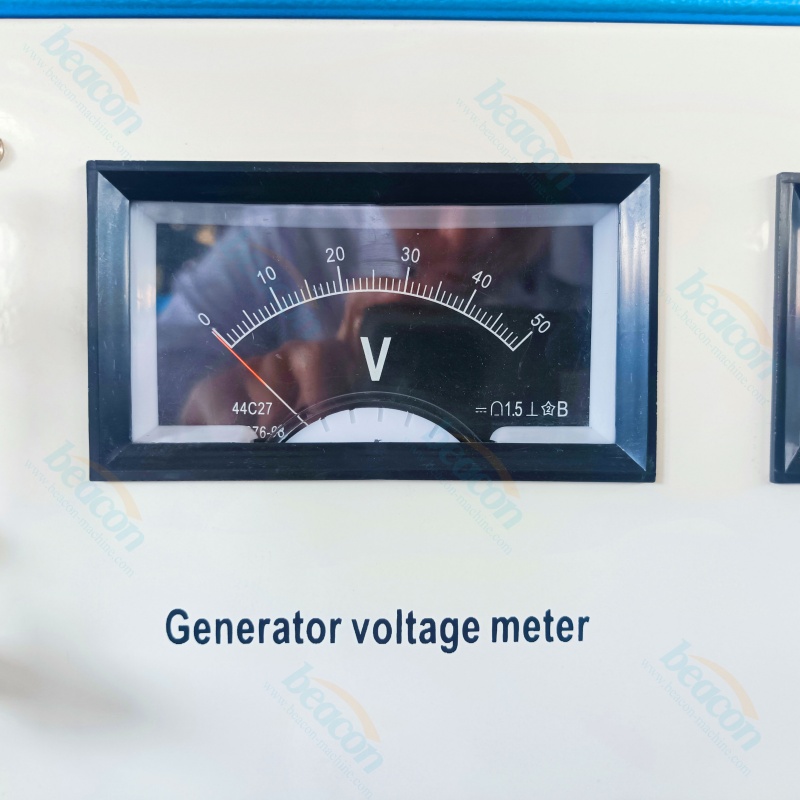

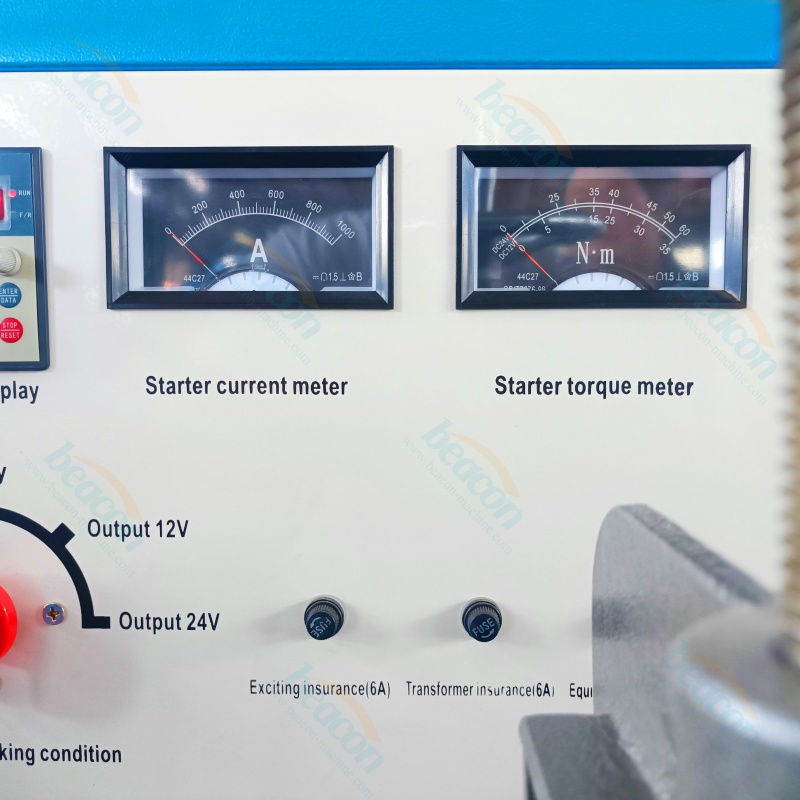

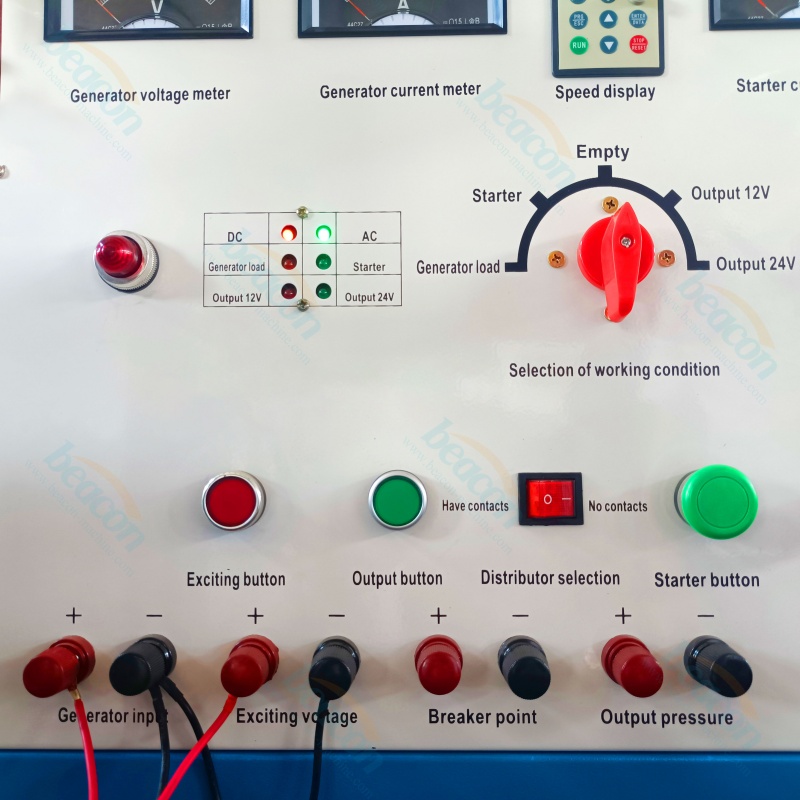

Intuitive Interface: Uses high-quality pointer instruments for real-time monitoring, making it easy to learn and operate for any technician.
Broad Compatibility: Supports both 12V and 24V automotive electrical systems with high control sensitivity.
Enhanced Safety: Built-in fuse protection and indicator lamps for each step to ensure safe operation and quick problem identification.
Compact & Durable: Designed with a stable structure and standard dimensions (125*80*150 cm) to fit efficiently into any workshop environment.
Charging Function: Integrated auxiliary charging feature for added convenience during electrical system maintenance.

parameter

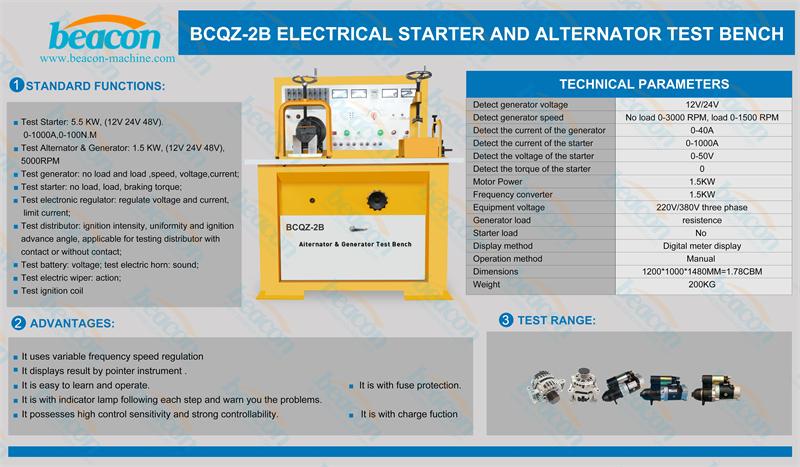

Technical Item	Specifications (Model BCQZ-2B)
Voltage Compatibility	12V / 24V (Generator & Starter)
Generator Speed Range	No load 0-3000 RPM, Load 0-1500 RPM
Generator Current Detection	0 - 40 A
Starter Current Detection	0 - 1000 A
Motor / Converter Power	1.5 KW
Equipment Power Supply	220V / 380V (Three Phase)
Additional Testing Functions	Distributor, Horn, Wiper, Ignition Coil
Display Method	Pointer Instrument with Indicator Lamps
Dimensions (LWH)	125 * 80 * 150 cm
