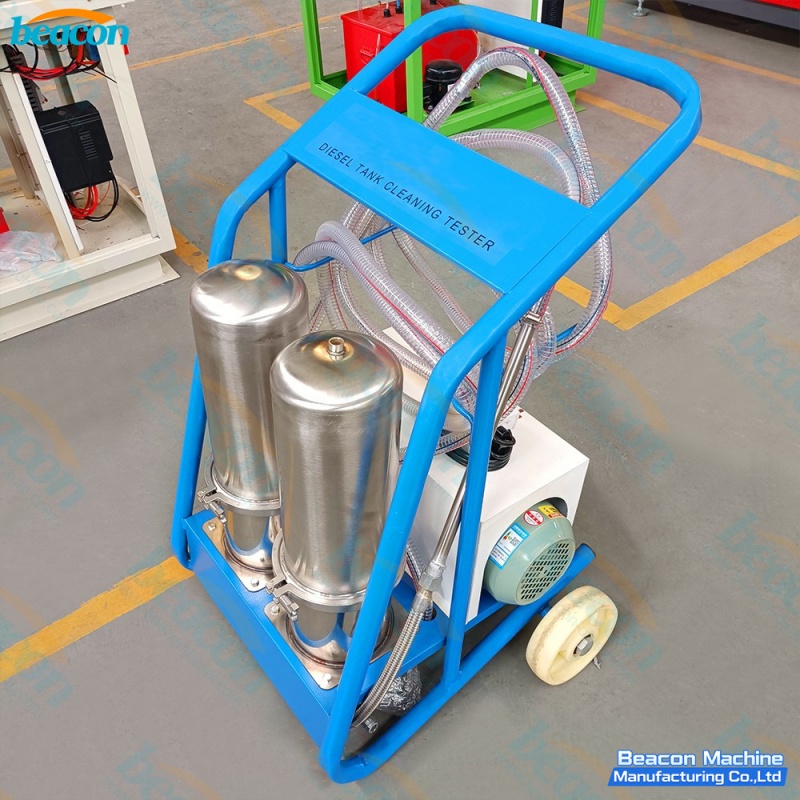

BCC Mobile Diesel Fuel Tank Cleaning Machine

The BCC Diesel Fuel Tank Cleaning Machine is a professionally engineered mobile maintenance system designed specifically for thoroughly cleaning the fuel tanks of various diesel vehicle models. Featuring a unique mechanical design and leading fluid circulation technology, this machine provides heavy vehicle workshops, agricultural fleets, and transport service stations with an exceptionally efficient way to remove sediment, sludge, particulate impurities, and water from deep inside fuel reservoirs[cite: 3].

Operating on an advanced continuous flow cycle, the BCC system eliminates the labor-intensive need to dismantle the fuel tank or remove any vehicle oil pipes during servicing[cite: 3]. It extracts contaminated diesel directly from the tank, purifies it through a rugged two-stage structural filtration layout, and then injects the clean fuel back into the tank's side cavities and hidden dead corners under high pressure to flush out accumulated contaminants[cite: 3].

Diesel Fuel Tank Cleaning Machine, Fuel Tank Washer, Fuel Tank Cleaning Equipment

BCC Mobile Diesel Fuel Tank Cleaning Machine Advantage

Non-Dismantling Operation: Allows technicians to rapidly clean the inner tank walls and corners without removing the fuel tank or vehicle oil pipes, significantly minimizing workshop labor and downtime[cite: 3].

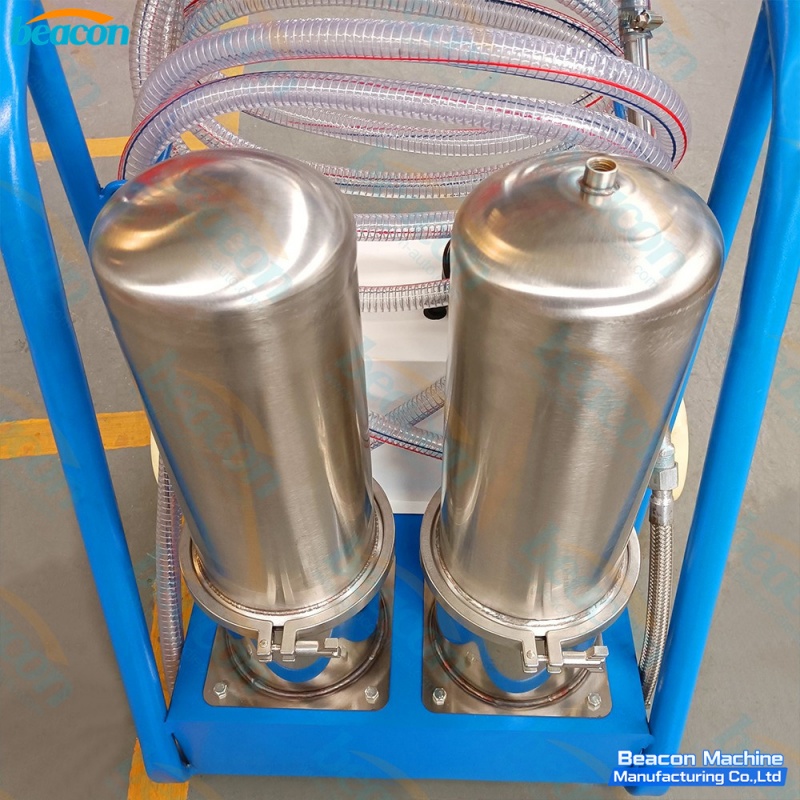

Advanced Two-Stage Filtration: Features a dual-vessel system where a coarse filter captures large particle debris and water, followed by a pressure-driven gear pump feeding a deep fine filter to remove microscopic sediment[cite: 3].
High-Flow Circulation Flush: Delivers a powerful fluid flow rate of 30 liters per minute at 1.5 Kg of spraying pressure, effectively creating a turbulent flow cycle that muddies and extracts deeply embedded sludge[cite: 3].
Visual Pollution Monitoring: Equipped with an intuitive lower window on the primary coarse filter tank, allowing the operator to directly observe filtered impurities and extracted water in real time[cite: 3].
Dual Versatile Cleaning Methods: Supports both a direct cycle cleaning method via adjustable spray rods and an emptying cycle method for small oil tanks or heavily contaminated reservoirs[cite: 3].
Mobile Ergonomic Design: Constructed on a highly durable push-cart frame with smooth rolling wheels and convenient hose racks, ensuring flexible mobility across busy workshop floors[cite: 3].

parameter

Technical Features	Specifications / Operating Specifications

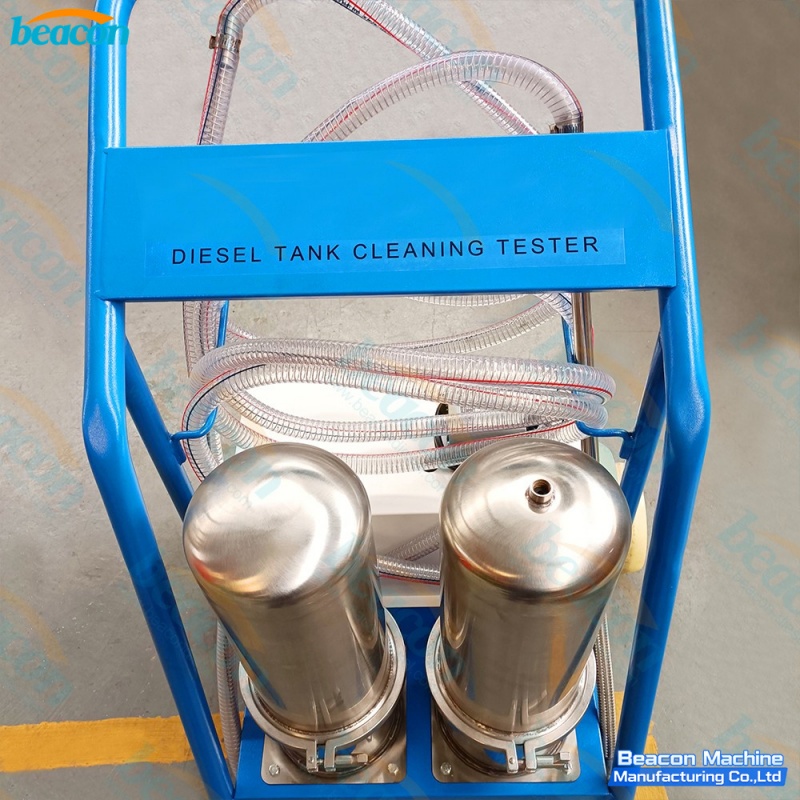

Model / Series	BCC Diesel Tank Cleaning Tester[cite: 3]
Applicable Fuel Type	Diesel Fuel Only (Strictly prohibited for gasoline, water, or corrosive liquids)[cite: 3]
Filtration Flow Rate	30 Liters per minute (30 L/min)[cite: 3]
Fuel Injection Flush Pressure	1.5 Kg[cite: 3]
Filtration System Layout	Two-Stage (Primary Coarse Filter Vessel + Deep Fine Filter Vessel)[cite: 3]
Power Voltage Options	Single-Phase 220V (Standard) / Optional Three-Phase Configuration[cite: 3]
Voltage Fluctuation Tolerance	Within ±5% of the rated working voltage[cite: 3]

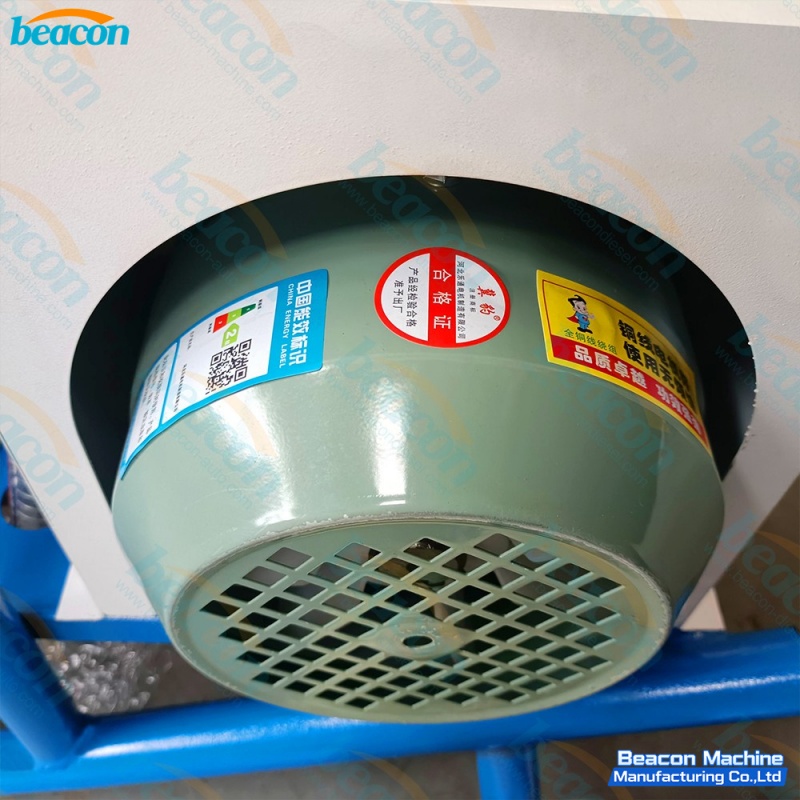

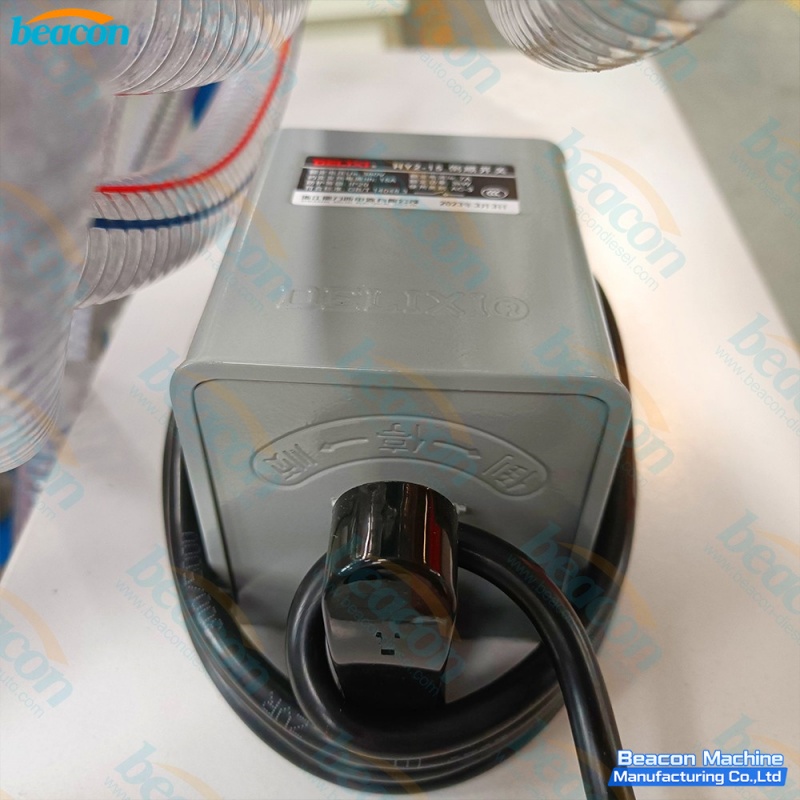

Pump Configuration	Heavy-Duty Oil-Rich Gear Pump with Forward/Reverse Safety Control Switch[cite: 3]
Inspection Features	Built-in Visual Impurity Inspection Window & Pressure Safety Gauge[cite: 3]
Target Application	Fuel Tank Maintenance for Buses, Heavy Trucks, Tractors, and Diesel Equipment[cite: 3]
