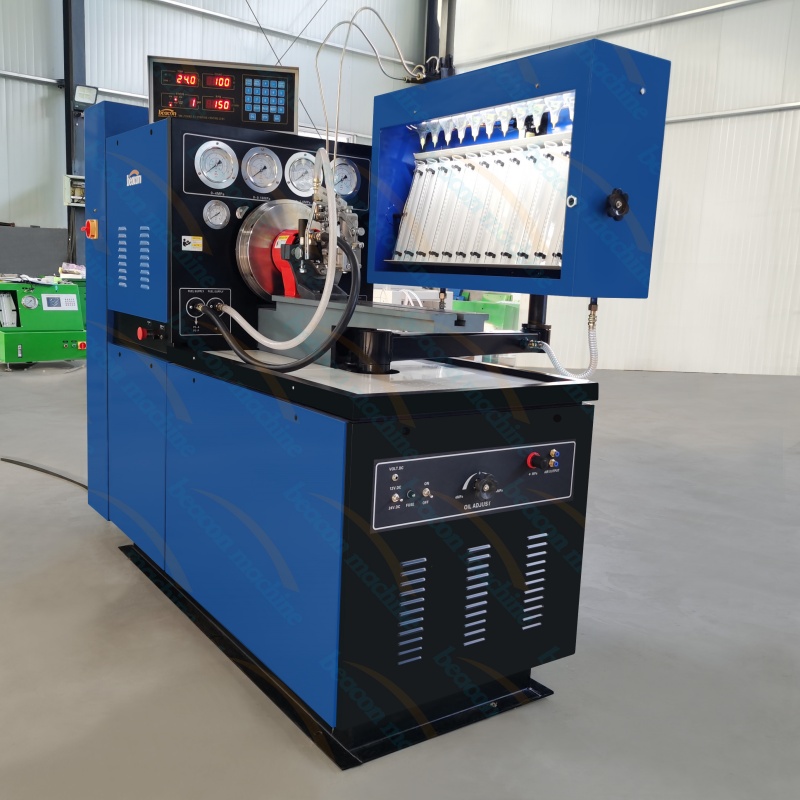

12 Psb Calibration diesel Fuel Injector Pump test Bench Testing Equipment 12PSB

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.


12PSB MAIN FUNCTION

1.Measurement of each cylinder delivery at any speed.

2.Test point and interval angle of oil supply of injection pump.

3.Checking and adjust the mechanical governor.

4.Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.

6. Measurement of oil return of distributing pump.
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)

8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device. (on request)

10. Checking the sealing of injection pump body

11. Install tube of auto-sucking oil supply can check on oil supply pump.(including VE pump)

12. Checking the travel of stroke.(on request)

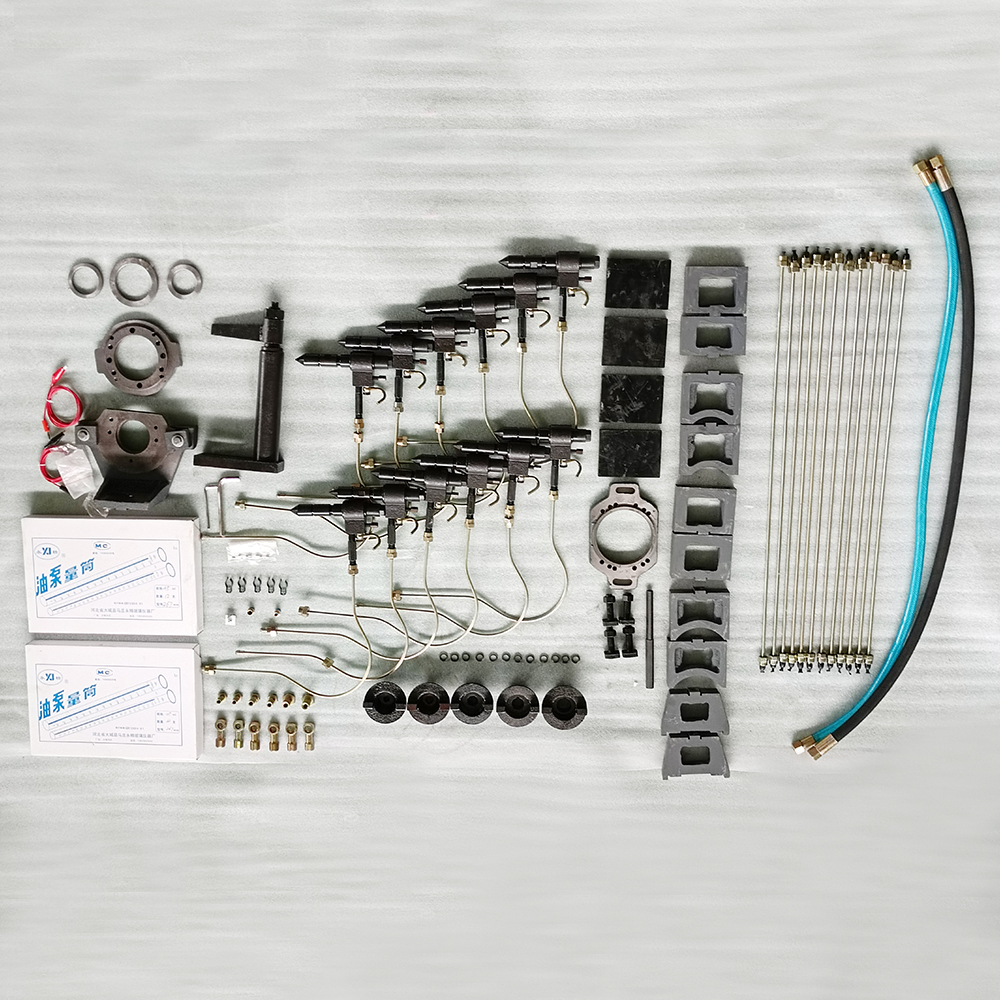

Accessories
12PSB附件图整体 1；1.jpg

Details

12PSB

11 KW 380/220V 1/3 phase 12 cylinder

Standard function:

1.Measurement of each cylinder delivery at any speed.

2.Test point and interval angle of oil supply of injection pump.

3.Checking and adjust the mechanical governor.

4.Checking and adjusting the distributor pump.

5..Experiment and adjusting of behavior of supercharging and compensatory device.

6.Measurement of oil return of distributing pump.

7.Testing of the electromagnetic valve of distributor pump.(12V/24V)

8.Measurement of the internal pressure of distributor pump.

9.Checking of the advance angle of advance device. (on request)

10.Checking the sealing of injection pump body

11.Install tube of auto-sucking oil supply can check on oil supply pump.(including VE pump)

12.Checking the travel of stroke.(on request)

No	Items	Parameter
1	Voltage:	220V 1 phase/220V 3 phase/ 380V 3 phase(or on request)
2	12PSB Power out put:	11/15/18.5/22KW
3	MINI12PSB Power out put:	7.5/11KW
4	Motor:	AC motor
5	Transmisson :	Converter
6	Speed range(rpm):	0~4000
7	Shaft high(mm):	125
8	Number of cylinders :	12/8
9	Number of prestting programmer of speed:	10
10	Test oil temperature:	40±2℃
11	Strokes counting:	50~9999
12	Feeding pumps motor:	1.1KW
13	Standard injector:	ZS12SJ1
14	Volume of test oil tank (L):	40
15	Small graduated cylinder(ml):	45
16	Large graduated cylinder(ml):	150
17	Flower meter:	LZB-10
18	DC power supply:	12/24V
19	High pressure of feeding test oil:	>4Mpa
20	Low pressure of feeding test oil:	>0.4Mpa
21	Pressure gague for VEpump:	0~1.6Mpa
22	12PSB test bench size/weight (m/kg):	(LWH):1.980.981.56 /650kg
23	12PSB packaging size/weight (m/kg):	(LWH):2.031.101.73 /710kg
