Don’t Blow a Gasket! Common Rail Diesel Injector Repair Made Easy

Common rail diesel injectors are precision components that operate at extreme pressures—up to 30,000 psi—through clearances as small as 1 micron. They’re critical for modern diesel engines (especially marine vessels, heavy-duty trucks, and construction equipment) because they deliver multiple injections per combustion cycle to maximize fuel efficiency and reduce emissions. But when they fail, the consequences can be costly—downtime, poor fuel economy, and even engine damage.

Marine common rail injectors are particularly susceptible to failure due to the harsh marine environment. Contaminants like diesel bug, water ingress, and salt crystal fouling can clog injectors, damage nozzles, and disrupt performance. A single failed injector can cause rough idle, black smoke, hard starts, and even strand a vessel in the harbor.

### Why Professional Repair Matters

Common rail injectors require specialized equipment and expertise to repair properly. Improper repair can lead to severe issues, including:

    - Rail over-pressure: Incorrectly calibrated injectors can cause excessive pressure that damages the entire fuel system.

    - Injector seizure: Poor installation techniques can cause injectors to seize in the cylinder head, requiring expensive removal procedures.

    - Piston damage: Faulty injectors can cause fuel wash-down, which damages pistons and cylinder walls.

    - Compliance issues: Commercial vessels must maintain certification, which requires proper documentation of all repairs.

### Professional Common Rail Injector Repair Services

Reputable diesel repair shops offer comprehensive common rail injector services, including:

    - Certified clean room service: Repairs are performed in a contamination-free environment to prevent debris from entering the injector.

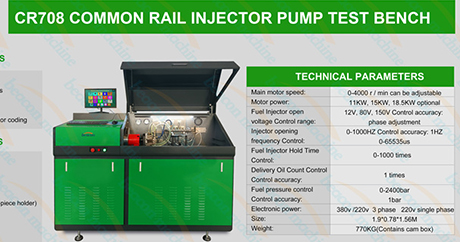

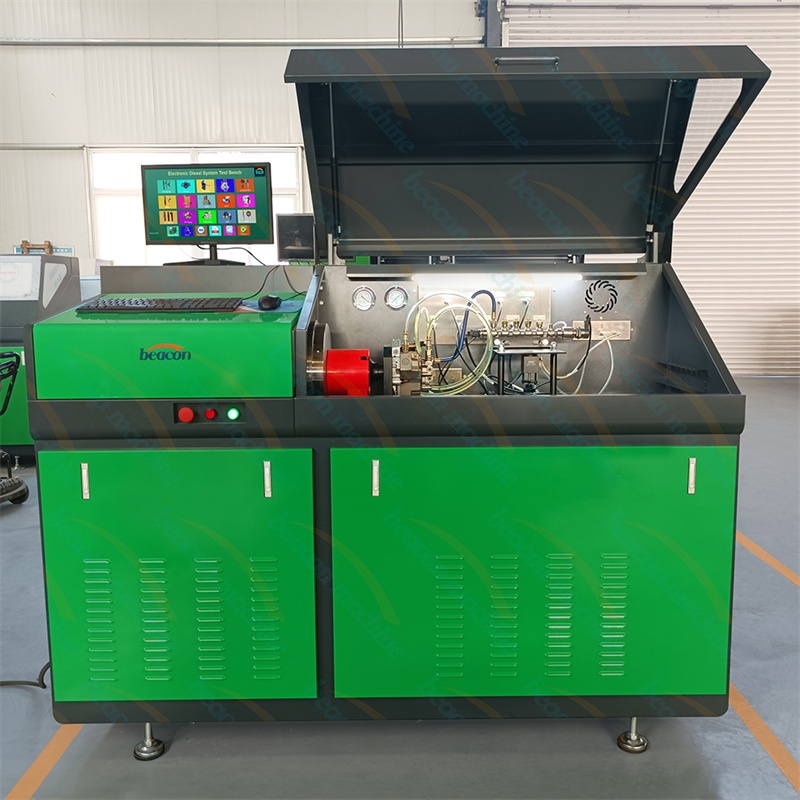

    - Specialized testing: Using equipment like the Becon CR708/EPS208S test bench to check spray pattern, pressure, and timing.

    - Ultrasonic cleaning: Removing carbon buildup and contaminants without damaging precision components.

    - Precision lapping: Restoring injector nozzles to factory specifications for optimal atomization.

    - Dockside service: On-site removal and reinstallation for marine vessels, minimizing downtime.

### Preventive Maintenance Tips

To extend the life of your common rail injectors:

    - Use high-quality, low-sulfur diesel fuel.

    - Replace fuel filters regularly (every 500 hours for marine vessels).

    - Treat fuel with a diesel bug inhibitor to prevent contamination.

    - Have injectors inspected annually by a certified technician.

- Avoid running the engine on low fuel, which can draw sediment from the tank into the injectors.
